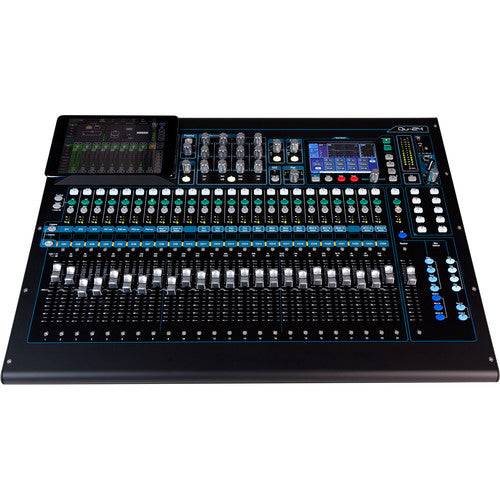

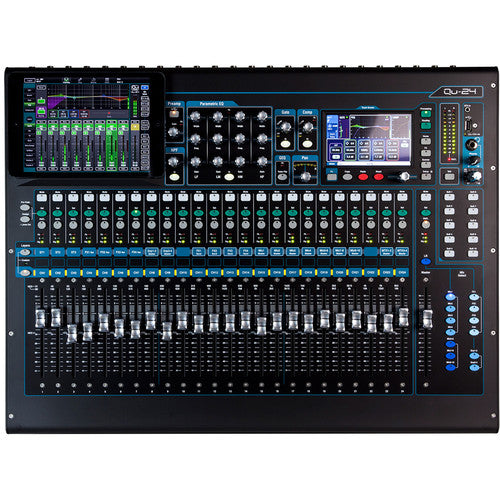

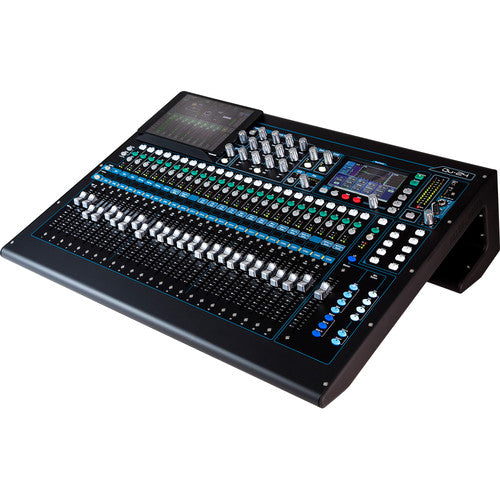

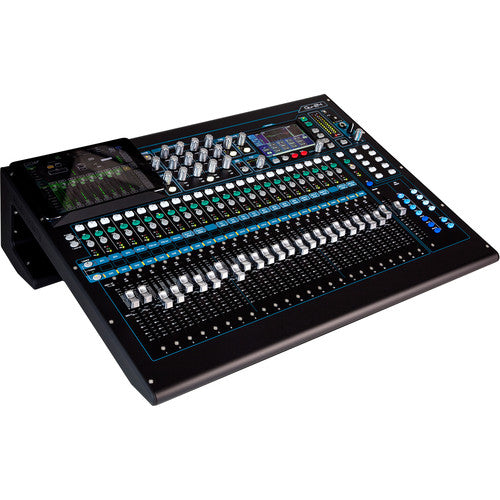

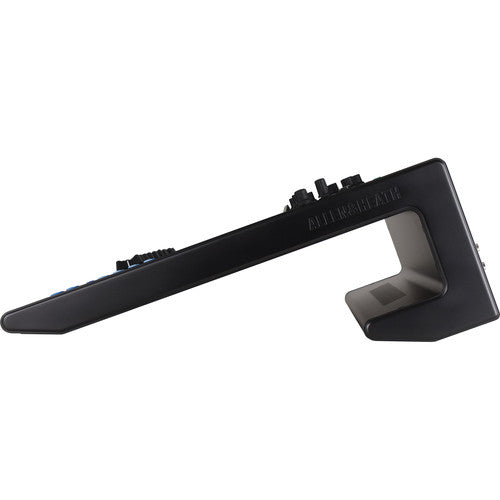

Allen & Heath Qu-24C 30-In/24-Out Digital Mixer (Chrome Edition)

Allen & Heath Qu-24C 30-In/24-Out Digital Mixer (Chrome Edition)

SKU: AH-QU-24C

Dhs. 11,349.00
Dhs. 11,349.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

Low stock: 1 left

Key Features

  • Chrome Knobs & Faders + Updated Firmware
  • 24 AnalogiQ Preamps
  • 5" Touchscreen
  • 25 Motorized 100mm Faders with Recall
  • 5-Core ARM Processor
  • Integrated iLive FX
  • Record Audio to Mac or USB Hard Drive
  • 48 kHz/24-Bit Resolution
  • iPad App for Wireless Mixing
  • dSNAKE Compatible
View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

Allen & Heath QU-24

The chrome edition Qu-24C 30-In/24-Out Digital Mixer from Allen & Heath features 24 of Allen & Heath's AnalogiQ microphone preamps and is powered by its 5-core ARM processor to provide a variety of integrated effects and processing including channel-independent 4-band parametric EQs, compressors, delay, reverb, and more. The mixer is capable of recording audio to either your Mac or a USB hard drive in up to 48 kHz/24-bit resolution, allowing you to record both the individual tracks and live mix of your shows. The chrome edition adds high-contrast chrome rotary and fader knobs that improve visibility in dark conditions, as well as a number of software enhancements from the updated firmware (V1.8).

The mixer is compatible with both the ME monitoring system and dSNAKE digital connectivity system from Allen & Heath. The Qu-24 can also be used with the Qu-Pad app, allowing you to use your iPad to mix from anywhere in the venue when connected to a wireless network.

Allen & Heath QU-24 Specs

Configuration

• Number of Analog Input Channels: 24

• Mix Routing: 4x Stereo FX Return

• Groups: 4x Mute Group

Display

• Screen: 5" Touchscreen

• Resolution: 800 x 480

Faders & Meters

• Faders: 3.9" / 100 mm Motorized

• Meter Range: -48 to -3 dBFS Peak/Clip (+19 dBu at XLR Output)

• Meter Calibration: 0 dB on Meter = -18 dBFS (+4 dBu at XLR Output)

Signal Processing

• Gain/Trim Range:

 – Line: ±24 dB (Stereo Channels)

 – Mic/Line: -10 dB to +60 dB (in 1 dB Steps)

• Input Polarity: Normal/Reverse

Gate Parameters

• Threshold: -72 to +18 dBu

• Depth: 0 to 60 dB

• Attack: 50 μs to 300 ms

• Hold: 10 ms to 5 sec

• Release: 10 ms to 1 sec

Compressor Parameters

• Threshold: -46 to 18 dBu

• Ratio: 1:1 to ∞:1

• Attack: 300 μs to 300 ms

• Release: 100 ms to 1 sec

• Knee: Soft / Hard

EQ

• FX Returns: 4-Band Parametric

• Parameters:

 – 1x HF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)

 – 2x MF Notch/Peak: ±15 dB at 20 Hz to 20 kHz

 – 1x LF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)

Graphic EQ

• 28-Band 1/3 Octave, ±12 dB (31 Hz to 16 kHz)

Filters

• High-Pass: 20 Hz to 20 kHz, 12 dB/Octave

Monitoring

• AFL, PFL, Post-Preamp, Post-EQ, Post-FX

Built-In Effects

• Reverb

• Delay

• Gated Reverb

• ADT

• Chorus

• Phaser

• Flanger

Analyzer & Delay

• Real Time Analyzer: 31-Band 1/3 Octave, 20 Hz to 20 kHz

• Audio Delay: Up to 170 ms

Digital Audio

• Sample Rate: 48 kHz

• AES3 Output: 48 kHz

• Bit Depth: 24-Bit Delta Sigma (AD/DA Conversion)

• Latency:

 – 1.2 ms (Mic Input to XLR Output)

 – 0.7 ms (Mic Input to AES Output)

Performance

• dBFS Reference Level: +18 dBu = 0 dBFS

• Headroom: +18 dB

• Frequency Response: 20 Hz to 20 kHz (+0/-0.5 dB)

• Max Input Level:

 – Mic: +19 dBu

 – Line: +29 dBu

 – Aux: +22 dBu (+4 dBu), +18 dBu (0 dBu)

• Output Level:

 – Line Output: +22 dBu / +4 dBu

 – Stereo Output: +22 dBu / +4 dBu

• Analog Dynamic Range: 112 dB

• Noise Floor: -90 to -91 dBu (Inputs Muted)

• THD+N:

 – Mic/Line Input: 0.0005% at Unity Gain

 – 0.001% at +30 dB Gain

• Signal Generator: Sine, White, Pink, or Band-Pass Noise (Assignable)

Connectivity

Analog Inputs

• 1x XLR Talkback Input

• 24x XLR Balanced Mic Input

• 24x 1/4" TRS Balanced Line Input

• 4x 1/4" TRS Balanced Aux Input (2 Stereo Pairs, Half-Normalled)

• 1x 1/8" / 3.5 mm Unbalanced Aux Input

Analog Outputs

• 10x XLR Balanced Mix Output

• 2x XLR Balanced Main Output

• 4x XLR Balanced Subgroup Output

• 4x XLR Balanced Matrix Output

• 4x 1/4" TRS Balanced Aux Output (2 Stereo Pairs)

Digital I/O

• 1x RJ45 (Network)

• 1x XLR AES3 Output

• 1x etherCON dSNAKE (I/O)

Power

• AC Input Power: 100 to 240 VAC, 50/60 Hz

• Power Consumption: 120 W (Max)

Physical

• Operating Temperature: 32 to 95°F / 0 to 35°C

• Dimensions: 24.9 x 19.7 x 7.4" / 632 x 500 x 186 mm

• Weight: 31 lb / 14 kg

Packaging

• Package Weight: 39.5 lb

• Box Dimensions (LxWxH): 30.75 x 26.5 x 13.75"

  • Allen & Heath Qu-24C 30-In/24-Out Digital Mixer (Chrome Edition)
  •  Limited 1-Year Manufacturer Warranty
