Allen & Heath XONE 23

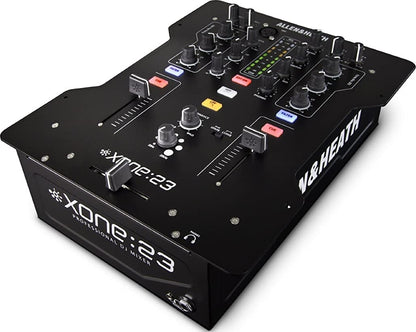

The Allen & Heath XONE:23 - 2+2 Channel DJ Mixer is designed for professional and home DJ applications such as at a party or in the club. The mixer features an enhanced version of Allen and Heath's Xone voltage controlled filter system with resonance control, a 3-band total kill EQ per side, VCA faders, illuminated switches, styling from the flagship DB4 DJ mixer, and a user upgradeable crossfader with curve selector.

For I/O, the mixer includes two pairs of RCA line inputs and two pairs of RCA phono inputs. Though the mixer has two faders, each of the four inputs has an independent level control to enable playing up to four simultaneous sources in the mix. It also features dedicated stereo send and return channels for integrating external effects units. The front panel of the unit includes a balanced XLR input for connecting a microphone with level, high frequency, and low frequency equalizer controls.

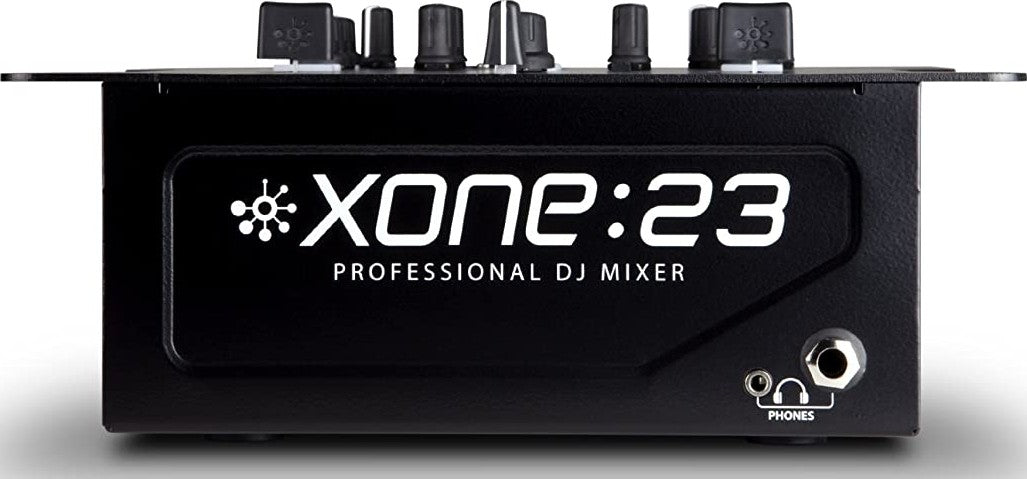

The master outputs are on balanced XLR connectors and the mixer includes a dedicated stereo booth output, as well as a dedicated stereo record out for capturing your mixes to a portable recorder. An 1/8" and a 1/4" headphone connector enable cueing with a wide variety of DJ headphones.

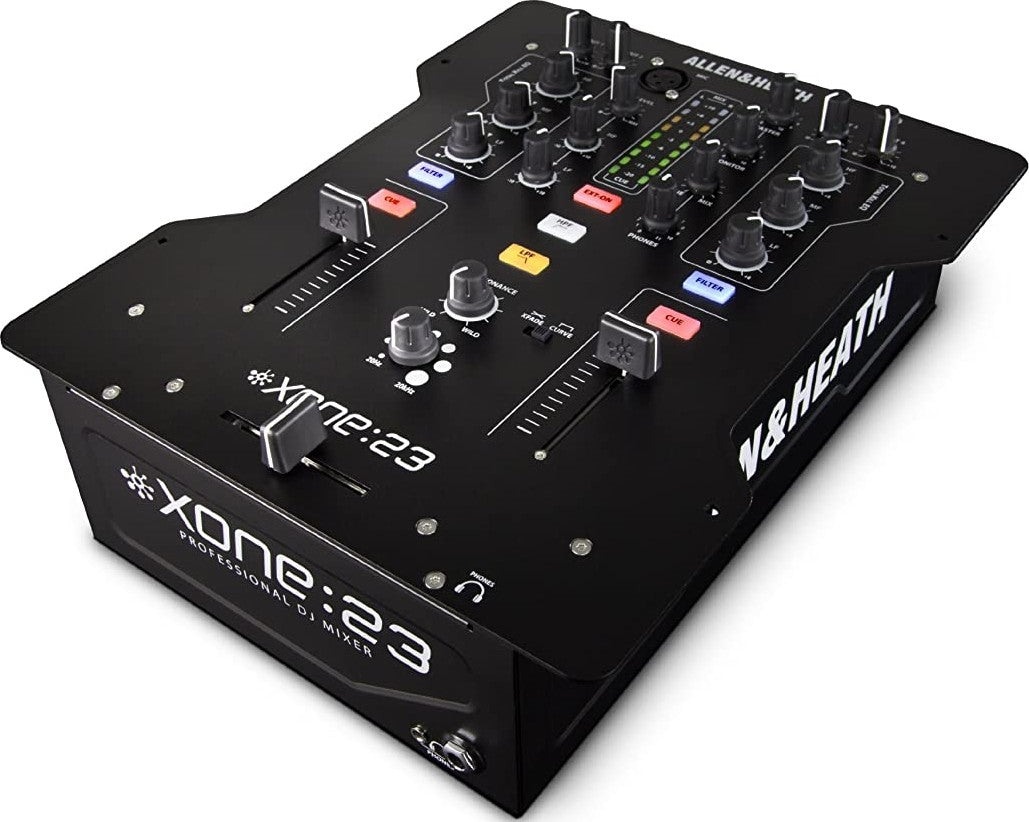

For control, the front panel of the mixer features gain knobs for all four channels. The four inputs are slit into left and right sides, each with a 9-segment LED light meter, separate high, mid, and low frequency total kill EQ knobs, a VCA channel fader, illuminated cue button, and an illuminated button to engage the filter on that side. The center section includes an illuminated button for engaging the external effects send/return, an illuminated button for engaging a high pass filter, an illuminated button for engaging the low pass filter, a frequency selector knob for the filter, and a VCA resonance control knob from mild to wild.

The crossfader features a switchable curve for mixing or scratching. As an option, the user can replace the stock crossfader with Allen and Heath's high end Innofader for enhanced performance (sold separately).

Filters: Provides voltage controlled low and high pass filters with frequency and resonance control

External FX Loop: Enables send and return connection to external effects processor with the push of a button

Crossfader Curve Selector: Switches curves between modes dedicated to mixing and scratching

Upgradeable Crossfader: Allows for user to purchase and install an Allen and Heath Innofader for enhanced crossfader performance

Input Level Control: Enables simultaneous mixing of all four inputs

Headphone Output: Provides 1/8" and ¼" jacks for connecting to a variety of DJ headphones

Record Output: Enables recording DJ mixes to external recorders

Allen & Heath XONE 23 Specs

Configuration

• Type: DJ Mixer

• Number of Channels: 2x Stereo

• Platter/Jog Wheel: No

Performance Controls

• High-Pass Filter, Low-Pass Filter

• Faders:

 – 2x Channel Level

 – 1x Crossfader

• Fader Shutoff:

 – Channel: >-80 dB

 – Crossfader: >-80 dB

Built-In Effects

• None

EQ

• 3x Channel EQ: Hi, Mid, Low

Audio Inputs

• 2x Stereo 2RCA Coaxial Phono Input

• 2x Stereo 2RCA Coaxial Line Input

• 1x Stereo 2RCA Coaxial Return Input

• 1x XLR 3-Pin Mic Input

Audio Outputs

• 2x XLR 3-Pin Balanced Master Output

• 1x Stereo 2RCA Coaxial Booth Output

• 1x Stereo 2RCA Coaxial Record Output

• 1x Stereo 2RCA Coaxial Send Output

• 1x 1/4" TRS Headphone Output

• 1x 1/8" / 3.5 mm TRS Headphone Output

Meters

• Main Meter: 2x 8-Segment LED

• Channel Meter: 0 dB to 10 dB Peak/Clip

Sample Pads

• None

Stems Processing

• No

Connectivity

• Phantom Power: No

• USB: No

• Wireless: No

• Media Card Slots: No

Performance

• Frequency Response: 10 Hz to 50 kHz

• Input Levels:

 – Phono: 7 mV (Min), 100 mV (Max)

 – Line: -10 dBu (Min), +20 dBu (Max)

 – Return: 0 dBu (Min), +20 dBu (Max)

 – Mic: -42 dBu (Min), -12 dBu (Max)

• Headroom: 20 dB

• Gain/Trim Range: -10 dBu to +20 dBu

• Output Level:

 – Master: +4 dBu (Nominal), +28 dBu (Max)

 – Booth: -2 dBu (Nominal), +22 dBu (Max)

 – Record: -2 dBu (Nominal), +19 dBu (Max)

 – Send: -2 dBu (Nominal), +19 dBu (Max)

• Headphone Output Power: 200 mW into 30 Ohms (Max)

I/O Impedance

• Phono Input: 47 Ohms

• Line Input: 20 kΩ

• Return Input: 10 kΩ

• Mic Input: <2 kΩ

• Master Output: 100 Ohms

• Booth Output: 100 Ohms

• Record Output: 100 Ohms

• Send Output: 100 Ohms

• Headphone Output: 1 Ohm

SNR & THD

• Signal-to-Noise Ratio (SNR) Master: -85 dBu

• THD+N: 0.01%

Compatibility

• Included Software: No

• OS Compatibility: No

• Mobile App Compatible: No

Power

• Power Requirements: AC/DC Power Adapter (Included)

• Power Supply Output: 12 VDC at 1.25 A (Included)

• Current Consumption: 1.25 A

Physical

• Dimensions (W x D x H): 9.4 x 12.4 x 4.2" / 240 x 315 x 106 mm

• Weight: 6 lb / 2.7 kg

Packaging Info

• Package Weight: 8.9 lb

• Box Dimensions (LxWxH): 18.2 x 13.1 x 7.7"

• Allen & Heath XONE:23 - 2+2 Channel DJ Mixer
• Power Cord
• Power Supply
• Limited 1-Year Manufacturer Warranty
