Allen & Heath

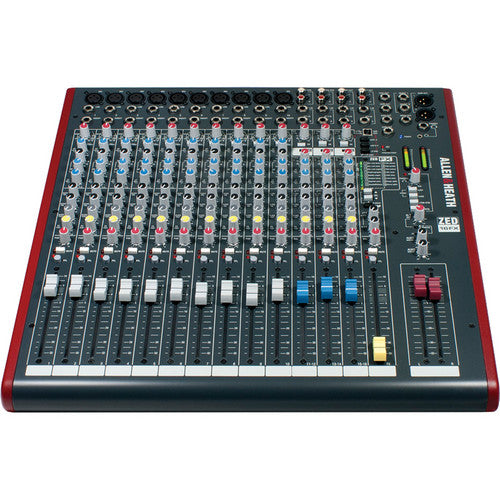

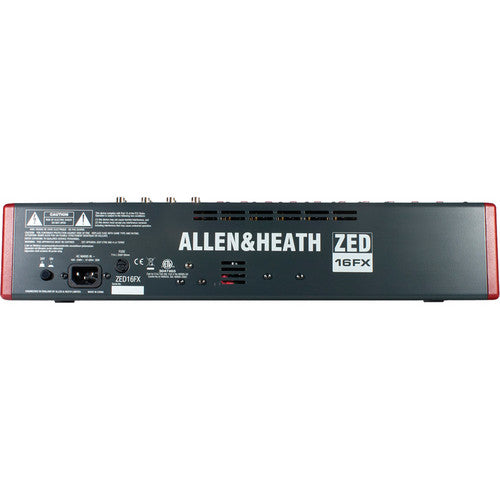

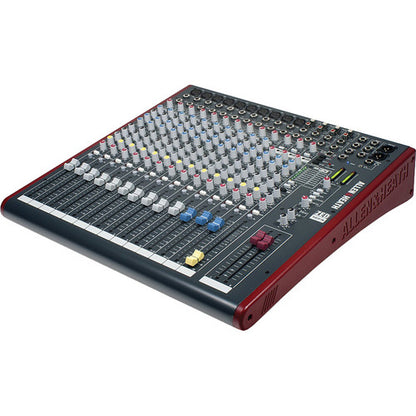

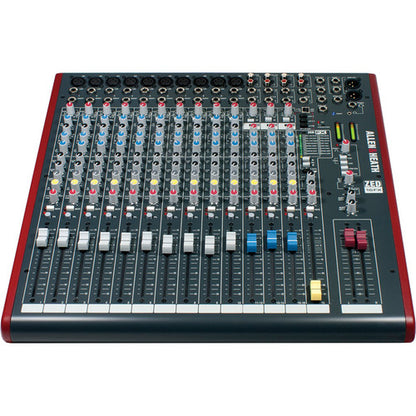

Allen & Heath ZED-16FX 16-Channel Recording and Live Sound Mixer with FX & USB

Allen & Heath ZED-16FX 16-Channel Recording and Live Sound Mixer with FX & USB

SKU: AH-ZED16FX

Dhs. 2,899.00
Dhs. 2,899.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

Low stock: 2 left

Key Features

  • USB Connection for Mac and Windows
  • 16 Internal Effects
  • 10 Mono Input Channels
  • 3 Stereo Input Channels
  • 3-Band EQ Section with MusiQ
  • Four AUX Sends
  • Includes Cakewalk Sonar LE Software
View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

Allen & Heath ZED 16FX

The Allen and Heath ZED-16FX Mixing Console is a flexible, compact mixing desk for today's home studio, project recording and small live sound reinforcement applications. The ZED-16FX features 16 inputs comprised of 10 mono and 3 stereo channels. The mono inputs provide high quality microphone preamps and three-band EQ. The ZED-16FX features a USB connector for direct integration with Mac and Windows computers and a copy of Sonar LE recording software is included. In addition to all this, the mixer's internal effects engine delivers up to 16 high quality effects for recording and live sound reinforcement.

Allen & Heath ZED 16FX Specs

Configuration

• Total Number of Inputs: 16

• Mic/Line Inputs:

 – 10x 3-pin XLR Balanced Microphone

 – 10x 1/4" Phone Balanced Line

• Stereo Line Inputs: ST1–ST3 1/4" Phone L/R Stereo

• In-Line Inputs/Returns: None

• AUX Sends: 1/4" TRS Phone x3 (4 Total Sends, 1 reserved for internal effects)

• AUX Returns: Dedicated USB Return, Aux 1-2, Aux 3-4, L/R Pre

• Inserts: 1/4" TRS Phone x12 (Mono Channels and Main Stereo Out)

• BUS (Group) Outputs: None

• 2 Trk Master I/O: Main Output: Balanced 3-pin XLR

• ALT I/O: USB Connector, 1/4" Phone Mono Out

• Monitor Outputs:

 – RCA Stereo Phono - ALT Out

 – RCA Stereo Phono - REC Out

• Phantom Power: +48V Switched Globally

EQ Section

• Mono Channels: 3-Band EQ with Mid Sweep

• Stereo Channels: 2-Band EQ

Channel Control

• Channel Level Control: 100 mm Fader

• Trim / Gain Control: Rotary Control

• Solo / Mute: Mute and PFL Solo

Metering

• 12-Segment Peak LEDs

Performance

• Frequency Response:

 – Mic in to Mix L/R Out (30 dB gain): +0.5 / -1 dB, 20 Hz to 20 kHz

 – Line in to Mix L/R Out (0 dB gain): +0.5 / -1 dB, 10 Hz to 30 kHz

 – Stereo in to Mix L/R Out: +0.5 / -1 dB, 10 Hz to 30 kHz

• Headroom:

 – Analogue Headroom from nominal (0 VU): 21 dB

 – USB in & out headroom from nominal (0 VU): 14 dB

• Signal-to-Noise Ratio (SNR):

 – Mic Pre EIN @ max gain, 150 Ω input Z, 22-22 kHz: -127 dBu

 – Mix L/R out, L/R faders = 0, 22-22 kHz: -86 dBu

• Total Harmonic Distortion (THD):

 – Mic in to Mix L/R Out, 0 dB gain, 1 kHz, +10 dBu out: 0.004%

 – Mic in to Mix L/R Out, 30 dB gain, 1 kHz: 0.014%

 – Line in to Mix L/R Out, 0 dB gain, 0 dBu, 1 kHz: 0.005%

 – Stereo in to Mix L/R Out, 0 dB gain, +10 dBu, 1 kHz: 0.003%

USB Audio

• USB Audio In/Out: USB 1.1 compliant, 16-bit

• Sample Rates: 32 / 44.1 / 48 kHz

Physical

• Dimensions (W x D x H): 18.3 x 3.85 x 18.3" / 464 x 98 x 465 mm

• Weight: 18.7 lb / 8.5 kg

Packaging Info

• Package Weight: 22.5 lb

• Box Dimensions (LxWxH): 24.25 x 23.75 x 10.75"

  • Allen & Heath ZED-16FX 16-Channel Recording and Live Sound Mixer with FX & USB
  • USB Cable
  • Power Cable
  • Sonar LE Install CD
  •  Limited 1-Year Manufacturer Warranty
