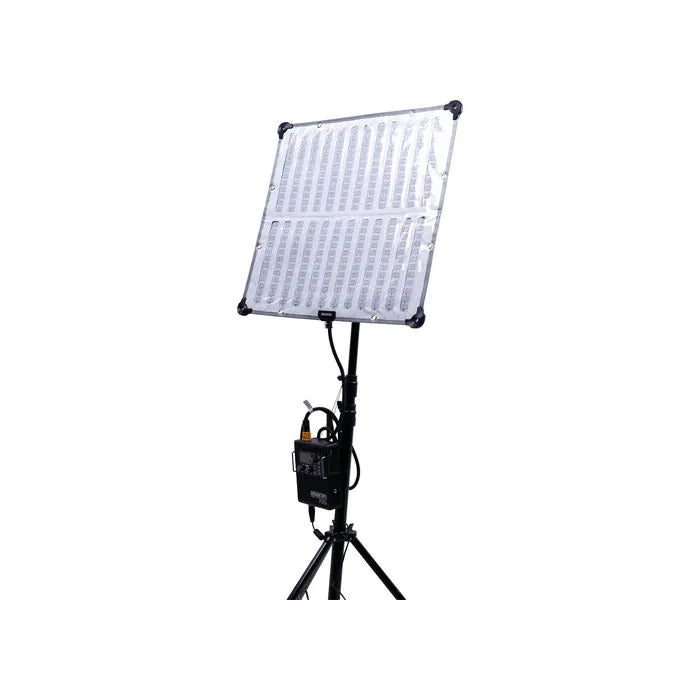

amaran F21c RGBWW LED Mat (V-Mount, 2 x 1')

amaran F21C Overview

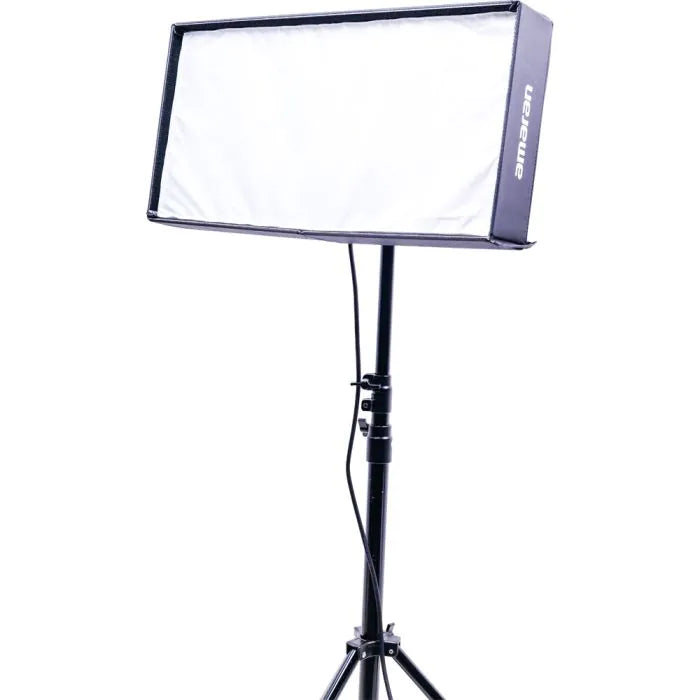

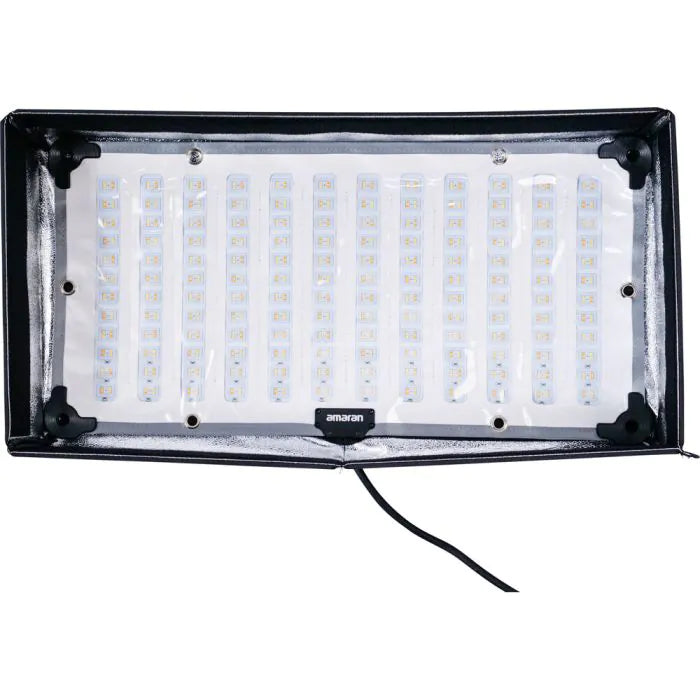

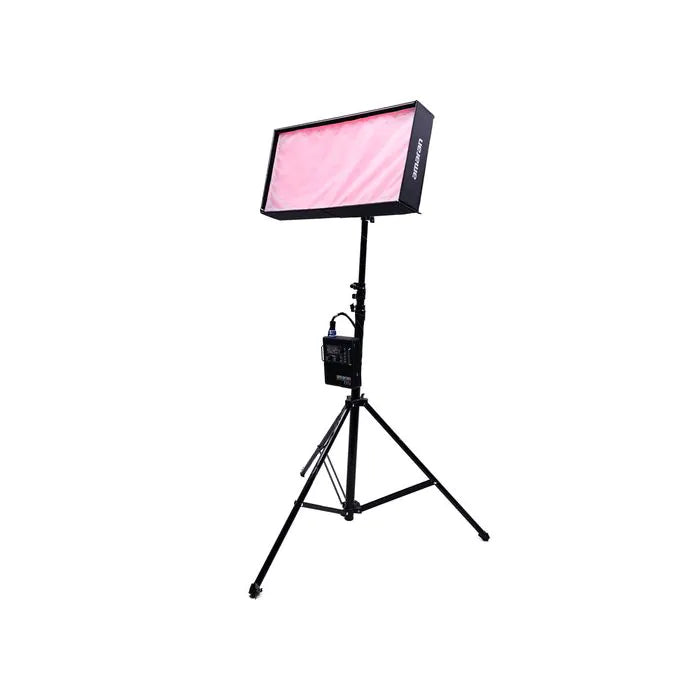

The F21c RGBWW LED Mat from amaran is a powerful, versatile, and flexible LED mat that measures 2 x 1'. It offers outstanding light output and color rendering suitable for a variety of users, from filmmakers to videographers, content creators, and still photographers. Providing 100W of power, it features RGBWW LEDs for complete color control, as well as tunable CCT from 2500K to 7500K, providing endless possibilities for creative lighting selections through 360° HSI control, 46 color gel presets, and 15 unique customizable lighting effects. It has stellar CRI and TLCI scores of 95+ and 97+, and stepless dimming from 0 to 100%. An included folding X-frame stretches the mat to a rigid panel that can be attached directly to a C-stand grip head using the straight Baby Pin adapter, or onto any standard light stand with the included right angle Baby Pin and tilting stand mount. The included foldable softbox has two strengths of diffusion, and a fabric grid that uses an integrated hook-and-loop fabric to instantly turn this flexible mat into an ultrathin soft light that will add beautifully controlled soft light to a scene.

The control box is a multi-voltage AC power supply that features a V-mount battery plate for use with compatible 14.4V, 26V, or 28.8V batteries. Full output can be achieved when using the AC power supply, using batteries allows the F21c to be used at either half or full power, depending on battery strength.

The free Sidus Link app makes it possible to utilize tools unique to the Aputure and amaran ecosystems, such as Source Match, Color Picker, and Custom FX. The F21c can also be controlled using DMX with a separately available USB-C to 5-Pin DMX512 in & out adapter cable, adding professional-level control to an individual unit or groups of lights. The amaran F21c is ideal for videographers who need a versatile and literally flexible lighting solution. The RGBWW flexible panel gives users unmatched strength and control over a wide, expanded CCT range to match a variety of white light environments.

• 100W output
• 2 x 1'' RGBWW flexible LED mat
• Color temperature from 2500-7500K
• CRI: 95+, TLCI: 97+, CQS: 96+
• SSI (Tungsten): 83+, SSI (D56): 74+
• HSI Full Color Control
• Tunable green-magenta adjustment (plus/minus green)
• Stepless dimming from 0 to 100%
• Ultralight LED mat
• Sidus Link App control for smartphones & tablets
• DMX control with USB-C to 5-Pin DMX512 in & out adapter cable, separately available
• 15 Built-in lighting FX including paparazzi, lightning, TV, candle, fire, strobe, explosion, faulty bulb, pulsing, welding, police car, color chase, and more
• 46 color gel presets
• Easy-mounting multi-voltage AC power supply with included V-mount battery mount
• Multiple DC power solutions: 14.4V/26/28.8V/48V (3-Pin XLR)
• Soft carrying case

Amaran F21C

Light Fixture

• Photometrics:

 – 2500K: 897.4 fc / 9660 Lux at 1.6' / 0.5 m

  • 257.3 fc / 2770 Lux at 3.3' / 1 m

  • 30.7 fc / 330 Lux at 9.8' / 3 m

 – 3200K: 916 fc / 9860 Lux at 1.6' / 0.5 m

  • 268.5 fc / 2890 Lux at 3.3' / 1 m

  • 32 fc / 344 Lux at 9.8' / 3 m

 – 4300K: 968 fc / 10,420 Lux at 1.6' / 0.5 m

  • 284.3 fc / 3060 Lux at 3.3' / 1 m

  • 34.1 fc / 367 Lux at 9.8' / 3 m

 – 5600K: 1060.9 fc / 11,420 Lux at 1.6' / 0.5 m

  • 312.1 fc / 3360 Lux at 3.3' / 1 m

  • 37.4 fc / 403 Lux at 9.8' / 3 m

 – 6500K: 1128.7 fc / 12,150 Lux at 1.6' / 0.5 m

  • 330.7 fc / 3560 Lux at 3.3' / 1 m

  • 39.9 fc / 430 Lux at 9.8' / 3 m

 – 7500K: 1091.6 fc / 11,750 Lux at 1.6' / 0.5 m

  • 321.4 fc / 3460 Lux at 3.3' / 1 m

  • 38.7 fc / 417 Lux at 9.8' / 3 m

• Color Temperature: 2500 to 7500K

• Color Modes: RGBWW

• Color Accuracy:

 – CRI: 95

 – TLCI: 98

 – CQS: 96

 – SSI: 83 at 5600K

• Cooling System: Passive

• Dimming: 0 to 100% (Continuous)

• Display: OLED

• Housing Material: Plastic

• Expected Lamp Life: 50,000 Hours

• Rectangular Panel Size: 23.6 x 11.8" / 60 x 30 cm

• Fixture Dimensions: 23.6 x 11.8 x 0.2" / 60.0 x 30.0 x 0.5 cm

• Fixture Weight: 0.97 lb / 0.44 kg

Connectors & Mounting

• Battery Plate: 1 x V-Mount

• Power Input Connection: XLR 3-Pin

• Fixture Mount: 5/8" Stud

• Remote Operation:

 – Remote Control Type: Bluetooth, DMX

 – Wireless Range: 262.5' / 80 m (Bluetooth)

Power

• AC Input Power: 100 to 240 VAC, 50 / 60 Hz

• DC Input Power: 12 to 33.6 VDC

• Power Source: AC Power, External Battery

• Max Power Consumption: 120 W

• Power Pass-Thru: No

• Power Supply Output: 48 VDC

• Power Supply Weight: 2.4 lb / 1.1 kg

Physical & Environmental

• Certifications: CE, FCC, RoHS, cTUVus (as per Manufacturer)

• Operating Temperature: 14 to 104°F / -10 to 40°C (Recommended)

Packaging

• Package Weight: 15.78 lb

• Box Dimensions (LxWxH): 26.8 x 16 x 5.3"

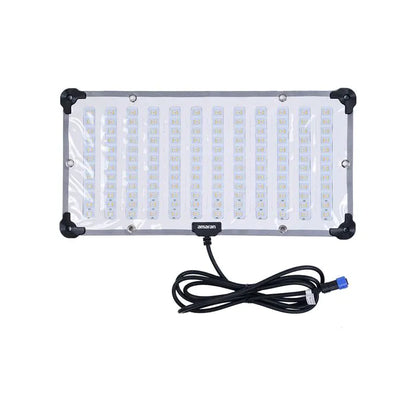

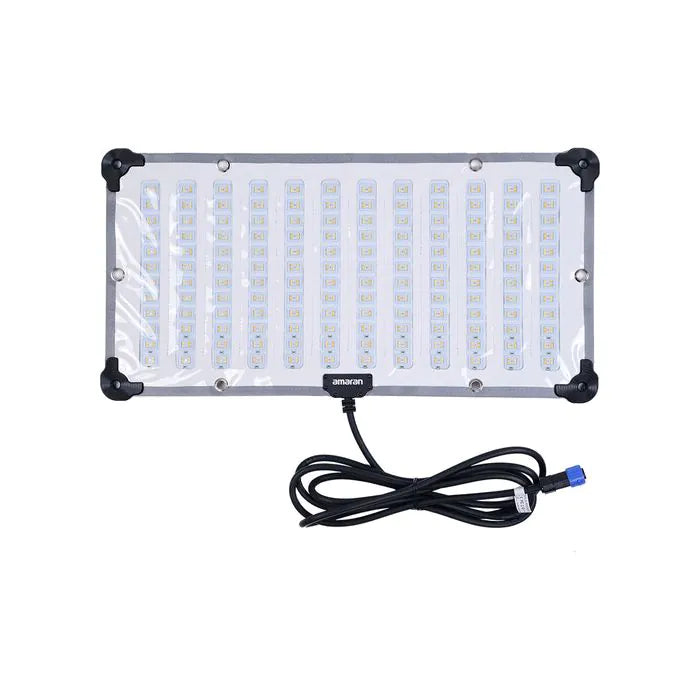

• amaran F21c RGBWW LED Mat (V-Mount, 2 x 1')

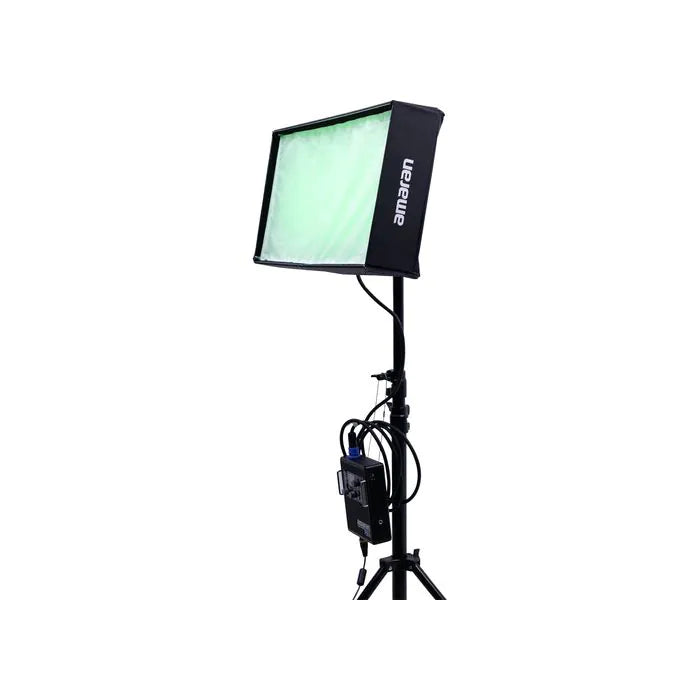

• Control Box with V-Mount Battery Plate
• 9.8' Head Extension Cable
• Support Bracket
• Right-Angle Baby Pin Adapter
• Straight Baby Pin Adapter
• Tilting Stand Mount

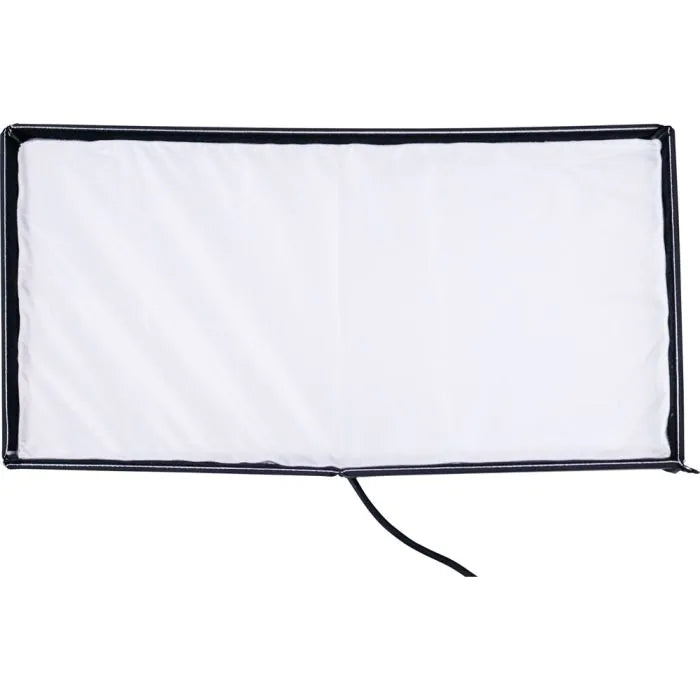

• F21 Softbox Frame

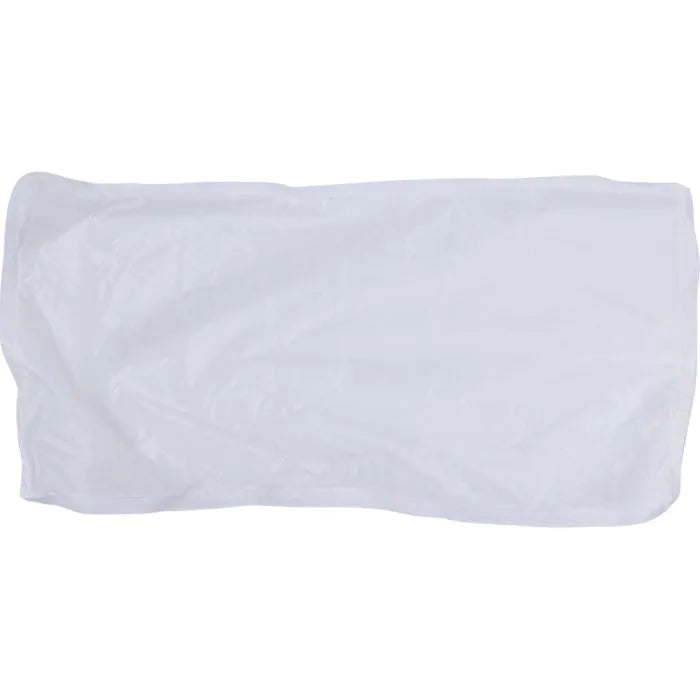

• F21 Diffusion Cloth 1 (1/2 Grid Cloth)
• F21 Diffusion Cloth 2 (2.5 Stop)

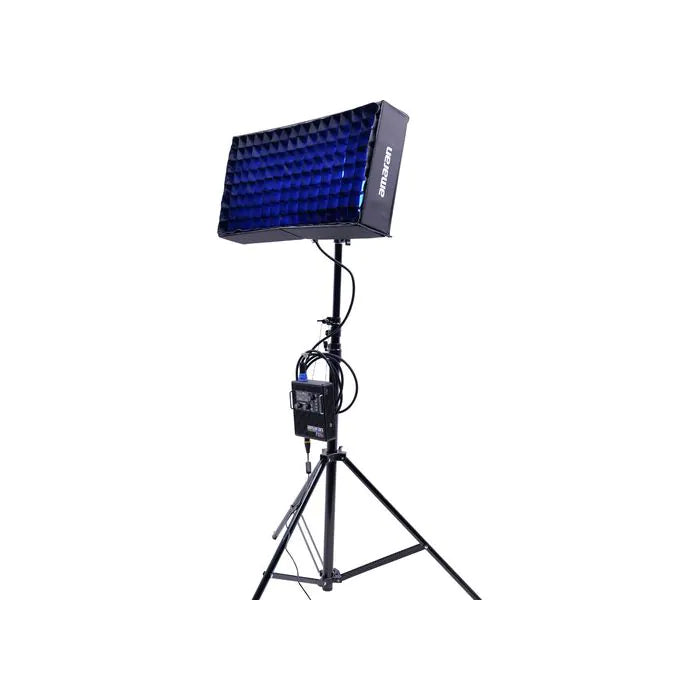

• F21 45 ° Light Control Grid
• Multi-Voltage AC Power Supply
• AC Power Cable
• Carrying Case
• Limited 1-Year Warranty
