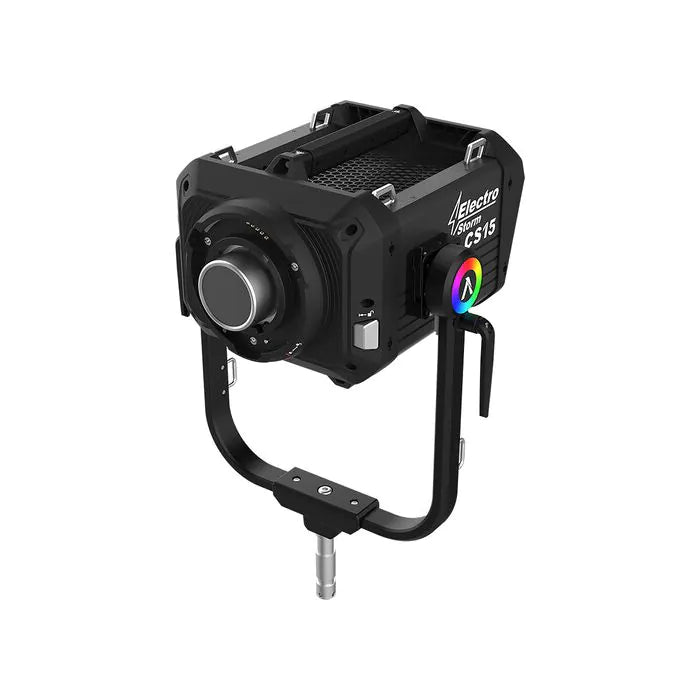

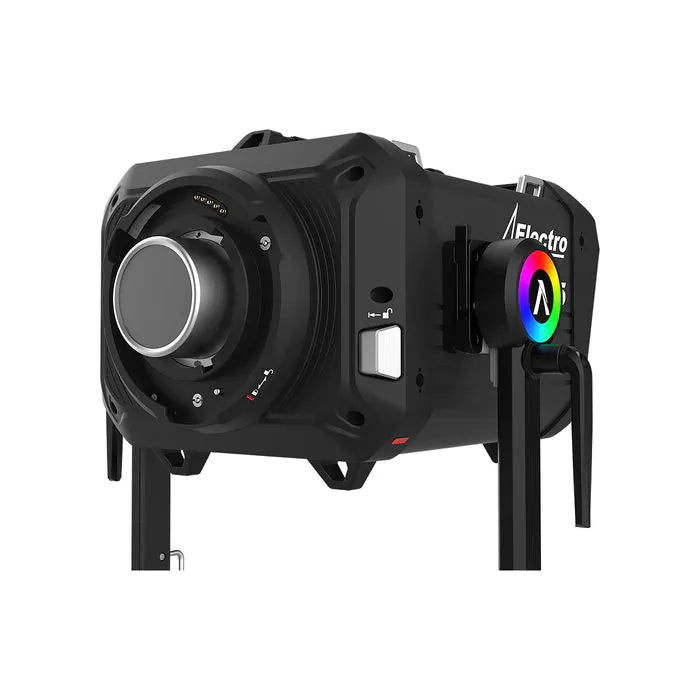

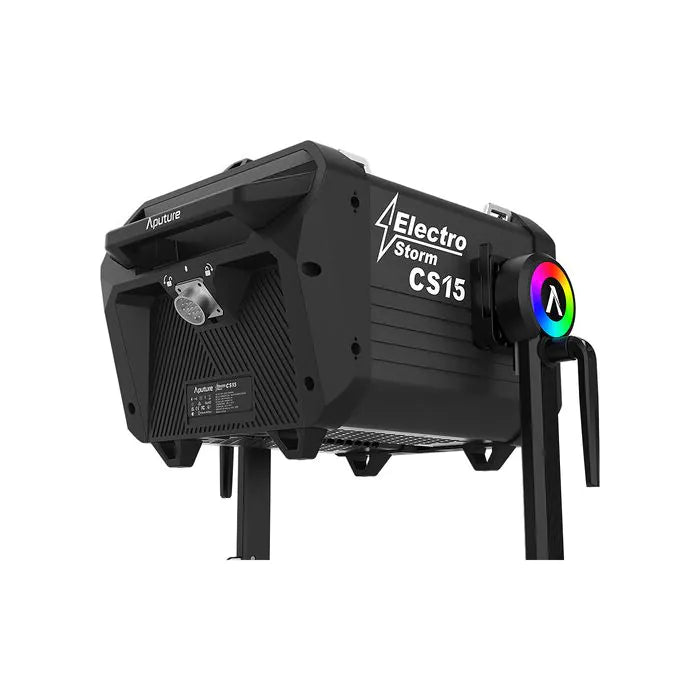

Aputure Electro Storm CS15 RGB LED Monolight (UK Plug, Flight Case Kit)

Aputure Electro Storm CS15 Overview

Designed with power and durability for film and television professionals, the Electro Storm CS15 RGB LED Monolight from Aputure is a full-color point-source fixture offering 1500W of ultra-high color quality. The CS15 provides 2000-10,000K CCT and tint control, dual accessory mounts, advanced connectivity options, and a rugged IP65 dust- and weather-resistant construction to withstand demanding filming environments. Made with optimization and versatility in mind, filmmakers and lighting technicians will appreciate this powerful, color-accurate, RGB fixture that is ideal for illuminating large areas. This CS15 version comes with a US plug. A robust flight case is also included for storage and transportation.

Chipsets and Color AccuracyThe full-color LED chipset goes just beyond 1500W of power output that rivals industry-standard 1800W HMIs, providing expanded color controls across its broad 2000 to 10,000K CCT range. It also offers green-magenta adjustment and impressive coverage of over 90% of colors within the Rec. 2020 color space. The dual-blue LED chipset design allows the light to achieve broad spectral reproduction, boasting an SSI of daylight and tungsten at 86 and 89, respectively. This ensures industry-leading color quality in all shooting environments. The CS15 outputs up to 32,600 lux at a distance of 9.8' using its included 35° reflector.Professional ConnectivityDesigned with professionals in mind, the CS15 offers advanced connectivity options, including Sidus Link app control, LumenRadio CRMX, Art-Net & sACN via etherCON, and 16-bit DMX512. These features seamlessly integrate the fixture into existing lighting workflows, providing lighting technicians and programmers with complete control over its operation.Expanded Mounting OptionsFeaturing dual accessory mounts, the CS15 offers both the universal Bowens Mount and the innovative electronic A-Mount compatibility. This unique combination makes it one of the most adaptable fixtures on the market, catering to a wide range of modifier options, such as the versatile Spotlight Max. The A-Mount, designed for heavy-duty modifiers, including the optional F14 Fresnel, guarantees stability, durability, and optimized color accuracy while supporting motorized focus control. The Aputure mount is also compatible with the optional 20 and 50° reflectors.Advanced Liquid Cooling TechnologyTo effectively manage heat dissipation and maximize light output, the CS15 incorporates advanced liquid cooling technology. This innovative design guarantees that users can access the full potential of the fixture's light output while maintaining optimal performance.Additional BenefitsThe fixture comes with 15 built-in lighting effects, XY color control, advanced HSI, over 300 gel presets, and max and constant output modes. 0.1 to 100% stepless dimming is available as well as PWM and high-speed flicker-free dimming modes. Adding to its versatility, it also supports battery operation via dual 48 VDC inputs. In terms of convenience, the CS15's included high-output control box features side and top-facing ports, and a control box handcart is also supplied for easy transportation. If needed, users can also benefit from an optional motorized yoke that allows for smooth remote operation.

Aputure Electro Storm CS15 Specs

Item Type
• 1x LED Monolight

Included Light Modifier

• 1x Reflector

Included Storage Case

• 1x Case

Photometrics

With Reflector

•
  : 8645 fc / 93,060 Lux at 3.3' / 1 m

  • 960 fc / 10,340 Lux at 9.8' / 3 m

  • 344 fc / 3,710 Lux at 16.4' / 5 m

•
  : 24,079 fc / 259,200 Lux at 3.3' / 1 m

  • 2,675 fc / 28,800 Lux at 9.8' / 3 m

  • 985 fc / 10,610 Lux at 16.4' / 5 m

•
  : 26,011 fc / 279,990 Lux at 3.3' / 1 m

  • 2,890 fc / 31,110 Lux at 9.8' / 3 m

  • 1,029 fc / 11,080 Lux at 16.4' / 5 m

•
  : 27,256 fc / 293,400 Lux at 3.3' / 1 m

  • 3,028 fc / 32,600 Lux at 9.8' / 3 m

  • 1,082 fc / 11,650 Lux at 16.4' / 5 m

•
  : 22,992 fc / 247,500 Lux at 3.3' / 1 m

  • 2,554 fc / 27,500 Lux at 9.8' / 3 m

  • 933 fc / 10,050 Lux at 16.4' / 5 m


Color Temperature

• 2000 to 10,000K

Color Modes

• RGB

Color Accuracy Standard

• SSI 86 at 5600K

• SSI 89 at 3200K

• CRI 98

• TLCI 98

• CQS 97

• TM-30 Rf 93

• TM-30 Rg 101

Dimming

• Built-In Dimmer, 0.1 to 100%

Cooling System

• Fan

Beam Angle

• 62° Unmodified

Front Accessory Mount

• Proprietary / Bowens S

Connectivity

• Wireless Remote Control Type: Bluetooth, Wireless CRMX

• Mobile App Compatible: Yes (Android & iOS)

• App Name: Sidus Link

• Wireless Range: 328.1' / 100 m

• Max DMX Control Channels: 512

Power & I/O

• Power Source: AC Power (Cable Included), Requires Power Supply/Controller

• Battery: Not Included

• Inputs/Outputs (Power Supply/Controller):

Mounting

• Yoke Type: Manually-Operated Yoke

• Fixture Mounting: Not Specified

Environmental

• Operating Temperature: -4 to 113°F / -20 to 45°C

• Storage Temperature: -40 to 185°F / -40 to 85°C

General

• Display: Yes

Dimensions

• Fixture without Yoke: 18 x 13.9 x 11.1" / 45.7 x 35.2 x 28.1 cm

• Power Supply/Controller: 21.7 x 10.7 x 10.3" / 55 x 27.3 x 26.2 cm

Weight

• Fixture without Yoke: 39.7 lb / 18 kg

• Power Supply/Controller: 41.9 lb / 19 kg

• Aputure Electro Storm CS15 RGB LED Monolight (UK Plug, Flight Case Kit)
• Removable Yoke

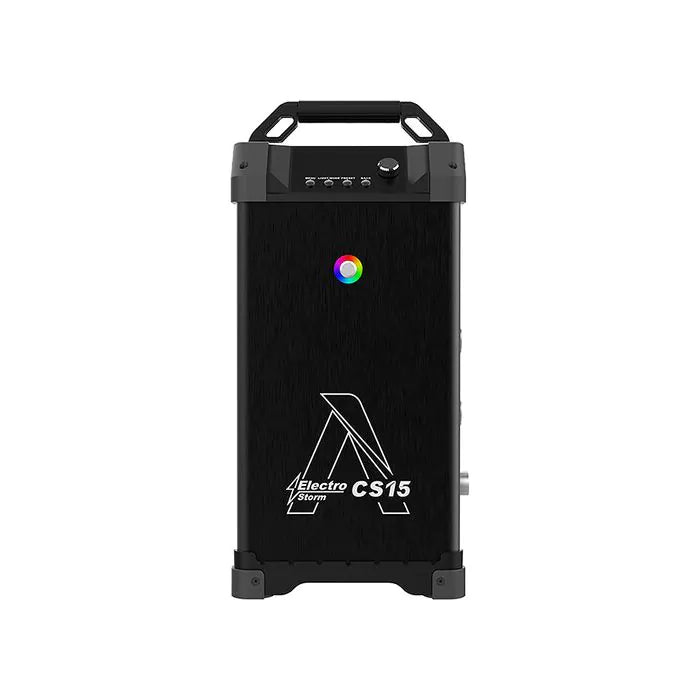

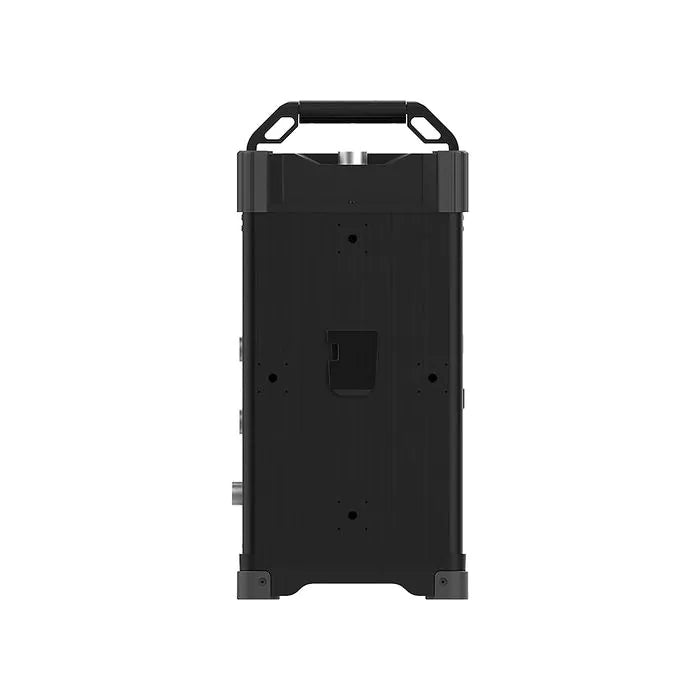

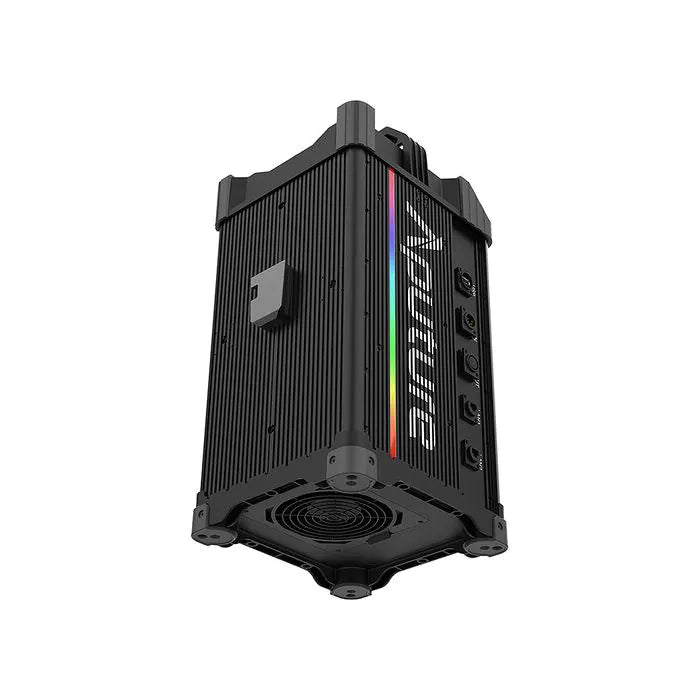

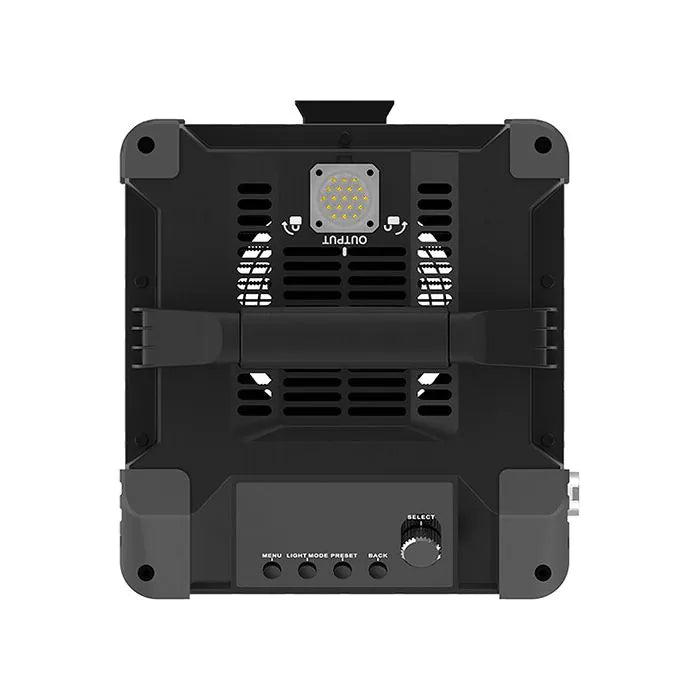

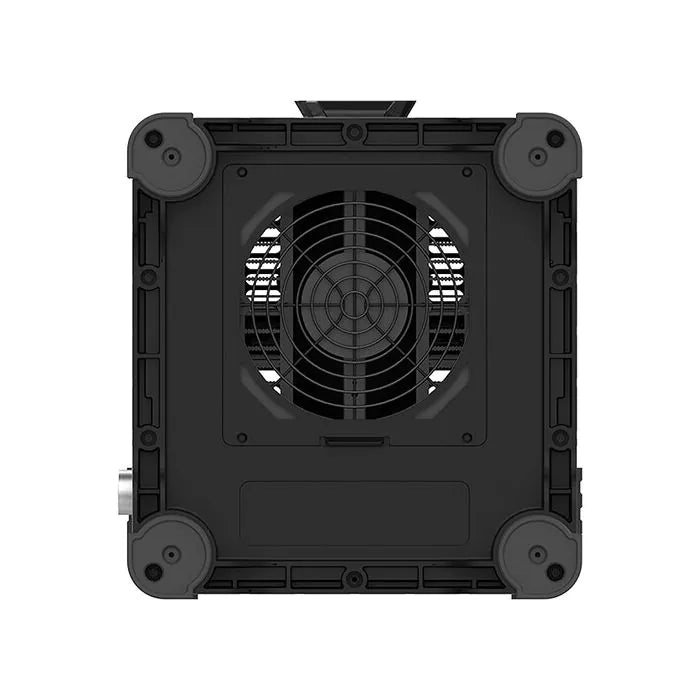

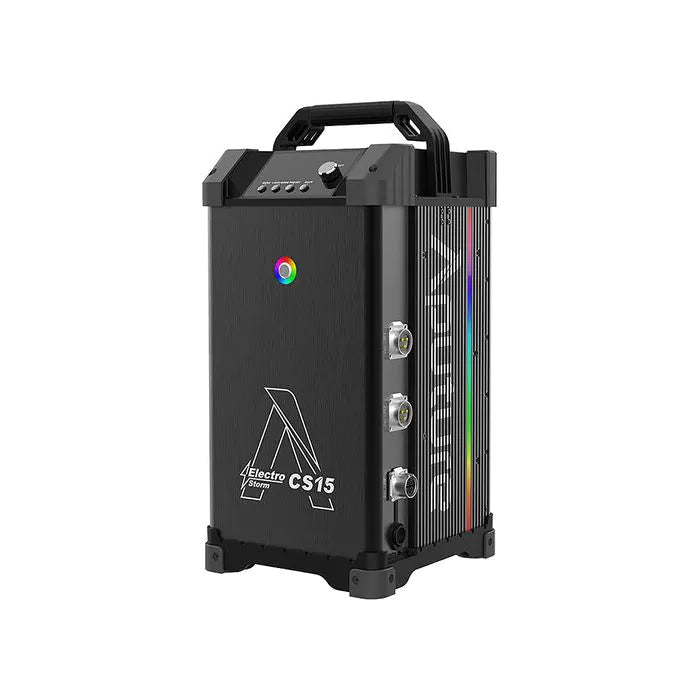

• Control Box
• Control Box Handcart
• Head Cable (24.6')
• AC Power Cable (19.7')
• Reflector (35°)
• Barndoors
• Protection Cover
• Flight Case
• Limited 1-Year Manufacturer Warranty
