• Atomos A-Eye HD-20X PTZ Camera with 20x optical zoom for streaming and production
1 4

Atomos

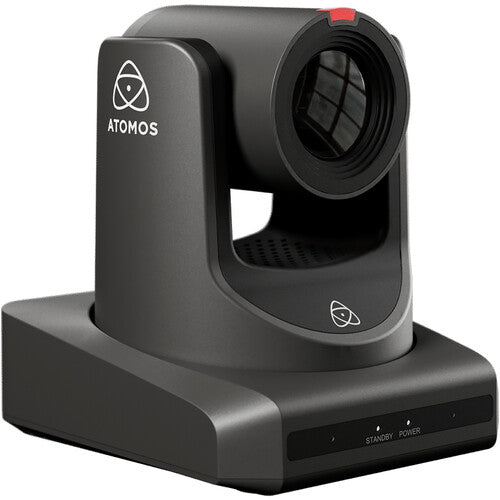

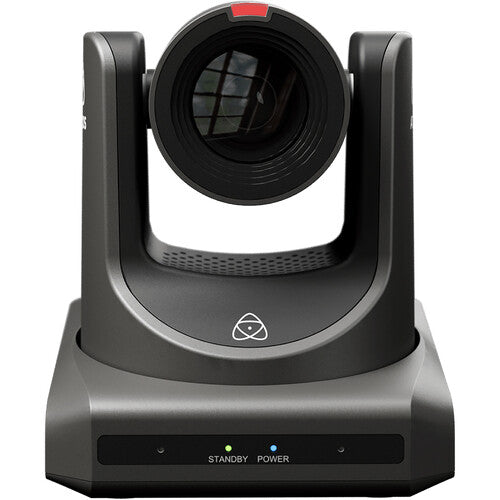

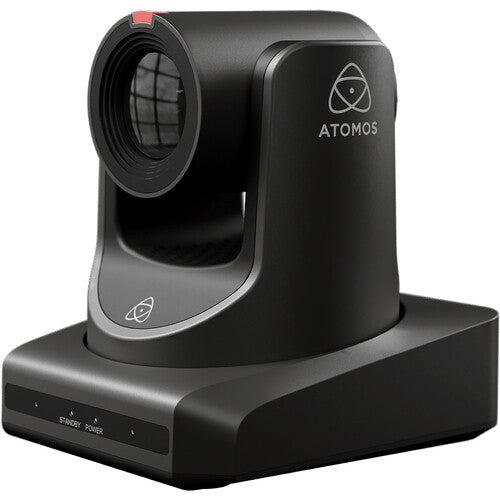

Atomos A-Eye HD-20X PTZ Camera with 20x Optical Zoom

Atomos A-Eye HD-20X PTZ Camera with 20x Optical Zoom

SKU ATOMAEHD20

Dhs. 3,859.00
Dhs. 3,859.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

In stock

Key Features

  • 1/2.8" CMOS sensor
  • Effective pixels: 2.07M up to HD 2K60
  • Includes NDI|HX3 license
  • 20x optical zoom, 16X digital zoom
  • HDMI, 3G-SDI, USB 3.0 & IP output
  • 3.5mm stereo audio in/out, RS-232 in/out, supports built in mic

View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

Atomos A-Eye HD 20x Overview

The A-Eye HD-20X PTZ Camera with 20x Optical Zoom from Atomos. The A-Eye HD-20X camera captures HD resolutions up to 2K60 (2048 x 1080) over IP, HDMI, USB-A, and 3G-SDI, and it features AI auto-tracking for presentations where your subject moves around the room. It is great for education, how-to videos, and corporate environments without the need for an operator. It also includes a license for NDI|HX3 high-quality, low-latency streaming networks.

The built-in zoom lens has an optical zoom range of 20x and further 16x digital zoom for closer shots. You can remotely control the camera to rapidly move between positions using IP or RS-485 with a separately available controller. Video output is compressed using H.265, H.264, or MJPEG formats. The camera features a built-in mic and supports external audio input via a 3.5mm stereo line-level jack for embedding audio into your stream. Power is provided by power adapter or via PoE+ (Power-over-Ethernet) on a supported network.

Quick Features

  • 1/2.8" CMOS sensor
  • Effective pixels: 2.07MP up to HD 2K60
  • Includes NDI|HX3 license
  • 20x optical zoom, 16x digital zoom
  • HDMI, 3G-SDI, USB-A 3.0, and IP outputs
  • 3.5mm stereo audio in/out and built-in mic
  • RS-232 serial in/out
  • UVC, RS-485 serial, and IP VISCA control
  • Supports H.265/H.264/MJPEG compression
  • DC and PoE+ support
  • Tally lights
  • AI tracking
  • For education, houses of worship, and budget-friendly productions

Atomos A-Eye HD 20x Specs

Imaging

• Image Sensor: 1/2.8"-Type CMOS

• Sensor Resolution: Effective 2.07 Megapixel

• IR Cut Filter: No

• Focus Control: Autofocus, Manual Focus

Lens

• Max Optical Zoom: 20x

• Max Digital Zoom: 16x

Video Capture

• Video Output: SDI/BNC, HDMI, RJ45, USB

• Maximum Resolution: DCI 2K (2048 x 1080) up to 60 fps

• Broadcast Output: NTSC/PAL

• Embedded Audio: HDMI, IP, NDI, SDI, USB

• Audio Recording: AAC Audio

• Supported Protocols: NDI|HX3, VISCA, RS-232, RS-485, IP

Control

• Pan Range: -170° to 170° at 1.7 to 69.9°/s

• Tilt Range: -30° to 90° at 1.7 to 100°/s

• Tally Light: Yes

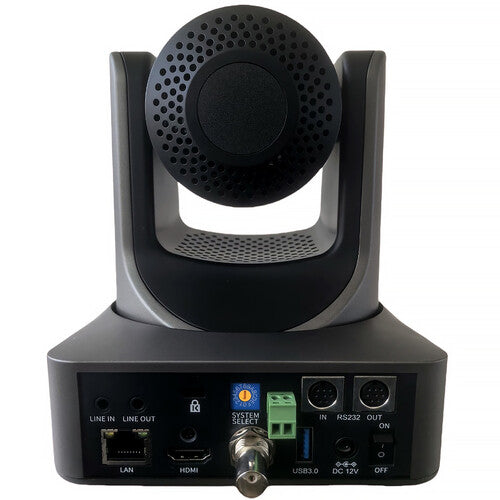

Interface

• Video I/O:


  • 1x HDMI 1.4 Output

  • 1x BNC (3G-SDI) Output

  • 1x RJ45 (NDI) Output

  • 1x USB-A 3.0 / 3.1 / 3.2 Gen 1 Output

    • Audio I/O:

  • 1x 1/8" (3.5 mm) TRS Stereo Line Input

  • 1x 1/8" (3.5 mm) TRS Stereo Line Output

    • Other I/O:

  • 1x Mini-DIN 8-Pin (RS-232) Control Input

  • 1x Mini-DIN 8-Pin (RS-232) Control Output

  • 1x Block 2-Pin (RS-485) Control Input/Output

  • 1x USB-A (USB 3.0)

    • Built-In Microphone: Stereo

    • Built-In Speaker: No

Power

• PoE Support: PoE+ 802.3at

• Power I/O: 1x DC (12 VDC) Input

Packaging Info

• Package Weight: 7.125 lb

• Box Dimensions (L x W x H): 11.5 x 9.6 x 9.4"

  • Atomos A-Eye HD-20X PTZ Camera with 20x Optical Zoom
  • Limited 1-Year Manufacturer Warranty
