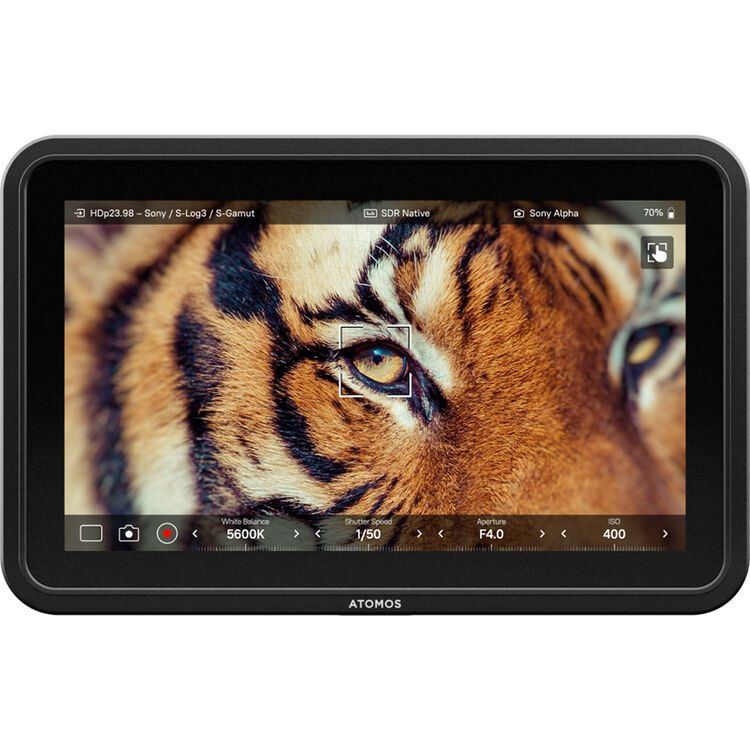

• Atomos Shinobi 7 II 7-inch 4K HDMI HDR touchscreen monitor with 2800-nit brightness, camera control and 3D LUT support.
1 4

Atomos

Atomos Shinobi 7 II 4K HDMI HDR Monitor with Camera Control

Atomos Shinobi 7 II 4K HDMI HDR Monitor with Camera Control

SKU:ATOMSHB005

AED 1,849.00
AED 1,849.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

Low stock: 1 left
Badge

Key Features

  • 2800nit HDR touchscreen display
  • 1 x HDMI input and 1 x HDMI output
  • Comprehensive professional monitoring tools including EL Zoneâ„¢ false color, focus peaking, waveform, and more
  • 10+ stops of dynamic range in real time from Log/PQ/HLG signals
  • Camera control for compatible cameras
  • Touch to focus for compatible cameras
  • Built-in 3D LUT support
  • Supports on-device calibration (no computer required)
  • Powered by USB-C, NP-F battery or DC via battery eliminator
View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

Atomos Shinobi 7 II 7-inch, 2800nit HDR Video and Photo Monitor with Camera Control Overview

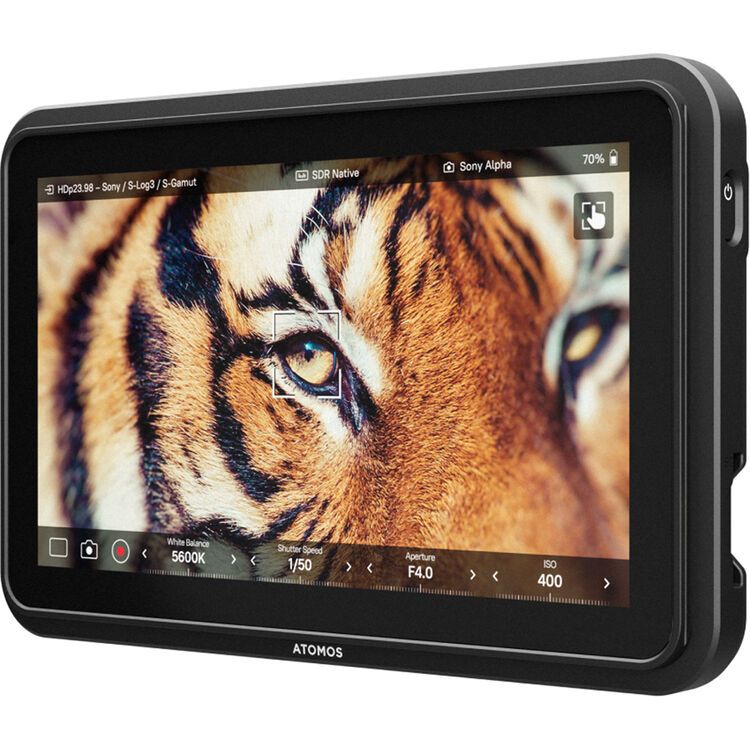

High-Brightness 7-inch Touchscreen Display

With 2800 nits of brightness and a 1920 × 1200 resolution, Shinobi 7 II delivers clear, detailed monitoring indoors or outside in bright sunlight. It supports Rec.709, PQ, and HLG monitoring for HDR and Log workflows.

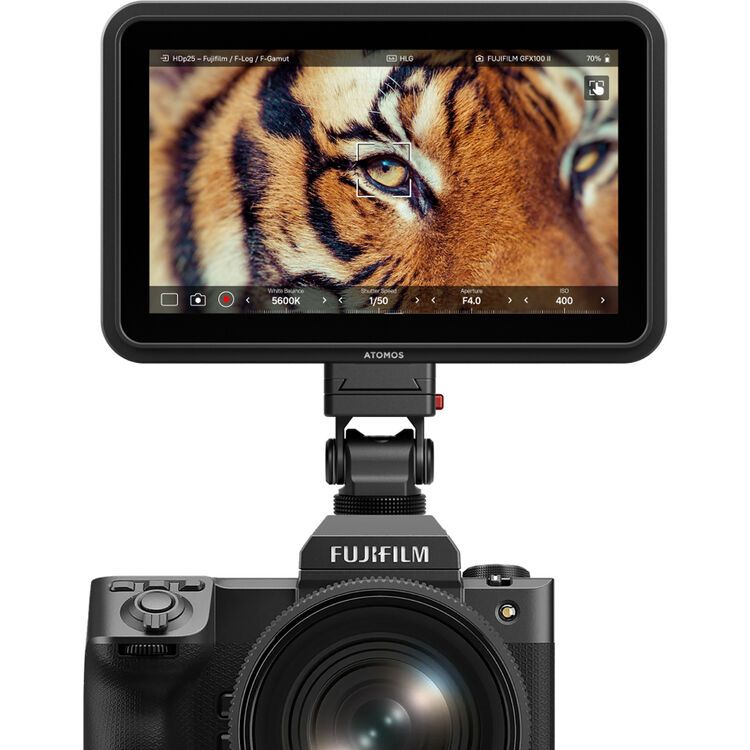

Camera Control & Touch-to-Focus

Using intuitive, on-screen sliders you can adjust white balance, lens aperture, shutter speed/angle, and ISO. A red edge display indicates when the camera is recording internally, whether triggered by the camera or from the Shinobi 7 II. Control most Canon, Fujifilm, Nikon, Panasonic, and Sony mirrorless cameras over USB-C, and all Z CAM E2 series models (LANC cable required, purchased separately).

Tap the Shinobi 7 II touchscreen to have the camera automatically focus on your point of interest. Touch to focus takes advantage of camera focus modes such as focus tracking for effortless control and sharp images.

Professional Monitoring Tools

Shinobi 7 II offers a comprehensive suite of simple, one-touch monitoring tools for focus, framing, and exposure, including:

  • Focus peaking
  • Zoom (2:1, 1:1)
  • Zebras
  • EL Zoneâ„¢ false color
  • Frame guides
  • SMPTE safe areas
  • Grid markers
  • Waveforms
  • RGB parade
  • Vectorscope
  • Flexible 3D/1D LUT support with profile and preset options (including .cube file uploads)
  • Anamorphic de-squeeze monitoring to correct the ratio for anamorphic lens setups
  • 16:9 framing for social media

EL Zoneâ„¢

Shinobi 7 II supports EL Zone, a professional false color exposure tool that helps you see exactly how bright or dark different parts of your image are. Unlike traditional false color systems that use rough IRE ranges, EL Zone assigns specific colors to exact exposure values — based on stops of light, in the same way your camera sees exposure.

LUTs

Shinobi 7 II can receive LOG signals from the camera and provide real-time LUT (Look‑Up Table) preview to approximate what the final graded image will look like in Rec.709. Custom LUTs (.cube files) can be loaded from an SD card and used in conjunction with the built‑in monitoring tools for precise exposure control.

True-to-Life Display

  • High brightness: 2800nit screen, exceptional for daylight shooting.
  • High dynamic range: View 10+ stops of dynamic range from Log/PQ/HLG signals.
  • High fidelity: Compatible with Calibrite Display Pro HL / Plus HL probes using the Atomos Calibrator app to maintain accurate HDR and Rec.709 monitoring.

Connect, Monitor, and Control

HDMI input and output make Shinobi 7 II easy to integrate into a camera rig or pass the signal through to another display. USB-C connectivity adds compatible camera control, allowing you to adjust key settings directly from the monitor's touchscreen.

Atomos Shinobi 7 II Specs

Display

  • Panel Type: IPS-type LCD
  • Display Size: 7.0 inches / 17.8 cm
  • Native Resolution: 1920 × 1080
  • Aspect Ratio: 16:9
  • Touchscreen: Yes
  • Maximum Brightness: 2800 nits / cd/m²
  • Color Support: 1.07 billion colors (10-bit)
  • HDR Support: Advanced HDR
  • Color Gamut: 100% Rec. 709
  • LUT Support: Yes
  • Image Controls: Anamorphic de-squeeze, blue only, false color, focus peaking, histogram, image flip, pixel-to-pixel zoom, RGB parade, screen markers, vectorscope, waveform and zebra

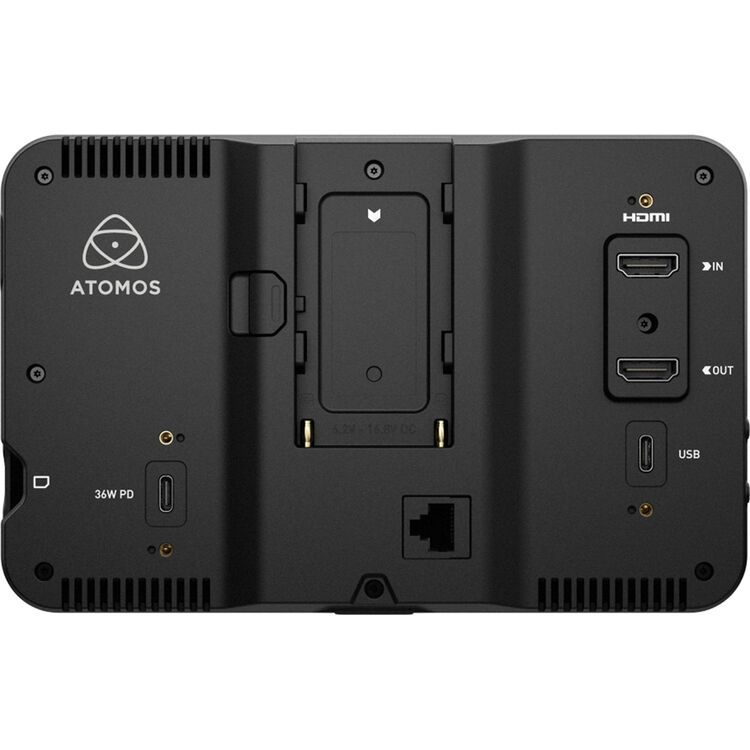

Inputs and Outputs

  • Video I/O: 1 × HDMI 2.0 input, 1 × HDMI 2.0 output
  • Embedded Audio: 2-channel HDMI audio
  • Audio Input: 1 × 3.5 mm line input
  • Headphone Output: 1 × 3.5 mm
  • Built-In Speaker: No
  • Power Input: 1 × USB-C (16.8 VDC)
  • Other I/O: 1 × RJ45 LAN input/output; 1 × USB-C calibration input/output, shared with camera control
  • Media/Memory Card Slot: 1 × SD/SDHC/SDXC slot for LUT and firmware updates only

Wireless

  • Wireless Connectivity: No
  • Mobile App Compatible: No

Video Format Support

  • HDMI Video: 8/10-bit, 4:2:2
  • DCI 4K: 30, 29.97, 25, 24 and 23.98 fps
  • UHD 4K: 30, 29.97, 25, 24 and 23.98 fps
  • DCI 2K: 30, 29.97, 25, 24 and 23.98 fps
  • 1080p: 60, 59.94, 50, 29.97, 25, 24 and 23.98 fps
  • 1080i: 60, 59.94 and 50 fps
  • 720p: 60, 59.94 and 50 fps

Power

  • Input Power: 6.2–16.8 VDC
  • Battery: 1 × L-Series mount on fixed plate
  • Power Consumption: 13 W maximum

Mounting

- Top/Bottom Mounting: 1 × 1/4"-20 female; 1 × 3/8"-16 female

General

  • Environmental Resistance: No
  • Operating Temperature: Up to 104°F / 40°C
  • Material of Construction: Plastic
  • Dimensions (W × H × D): 7.4 × 4.7 × 0.9 inches / 188 × 120 × 23 mm
  • Weight: 0.88 lb / 401 g

Packaging Information

  • Package Weight: 1.65 lb / approximately 0.74 kg
  • Box Dimensions (L × W × H): 9.2 × 6.7 × 2.4 inches
  • Atomos Shinobi 7 II 4K HDMI HDR Monitor with Camera Control
  • USB-C 2.0 Cable
  • HDMI/USB-C Locking Cable Adapter
  • Limited 1-Year Manufacturer Warranty
