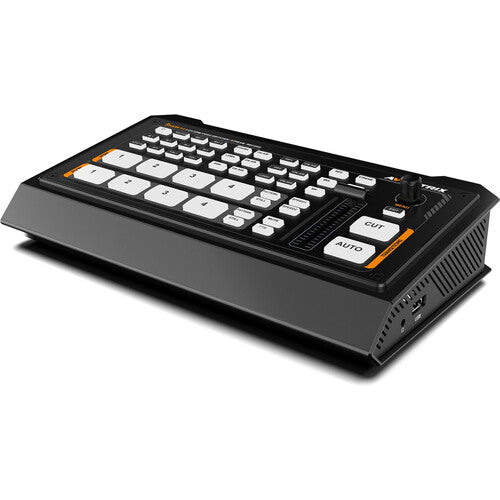

• AVMATRIX Shark H4 4-Channel HDMI Video Switcher Front View

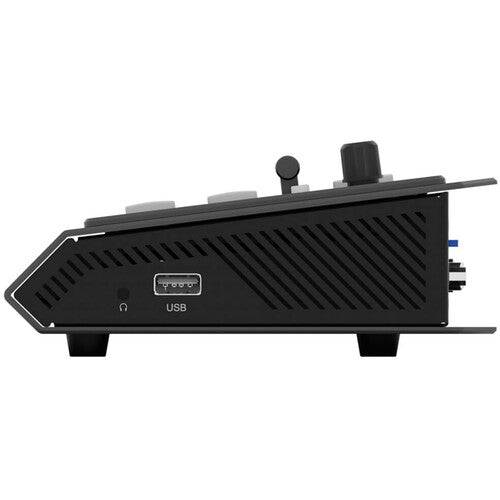

  • AVMATRIX Shark H4 4-Channel HDMI Video Switcher Side View

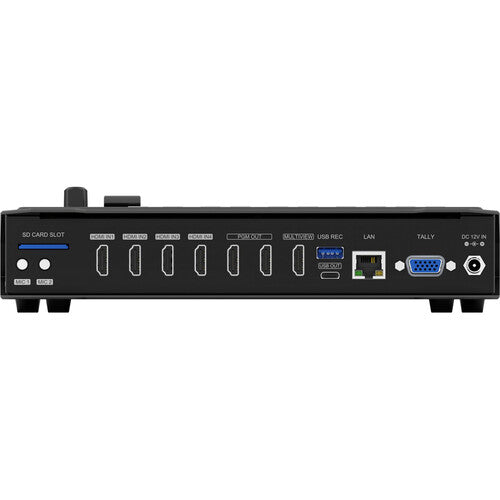

  • AVMATRIX Shark H4 4-Channel HDMI Video Switcher Back View
1 3

AVMATRIX

AVMATRIX Shark H4 4-Channel HDMI Video Switcher

AVMATRIX Shark H4 4-Channel HDMI Video Switcher

SKU :#SHARK H4

Dhs. 2,175.90
Dhs. 2,175.90
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

Low stock: 1 left

Key Features

  • 4xHDMI inputs, support auto-detected
  • 2xHDMI PGM output,1xHDMI multiview out, 1xUSB type-C output
  • RTMP/SRT stream & USB disk/ SD card record
  • AUX output configurable and assignable
  • USB for capturing and streaming on PC
View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

AVMATRIX SHARK H4 Overview

The Shark H4 4-Channel HDMI Video Switcher from AVMATRIX. Use the USB-C output together with your computer for capture and live streaming using your computer, and record directly from the unit using the USB-A output or SD card slot. This compact switcher supports up to 1080p60 video input and output with embedded audio, and it offers audio mixing using the two analog stereo 3.5mm mic/line inputs and embedded audio. Switcher control options include push buttons, a T-bar, and IP control via the LAN port.

AVMATRIX SHARK H4 Specs

General

• Available M/E Layers: 2 M/E

• Effect Types: 1x Luma Key

• Downstream Keys: 1x Chroma, 1x Luma

• Generators: 1x Pattern, 2x Color

• Audio Mixing: 2-Channel

Processing

• Switching Type: Pushbutton, Software, T-Bar

• Resolution: 1080p at 23.98–60 fps

• Color Processing: RGB, YCbCr

Input

• Number of Video Inputs: 4

• Video Inputs: 4x HDMI Female

• Video Format: 1080p (23.98–60 fps), 1080i (50/60 fps)

• Audio Inputs: 2x 1/8" (3.5 mm) TRS Stereo Analog

• Embedded Audio Input: HDMI (2-Channel)

Output

• Video Output Channels: 5

• Video Outputs:

 – 2x HDMI Female (Program)

 – 1x HDMI Female (Monitor)

 – 1x USB-C (Program)

 – 1x USB-A (Program)

• Output Video Format:

 – HDMI: 1080p/1080i (24–60 fps)

 – USB-C: 1080p at 60 fps

• Audio Output: 1x 1/8" TRS Loop

• Embedded Audio Output: HDMI, USB-C

• Multiview: 4-Way via HDMI

• Monitor Output: 1x HDMI

Connectivity

• 1x RJ45 LAN Input

• 1x DE-15/DB-15 Tally I/O

• 1x USB-A Input

• HDCP Support: No

IP & Streaming

• IP Video: 1920 x 1080

• Protocols: RTMP, RTMPS, SRT

• Simultaneous Streams: 1

Recording

• 1x SD Card (Type Unspecified)

Hardware

• Processor: Not Specified

• Wireless: Bluetooth / Wi-Fi

Power

• 12 VDC, 1.3 A Barrel Input

• Power Consumption: 15.6 W

Physical

• Operating Temp: 12 to 92°F / -20 to 60°C

• Dimensions: 9.63 x 5.64 x 1.75" / 24.45 x 14.32 x 4.45 cm

• Weight: 2.2 lb / 1 kg

Packaging

• Package Weight: 3.205 lb

• Box Dimensions: 14.3 x 7.7 x 3.5"

  • AVMATRIX Shark H4 4-Channel HDMI Video Switcher
  • 12V Power Supply
  • USB-A to USB-C Cable
  • Tally Connector
  • Limited 1-Year Manufacturer Warranty
