AVMATRIX

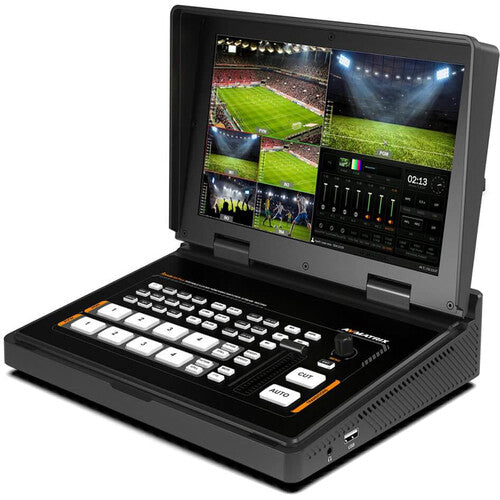

AVMATRIX Shark S4 PLUS 4-Channel SDI/HDMI Video Switcher with 10.1" IPS Display

AVMATRIX Shark S4 PLUS 4-Channel SDI/HDMI Video Switcher with 10.1" IPS Display

SKU :Shark S4 PLUS

Dhs. 3,264.40
Dhs. 3,264.40
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

Low stock: 1 left

Key Features

  • Compact 4-Channel Video Switcher
  • Folding 10.1" IPS LCD Display
  • 2 x 3G-SDI & 2 x HDMI Inputs
  • 1 x HDMI Multiview & 2 x HDMI PGM Out
View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

AVMATRIX Shark S4 PLUS 4-Channel SDI/HDMI Video Switcher with 10.1" IPS Display Overview

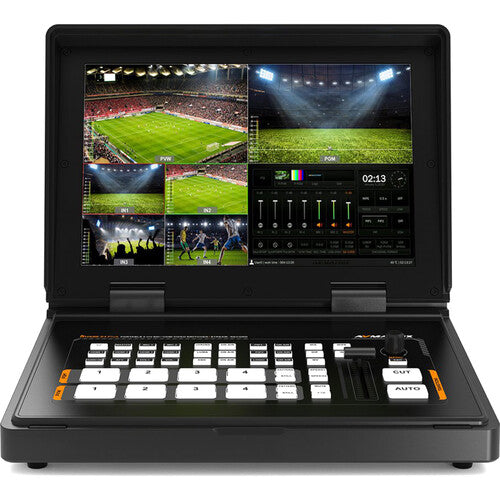

10.1" FHD IPS Screen
A built-in 10.1-inch FHD IPS screen that clearly displays PVW, PGM, audio bar, multiview, clock, and menu settings.

Configurable Output
With the four auto-detected inputs and three scaling outputs, the video switcher is quite flexible to connect with a variety of devices and signals. Besides, all the three outputs can be configured to IN1-4, PVW, PGM, Clean PGM, Color Bar and Multiview out to meet your various application needs.

Live Stream via Ethernet
The LAN port supports IP streaming transmission through the RTMP, SRT protocol, allowing users to easily live stream video programs to platforms such as YouTube, Skype, Facebook, and Twitch, and get high-quality videos.

USB Capture For Streaming
The USB type-C can be used as a webcam to capture video & audio and stream to various softwares & platforms, such as OBS, VMIX, ZOOM, Teams, Skype and VLC. It is compatible with Windows, Linux, and Mac.

Features:

  • 10.1 inch FHD IPS LCD display
  • 2 xHDMI & 2 x3G-SDI inputs, support auto-detected
  • 2 xHDMI PGM output,1 xHDMI multiview out, 1 xUSB type-C output
  • RTMP/SRT stream & USB disk/ SD card record
  • AUX output configurable and assignable
  • USB for capturing and streaming on PC
  • Upstream key: Luma key, Chroma key, PIP x2/ POP
  • Downstream key and LOGO overlay
  • T-bar/ Auto/ Cut transitions; various effects: WIPE(11 x3patterns) / MIX/ DIP
  • Audio mixer: 2 xHDMI, 2 xSDI embedded audio and 2-Ch MIC/line in; audio delay available
  • Media library: 39 default patterns, 16 imported images, 16 captured images, 2 color generators
  • Customer configuration import andexport
  • FTB/ MUTE/ STILL/ GPIO for tally

AVMATRIX SHARK S4 PLUS Specs

General

• Available M/E Layers: 2 M/E

• Effect Types: 1x Luma Key

• Downstream Keys: 1x Chroma, 1x Luma

• Generators: 1x Pattern, 2x Color

• Audio Mixing: 2-Channel Mixing

Processing

• Switching Type: Pushbutton, Software, T-Bar

• Processing Resolution: 1080p at 23.98/24/25/29.97/30/50/59.94/60

• Color Processing: RGB, YCbCr

Input

• Number of Video Input Sources: 4

• Video Inputs: 2x HDMI Female, 2x BNC (3G-SDI) Female

• Input Video Format:

 – BNC / HDMI

 – 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps

 – 1080i at 50/59.94/60 fps

• Audio Inputs: 2x 1/8" (3.5 mm) TRS Stereo Analog Female

• Input Audio Format: Analog

• Embedded Audio Input:

 – HDMI: 2-Channel

 – SDI: 2-Channel

Output

• Video Output Channels: 5

• Video Outputs:

 – 2x HDMI Female (Program)

 – 1x HDMI Female (Monitor)

 – 1x USB-C (USB Video) Female (Program)

 – 1x USB-A (USB Video) Female (Program)

• Output Video Format:

 – HDMI: 1080p at 24/25/30/50/60 fps, 1080i at 50/60 fps

 – USB-C: 1080p at 60 fps

• Audio Outputs: 1x 1/8" (3.5 mm) TRS Stereo Analog Female (Loop Output)

• Embedded Audio Output: HDMI, USB-C

• Multiview Output: 4-Way Multiview via HDMI

• Monitor Output: 1x HDMI

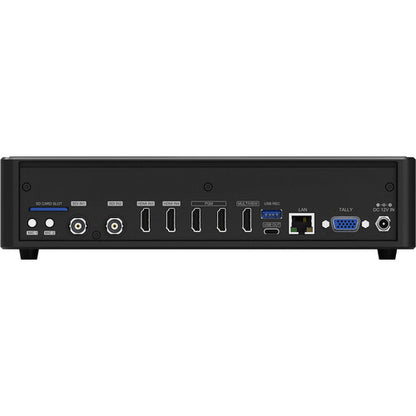

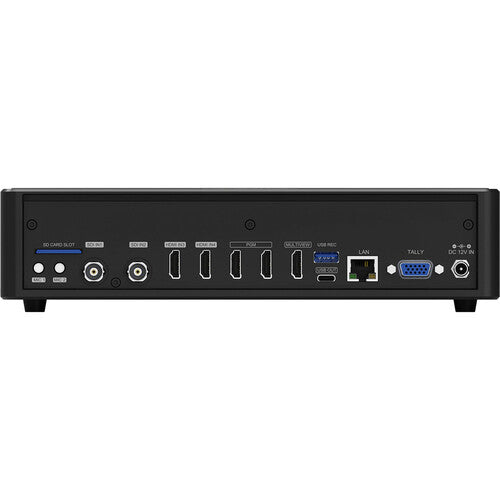

Connectivity

• Other I/O:

 – 1x RJ45 LAN Input

 – 1x DE-15/DB-15 Tally Input/Output

 – 1x USB-A Input

• HDCP Support: No

IP Encoding/Decoding

• IP Video: 1920 x 1080 Encoding

• Transport Protocols: RTMP, RTMPS, SRT

• Simultaneous Streams: 1 Stream

• Compatible Services: Facebook Live, Instagram, Livestream, Skype, Twitch, YouTube Live

Internal Recording

• Recording Media: 1x SD (Unspecified Type)

Display

• Display Size: 10.1"

• Screen Resolution: 1920 x 1080

Hardware

• Processor: Not Specified by Manufacturer

• Wireless: No

Power

• Power I/O: 1x Barrel (12 VDC at 2 A) Input

• Power Consumption: 24 W

Physical

• Operating Conditions: -4 to 122°F / -20 to 50°C

• Dimensions: 10.29 x 7.63 x 2.3" / 26.14 x 19.39 x 5.8 cm

• Weight: 3.81 lb / 1.73 kg

Packaging Info

• Package Weight: 5.07 lb

• Box Dimensions (LxWxH): 12.6 x 10.5 x 4.2"

  • AVMATRIX Shark S4 PLUS 4-Channel SDI/HDMI Video Switcher with 10.1" IPS Display
  • 12V Power Supply
  • USB-A to USB-C Cable
  • Tally Connector
  • Limited 1-Year Manufacturer Warranty
