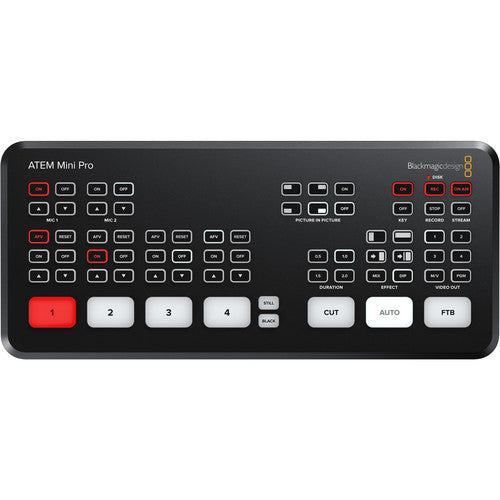

• Blackmagic Design ATEM Mini Pro Front viw

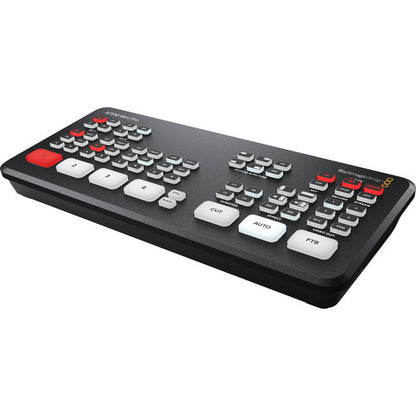

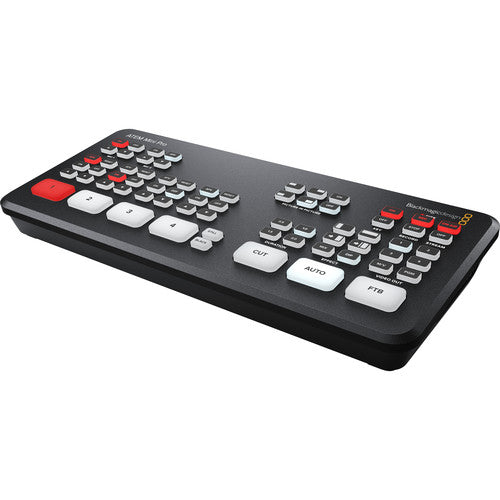

  • Blackmagic Design ATEM Mini Pro Side view

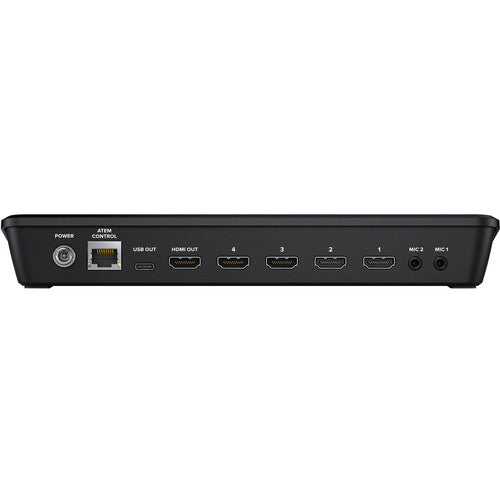

  • Blackmagic Design ATEM Mini Pro Back view
1 3

Blackmagic

Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher

Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher

SKU:SWATEMMINIBPR

Dhs. 1,229.00
Dhs. 1,229.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

Low stock: 1 left

Key Features

  • 4-Channel Live Stream HDMI Switcher
  • Control up to Four BMPCC 6K/4K Cameras
  • Live Tally, Stream and Record Status
  • Record Button, Channel Preview Multiview
View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

Blackmagic Design ATEM Mini Pro Overview

Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher is a four-input live production switcher with an integrated control panel designed for multicamera live streaming up to HD video to the internet or broadcast applications from gaming consoles, corporate computer streams, or HD cameras. Along with the software control update, the Mini Pro builds on the Mini with features such as live stream data rate and status information, a built-in hardware encoder, simultaneous recording to USB drives, drive hot swapping with the Blackmagic MultiDock, added record and stream buttons, stream caching, a timecode generator, program preview multiview, tally support, and support for Blackmagic Design Pocket Cinema Camera 6K and 4K to utilize as your broadcast sources.

Blackmagic Design ATEM Mini Pro Specs

Mixing & Effects

• Available M/E Layers: 5 M/E

• Effect Types: 1x DVE, Graphic, Transition, Chroma Key, Alpha Key, Luma Key

• Downstream Keys:

 • 1x Chroma, DVE

 • 2x Luma

• Audio Mixing: 2-Channel Mixing

Processing

• Switching Type: Pushbutton

Input

• Number of Video Input Sources: 4

• Video Inputs: 4x HDMI Female

• Input Video Format:

 • HDMI (10-Bit 4:2:2 YUV)

 • 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps

 • 1080i 50/59.94/60 fps

 • 720p 50/59.94/60 fps

• Audio Inputs: 2x 1/8" / 3.5 mm TRS Stereo Analog Female

• Embedded Audio Input: HDMI: 2-Channel (per Input)

Output

• Video Output Channels: 1

• Video Outputs: 1x HDMI

• Output Video Format:

 • HDMI / RJ45 (10-Bit 4:2:2 YUV)

 • 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps

• Embedded Audio Output: HDMI: 2-Channel (per Output)

• Multiview Output: Yes

• Monitor Output: 1x HDMI

Connectivity

• Other I/O:

 • 1x RJ45 (Control, Firmware, LAN, Sync, Tally, Timecode Input/Output)

 • 1x USB-C (Control, Firmware Input/Output)

Hardware

• OS Compatibility: macOS 10.14 or Later / Windows 10 or Later

• Processor: Not Specified by Manufacturer

• Wi-Fi: No

• Bluetooth: No

Power

• Power I/O: 1x Barrel (12 VDC) Input

• Power Consumption: 36 W

General

• Operating Conditions: 41 to 104°F / 5 to 40°C (up to 90% Humidity)

• Storage Conditions: 14 to 140°F / -10 to 60°C

• Dimensions: 9.35 x 4.07 x 1.38" / 23.75 x 10.34 x 3.51 cm

• Weight: 19.4 oz / 550 g

Packaging Info

• Package Weight: 2.26 lb

• Box Dimensions (LxWxH): 11.8 x 5.7 x 4.7"

  • Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher
  • 12V Power Supply with International Adapters
  • Limited 1-Year Manufacturer Warranty
