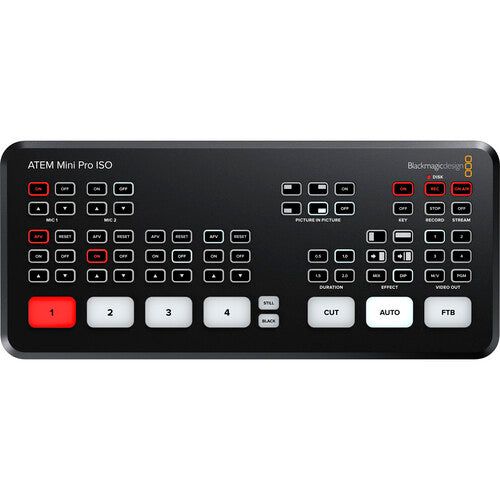

• Blackmagic Design ATEM Mini Pro ISO HDMI Live Stream Switcher Front view

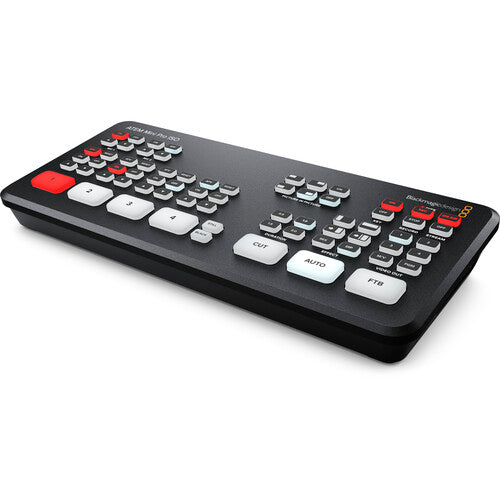

  • Blackmagic Design ATEM Mini Pro ISO HDMI Live Stream Switcher Sideview

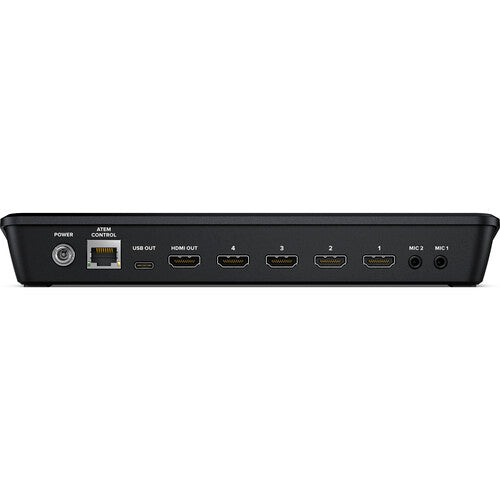

  • Blackmagic Design ATEM Mini Pro ISO HDMI Live Stream Switcher Back view
1 3

Blackmagic

Blackmagic Design ATEM Mini Pro ISO HDMI Live Stream Switcher

Blackmagic Design ATEM Mini Pro ISO HDMI Live Stream Switcher

SKU:SWATEMMINIBPRISO

Dhs. 2,049.00
Dhs. 2,049.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

In stock

Key Features

  • 4-Channel Live Stream HDMI Switcher
  • Program and 4 x Input ISO Recording
  • Generates DaVinci Resolve Project
  • Live Tally, Stream, and Record Status
View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

Blackmagic Design ATEM Mini Pro Overview

Blackmagic Design ATEM Mini Pro ISO HDMI Live Stream Switcher is a four-input live production switcher with an integrated control panel designed for multicamera live streaming up to HD video to the internet via Ethernet output. It features a USB output that allows you to record the program output as well as record the individual HDMI inputs to an external USB drive (not included). In addition to recording the program stream and individual inputs, the ATEM Mini Pro ISO also records the embedded audio and analog audio inputs, generating a DaVinci Resolve project file of your live stream. This allows you to take your live production into DaVinci Resolve to make tweaks or adjustments using the source material that is already on your USB drive

The ATEM Mini Pro ISO retains the same size, button layout, and rear panel interface connections as the ATEM Mini Pro, with new electronics that allow for the ISO recording and generation of the DaVinci project file. The ATEM Mini Pro ISO supports all the same features as the ATEM Mini Pro including upstream and downstream keyers, an advanced chroma keyer, two linear/luma keyers, a DVE transition keyer, a pattern generator, and color generators. There is also media player support for fill and key images, which supports up to 20 stills in PNG, TGA, BMP, JPEG, and TIFF formats. The ATEM Software Control Panel is used for control and configuration, and it allows you to monitor the data rate, audio meters, configuration, and status of your live feed. And you can use the panel to set up streaming to an optional Blackmagic Design Streaming Bridge anywhere in the world, as long as it is connected to the internet.

Blackmagic Design ATEM Mini Pro Specs

Mixing & Effects

• Available M/E Layers: 5 M/E

• Effect Types: 1x DVE, Graphic, Transition, Chroma Key, Alpha Key, Luma Key

• Downstream Keys:

 • 1x Chroma, DVE

 • 2x Luma

• Generators:

 • 1x Pattern

 • 2x Color

• Audio Mixing: 2-Channel Mixing

Processing

• Switching Type: Pushbutton

• Color Processing: 10-Bit 4:2:2 YUV

Input

• Number of Video Input Sources: 4

• Video Inputs: 4x HDMI Female

• Input Video Format:

 • HDMI (10-Bit 4:2:2 YUV)

 • 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps

 • 1080i 50/59.94/60 fps

 • 720p 50/59.94/60 fps

• Audio Inputs: 2x 1/8" / 3.5 mm TRS Stereo Analog Female

• Input Audio Format: Analog

• Embedded Audio Input: HDMI: 2-Channel (per Input)

Output

• Video Output Channels: 1

• Video Outputs: 1x HDMI

• Output Video Format:

 • HDMI / RJ45 (10-Bit 4:2:2 YUV)

 • 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps

• Embedded Audio Output: HDMI: 2-Channel (per Output)

• Multiview Output: Yes

• Monitor Output: 1x HDMI

Connectivity

• Other I/O:

 • 1x RJ45 (Control, Firmware, LAN, Sync, Tally, Timecode Input/Output)

 • 1x USB-C (Control, Firmware Input/Output)

IP Encoding / Decoding

• IP Video: H.264 – 1920 x 1080 at 23.98p to 60p Encoding

• Transport Protocols: RTMP

• Simultaneous Streams: 1 Stream

Hardware

• OS Compatibility: macOS 10.14 or Later / Windows 10 or Later

• Processor: Not Specified by Manufacturer

• Wi-Fi: No

• Bluetooth: No

Power

• Power I/O: 1x Barrel (12 VDC) Input

• Power Consumption: 36 W

General

• Operating Conditions: 41 to 104°F / 5 to 40°C (up to 90% Humidity)

• Storage Conditions: 14 to 140°F / -10 to 60°C

• Dimensions: 9.35 x 4.07 x 1.38" / 23.75 x 10.34 x 3.51 cm

• Weight: 19.4 oz / 550 g

Packaging Info

• Package Weight: 2.29 lb

• Box Dimensions (LxWxH): 11.2 x 6.5 x 4.6"

  • Blackmagic Design ATEM Mini Pro ISO HDMI Live Stream Switcher
  • 12V Power Supply with International Adapters
  • Limited 1-Year Warranty
