Blackmagic

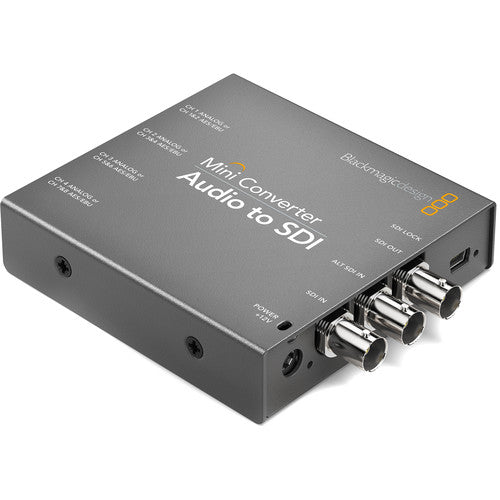

Blackmagic Design Audio to SDI Mini Converter

Blackmagic Design Audio to SDI Mini Converter

SKU:SKU :CONVMCAUDS2

Regular price Dhs. 899.00
Regular price Sale price Dhs. 899.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

Low stock: 1 left

Badge

Key Features

  • Embed Audio into up to 1080p SDI Signals
  • Four 1/4" Audio Input Jacks
  • Supports 4 Channels of Analog Audio
  • Supports 8 Channels of AES/EBU Audio
  • Redundant SDI Backup Input
View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

Blackmagic Design CONVMCAUDS Overview

Blackmagic Design Audio to SDI Mini Converter. Connect up to four channels of balanced analog or eight channels of AES/EBU audio via four 1/4" jacks.

In addition to a dedicated SDI input, the converter also features a redundant SDI input that allows you to run a backup cable in case the first is lost. This is useful in mission-critical applications, especially outdoors or in crowded venues where there is a higher chance of damage to the cable.

Blackmagic Design CONVMCAUDS Specs

Video Inputs & Outputs

• SDI Input: 1 × SDI on BNC (switchable 3G/HD/SD)

• Redundant SDI Input: 1 × 3G/HD/SD (auto-switches if main input fails)

• SDI Output: 1 × SDI on BNC (switchable 3G/HD/SD)

• SDI Auto Switching: Auto-detects 3G/2K/HD/SD-SDI

• Reclocking: Yes

Audio Inputs

• 4 × 1/4" jacks support:

 – 4 channels balanced analog

 – 8 channels balanced AES/EBU digital

• SDI Audio Sampling: 48 kHz / 24-bit

SDI Details & Compliance

• SDI Compliance: SMPTE 292M, 259M, 296M, 372M, 424M-B, 425M; ITU-R BT.656/BT.601

• SDI Video Sampling: 4:2:2 & 4:4:4

• SDI Color Precision: 4:2:2 & 4:4:4

• SDI Color Space: YUV, RGB

• SDI Format Support:

 – 1080p: 60/59.94/50/30/29.97/25/24/23.98 fps

 – 1080PsF: 30/29.97/25/24/23.98 fps

 – 1080i: 60/59.94/50 fps

 – 720p: 60/59.94/50 fps

 – SD: 525i 59.94 NTSC, 625i 50 PAL

• 2K Format Support: 2K DCI 25p/24p/23.98p, 25PsF/24PsF/23.98PsF

Software & Control

• Updates & Configuration: USB 2.0 high-speed

• Internal Software Upgrade: Included updater application

• Settings Control: Mini switches or USB software

• Supported OS: Mac OS X 10.11+, macOS Sierra or later; Windows 8.1 or 10

Power

• Power Supply: +12 V universal included, with international adapters

• Power Consumption: 8.4 W

• Operational Voltage Range: 12 VDC

Environmental

• Operating Temperature: 32–104°F / 0–40°C

• Storage Temperature: -4–113°F / -20–45°C

• Relative Humidity: 0–90% non-condensing

Physical

• Dimensions: 4.5 × 3.6 × 0.9" / 11.5 × 9.2 × 2.3 cm

• Weight: 7.6 oz / 215 g

Packaging Info

• Package Weight: 1.08 lb

• Box Dimensions (L×W×H): 5.8 × 5.8 × 2.7"

  • Blackmagic Design Audio to SDI Mini Converter
