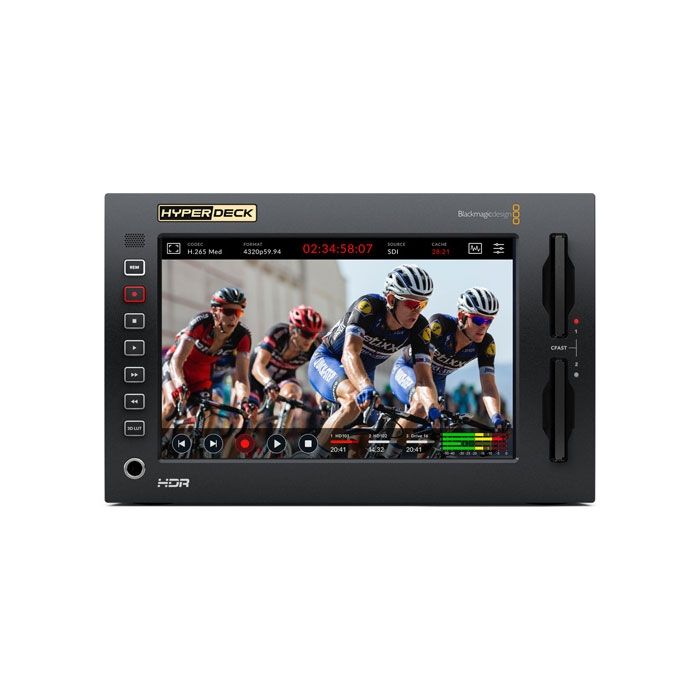

• Blackmagic Design HyperDeck Extreme 8K HDR Front View

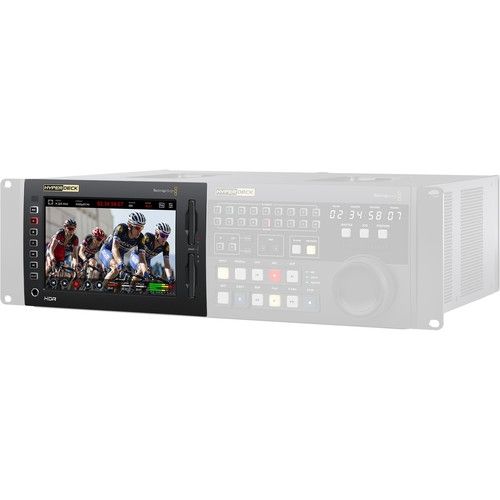

  • Blackmagic Design HyperDeck Extreme 8K HDR Side View

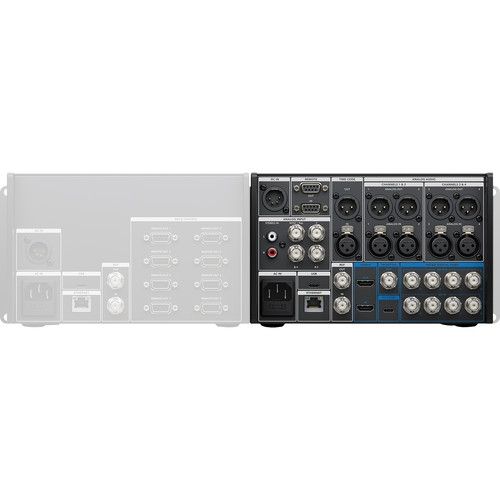

  • Blackmagic Design HyperDeck Extreme 8K HDR Back View

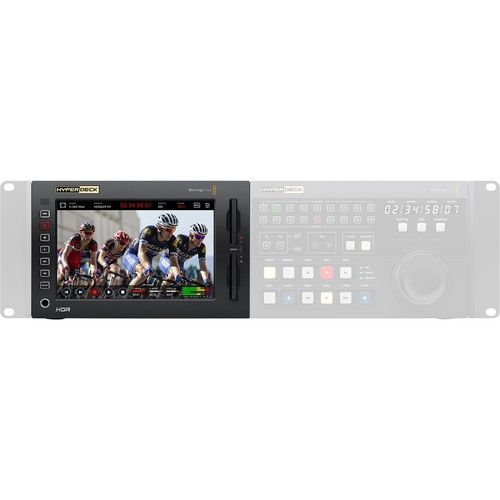

  • Blackmagic Design HyperDeck Extreme 8K HDR
1 4

Blackmagic

Blackmagic Design HyperDeck Extreme 8K HDR

Blackmagic Design HyperDeck Extreme 8K HDR

SKU:#HYPERD/RSTEX8KHDR

Dhs. 21,229.00
Dhs. 21,229.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

In stock

Key Features

  • Large LCD with Touchscreen Deck Controls
  • Physical Controls, Two CFast Card Slots
  • Quad 12G-SDI, HDMI, and Legacy Analog
  • Fast USB Type-C Disk Port; 10G Ethernet
View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

Blackmagic Design HyperDeck Extreme 8K Overview

Blackmagic Design HyperDeck Extreme 8K HDR is an 8K recorder featuring a large display with standard touchscreen deck controls for viewing recordings. It also has physical deck controls on its left side and two CFast card slots on the right. Ideally, it would be used together with the optional HyperDeck Extreme Control deck, which provides traditional deck control features with a built-in editor for automating the ingest of legacy videotape-based programming. Both have the same 3 RU, half-rack width size and can be installed beside each other in a rack and combined into a traditional broadcast deck for a comprehensive workflow.

Blackmagic Design HyperDeck Extreme 8K Specs

Video Inputs

• SDI Video Inputs: 4

• HDMI Video Inputs: 1 x HDMI 2.0 Type A

• Analog Video Inputs:

 – 1 x Component YUV on 3 BNCs

 – 1 x Composite NTSC/PAL on 1 BNC

• SDI Data Rates: 270 MB/s, 1.5G, 3G, 6G, 12G

• HDMI Video Format: UHD 4K 30/50/60 fps, DCI 2K 30/50/60 fps, 1080p/i 23.98–60 fps, 720p 23.98–60 fps, 576p/i 50 fps

Video Outputs

• SDI Video Outputs: 5 (12G-SDI A, B, C, D + 3G-SDI Monitor Out)

• HDMI Video Outputs: 1 x HDMI 2.0 Type A

• Analog Video Outputs: None

Audio

• Analog Audio Inputs:

 – 4 Channels Professional Balanced via XLR

 – 2 Channels Consumer Unbalanced via RCA

• SDI Audio Inputs: 16 Channels Embedded

• HDMI Audio Inputs: 8 Channels Embedded

• SDI Audio Outputs: 16 Channels Embedded

• HDMI Audio Outputs: 8 Channels Embedded

• Audio Sampling: 24-Bit, 48 kHz

Display & Monitoring

• Display: 7" LCD, 1920 x 1200, 2000 cd/m², DCI-P3 100% HDR

• Scopes: Waveform, RGB Parade, Vector, Histogram

• Viewing Modes: Picture-in-Picture, Picture Overlay, Opacity Control, HDR Graticules

Control & Connectivity

• Remote Control: RS-422 Deck Control, SDI Start/Stop, Timecode Run

• Timecode I/O: 1 x XLR Input, 1 x XLR Output

• Reference Input: Tri-Sync or Black Burst

• Ethernet: 10 Gb/s

• Computer Interface: 1 x USB-C for Software Updates

• Internal Software Upgrade: Loaded at Startup or via USB

Recording & Media

• Recorder Configuration: Via User Interface or HyperDeck Ethernet Protocol

• Media Slots: 2 x CFast 2.0, 1 x USB Type-C 3.1 Gen 2

• Cache Recording: Optional M.2 PCIe NVMe Card up to 16 GB/s

• Media Format: ExFAT or HFS+

• Supported Codecs: ProRes HQ, 422, LT, Proxy; H.265 High/Medium/Low up to 4320p60

Video Standards

• SD: 525i NTSC, 625i PAL

• HD: 720p/i, 1080p/i/PsF 23.98–60 fps

• 2K DCI: 1080p/PsF 23.98–25 fps

• UHD: 2160p 23.98–60 fps

• 4K DCI: 2160p 23.98–25 fps

• 8K: 4320p 23.98–60 fps

SDI Compliance

• SMPTE 259M, 292M, 296M, 372M, 424M, 425M Level A/B, 2081-1/-10, 2082-1/-10, 2084

• Metadata Support: HD RP188, CEA-708 Closed Captioning, HDR Metadata

• Color Precision: 10-Bit, Color Space Rec. 601/709/2020, LUTs Supported

• Multi-Rate Support: SD, HD, 6G-SDI, 12G-SDI, 2SI Quad-Link 12G-SDI

Power

• Power Supply: Internal 100–240 VAC, 4-Pin XLR 12 VDC Input (External/Battery)

Physical & Environmental

• Rack Compatibility: 3 RU, Half-Rack Width

• Operating Temperature: 32 to 104°F / 0 to 40°C

• Storage Temperature: -4 to 113°F / -20 to 60°C

• Relative Humidity: 0 to 90% Non-Condensing

• Dimensions: 8.3 x 5.1 x 13.2" / 21 x 13 x 33.5 cm

• Weight: 8 lb / 3.6 kg

Packaging Info

• Package Weight: 10.3 lb

• Box Dimensions (LxWxH): 17.3 x 11 x 8.1"

  • Blackmagic Design HyperDeck Extreme 8K HDR
  • SD Card with User Manual
  • Limited 1-Year Manufacturer Warranty
