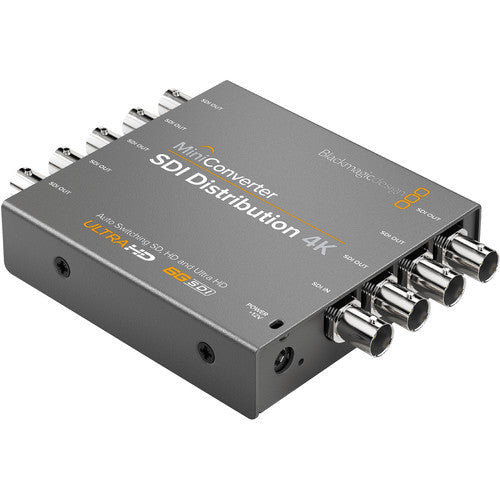

• Blackmagic Design Mini Converter SDI Distribution 4K Front View

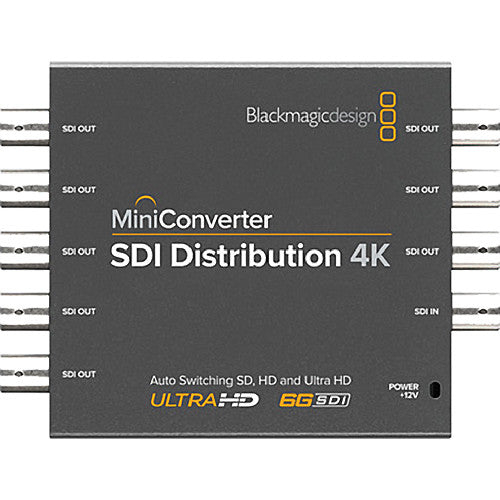

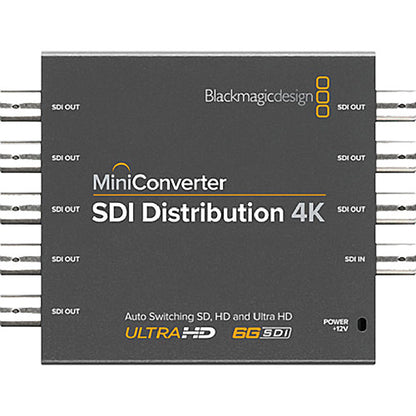

  • Blackmagic Design Mini Converter SDI Distribution 4K Back View
1 2

Blackmagic

Blackmagic Design Mini Converter SDI Distribution 4K

Blackmagic Design Mini Converter SDI Distribution 4K

SKU: CONVMSDIDA4K

Dhs. 1,299.00
Dhs. 1,299.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

Low stock: 1 left

Key Features

  • Single Link SD/HD/3G/6G-SDI Input
  • 8x Single Link SD/HD/3G/6G-SDI Outputs
  • Re-Clocked Outputs
  • Supports SD, HD, UHD 4K & DCI 4K Signals
  • Automatic Input Signal Detection
  • Ancillary Data & Embedded Audio
  • Supports ASI Signals
  • Control via DIP Switches or Software
View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

Blackmagic Design Mini Converter Overview

Mini Converter SDI Distribution 4K from Blackmagic Design allows you to distribute a Single Link SD/HD/3G/6G-SDI signal to eight SDI devices simultaneously. It automatically detects the input signal type, re-clocks it, and its eight outputs automatically match the SDI input video format. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications.

Using 6G-SDI technology, the Mini Converter supports resolutions up to Ultra HD 4K (3840 x 2160) at up to 30 fps and DCI 4K (4096 x 2160) at 24 fps, as well as SD, HD, and 3G-SDI signals. It supports all SDI-related transmission features, including embedded audio, ancillary data, and even handles ASI signals - asynchronous signals that carry multiple compressed programs that can be at varying transmission speeds. The Mini Converter's settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12V power supply is included with international socket adapters.

Blackmagic Design Mini Converter Specs

Video Inputs & Outputs

• Input: 1 × BNC (6G-SDI)

• Output: 8 × BNC (6G-SDI)

• Video Format: SDI (4:2:2 YUV, RGB)

 – 1280 × 720p: 59.94 / 60 fps

 – 1920 × 1080i: 50 / 59.94 / 60 fps

 – 1920 × 1080PsF: 23.98 / 24 / 25 / 29.97 / 30 fps

 – 1920 × 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 fps

 – 2048 × 1080PsF: 23.98 / 24 / 25 fps

 – 2048 × 1080: 23.98 / 24 / 25 fps

 – 3840 × 2160: 23.98 / 24 / 25 / 29.97 / 30 fps

 – 4096 × 2160: 24 fps

Interfaces

• Other I/O: 1 × USB-A (Firmware)

Standards & Features

• Video Standard Compliance: SMPTE 259M / 292M / 296M / 372M / 425M

• Reclocking: Yes

• Maximum Audio Sampling Rate: 48 kHz / 24-bit

Power

• Power Supply: 12 to 30 VDC

• Power Consumption: 4.8 W

General

• Operating Conditions: 32 to 104°F / 0 to 40°C, up to 90% humidity

• Storage Conditions: -4 to 113°F / -20 to 45°C

• Dimensions: 4.8 × 3.6 × 0.9" / 12.2 × 9.2 × 2.3 cm

• Weight: 11.88 oz / 336.79 g

Packaging Info

• Package Weight: 1.35 lb

• Box Dimensions (L × W × H): 5.7 × 5.6 × 2.7"

Blackmagic Design Mini Converter SDI Distribution 4K
