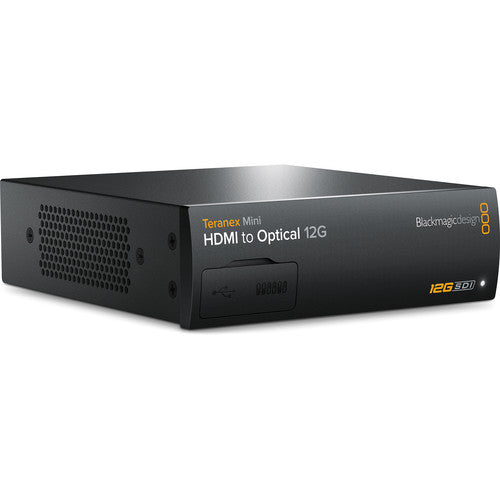

• Blackmagic Design Teranex Mini HDMI to Optical 12G Converter Front View

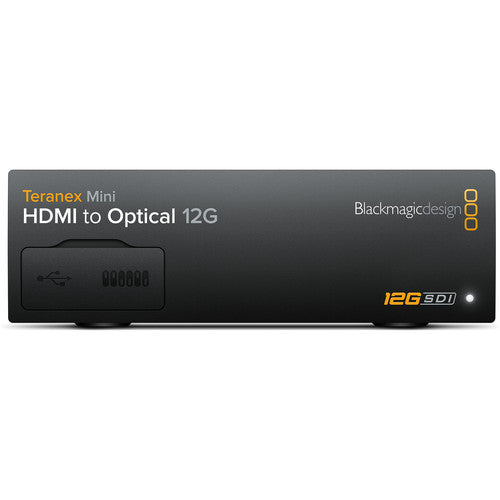

  • Blackmagic Design Teranex Mini HDMI to Optical 12G Converter
1 2

Blackmagic

Blackmagic Design Teranex Mini HDMI to Optical 12G Converter

Blackmagic Design Teranex Mini HDMI to Optical 12G Converter

SKU CONVNTRM/MB/HOPT

Dhs. 2,269.00
Dhs. 2,269.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

In stock

Key Features

  • Convert an HDMI Signal to 12G-SDI
  • Convert HDMI to Optical Fiber (Optional)
  • Up to DCI 4K/60p Support on Input/Output
  • XLR Inputs Switchable to AES/EBU
  • Ethernet Port for Remote Control or PoE
  • Built-In 90-240V Power Supply
  • Rack-Mount, Duct or Desktop Installation
  • Install up to 3 Units in Single 19" Rack
View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

Blackmagic Design Teranex Mini Overview

Blackmagic Design Teranex Mini HDMI to Optical 12G Converter (Optical Fiber Module Not Included) allows you to convert an HDMI signal to a 12G-SDI output, or install an optional optical fiber module and convert an HDMI signal to fiber. In either case, the output will automatically match the HDMI input resolution. Up to DCI 4K (4096 x 2160) 60p resolution is supported on both input and output.

An optical fiber module is not included but is supported on the rear. 3G and 6G modules are currently available (model #s ADPT-3GBI/OPT and ADPT-6GBI/OPT), and 12G modules are in the works.

The Teranex Mini HDMI to Optical 12G Converter also features full-size XLR inputs that are switchable between balanced analog and AES/EBU digital audio, and which allow you to connect separate audio. The converter also has an Ethernet port that allows you to manage the converter remotely from a Mac or Windows computer using the included Converter Utility software. This capability is especially useful when you're in a larger facility using numerous converters.

The Ethernet port can alternatively be used for Power-over-Ethernet (PoE). If you don't want to use PoE, you won't have to deal with cumbersome power supplies, as the Teranex Mini features a built-in 90-240V power supply, and all you'll need is a standard IEC power cable, sold separately.

The Teranex Mini can be used rack-mounted, concealed in cable ducts, or desktop-mounted. Its compact size makes it useful for portable racks at live events or in broadcast trucks. Up to three units can easily be installed in an optional 1 RU 19" rack tray.

Blackmagic Design Teranex Mini Specs

Video Inputs & Outputs

• HDMI Input: 1 × HDMI 2.0 Type A

• SDI Video Output: 1 × 12G-SDI on BNC (auto matches HDMI resolution)

• Multi-Rate Support: Auto-switching between SD, HD, 2K, 4K

Audio Inputs

• Analog: 2 channels professional balanced via XLR (Right XLR configurable for timecode)

• AES/EBU Digital: 4 channels professional balanced 110 Ω via XLR (Right XLR configurable for timecode)

Formats Supported

SD: 525/29.97 NTSC, 625/25 PAL

HD: 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60

2K: 2048×1080PsF23.98/24/25, 2048×1080p23.98/24/25

4K: 3840×2160p23.98/24/25/29.97/30/50/59.94/60, 4096×2160p23.98/24/25/29.97/30/50/59.94/60

SDI & HDMI Details

• SDI Compliance: SMPTE 292M, 259M, 296M, 372M, 424M-B, 425M, 297M (Optical Fiber SDI)

• SDI Video Sampling: 4:2:2 & 4:4:4

• SDI Audio Sampling: 48 kHz, 24-bit

• SDI Color Space: REC 601, REC 709

• SDI Color Precision: YUV 4:2:2, RGB 4:4:4 in HD/2K/4K

• HDMI Color Space: REC 601, REC 709

• HDMI Color Precision: YUV 4:2:2, RGB 4:4:4 in HD/2K/4K

Software & Control

• Updates/Configuration: USB or Ethernet

• Internal Software Upgrade: Via included updater

• Basic Settings Control: Mini switches, USB, Ethernet via free software utility

• Supported OS: Mac OS X, Windows

Power

• Power Supply: Built-in international AC (IEC C14 inlet, cable not included), 90–240 VAC

• Power Over Ethernet: 48 VDC PoE capable

• Power Consumption: 15 W

• Operational Voltage: 90–240 VAC

Environmental

• Operating Temperature: 32–104°F / 0–40°C

• Storage Temperature: -4–140°F / -20–60°C

• Relative Humidity: 0–90% non-condensing

Physical

• Optical Fiber Support: Optional module

• Dimensions (W × H × D): 5.5 × 1.8 × 6.7" / 14 × 4.6 × 17 cm

• Weight: 1.3 lb / 0.6 kg

Packaging Info

• Package Weight: 1.85 lb

• Box Dimensions (L×W×H): 8.95 × 7.85 × 2.35"
