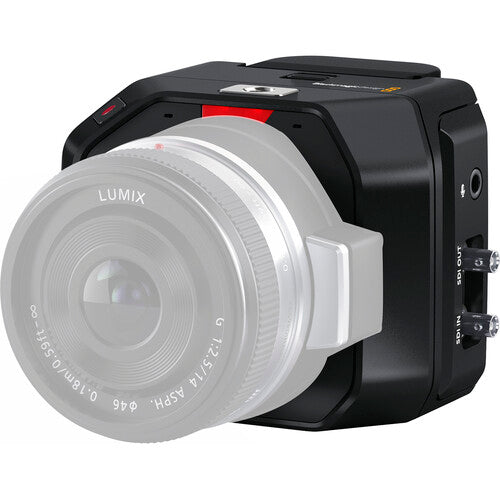

Blackmagic Micro Studio Camera 4K G2

Blackmagic Design Micro Studio Camera 4K G2 Overview

Blackmagic Design's Micro Studio Camera 4K G2 is the perfect solution for placing cameras on set when customers don't have space for regular sized cameras. It includes the popular MFT lens mount, very low light 4K image sensor and cinematic color science. So it's small, but has the features of a full sized studio camera. Customers also get 12G-SDI for HD and Ultra HD operation up to 2160p60. It's also possible to control the built in color corrector and lens using the SDI and HDMI connections. It can even record Blackmagic RAW to USB disks. Plus Blackmagic Micro Studio Camera 4K goes well beyond broadcast quality with log gamma, allowing customers to create cinematic color corrected looks, all in camera.

The distinctive Blackmagic Micro Studio Camera has all the benefits of a large studio camera in a tiny rugged body customers can put virtually anywhere. It features a super tough magnesium alloy core in a body that's not much larger than the lens mount itself. Customers can use affordable, high performance MFT lenses or add adapters to work with broadcast lenses. Plus the buttons on the front of the camera give customers quick access to the settings menu and for triggering recording.

The amazing 4K sensor combined with Blackmagic generation 5 color science gives customers the same imaging technology used in digital film cameras. The color corrector can even be controlled from the switcher. With 13 stops of dynamic range, the camera has darker blacks and brighter whites, perfect for color correction. The sensor features a resolution of 4096 x 2160 which is great for both HD and Ultra HD work. Plus, Blackmagic Micro Studio Camera supports from 23.98 fps up to 60 fps.

With the popular MFT lens mount, Blackmagic Micro Studio Camera is compatible with a wide range of affordable photographic lenses from Olympus, Panasonic, Sigma and more. Photographic lenses are incredible quality because they're designed for use in high resolution photography. This is ideal as it lets customers adjust cameras mounted high up in hard to reach areas without needing to physically access them.

Two Ways to Connect!
Blackmagic Micro Studio Cameras can be connected in lots of different ways! They feature HDMI so are perfect for HDMI switchers such as ATEM Mini. The HDMI supports video, tally, control and record trigger for a broadcast style workflow using a single HDMI cable. They also have 12G-SDI so you can connect to SDI based switchers such as the ATEM Constellation. There's a 12G-SDI connection for camera video, and one for program return. The program return also includes tally, talkback and remote camera control.

Includes Built-in Microphones!
Blackmagic Micro Studio Camera includes built in microphones so you get sound included in the design making setup much faster. Each microphone is placed at the optimal position meaning you get better stereo separation than what is possible on a regular video camera. There's also a 3.5mm audio input so you can connect to video microphones when you need to add larger more directional microphones with wind protection. Whether you're using the built in microphones or attaching an external mic, the audio is embedded into the SDI and HDMI video outputs so you get perfect audio and video sync!

Features:

• Designed specifically for live production.
• Small, rugged body with magnesium alloy core.
• Native 4K sensor with 13 stops of dynamic range.
• Compatible with a wide range of popular MFT lenses.
• USB-C port for recording to external disks or remote camera control over a network.
• Powered by 12V or LP-E6 battery.

Specifications:

Camera Features

• Effective Sensor Size: 17.78mm x 10mm (Four Thirds)
• Lens Mount: Active MFT Mount.
• Lens Control: Iris, focus, zoom on supported lenses.
• Dynamic Range: 13 Stops.
• Dual Native ISO: 0dB and 18dB gain.
• Sensitivity at 0dB Gain: f11 with 2160p59.94. f12 with 2160p50. at 2,000 lux with 89.9% reflectance.
• Signal to Noise Ratio: 63dB for 2160p.
• Shooting Resolutions: 3840 x 2160 (Ultra HD) up to 60 fps.
• Frame Rates: 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second. Off-speed frame rates up to 60 fps in Ultra HD.
• Focus: Auto focus available using compatible lenses.
• Mounting Options: 1 x 1/4 inch (top), 3 x 1/4 inch (bottom).

Connections

• SDI Video Inputs: 1
• SDI Video Outputs: 1
• SDI Rates: 3G, 6G, 12G.
• HDMI 2.0 Video Outputs: 1
• HDMI Video Outputs: 1 x HDMI Type A output., HDMI output is always HD, up to 1080p60.
• Analog Audio Input: 1 x 3.5mm Stereo Input. Can also be used for Timecode input.
• Reference Inputs: Program SDI Input on camera or on Blackmagic Studio Converter.
• SDI Audio Output: 2 channels of program audio embedded in 3G/6G/12G-SDI.
• HDMI Audio Outputs: 2 channels 48 kHz and 24-bit
• Remote Control: Remote camera control over SDI, HDMI or USB Ethernet with suitable adapter.
• Computer Interface: 1 x USB Type-C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB-C Port

Audio

• Microphone: Integrated stereo microphone
• Built in Speaker: None

Standards
SD Video Standards: None
HD Video Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI Compliance: SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10.
SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.

Blackmagic Design Micro Studio Camera 4K G2 Specs

Imaging
• Lens Mount: Micro Four Thirds

• Image Sensor: 17.78 x 10 mm (Four Thirds) CMOS

• Sensor Resolution: Not Specified by Manufacturer

Exposure Control

• Shutter Type: Mechanical Focal Plane Shutter and Electronic Rolling Shutter

• ISO/Gain Sensitivity: Native: 100 to 25,600

• Gain: 0 to 18 dB

Video Capture

• Internal Recording: Blackmagic RAW

• 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94/60.00 fps [26 to 190 Mb/s]

• Video Output (HDMI): 1920 x 1080 up to 60.00 fps

• Video Output (SDI/BNC):

 - 3840 x 2160 at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps

 - 1920 x 1080i at 50/59.94/60 fps

 - 1920 x 1080 at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps

• Built-In Microphone: Stereo

• Audio Recording: 2-Channel, 24-Bit at 48 kHz (LPCM Audio, Raw)

Interface

• Media/Memory Card Slot: None

• Internal Storage: None

• CCU I/O: 1x BNC

• Video I/O:

 - 1x HDMI 2.0 Output

 - 1x Micro BNC (12G-SDI) Input

 - 1x Micro BNC (12G-SDI) Output

• Audio I/O: 1x 1/8" / 3.5 mm TRS Stereo Microphone Input

• Power I/O: 1x Barrel (12VDC) Input

• Other I/O: 1x USB-C (USB 3.2 / 3.1 Gen 1) Video/Data/Control Input/Output

• Global Positioning (GPS, GLONASS, etc.): No

Power

• Battery: Built-In Lithium-Ion

• Power Consumption: >25 W

Environmental

• Operating Conditions: 32 to 104°F / 0 to 40°C (Up to 90% Humidity)

• Storage Conditions: -4 to 113°F / -20 to 45°C

General

• Dimensions (W x H x D): 3.3 x 2.6 x 2.74" / 8.4 x 6.6 x 6.96 cm (Without Protrusions)

• Weight: 10.58 oz / 0.30 kg (Body Only)

Packaging Info

• Package Weight: 1.48 lb

• Box Dimensions (LxWxH): 7 x 5.2 x 4"

• Blackmagic Design Micro Studio Camera 4K G2
• 12 VAC Power Supply with International Socket Adapters
• Turret Dust Cap
• Limited 1-Year Manufacturer Warranty
