DJI

DJI Transmission with High-Bright Monitor Combo

DJI Transmission with High-Bright Monitor Combo

SKU:SKU: CP.RN.00000209.01

Regular price Dhs. 8,799.00
Regular price Sale price Dhs. 8,799.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

Low stock: 1 left

Badge

Key Features

  • Transmitter & High-Bright RX Monitor Kit
  • Transmit 1080p60 Video over 3 Miles LoS
  • HDMI/3G-SDI Input / Output
  • 7" 1920 x 1200 Touchscreen Display
  • Gyroscopic Sensor to Control Gimbals
  • O3 Pro Video Transmission Technology
  • AES 256-Bit Encryption
  • Power via L-Series Batteries
  • Works with Ronin 2 / RS 3 Pro Gimbals
  • Custom LUTs, Built-In Image Tools
View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

DJI Wireless Video Transmission Combo Overview

Transmit high-definition video over 3 miles (line-of-sight) from your DJI drone or gimbal gear for monitoring with this Transmission Combo from DJI. The combo includes a transmitter and a monitor/receiver that transmits up to 1080p60 video using the highly efficient O3 Pro transmission technology via Wi-Fi 2.4 and 5 GHz frequencies. Optional high-gain antennas can be purchased to boost the signal quality and distance. The high-bright monitor features 1500 cd/m² brightness, 1920 x 1200 resolution, and a touchscreen display.

The system supports automatic frequency hopping to find the strongest signal, and it operates using AES 256 encryption to protect your video from prying eyes. It allows you to transmit simultaneously to two receivers in control mode, and in broadcast mode, it can transmit to unlimited receivers with a slightly lower performance. Control mode allows you to control your gimbal or camera using the touchscreen or via physical gestures using the built-in gyroscopic sensor.

The units can be powered via an optional L-series battery or its DC power input, or they can be powered directly from a DJI gimbal such as the Ronin 2 or RS 3. The monitor provides multiple imaging tools such as frame guide, waveform, and false color, and it allows you to import custom LUTs.

Long-Distance HD Live Feed

DJI Transmission incorporates O3 Pro video transmission technology, which offers an incredible 20,000' on-ground transmission distance. It also supports transmission at 1080p60 with a max bitrate of 50 Mb/s as well as live audio monitoring at 16-bit 48 kHz, providing crews on large sets an excellent remote visual and audio monitoring experience.

End-to-End Ultra-Low Latency

The video transmitter and receiver use the same chip solution as Ronin 4D, with every link explicitly optimized to provide end-to-end ultra-low transmission latency when pairing with cinema cameras like the ARRI ALEXA Mini LF.

Seamless Auto Frequency Hopping

  • O3 Pro adds a DFS band on top of the traditional 2.4 and 5.8 GHz, offering up to 23 channel options that provide professional crews with more compliant and interference-free transmission channels.
  • DJI Transmission supports triple-band automatic frequency hopping, which automatically scans the electromagnetic environment for the best wireless channel.
  • With a built-in frequency sweeper, users can even manually select a channel to avoid interference between devices.
  • By mounting high-gain antennas, transmission capability is further boosted.

One Transmitter with Multiple Receivers for Coordinated Shooting

  • Two transmission modes are available.
  • In Control mode, DJI Transmission delivers optimal transmission performance. Monitoring can be done from two receivers at the same time, while the gimbal of Ronin 2 and RS 3 Pro and camera can be controlled remotely.
  • Broadcast mode can be enabled on top of Control mode to enable an unlimited number of receivers (transmission performance differs from Control mode).
  • On larger and more dynamic, DJI Transmission can operate with 20 or more transmitters sending signals to 20 or more devices, resulting in a smooth, coordinated experience that's difficult to get with traditional transmission setups.

Encrypted Transmission

DJI Transmission supports linking and AES 256-bit encryption to avoid leaks of confidential information. Together with DJI's self-developed chip and transmission protocol, DJI Transmission is able to ensure security of your footage.

DJI Wireless Video Transmission Combo Specs

Display

• Panel Type: LCD (Receiver)

• Display Size: 7.0" / 17.8 cm

• Resolution: 1920 × 1200

• Aspect Ratio: 16:10

• Touchscreen: Yes

• Image Controls: False Color, Focus Peaking, Screen Markers, Waveform, Zebra

I/O

• Transmitter Video Inputs:

 – 1 × HDMI Type A (HDMI 1.4)

 – 1 × BNC (3G-SDI)

• Transmitter Loop Output:

 – 1 × BNC (3G-SDI)

• Receiver Video Inputs/Outputs:

 – 1 × HDMI Type A (HDMI 2.0) Input

 – 1 × HDMI Type A (HDMI 1.4) Output

 – 1 × BNC (3G-SDI) Output

• Embedded Audio: HDMI / SDI

• Receiver Audio Output: 1 × 1/8" (3.5 mm) Headphone

• Power I/O: 1 × Barrel Input (Transmitter/Receiver)

• Other I/O (Receiver): 1 × USB Type-C (USB 2.0)

• Media Slot: 1 × microSD/microSDHC

Security

• Encryption: 256-Bit AES

Wireless

• Wireless Range: 3.7 miles / 6 km (line-of-sight)

• Number of Channels: 23

• Channel Bandwidth: 40 MHz

• Frequency Range:

 – Non-DFS: 2.4 to 2.48 GHz, 5.15 to 5.25 GHz, 5.72 to 5.85 GHz

 – DFS: 5.25 to 5.35 GHz, 5.47 to 5.6 GHz, 5.65 to 5.72 GHz

• Latency: 68 ms

• RF Power: < 33 dBm

• Wi-Fi: Wi-Fi 5 (802.11ac), dual-band (2.4 & 5 GHz)

Format Support

• Video Format: HDMI/SDI (10-Bit 4:2:2 YCC)

 – 1080p: 60/59.94/50/30/25/24/23.98

 – 1080i: 60/59.94/50

 – 720p: 60/59.94/50

• Audio Format: 16-Bit 48 kHz PCM

• Wireless Video: Compressed

Power

• DC Input: 6 to 18 VDC

• Battery Type: L-Series (interchangeable, transmitter/receiver)

• Power Consumption: 11 W (transmitter/receiver)

Mounting

• Mounting Option: Cold Shoe

Environmental

• IP Rating: None

• Certifications: CE, FCC (per manufacturer)

• Operating Temperature: 14 to 113°F / -10 to 45°C

General

• Transmitter Dimensions: 5 × 3.4 × 1" / 127 × 87 × 26 mm

• Receiver Dimensions: 8.4 × 5.3 × 2" / 213 × 135 × 51 mm

• Transmitter Weight: 12.3 oz / 350 g (excluding antenna)

• Receiver Weight: 1.6 lb / 727 g (excluding antenna)

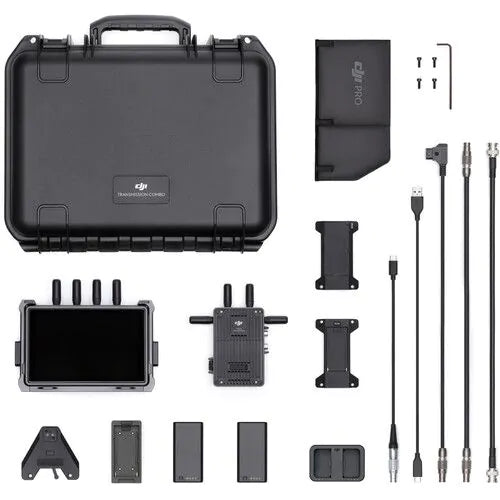

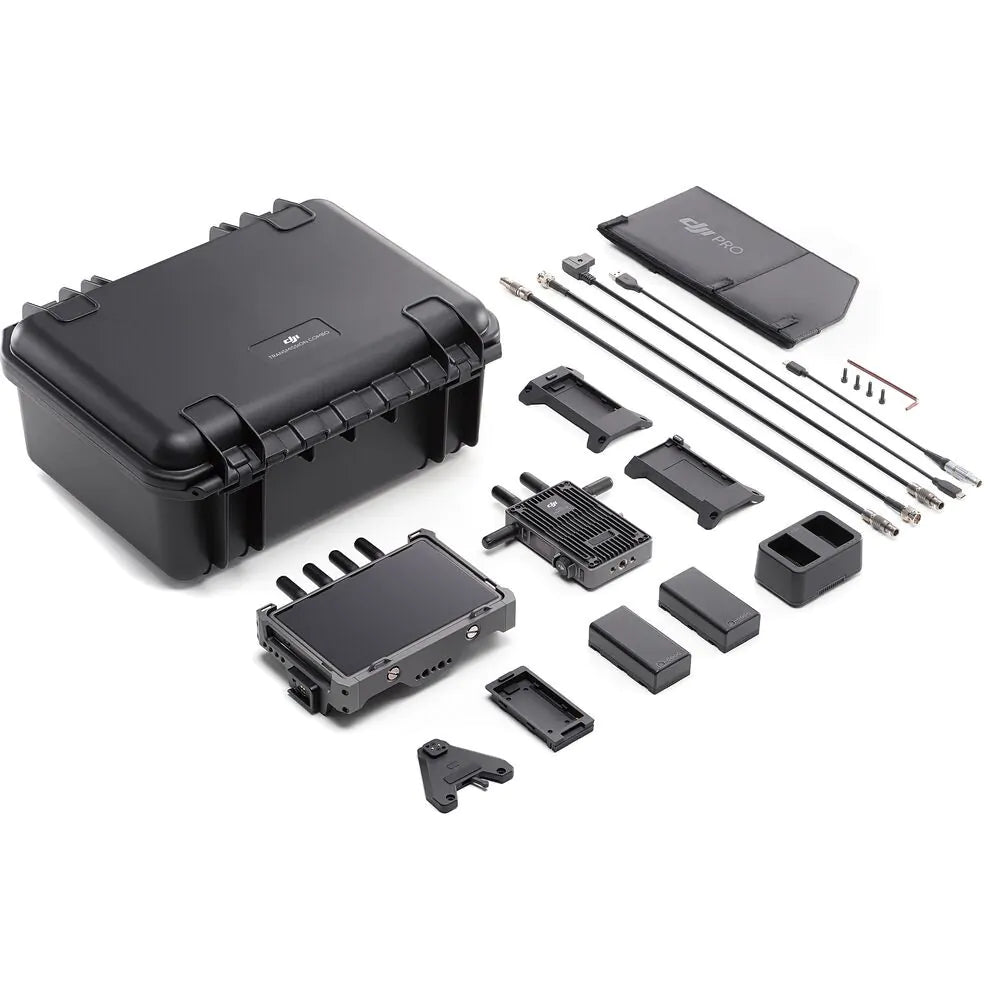

  • DJI Transmission Combo

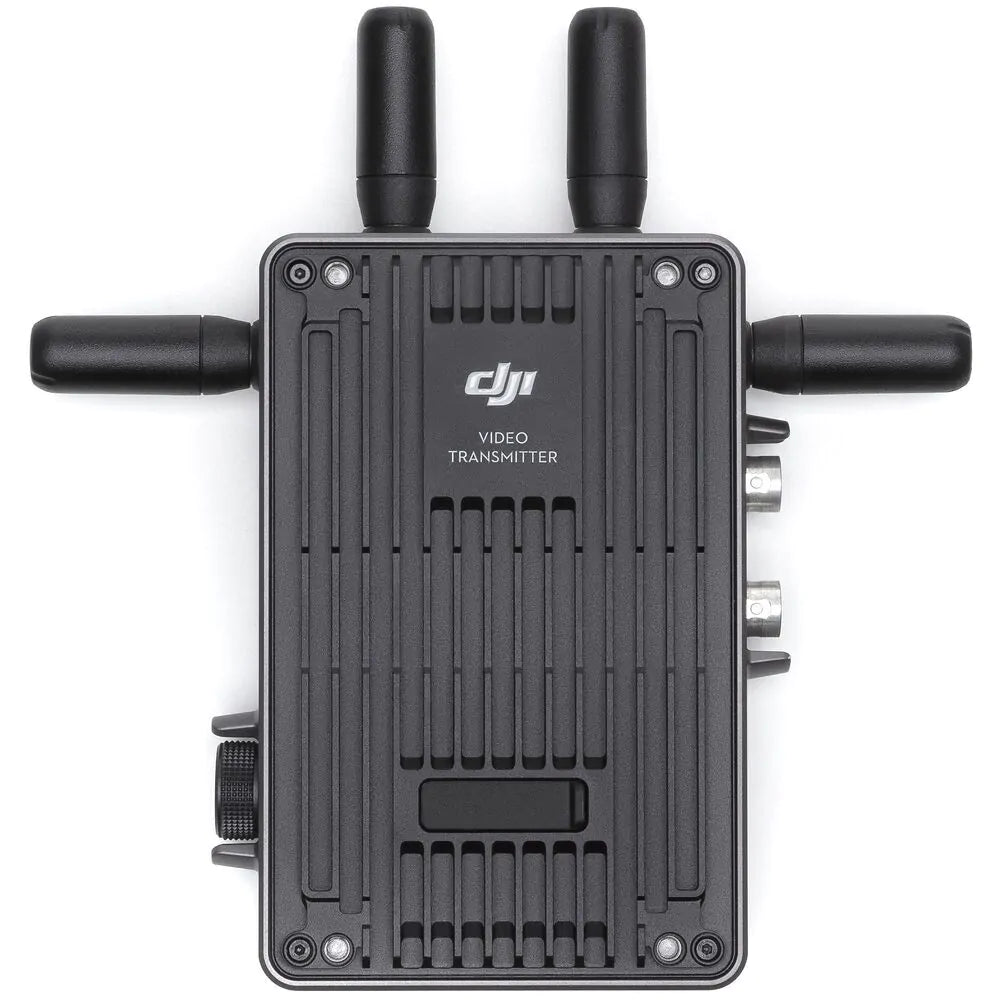

  • DJI Wireless Video Transmitter

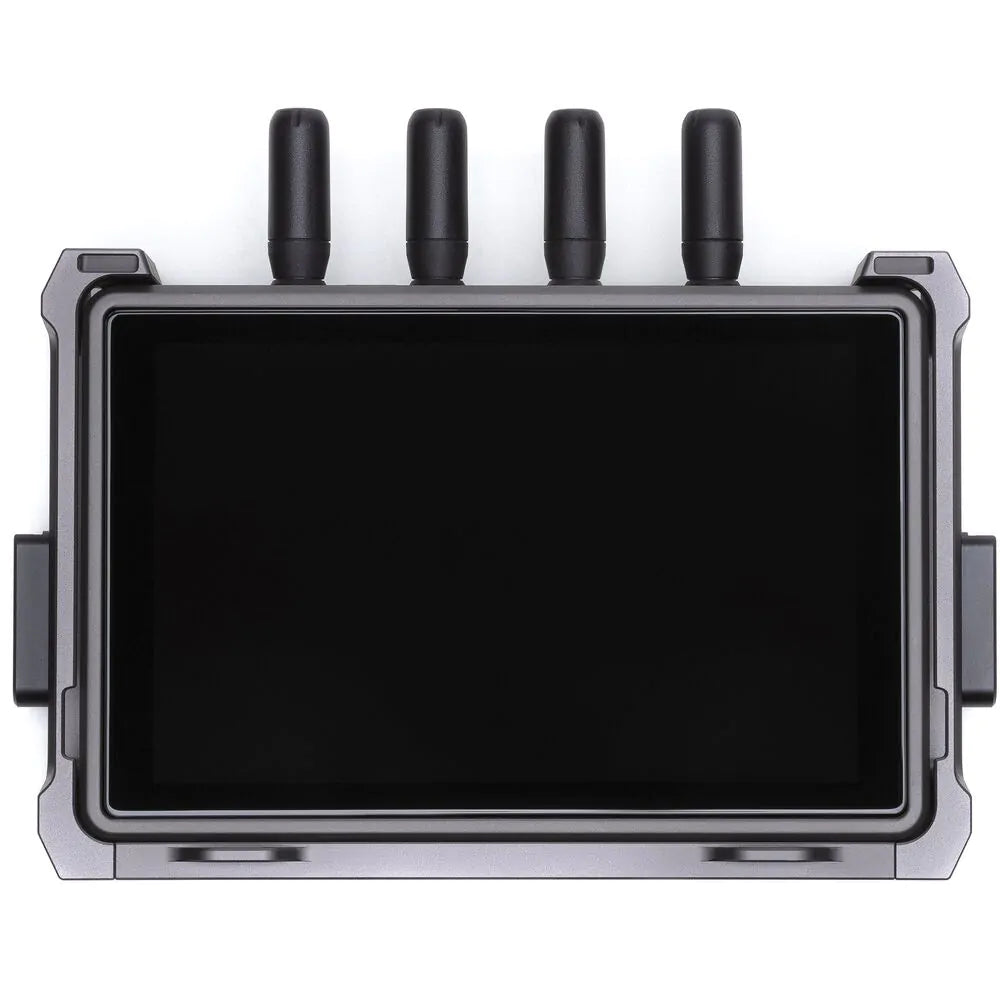

  • High-Bright Remote RX Monitor

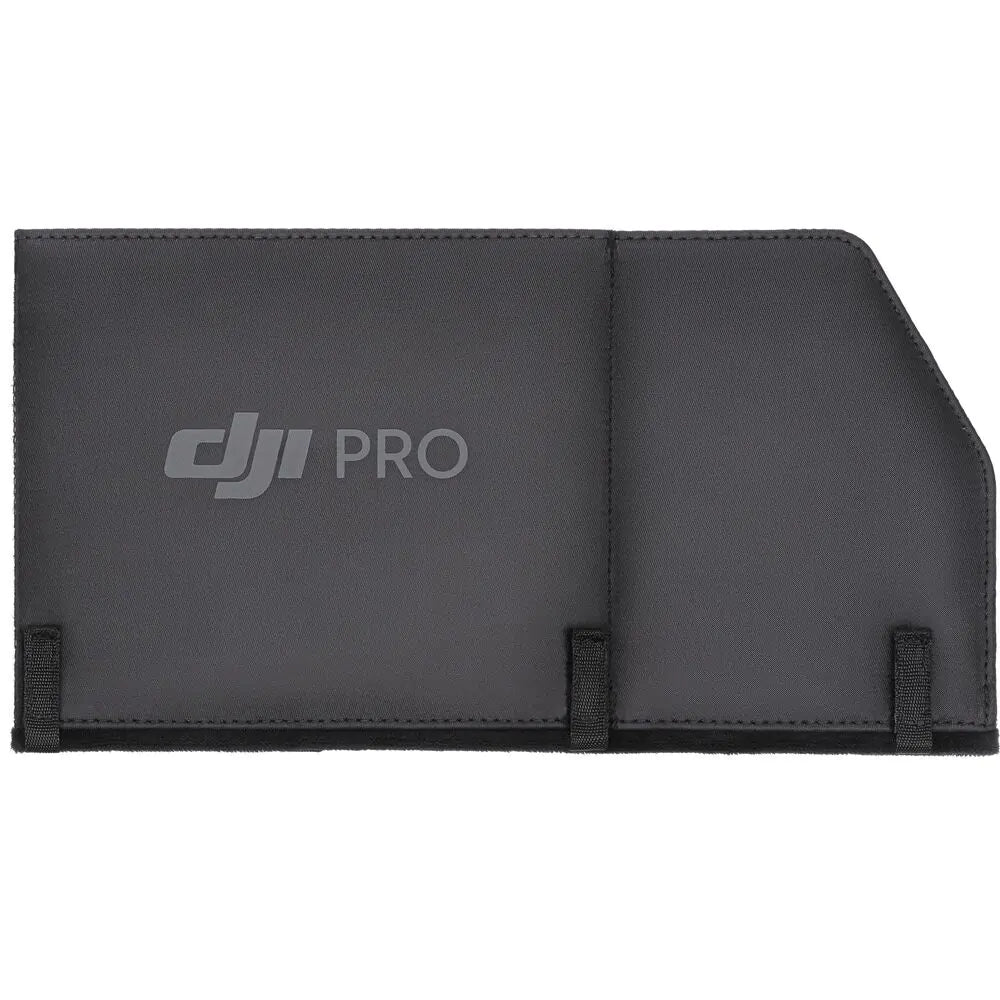

  • Remote Monitor Hood
  • WB37 Battery Adapter (TX)
  • WB37 Intelligent Battery
  • WB37 Battery Charging Hub (USB Type-C)
  • L-Series Battery Adapter (TX)
  • L-Series Battery Adapter (RX)
  • USB Type-C to LEMO Power Cable
  • RS Gimbal Mounting Plate
  • USB Type-C Cable
  • SDI Cable
  • DC Power Cable
  • DC to D-Tap Power Cable
  • Installation Toolkit

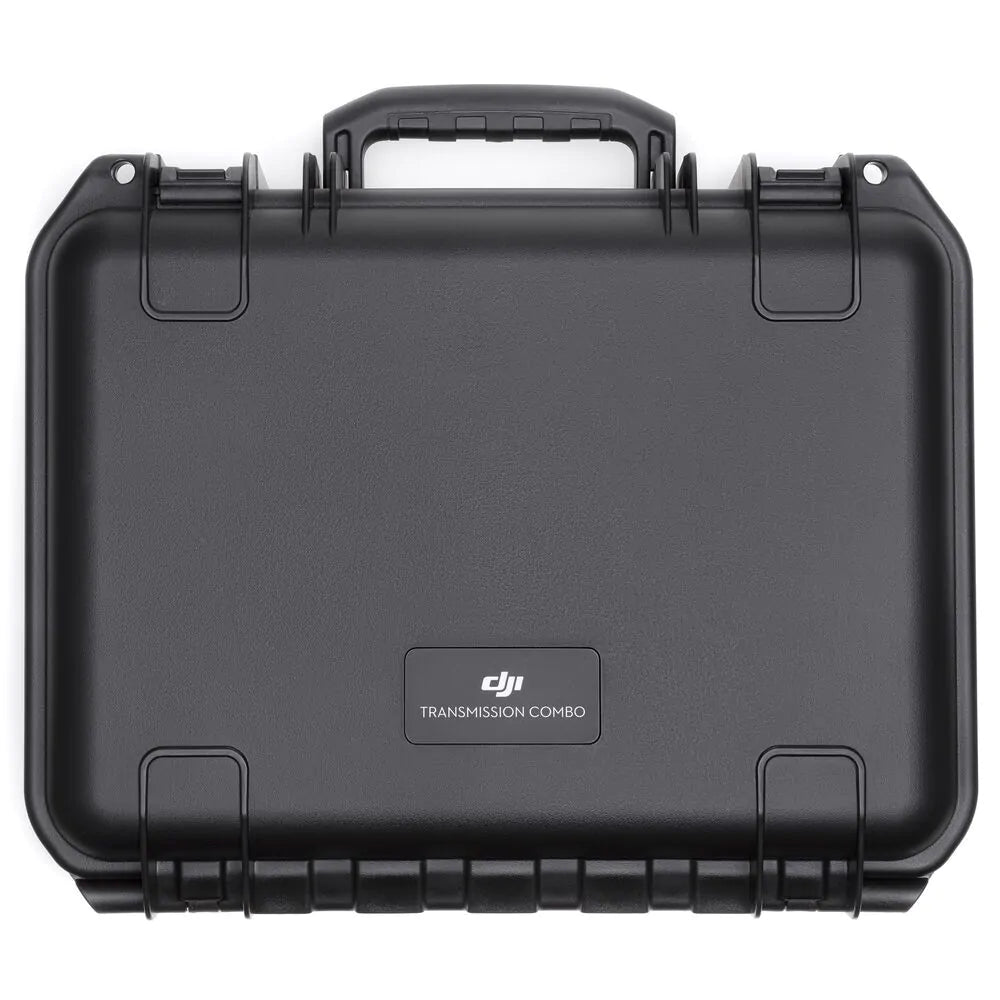

  • Protector Case
  • Limited 1-Year Warranty
