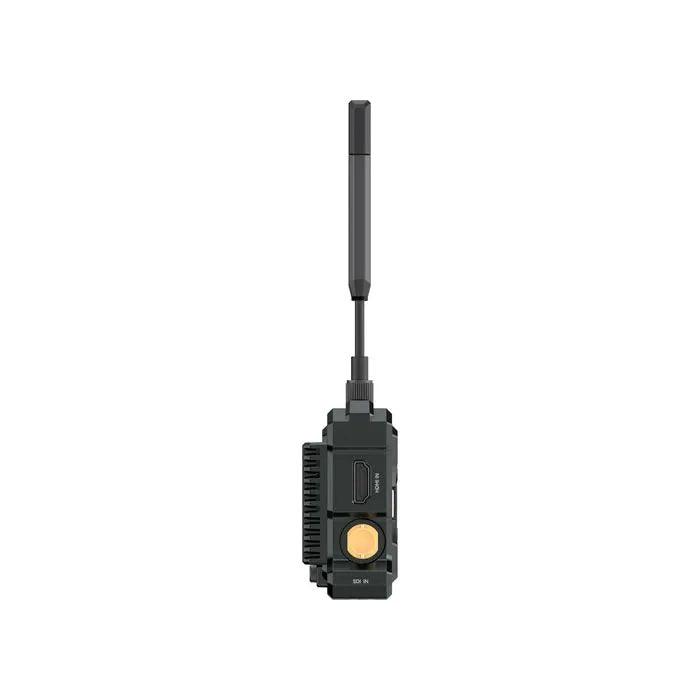

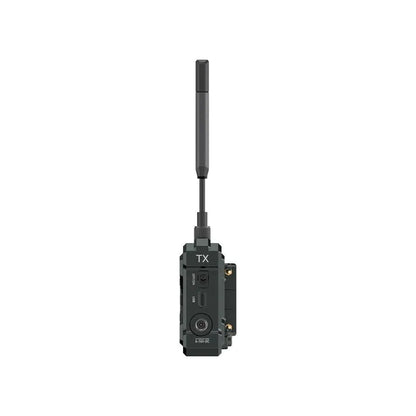

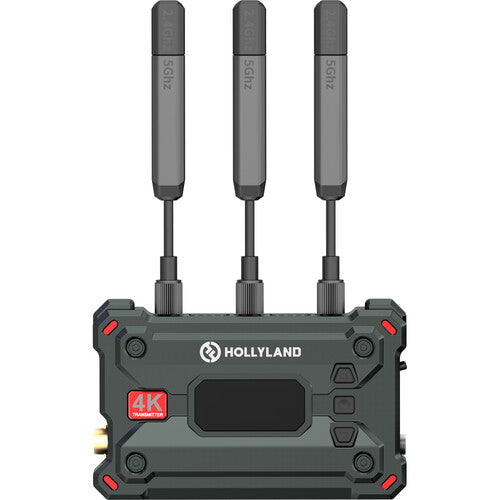

Hollyland Pyro S 4K HDMI/SDI Wireless Video Transmitter

Hollyland PYRO S Overview

Add 4K30 wireless video transmission to your production using the versatile Pyro S 4K HDMI/SDI Wireless Video Transmitter from Hollyland. The transmitter provides HDMI and SDI inputs and features extremely low 50 ms latency that accepts line-of-sight transmission from up to 1300' away. When using broadcast mode using up to four receivers and two mobile devices, the system supports up to 650' away.

The Pyro H is equipped with a USB-C port that can power the unit and also supports plug-and-play UVC operation, so it can seamlessly plug into a computer and utilize the wireless video for streaming and conferencing applications. The built-in frequency scanner allows you to select the clearest frequency for your transmission and features a bright LCD screen for configuration. In addition to the multifunction USB-C port, the unit can be powered using a separately available locking DC power adapter or an L-series type battery using an optional battery plate.

Long Distance, High QualityThe Pyro S Wi-Fi broadcast technology enables one transmitter to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set. When Broadcast mode is activated, the transmitter can transmit signals to at most four receivers, and the line-of-sight range reaches 650'. When Broadcast mode is deactivated, the transmitter can transmit signals to at most two receivers and two mobile devices, and the line-of-sight range extends up to 1300'.Strong Signal StrengthAt a stable transmission range of up to 1300', the Pyro S features latency as low as 50ms. Compared to the Mars series, whose transmission range extends at the cost of image quality and latency, the Pyro S excels with increased transmission distance while preserving video quality and minimizing latency. The transmitter/receiver combo also provides two modes for users to tip the balance between image quality and latency, with HD mode for better image quality with a bit rate of up to 12 Mb/s and Smooth mode for a dynamic change in latency.Crisp and Sharp ImagesWith up to 4K30 transmission capabilities via HDMI and 1080p60 via SDI, the Pyro S transmits images with superior clarity, detail, and realism, making it a great choice for professional applications like broadcast and filmmaking.USB Video ClassUVC allows seamless compatibility with a wide range of devices, such as computers, without requiring additional drivers or software installations. This plug-and-play feature simplifies setup and operation, making it convenient for users in various scenarios, such as live streaming and video conferencing.RTMP StreamingInput your wireless key and connect a network card to stream video directly to live platforms like Zoom, YouTube, Twitch, and TikTok.Smart Channel ScanUpon startup, Pyro S automatically chooses a high-quality frequency channel, optimizing the user experience from the outset. Additionally, users can activate the smart channel scan function on the receiver to view real-time feedback on the frequency status, thus ensuring an uninterrupted and reliable experience.Easy SetupThe Pyro S supports preset grouping and pairing, eliminating the need for users to repetitively and manually set up the transmitter and receivers.Continuous Power, Multiple OptionsIn addition to DC input and NP-F batteries, the Pyro S also supports a USB-C power supply (5-12V). A USB power supply option provides convenience, especially when using stabilizers, as it eliminates the need for larger NP-F batteries, reducing overall weight and enhancing maneuverability.

Hollyland PYRO S Specs

• Display Size: Not Specified by Manufacturer

• Touchscreen: No

• Video I/O: 1x HDMI 1.4b Input, 1x BNC (3G-SDI) Input

• Embedded Audio: HDMI/SDI

• Latency: 50 ms

• Battery Type: 1x L-Series

• Power Consumption: 11 W

• Mounting: 1x 1/4"-20 Female

Display

• Panel Type: LCD

• Display Size: Not Specified by Manufacturer

• Touchscreen: No

Inputs / Outputs

• Antenna I/O: 3x RP-SMA Male

• Video I/O:

 • 1x HDMI 1.4b Input

 • 1x BNC (3G-SDI) Input

• Embedded Audio: HDMI/SDI

• Audio I/O: No

• Power I/O:

 • 1x Barrel Input

 • 1x USB-C Input

• Encryption: No

Wireless

• Wireless Range:

 • 1300' / 396.2 m (Line-of-Sight)

 • 650' / 198.1 m

• Channel Bandwidth: 40 MHz, 20 MHz

• Frequency Range:

 • 5.15 to 5.25 GHz

 • 5.25 to 5.35 GHz

 • 5.47 to 5.725 GHz

 • 5.725 to 5.85 GHz

 • 2.412 to 2.484 GHz

• Latency: 50 ms

• RF Sensitivity: -85 dBm

• Wi-Fi: Wi-Fi 4 (802.11n); Dual-Band (2.4 & 5 GHz)

• Bluetooth: No

• Mobile App Compatible: Yes – Android & iOS

• Cellular Support: No

Format Support

Video Format – HDMI

• UHD 4K: 30/29.97/25/24/23.98

• 1080p: 60/59.94/50/30/29.97/25/24/23.98

• 1080i: 60/59.94/50

• 720p: 60/59.94/50

Video Format – SDI

• 1080p: 60/59.94/50/30/29.97/25/24/23.98

• 1080i: 60/59.94/50

• 720p: 60/59.94/50

• Wireless Video Compression: Uncompressed

• Timecode Support: Yes

Power

• Input Power: 6 to 16 VDC

• Battery Type: 1x L-Series

• Power Consumption: 11 W

Mounting

• Mounting: 1x 1/4"-20 Female

Environmental

• Environmental Protection: No

• Certifications: No

• Operating Temperature: 14 to 113°F / -10 to 45°C

• Storage Temperature: -40 to 140°F / -40 to 60°C

General

• Material of Construction: Magnesium

• Dimensions: 4.4 x 2.8 x 1.3" / 112 x 71.2 x 34.1 mm

• Weight: 7.3 oz / 207 g

Packaging Info

• Package Weight: 1.035 lb

• Box Dimensions (LxWxH): 6.1 x 5 x 2.5"

• Hollyland Pyro S 4K HDMI/SDI Wireless Video Transmitter
• 3 x Hollyland Paddle Antenna for Pyro Series (2.4/5 GHz)
• Hollyland Rotatable Cold Shoe Adapter Mount for Wireless Unit
• USB-C OTG Adapter
• Limited 1-Year Manufacturer Warranty
