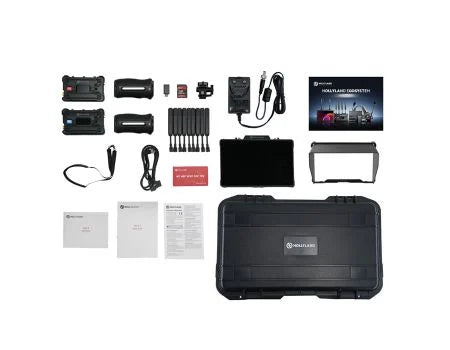

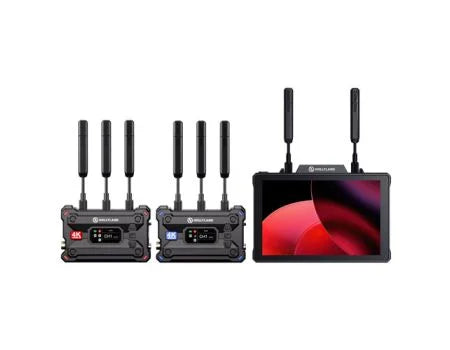

Hollyland Pro 7 Wirelesss Transmission and Monitoring Kit with Pyro S TX/RX Kit and Pyro 7 TX/RX Monitor

Hollyland Pro 7 Wirelesss Transmission and Monitoring Kit with Pyro S TX/RX Kit and Pyro 7 TX/RX Monitor. Overview

Pyro 7 is a 7-inch wireless monitor that integrates the functionalities of TX, RX, and monitor, all in one. It utilizes Auto Dual-Band Hopping (ADH) technology. With 1,300ft (400m) and an incredibly low latency of only 60ms, Pyro 7 supports 2.4GHz/5GHz dual-band transmission and automatic frequency hopping. Its exceptional hardware design enables Pyro 7 to simultaneously connect one transmitter to four receivers, and the convenience of dual-camera monitoring is achieved through customizable shortcut keys. Additionally, the upgraded HollyOS system provides enhanced image analysis capabilities and allows for video file export via an external SD card. Pyro 7 is compatible with Pyro H and Pyro S, which means you can easily pair Pyro 7 with either Pyro H or Pyro S. This provides you with greater flexibility and scalability to meet various monitoring needs.

4 Receivers. Not an Issue.
Pyro 7's WifiBroadcast technology enables one transmitter to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set.

*When Broadcast mode is activated, the transmitter can transmit signals to a max of four receivers. When Broadcast mode is deactivated, the transmitter can transmit signals to at most two receivers and two mobile devices.

Quick Monitoring Switch. See Real-time Footage.
Pyro 7 enables seamless connection with Pyro series video transmission solution after grouping preset. You can swiftly switch between dual camera views for monitoring within 1 second by utilizing two customizable buttons.

Faster. Longer. Stronger.
With self-developed 2.4 GHz & 5 GHz Dual-Band technology, Pyro 7 features a stable transmission range of up to 1,300ft (400m). It achieves a minimal transmission latency of 60ms thanks to upgraded chips and optimized video encoding/decoding algorithms.

Dual Boost: Less latency and More Stability
Compared to traditional video transmission systems whose range extends at the cost of image quality and latency, Pyro 7 excel with increased transmission distance while preserving video quality and minimizing latency.

You can select these two modes according to your application needs:
- Smooth Mode: The bitrate dynamically adjusts in this mode to achieve the lowest 60ms latency for ultra-long-distance transmission.
- HD Mode: Optimal for superior image quality. HD Mode guarantees clear visuals, maintaining a stable bitrate of 8-12 Mbps bitrat even at a range of 1,300ft (400m).

*The transmission range is LOS (line-of-sight) range based on interference-free laboratory measurements.
When Broadcast mode is activated, the LOS range reaches up to 650ft (200m). When Broadcast mode is deactivated, the LOS range extends up to 1,300ft (400m).

Auto Dual-Band Hopping (ADH)
Auto Dual-Band Hopping (ADH) With our developed Auto Dual-Band Hopping (ADH) technology, Pyro 7 operates on both 2.4 GHz and 5 GHz dual-bands and features intelligent Auto Frequency Hopping, so it can automatically choose the clearest channel. This feature guarantees reliable and uninterrupted wireless video transmission.

2.4 GHz & 5 GHz Dual Band
Pyro 7 offers a dual-band transmission solution that addresses common issues such as signal interference, low transmission efficiency, and frequency congestion. And the omnidirectional high-gain antennas will also ensure stable signals in all directions. This provides better signal transmission performance and efficiency. With Pyro 7, you won't have to worry about video drop issues any more.

Auto Frequency Hopping
Pyro 7 is equipped with Auto Frequency Hopping technology, which constantly scans and monitors the strength of the signal and interference across various frequency ranges to find the best wireless channel to use, resulting in a more reliable connection.

Leap Forward - HollyOS Image Analysis
Precise Image Analysis, Enhanced Your Experience
Pyro 7 offers a convenient custom shortcut key feature that can be used for dual-view monitoring and can also be used to quickly launch Waveform, Recording, Focus Assist and other image analysis functions.

Expanding functionality, Enhanced Features
Pyro 7 supports extended mp4 video recording of up to 40 minutes in a single session using an external standard SD card, allowing for convenient on-site monitoring and increased work efficiency. Additionally, it offers the option to apply LUT during video export. Furthermore, Pyro 7 enables efficient export and organization of available videos into specific folders, catering to your needs for streamlined editing workflow.It also supports importing external devices or taking on-set screenshots, overlaying them with the current recording screen for scene restoration or replication purposes.

7 Inch, We Got What You Need The 7-inch screen provides a more comfortable monitoring experience. With a brightness of 1200 nits, whether indoors or outdoors, in bright sunlight or dim environments, you can adjust the screen brightness for optimal visual performance.

HDMI and SDI Input/Output/Loopout Pyro 7 is the perfect solution for professional shooting and smaller commercial projects. The transmitter features one HDMI input, one SDI input, and one HDMI loopout, while the receiver provides one SDI output, one HDMI output, and one SDI loopout.

Hollyland Pyro 7 Wireless Transceiver Monitor

Display

• Panel Type: LCD

• Display Size: 7.0" / 17.8 cm

• Native Resolution: 1920 x 1200

• Aspect Ratio: 16:9

• Touchscreen: Yes

• Maximum Brightness: 1200 nits / cd/m²

• Contrast Ratio: 1000:1

• HDR Support: No

• LUT Support: Yes

• Image Controls: Focus Peaking, Waveform

Video I/O

• 1x BNC (3G-SDI) Input

• 1x BNC (3G-SDI) Output

• 1x HDMI 1.4b Input

• 1x HDMI 1.4b Output

Embedded Audio

• HDMI/SDI: 8-Channel

Audio I/O

• 1x 1/8" / 3.5 mm Headphone Output

Built-In Speaker

• No

Media/Memory

• Single Slot: SD/SDHC/SDXC (Supports Recording)

Video Format

HDMI:

• UHD 4K: 30/29.97/25/24/23.98 fps

• 1080p: 60/59.94/50/30/29.97/25/24 fps

• 1080i: 60/59.94/50 fps

• 720p: 60/59.94/50 fps

SDI:

• 1080p: 60/59.94/30/29.97/24/23.98 fps

• 1080i: 60/59.94/50 fps

• 720p: 60/59.94/50 fps

Audio Format

• 4-Channel

Wireless

• Wireless Range:

 – 1300' / 396.2 m (Line-of-Sight)

 – 650' / 198.1 m

• Channel Bandwidth: 40 MHz, 20 MHz

• Frequency Range (US):

 – 5.1 to 5.8 GHz

 – 2.412 to 2.484 GHz

• Latency: 60 ms

• RF Power: 23 dBm

• RF Sensitivity: -80 dBm

• Wi-Fi: No

• Bluetooth: No

Mobile App Compatibility

• Yes (Required)

• App Name: HollyView

• Platforms: Android & iOS

• Functionality: Adjust Settings, Firmware Update, Remote Control, Setup, View Live Feed

Wireless Video Compression

• Compressed

Timecode Support

• Yes

Recording Features

• Pulldown Conversion: No

• Camera Trigger: No

• Pre-Roll Record: No

• Closed Caption Support: No

• Reference Input: No

Phantom Power

• No

Power

• Input Power: 10 to 18 VDC at 2.5 A

• Battery: 2x L-Series Mount on Included, Interchangeable Plate

• Power Consumption: 22 W (Maximum)

Mounting

• Tripod/Accessory Mounting: Bottom/Left/Right

• Mounts: 1x 1/4"-20 Female

Other I/O

• 2x RP-SMA Male Antenna Ports

• 1x Barrel Power Input

• 1x USB-C (Firmware) Input

General

• Environmental Resistance: No

• Operating Conditions: 14 to 113°F / -10 to 45°C

• Storage Conditions: -40 to 140°F / -40 to 60°C

• Material of Construction: Aluminum, Magnesium

• Dimensions: 7.1 x 5 x 1.3" / 180 x 127 x 31.8 mm (Excluding Antenna)

• Weight: 1.20 lb / 545.00 g (Excluding Antenna)

Packaging Info

• Package Weight: 2.16 lb

• Box Dimensions (LxWxH): 8.7 x 6.6 x 3.3"
