Mackie Big Knob Studio Plus Monitor Controller and Interface

Mackie Big Knob Studio Plus Monitor Controller and Interface

SKU: BIG KNOB STUDIO+

Dhs. 1,599.00
Dhs. 1,599.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

Low stock: 1 left
Badge

Key Features

  • Four Sources and Three Monitor Pairs
  • Classic Big Knob Volume Control
  • Independent Trim on All Sources
  • Mono, Mute, and Dim Functions
  • 2x4 USB Recording Interface
  • 24-Bit / 192 kHz Recording and Playback
  • Compatible with Windows & Mac Computers
  • Sturdy Design
  • Waveform DAW
  • Includes Plug-In Package & Power Supply

View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

Mackie Big Knob Overview

The Mackie Big Knob Studio Plus is a monitor controller and interface that allows you to choose between four input sources and three monitor pairs. It can be used for project and professional studios and is designed to increase your workflow for recording and mixing applications.

Featuring independent trim on all sources and monitor outs, the Big Knob Studio Plus has mono, mute, and dim functions along with a flexible 2x4 USB recording interface. It is built with two combo XLR-1/4" Onyx mic inputs with phantom power for condenser microphones. Recording and playback is at 24-bit / 192 kHz resolution and the cue mix allows for controlled blending of direct inputs with other signals for zero-latency recordings. Choice of recording paths provides flexibility for applications like podcasting and more.

Additionally, other features include flexible source connections, a convenient 3.5mm input for your smartphone, dual headphone outputs with independent level control, a built-in talkback mic and external mic input, a footswitch input, and 16-segment input metering.

Finally, with its sturdy and built-like-a-tank design, the interface is compatible with all major DAWs on both Mac and Windows platforms. The Big Knob Studio Plus features a download for Waveform DAW and the DAW Essentials plug-in bundle.

Mackie Big Knob Specs

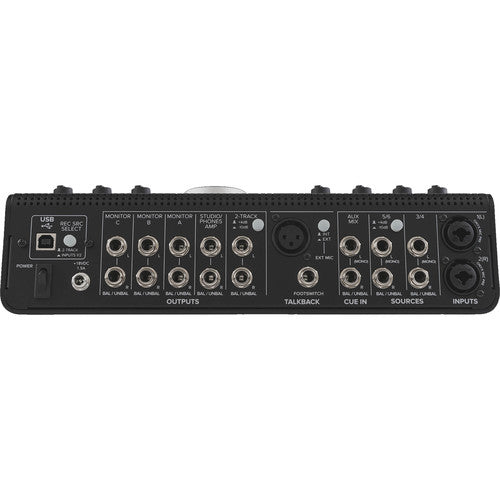

Inputs

• 2 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Inputs

• 4 x 1/4" TRS Balanced/Unbalanced Line Inputs

• 2 x 1/4" TRS Balanced/Unbalanced Cue Inputs

• 1 x 1/8" / 3.5 mm TRS Unbalanced Stereo Input

• 1 x 3-Pin XLR Talkback Mic Input

Outputs

• 2 x 1/4" TRS Balanced/Unbalanced 2-Track Line Outputs

• 6 x 1/4" TRS Balanced/Unbalanced Monitor Outputs

• 2 x 1/4" TRS Balanced/Unbalanced Monitor/Line Outputs

• 2 x 1/4" TRS Unbalanced Headphone Outputs

Additional I/O

• 1 x 1/4" TRS Footswitch Input

• 1 x USB 2.0 Type-B

Audio Performance

• Resolution: 24-Bit / 192 kHz

• Frequency Response: 20 Hz to 20 kHz (±0.5 dB, Unity Gain, +4 dBu Input)

• Noise (Mic to Outputs): < -125 dBu RMS, A-Weighted (150 Ohms Terminated, 22 kHz Bandwidth)

• Noise (Line to Outputs): < -90 dBu RMS, Unweighted (150 Ohms Terminated, 22 kHz Bandwidth)

• THD + N: <0.01% Unweighted (Unity Gain, 1 kHz at +4 dBu Input, 80 kHz Bandwidth)

• Crosstalk: < -60 dB at 1 kHz (Unity Gain, -1 dBFS Input)

• Attenuation: Muted: -60 dB / Dim: -20 dB

• Maximum Input Level: +22 dBu

• Maximum Output Level: +22 dBu

Power

• Power Requirements: 100 to 240 VAC, 50/60 Hz, 0.75 A (via Universal Power Supply)

Physical

• Dimensions: 6.8 x 11.9 x 3.2" / 17.3 x 30.2 x 8.1 cm

• Weight: 4.6 lb / 2.1 kg

Packaging Info

• Package Weight: 6.545 lb

• Box Dimensions (LxWxH): 15.4 x 9.55 x 5.65"

  • Mackie Big Knob Studio Plus Monitor Controller and Interface
  • Serial Number for Download of Waveform OEM
  • External Power Supply
  •  Limited 1-Year Manufacturer Warranty
