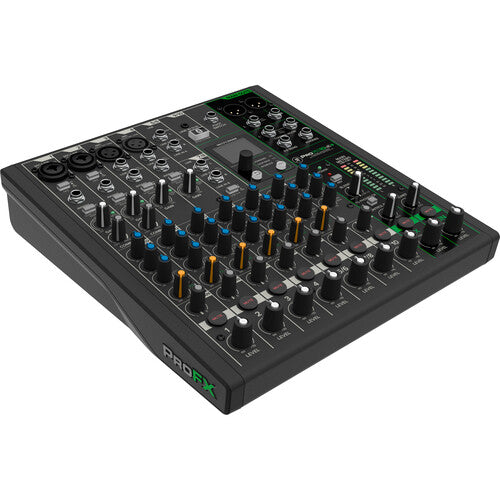

• Mackie ProFX10v3+ 10-channel analog mixer with effects, USB, and Bluetooth
1 4

Mackie

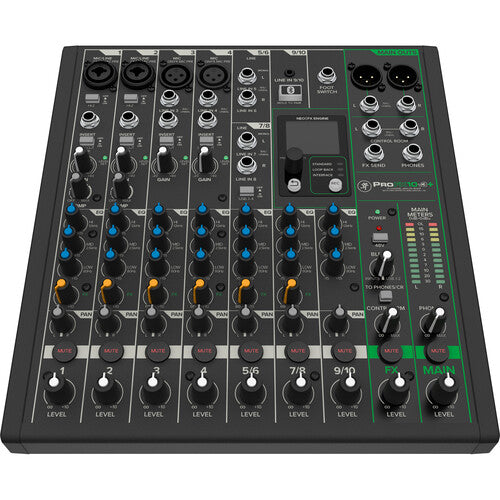

Mackie ProFX10v3+ 10-Channel Analog Mixer with Built-In FX, USB Recording, and Bluetooth

Mackie ProFX10v3+ 10-Channel Analog Mixer with Built-In FX, USB Recording, and Bluetooth

SKU: 2056098-00

Dhs. 1,549.00
Dhs. 1,549.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

Low stock: 1 left

Key Features

  • High-Resolution GigFX+ Effects Engine
  • 24-Bit / 192 kHz 2x4 USB Audio Interface
  • 3-Ways to Record
  • Bidirectional Bluetooth with Mix-Minus
  • Four Onyx Preamps with 60 dB of Gain
  • 3-Band EQ on All Channels
  • One-Knob Compression on Channels 1 and 2
  • Hi-Z Switch for Instruments
  • 100 Hz Low-Cut Filter, 48V on All Mics
  • Includes Waveform OEM Recording Software

View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

Mackie ProFX10 V3+ Overview

The Mackie ProFX10v3+ is a 10-channel professional analog mixer with powerful enhancements for studio-quality recordings and live streams. Capture your performance with Onyx preamps and channel EQ, add computer audio via loopback, bring in calls via Bluetooth, and enhance your sound with upgraded GigFX+ effects on a color LCD screen.

All channels feature 3-band EQ, a level control knob, a pan knob, and FX sends. Channels 1-4 features Onyx microphone preamps with 60 dB of headroom, channel inserts, and a low-cut filter, while channels 1&2 feature 1-knob compression and Hi-Z inputs for instruments. Edit FX parameters on a full-color screen. The three recording modes (Standard Stereo, Channel 1&2 Direct, and Loopback) provide a ton of flexibility when live streaming or recording directly to a computer. The ProFX10v3+ includes a USB cable and Waveform OEM recording software.

Mackie ProFX10 V3+ Specs

Input
• Number of Analog Input Channels: 10

• Number of Mic Preamps: 4

• Analog Inputs:

 – 2x Combo XLR-1/4" 3-Pin Balanced/Unbalanced Mic/Line/Hi-Z Input

 – 2x XLR 3-Pin Balanced Mic Input

 – 6x 1/4" TRS Balanced/Unbalanced Line Input (2 Stereo Pairs)

 – 4x 1/4" TRS Insert

 – 1x 1/8" / 3.5 mm TRS Unbalanced Stereo Line Input

Output

• Analog Output Channels:

 – 2x Stereo Master Output

 – 1x Stereo Control Room/Monitor Output

 – 1x Mono FX Send Output

 – 1x Stereo Headphone Output

• Analog Outputs:

 – 2x XLR 3-Pin Balanced Stereo Main Output (1 Stereo Pair)

 – 2x 1/4" TRS Balanced/Unbalanced Main Output (1 Stereo Pair)

 – 2x 1/4" TRS Balanced/Unbalanced Control Room Output (1 Stereo Pair)

 – 1x 1/4" TRS Balanced/Unbalanced FX Send

 – 1x 1/4" TRS Unbalanced Stereo Headphone Output

Signal Processing

• EQ: No

• EQ Parameters:

 – Low: ±15 dB at 80 Hz

 – Mid: ±15 dB at 2.5 kHz

 – High: ±15 dB at 12 kHz

• Filters: High-Pass: 100 Hz, 18 dB/Octave

• Built-In Effects: 24x Preset (Factory)

• Bit Depth: 24-Bit

Performance

• Frequency Response: 20 Hz to 30 kHz +0/-1 dB (Unity Gain)

• Max Input Level: +22 dB

• Output Level:

 – Main Output: +28 dBu at Max Gain

 – All Other Outputs: +22 dBu at Max Gain

• I/O Impedance:

 – Mic Input: 3.3 kΩ

 – Insert Return: 10 kΩ

 – Line Input: ≥ 20 kΩ

 – Headphone Output: 25 Ω

 – Main Output: 120 Ω (Unbalanced), 240 Ω (Balanced)

• Crosstalk:

 – Adjacent Inputs: -90 dB at 1 kHz

 – Input to Output: -80 dB at 1 kHz

 – Fader Off: -75 dB at 1 kHz

 – Muted: -90 dB at 1 kHz

• CMRR: 70 dB at Max Gain (1 kHz, Mic In to Main Out)

• EIN: -126 dBu at Max Gain (150-Ohm Input)

• Noise Floor:

 – All Outputs: -95 dBu (Master Level at -∞, Channel Levels at -∞)

 – -80 dBu (Master Level at Unity, One Channel Level at Unity)

• THD+N: < 0.03% (+4 dBu)

Connectivity

• Phantom Power: +48 V, Selectable On/Off (Applied to All Inputs)

• Digital I/O: No

• MIDI I/O: No

• USB I/O: 1x USB-B 2.0 (2-Track Record, Audio Streaming, Host Connection)

• USB I/O Capacity: 2x Input / 4x Output

• Other I/O: 1x 1/4" Footswitch Input

• Wireless: Bluetooth (Built-In)

• Mobile App Compatible: No

Recording

• Max Multitrack Recording: 2 Tracks

Power

• AC Input Power: Universal 100 to 240 VAC, 50 / 60 Hz

• Power Supply Output: 12 VDC at 2 A

Physical

• Rack Mountable: No

• Dimensions: 3.2 x 10.7 x 11.9" / 8.1 x 27.1 x 30.2 cm

• Weight: 4.9 lb / 2.2 kg

Packaging Info

• Package Weight: 6.425 lb

• Box Dimensions (LxWxH): 14.9 x 12.9 x 4.2"

  • Mackie ProFX10v3+ 10-Channel Analog Mixer with Built-In FX, USB Recording, and Bluetooth
  • USB-C Cable
  • Power Supply
  • Waveform OEM Download
  •  Limited 1-Year Manufacturer Warranty
