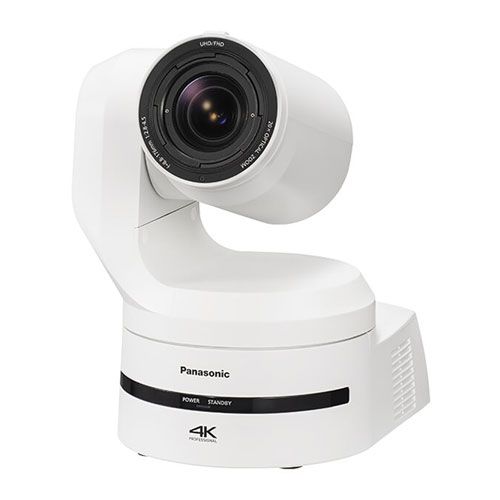

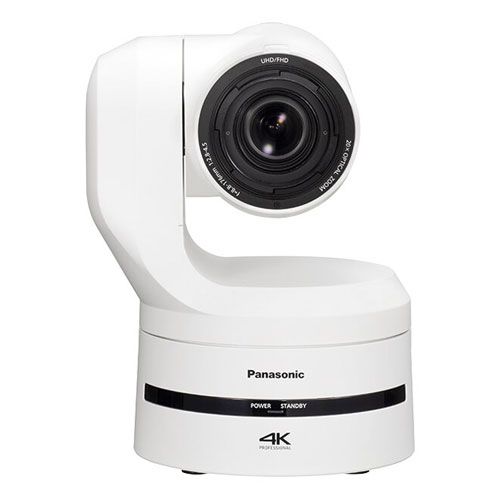

Panasonic AW-UE160 Overview

The AW-UE160 4K PTZ camera features a newly developed 4K 1"; MOS sensor that offers the highest sensitivity of Panasonic’s entire PTZ lineup. Production teams shooting in a concert venue or a church can easily capture clear images even in the most challenging lighting conditions. Meanwhile, the UE160's new optical low pass filter reduces the effect of moiré for clearer picture quality when shooting against an LED wall, which is especially important for rental and staging or worship environments. Its high-speed frame rate will help sports broadcasters capture slow motion shots in HD for replays, while seamless integration with the robotic camera system brings live broadcast-style movements to the PTZ, resulting in a dynamic and highly engaging video production.

Next Level PTZ Camera Performance

The AW-UE160 PTZ camera supports return input and high-speed shooting, which are indispensable for building a combined system with a system camera and is equipped with a tally lamp on the rear panel and two XLR channels for audio output. It is the first ever remote camera to support the SMPTE ST2110 standard1 and 5G router (USB tethering compatible), the standard for IP transmission in the broadcasting industry. The flexibility of the remote camera to freely set positions and angles and the specifications comparable to those of a system camera allow for the pursuit of unique and new video expression.

Advanced Connectivity

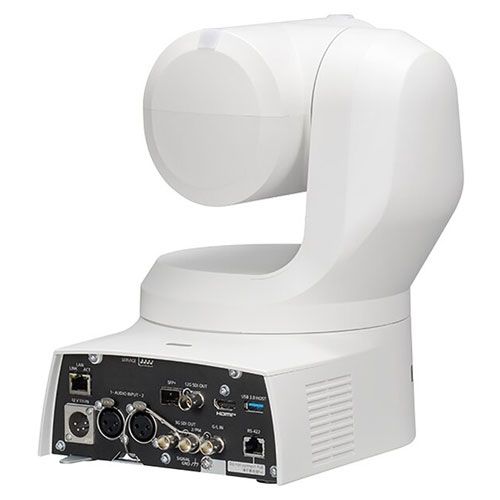

The AW-UE160 supports HDMI, 3G-SDI, and IP output as well as 12G-SDI output and optical fiber output. Also equipped with two XLR channels for audio input. The output method can be selected to suit the operation, making it easy to add to an existing imaging system or build a system tailored to the site.

In addition, there are no restrictions on the video output method, even when outputting from multiple terminals simultaneously, allowing simultaneous operation in 4K. For example, it is possible to set up a system that operates with three main lines (12G-SDI), one for confirmation (3G-SDI OUT1), and one for monitor display (3G-SDI OUT2).

Wide Range of Supported Protocols

• High image quality and low latency with high bandwidth NDI supportHigh bandwidth NDI and high efficiency low bandwidth NDI|HX, which encode and transmit high-quality video in real time, are included. High bandwidth NDI transmits 4K video at a maximum of 250 Mbps and full HD video at a maximum of 125 Mbps, enabling high-quality, low-latency live video transmission.
• SRT support for stable video transmission over public linesSRT, a next-generation video transmission protocol with strong security suitable for unstable network environments, is supported.
• Direct Broadcast via RTMP/RTMPSRTMP/RTMPS is supported to enable direct upload of video to live-streaming services such as YouTube Live and Facebook Live. This means a live stream can be broadcast directly from the camera.

Next Generation Image Processing Engine

The AW-UE160 PTZ camera uses a new-generation image processing engine, also used in the LUMIX GH6, with improved processing power. High-pixel image data output from the 1-type (1") (effective size) MOS sensor, which offers an excellent balance between adequate depth of field, high image quality and high sensitivity, is processed at high speed to improve the S/N ratio. In terms of autofocus (AF) performance, the subject detection performance has been greatly improved through faster processing of calculations and improved AF algorithms, and highly accurate AF is achieved by discriminating between the subject's movement and characteristics. It also offers high video processing performance and enables more unique video expression with resolution performance, high sensitivity performance, and color reproduction that does not compromise your commitment to video image creation.
