Sennheiser EW-DP ENG SET Camera-Mount Digital Wireless Combo Microphone System

Sennheiser EW-DP ENG

Purpose-built for content creators, videographers, and newsgatherers looking for a stress-free wireless experience, the Sennheiser EW-DP ENG SET Combo is a camera-mount, fully digital wireless microphone system that utilizes professional UHF transmission to reliably deliver Sennheiser's pristine, broadcast-quality audio directly to your camera. This configuration includes an EW-DP EK camera-mount, single-channel receiver with mounting kit, a lightweight EW-D SK bodypack transmitter with unobtrusive ME 2 omnidirectional lavalier mic, and an EW-DP SKP plug-on transmitter with built-in recorder and +48V phantom power. Also included are 3.5mm and XLR output cables to connect the receiver to a DSLR/mirrorless camera or to a recorder or mixer.

Easy to set up and simple to operate, the EW-DP's pro-level features provide an intuitive user experience for first-time and experienced users alike. With a remarkable 134 dB dynamic range, the transmitter can handle just about any input level you throw at it without having to worry about setting the input gain to prevent clipping. The receiver's wide 56 MHz bandwidth, intelligent switching diversity reception with two antennas, and auto-scan with 2240 frequencies work to provide rock-solid wireless performance, even in challenging RF environments. Bluetooth capabilities allow you to remotely sync components and change settings from your phone using the Smart Assist app, while Smart Notifications provide you with troubleshooting and system guidance. Intelligent battery management gives you extended operating time on set with up to 12 hours on transmitter and 7 hours on receiver.

Note: While this system includes two transmitters, only one can be used at a time.

Sennheiser EW-DP ENG Specs

System
• Wireless Technology: Digital UHF

• RF Frequency Band: 520–576 MHz

• RF Bandwidth: 56 MHz

• Number of RF Channel Frequencies: 2240

• Frequency Step Size: 25 kHz

• RF Channel Scanning: Auto-Scan

• Diversity: Intelligent Switching Diversity

• Included Transmitters: 1x Bodypack, 1x Plug-On

• Max Operating Range: 328.1' / 100 m (Line of Sight)

• Max Transmitters per Band: 58

• Built-In Recorder: Yes

• Mobile App Compatible: Yes (Android & iOS, Sennheiser Smart Assist – adjust settings, remote control, setup)

• Bluetooth: 5.1 LE, Operating Distance 120' / 36.6 m (Transmitter Sync, App Control)

• Sample Rate / Resolution: 24-Bit

• Latency: 1.9 ms

• Dynamic Range: 134 dB

• Encryption: No

Receiver

• Type: Camera-Mount

• Mounting Options: Belt Clip, Shoe-Mount, 1/4"-20 Female (Included Hardware)

• Antenna: 2x 1/4 Wave Rod, Fixed

• Number of Audio Channels: 1

• Audio Outputs:

 – 1x 1/8" / 3.5 mm TRS Female Unbalanced Output (Locking)

 – 1x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output (Locking)

• Audio Output Level: 1/8" TRS: 2 dBV Max (Unbalanced)

• Frequency Response: 20 Hz to 20 kHz ±3 dB

• USB/Lightning Connectivity: 1x USB-C Female (Bus Power, Charging)

• RF Output Power: 10 mW (EIRP)

• Power: Battery, Bus Power (USB)

• Battery: 2x AA (Included), 1x Sennheiser Battery Pack (Included)

• Approx. Battery Life: 7 Hours

• Display & Indicators: 1x Backlit OLED (AF Level, Frequency, Mute, RF Level, Transmitter Battery Status)

• Operating Temperature: 14 to 131°F / –10 to 55°C

• Operating Humidity: 5–95%

• Dimensions: 3.4 x 2.6 x 1.1" / 86 x 67 x 28 mm

• Weight: 0.3 lb / 140 g

Transmitter 1 – Bodypack

• RF Output Power: 10 mW (ERP), Up to 10 mW (EIRP)

• Audio Input: 1x 1/8" / 3.5 mm TRS Female (Locking)

• Muting: Mute Switch

• Audio Input Level: 2 to 4.35 V RMS

• Auto-Level Control: No

• Frequency Response: 20 Hz to 20 kHz

• Sync Method: Bluetooth

• Antenna: 1x Flexible Whip, Fixed (Beltpack)

• Power: Battery

• Battery: 2x AA (Included), 1x Sennheiser Battery Pack (Replaceable)

• Approx. Battery Life: 8 Hours (Alkaline), 12 Hours (Sennheiser Battery Pack)

• Display & Indicators: 1x LED (Mute), 1x LED (Sync)

• Housing: Metal

• Dimensions: 2.5 x 3.1 x 0.8" / 63 x 80 x 20 mm (without Antennas)

• Weight: 4.2 oz / 120 g (without Batteries)

Transmitter 2 – Plug-On

• RF Output Power: 10 mW (ERP), Up to 10 mW (EIRP)

• Audio Inputs:

 – 1x XLR 3-Pin Female (Locking)

 – 1x 1/8" / 3.5 mm TRS Female

• Phantom Power: +48 V

• Auto-Level Control: No

• Sync Method: Bluetooth

• Antenna: 1x Internal

Microphone – Lavalier

• Type: Lavalier Electret Condenser

• Polar Pattern: Omnidirectional

• Sound Field: Mono

• Frequency Range: 50 Hz to 18 kHz

• Equivalent Noise Level: 32 dB

• Maximum SPL: 130 dB SPL

• Sensitivity: 17 mV/Pa at 1 kHz

• Output Connector: 1x 1/8" / 3.5 mm TRS Male (Locking)

• Cable Length: 5.2' / 1.6 m

• Operating Voltage: 7.5 V

• Color: Black

Packaging Info

• Package Weight: 2.265 lb

• Box Dimensions (LxWxH): 12.4 x 7.5 x 2.9"

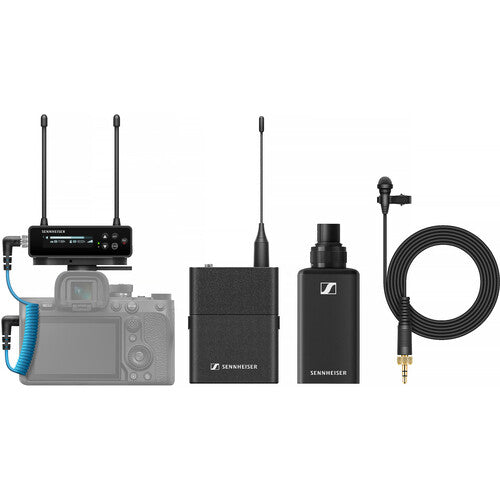

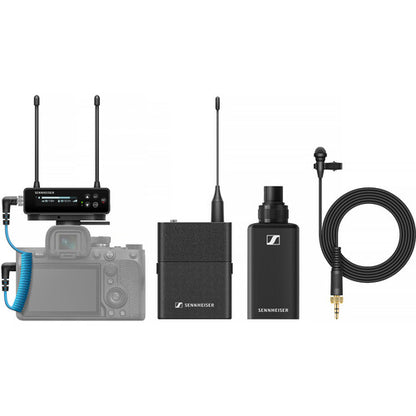

• Sennheiser EW-DP ENG SET Camera-Mount Digital Wireless Combo Microphone
• System

• Sennheiser EW-DP EK Camera-Mount Digital Wireless Receiver

• Sennheiser EW-D SK Digital Wireless Bodypack Transmitter

• Sennheiser ME 2 Omnidirectional Lavalier Microphone with Locking 3.5mm Connector (Black)

• Sennheiser EW-DP SKP Digital Plug-On Wireless Transmitter/Recorder

• Sennheiser CL 35 TRS Locking 3.5mm TRS to 3.5mm TRS Coiled Cable

• Sennheiser CL 35-XLR Right-Angle Locking 3.5mm TRS to XLR Male Coiled Output Cable

• USB-C Charging Cable

• Sennheiser BA 70 Rechargeable Battery Pack for EW-D Bodypack and Handheld Transmitters

• 2 x AA Battery

• Mounting Kit (Cheeseplate, Cold Shoe, Beltclip, Screws)
