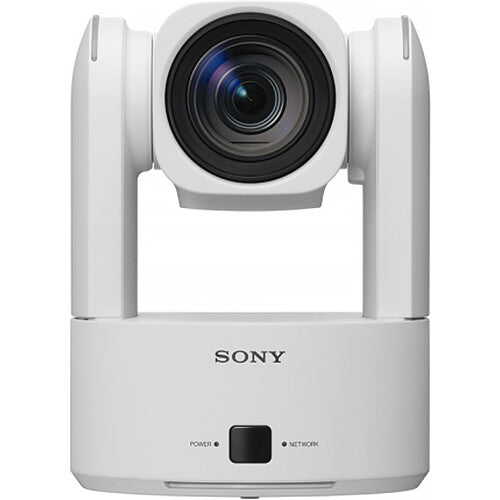

Sony BRC-AM7 4K60 PTZ Camera with AI Auto-Framing (White)

Sony BRC-AM7 Overview

Sony BRC-AM7 4K60 PTZ Camera with AI Auto-Framing (White).

Enhanced Imaging Performance
Experience exceptional imaging with 4K 60p output across a 20x optical zoom range, from wide angles to close-ups. Integration with existing systems is seamless, thanks to support for ITU709/709tone, S-Cinetone™, and S-Log3.

Built-in AI PTZ Auto Framing
Leverage advanced AI analytics for precise subject tracking with smooth, natural-looking framing, simplifying high-quality content production with fewer camera operators. Newly developed motors ensure exceptionally smooth and quiet camera operations, ideal for environments where silence is essential.

Seamless Integration with Sony’s System Cameras
As the smallest and lightest camera of its kind*, the BRC-AM7 is easy to install and unobtrusive in multi-camera setups. It boasts extensive connectivity and system compatibility, including support for S700PTP and free-d protocols.
*Based on a 1.0-type image sensor and 4K 60p compatibility as an integrated lens PTZ remote camera, as of April 2024 press release. Sony survey.

Advanced Imaging Technology
Featuring an Exmor RS™ image sensor and BIONZ XR™ processing engine, the BRC-AM7 delivers outstanding 4K 60p quality. The 1.0-type Exmor RS sensor with approximately 14.0 million effective pixels, paired with the latest BIONZ XR engine, ensures high resolution with low noise and lifelike texture rendering.

Versatile Optical Capabilities
A newly developed 24-480 mm* integrated lens provides a 20x optical zoom range, with Sony’s Clear Image Zoom extending up to 30x (720 mm) in 4K and 40x (940 mm) in Full HD, capturing subjects across a wide range of scenarios. The built-in electronic variable ND filter adjusts seamlessly from 1/4 to 1/128 ND, maintaining optimal exposure without affecting depth of field, even in varying lighting conditions.

Effortless Color Matching
Color matching with other Sony cameras is simplified through ITU709 and 709tone, as well as S-Cinetone and S-Log3 support, facilitating seamless multi-camera operations.

Precision AI Subject Tracking
AI analytics recognize human subjects with high precision, controlling pan, tilt, and zoom to follow athletes or performers accurately. The combined high-performance AF and PTZ Auto Framing ensure smooth, reliable tracking and focus on fast-moving subjects, reducing the need for a large camera crew.

Smooth, Quiet Operation
The direct drive system with newly developed motors allows detailed control over pan and tilt, offering speeds from a slow 0.004 degrees per second to a swift 180 degrees per second, suitable for various applications.

Integration and Control Flexibility
The BRC-AM7 supports ITU709, 709tone, S-Cinetone, and S-Log3 for color matching, and offers extensive control capabilities via the S700PTP protocol. Remote control is possible from Sony’s RCP series remote-control panels or MSU series master setup units, allowing integration with Sony’s BRC series and system cameras for advanced remote-control setups*.
*An MSU unit is required for multi-camera systems.

Installation Freedom
As the smallest and lightest camera in its class*, the BRC-AM7 can be installed in tight spaces where other PTZ cameras might not fit. It features standard screw sockets for tripod mounting and accessory attachment, ensuring flexible installation options.

Sony BRC-AM7 Specs

Imaging

• Image Sensor: 1"-Type CMOS

• Focus Control: Autofocus

• Exposure Control: Auto/Manual

• ISO/Gain Sensitivity: Gain -3 to 36 dB

• White Balance: 2000 to 15,000K (Auto, Indoors, Manual, One Push, Outdoors)

Lens

• Focal Length: 24 to 480mm

• Max Optical Zoom: 20x

• Max Digital Zoom: 30x (UHD 4K), 40x (1080p)

• Field of View: Horizontal 75°

• Maximum Aperture: f/2.8 to f/4.5

• Minimum Focus Distance: 0.4" / 10 mm

Video Capture

HDMI Output:

• 3840 x 2160 at 23.98/25/29.97/50/59.94 fps

• 1920 x 1080p at 23.98/25/29.97/50/59.94 fps

• 1920 x 1080i at 50/59.94 fps

• 720 x 576p at 50 fps

• 720 x 480p at 59.94 fps

SDI / Optical Fiber Output:

• 3840 x 2160 at 23.98/25/29.97/50 fps

• 1920 x 1080p at 23.98/25/29.97/50/59.94 fps

• 1920 x 1080i at 50/59.94 fps

• 1920 x 1080PsF at 23.98/25/29.97 fps

Internal Recording:

• 3840 x 2160 at 23.98/25/29.97/50/59.94 fps

• 1920 x 1080p at 23.98/25/29.97/50/59.94 fps

• 1920 x 1080PsF at 23.98/25/29.97 fps

• 720 x 576p at 50 fps

• 720 x 480p at 59.94 fps

Audio Recording:

• 4-Channel 24-Bit 48 kHz LPCM Audio

Broadcast Output:

• NTSC/PAL

IP Streaming:

• SRT / RTSP / RTMP / NDI|HX (3840 x 2160)

Control

• Presets: 100

• Pan: 350° (-175 to 175°) at 0.004 to 180°/s

• Tilt: 240° (-30 to 210°) at 0.004 to 180°/s

• Tally Light: Yes

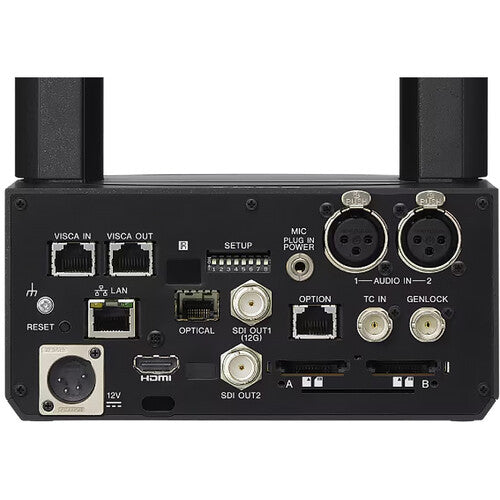

Connectivity / Interface

Media / Memory Slots:

• Dual Slot: CFexpress Type A / SD

Video I/O:

• 1x BNC (12G-SDI) Output

• 1x BNC (3G-SDI) Monitor Output

• 1x HDMI Output

Audio I/O:

• 2x XLR 3-Pin Mic/Line Inputs (+48V Phantom Power)

• 1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input (Plug-in Power)

Other I/O:

• 1x BNC (Genlock) Input

• 1x BNC (Timecode) Input

• 1x RJ45 (LAN)

• 1x RJ45 (Tally)

• 1x RJ45 (RS-422, VISCA) Control Input

• 1x RJ45 (RS-422, VISCA) Control Output

• 1x SFP+ Expansion Slot

Built-In Microphone: No

Built-In Speaker: No

Power

• PoE Support: PoE++ 802.3bt

• Power I/O: 1x XLR 4-Pin (11 to 17 VDC) Input

Environmental

• Operating Temperature: 32 to 104°F / 0 to 40°C

• Storage Temperature: -4 to 140°F / -20 to 60°C

• Impact Resistance: No

• Environmental Resistance: No

General

• Mounting: 1x 1/4"-20 Female, 1x 3/8"-16 Female for Tripod

• OS Compatibility: QTS / Windows (Computer), Android / iPadOS (Mobile)

• Dimensions (W x H x D): 8.87 x 7.57 x 6.57" / 22.53 x 19.23 x 16.69 cm (Without Protrusions)

• Weight: 8.2 lb / 3.7 kg (Body Only)

Packaging Info

• Package Weight: 12.35 lb

• Box Dimensions (L x W x H): 14.1 x 13.7 x 12.7"

• Sony BRC-AM7 4K60 PTZ Camera with AI Auto-Framing (White)
• Limited 1-Year Manufacturer Warranty
