Sony

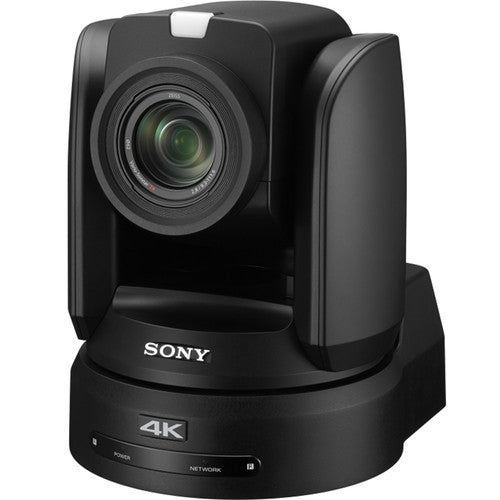

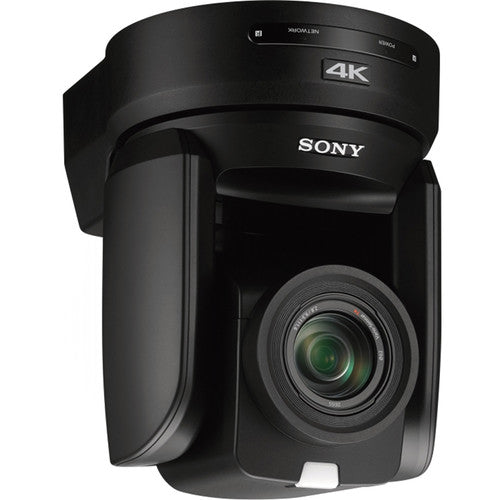

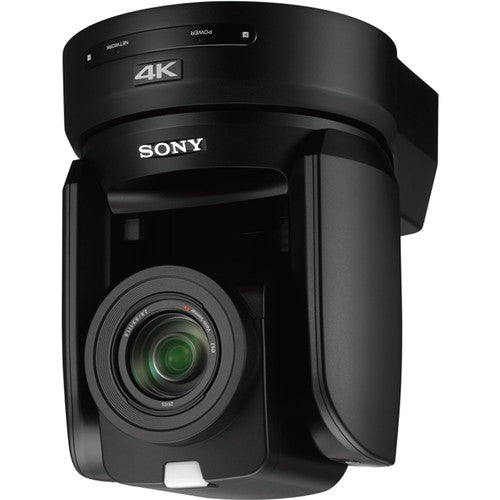

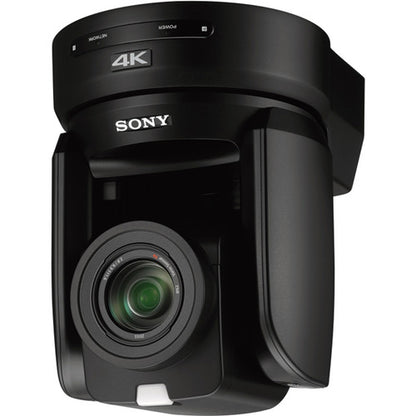

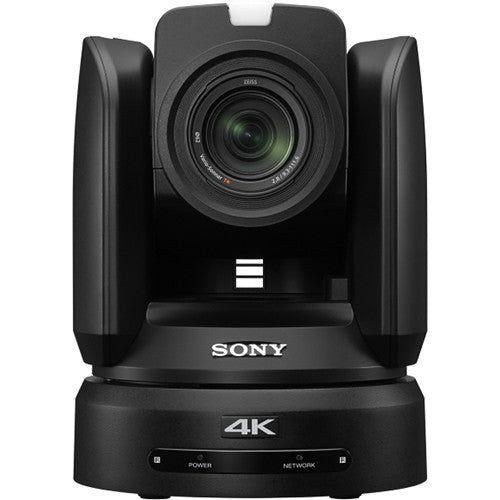

Sony BRC-X1000 4K PTZ Camera with 1" CMOS Sensor and PoE+

Sony BRC-X1000 4K PTZ Camera with 1" CMOS Sensor and PoE+

SKU:SKU BRC-X1000

Regular price Dhs. 32,499.00
Regular price Sale price Dhs. 32,499.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

In stock

Badge

Key Features

  • 4K Resolution Images at Up to 30p
  • 1" Back-Illuminated Exmor R CMOS Sensor
  • Dual-Link 3G-SDI, HDMI & Ethernet Output
  • 12x Optical Zeiss Zoom (9.3-111.6mm)
  • 2x Digital Zoom, 24x Total Zoom
  • Flexible PoE+ Installation
  • Low Light Rating - 1.7 lux @ 1/30s
  • Wide 64.6 Angle of View

View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

Sony BRC-X1000 Overview

The Sony BRC-X1000 4K PTZ Camera with 1" CMOS Sensor and PoE+ features a 1" Exmor CMOS image sensor, a 12x Zeiss optical zoom, and PoE+ transmission. This PTZ camera captures 4K video using the back-illuminated, 1" Exmor R CMOS sensor and a 9.3-111.6mm / f/2.8-f/4.5 optical zoom lens. The large image sensor enables you to create attractive bokeh effects with shallow depth of field. Its 1.7-lux sensitivity is suitable for shooting in low ambient-light situations. For capturing tight sports shots, etc. the 12x Zeiss zoom lens extends to a 24x digital range. The BRC-X1000 features flexible PoE+ (power over Ethernet) installation, utilizing a single cable to carry both IP camera control and power. For multi-camera productions, a Genlock feature is used to integrate the BRC-X1000 with other systems. Up to 16 camera positions can be preset on the BRC-X1000, enabling a single operator to control multiple units.

The BRC-X1000 4K PTZ Camera features HDMI, dual-link 3G-SDI, Ethernet, and RS-422 control interfaces. Remote control functions include pan, tilt, zoom, focus, iris, shutter speed, and gain. The BRC-X1000 is suitable for use in broadcast studios, remote on-air setups, houses of worship, and live sports applications. The front and rear tally lights are useful for on-air broadcasting and have adjustable brightness levels. Camera function upgrades may be applied by the user via its IP connection. The BRC-X1000 4K PTZ camera is ceiling and desktop–mountable.

Sony BRC-X1000 Specs

Camera

• Sensor: 1" Exmor R CMOS

• Resolution: 14.2 MP (approximate)

• Signal System:

 – 2160p: 29.97/25

 – 1080p: 59.94/50

 – 1080i: 59.94/50

 – 720p: 59.94/50

• Minimum Illumination: 1.7 lux (50 IRE, 1/30 sec, iris/gain auto)

• Gain: Auto/Manual (-3 to 33 dB)

• Shutter Speed Range:

 – 59.94: 1/10,000 to 1/8 sec

 – 50: 1/10,000 to 1/6 sec

• Exposure Control Modes: Auto, Manual, Priority (Shutter, Iris, Gain), EV Compensation, Backlight, Spotlight

• White Balance Modes: Auto1, Auto2, One-Push, Indoor, Outdoor, Manual

Optical System

• Zoom Ratio: 12x Optical, 2x Digital (24x Total)

• Focusing Modes: Auto, Manual

• Horizontal Angle of View: 64.6°

• Focal Length: 9.3 to 111.6mm (f/2.8 to f/4.5)

Mechanical Specifications

• Pan Angle: -170° to +170°

• Tilt Angle: -30° to +90°

• Pan/Tilt Speed: 0.3 to 60°/sec

• Presets: 16 (Programmable)

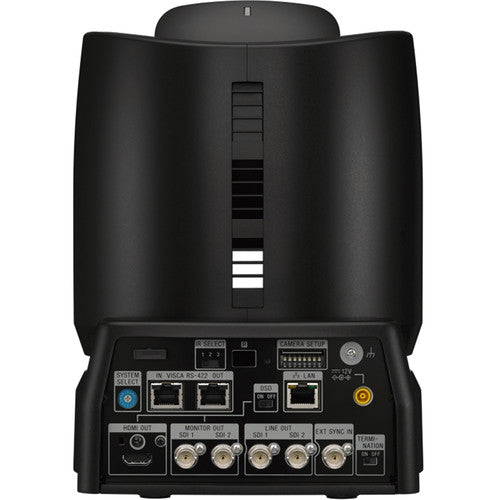

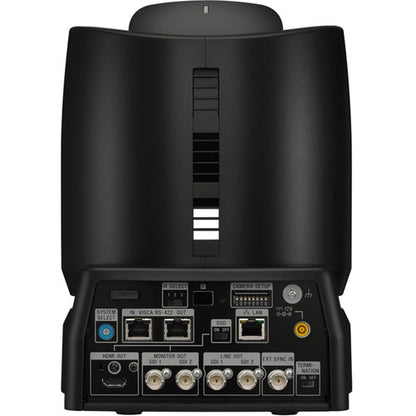

Output & Interface

• Video Outputs: 2x Dual-Link 3G-SDI, 1x HDMI, 1x Ethernet HD

• Sync: Bi-Level VD, Tri-Level SYNC

• Camera Control: RS-422 (VISCA), VISCA over IP

General

• Day/Night: Supported

• Flicker Correction: On/Off

• Power Requirements: 10.8 to 13.2 VDC, PoE+ (IEEE802.3at compliant)

• Operating Temperature: 32 to 104°F (0 to 40°C)

• Body Color: Black

• Dimensions (W x H x D): 7.8 x 10.2 x 9.4" / 198 x 260 x 238 mm

Sony BRC-X1000 4K PTZ Camera with 1" CMOS Sensor and PoE+
IR Remote Control
Mounting Bracket
