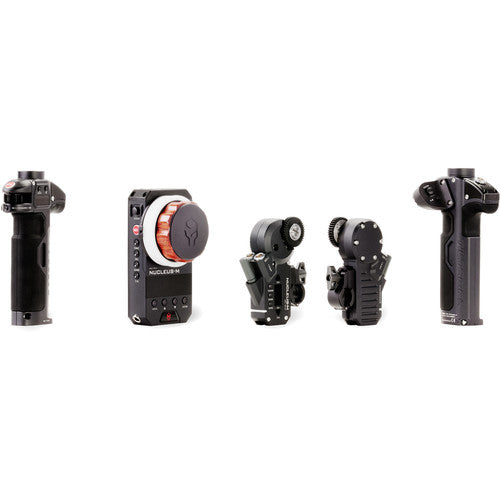

• Tilta Nucleus-M Wireless Lens Control System Front view
  • Tilta Nucleus-M Wireless Lens Control System

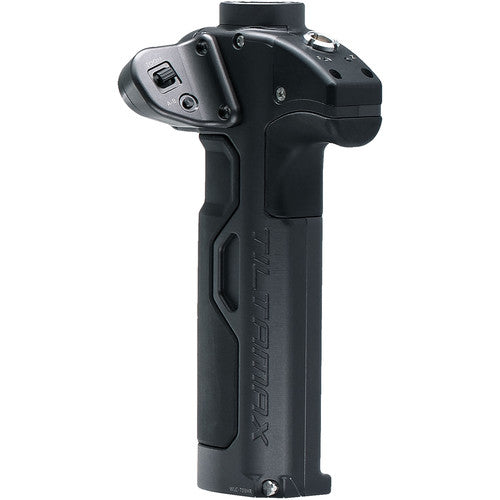

  • Tilta Nucleus-M Wireless Lens Control System Side view
  • Tilta Nucleus-M Wireless Lens Control System
  • Tilta Nucleus-M Wireless Lens Control System
1 5

Tilta

Tilta Nucleus-M Wireless Lens Control System

Tilta Nucleus-M Wireless Lens Control System

SKU :WLC-T03

Dhs. 5,659.50
Dhs. 5,659.50
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

Low stock: 1 left

Key Features

  • 1000' Wireless Range
  • Two Lens Drive Motors
  • Motors Feature Integrated Receivers
  • 0.8 MOD Drive Gears
  • Focus, Iris, Zoom Hand Unit
  • Motors Daisy-Chain for Power
  • Right Handgrip with Focus Control
  • Left Handgrip with Iris and Zoom Control
View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

Tilta Nucleus-M Overview

Tilta Nucleus-M Wireless Lens Control System features a 1000' transmission range, and comes with two lens drive motors with built-in wireless receivers, a FIZ hand controller, and two handgrips—one to control focus, and the other iris and zoom. The lens drive motors each feature a cine standard 0.8 MOD drive gear and two 7-pin connectors, which enables you to freely swap or interchange each motor. The motors power by daisy-chaining using the 7-pin cables, and each motor includes a 19mm rod clamp with 19 to 15mm reducing bushing.

Tilta Nucleus-M Specs

System

• Number of Channels: 3

• Maximum Range: 1000' / 304.8 m

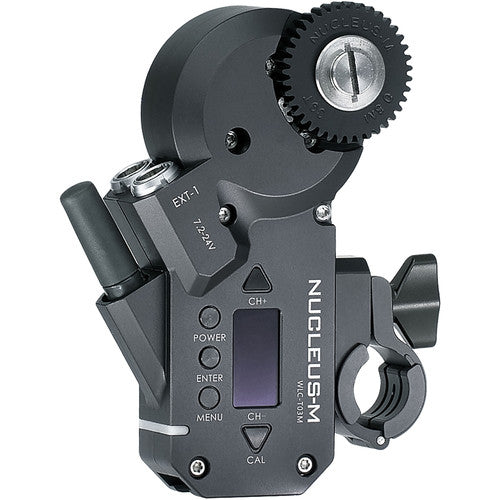

Receiver / Motor

• Bluetooth: No

• Included Drive Gear: 0.8 MOD

• Rod Standard: 19 mm Single Rod

• Included Motors: 2

• Motor Model: Nucleus-M

• Maximum Peak Torque: 2.5 Nm

• DC Input Power: 7.2 to 24 VDC

• Dimensions: 4.5 x 3.25 x 1.38" / 11.4 x 8.26 x 3.51 cm

• Weight: 0.49 lb / 222 g

Transmitter / Controller

• Camera Trigger: Yes

• Battery Type: Proprietary Rechargeable

• DC Input Power: 3.7 VDC

• Weight: 15.5 oz / 440 g

Packaging Info

• Package Weight: 9.4 lb

• Box Dimensions (LxWxH): 13.65 x 11.7 x 5.85"

Tilta Nucleus-M Wireless Lens Control System

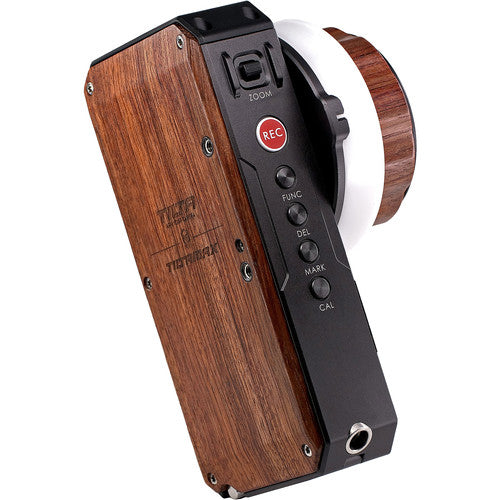

Wireless FIZ Hand Unit
2 x Wireless Motors
2 x 19mm Motor Rod Clamps
2 x 19 to 15mm Bushings
Wireless Left Handle (Focus)
Wireless Right Handle (Iris, Zoom)
4 x Follow Focus Disks
7-Pin to D-Tap Motor Power Cable (29")
7-Pin to 7-Pin Straight Motor Cable (11.7")
7-Pin to 7-Pin Straight Motor Cable (7")
2 x Handle to ARRI Rosette Adapter
2 x Handle to Gimbal Bar Adapter (25 to 30mm Compatibility)
Four-Slot 18650 Battery Charger
AC Power Cord for Charger
Wireless FIZ Hand Unit Strap
Hard-Shell Waterproof Safety Case
