Yamaha

Yamaha MG06X 6-Input Mixer with Built-In Effects

Yamaha MG06X 6-Input Mixer with Built-In Effects

SKU: MG06X

Dhs. 729.00
Dhs. 729.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

Low stock: 1 left

Key Features

  • 2 x XLR-1/4" Combo Mic/Line Inputs
  • 2 x 1/4" Line Stereo Inputs
  • Built-In FX
  • XLR & TRS 1/4" Stereo Outs
  • D-PRE Mic Preamps with 48V Phantom
  • PAD Switch on Mic/Line Inputs
  • HPF & 2-Band EQ on Mic/Line Inputs
  • 1/4" Headphone Output with Level Control
  • Metal Chassis
View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

Yamaha MG06X

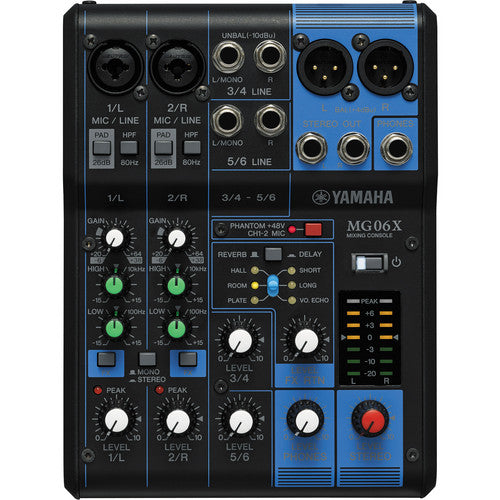

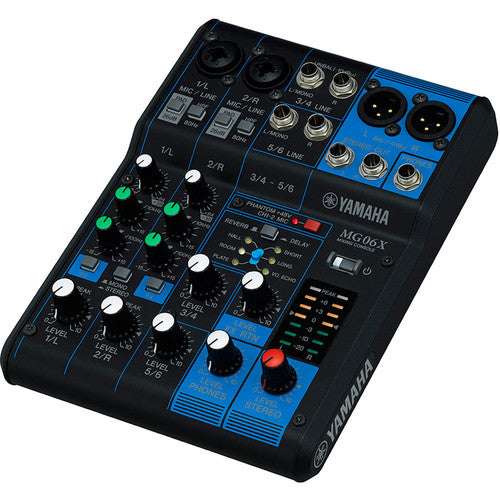

The MG06X from Yamaha is a compact six-input mixer with built-in effects for small performances, lectures, recordings, and similar applications. The mixer features two XLR-1/4" combo mic/line inputs with D-PRE mic preamps as well as two 1/4" stereo line inputs with level controls.

Each of the two mic/line inputs is equipped with a 2-band EQ and a high-pass filter at 80 Hz. The D-PRE mic preamps feature an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. They also each feature 26 dB attenuation switches for recording loud sound sources such as guitar amplifiers.

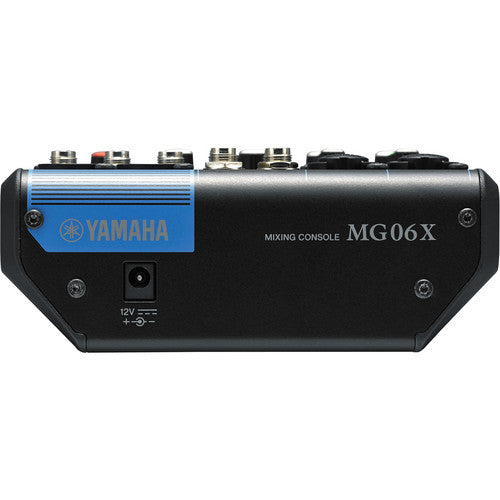

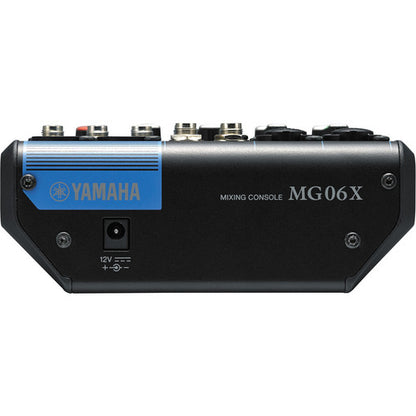

The MG06X mixer has stereo XLR and 1/4" outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring.

The mixer's built-in effects can be engaged on the two mic/line combo inputs and they feature reverb and delay. Providing three reverb and three delay settings plus a dedicated FX return level control, these effects can be used to help vocals and instruments sit better in your mix.



Yamaha MG06X Specs

Audio Mixer with SPX Effects

Effects Engine

• SPX Algorithm: 6 Programs (3 Reverb, 3 Delay)

Input Channels

• 2 x XLR-1/4" Combo (Mic/Line)

• 2 x 1/4" / 6.3 mm Stereo (Line)

• Phantom Power: +48 V Switchable (Channels 1, 2)

Output Channels

• 2 x XLR Stereo

• 2 x 1/4" / 6.3 mm Stereo

• 1 x 1/4" / 6.3 mm Headphone

Bus

• 1 x Stereo

Pad

• 26 dB (Mono Channels)

High-Pass Filter (HPF)

• 80 Hz, 12 dB/Oct (Mono Channels)

Equalizer

• EQ High (Mono Channels): ±15 dB, 10 kHz Shelving

• EQ Low (Mono Channels): ±15 dB, 100 Hz Shelving

LED & Level Metering

• LED: Turns on when post-EQ signal reaches 3 dB below clipping

• Level Metering: 2 x 7-Segment LED Meter (Peak, +6, +3, 0, -3, -10, -20 dB)

Performance

• Total Harmonic Distortion (THD):

 – 0.01% @ +8 dBu (20 Hz–20 kHz, Gain Min)

 – 0.003% @ +18 dBu (1 kHz, Gain Min)

• Frequency Response: 20 Hz – 20 kHz ±0.5 dB (Nominal Output Level @ 1 kHz, Gain Min)

• Equivalent Input Noise (EIN): -128 dBu (Mono Input, Rs: 150 Ω, Gain Max)

• Residual Output Noise: -102 dBu (Stereo Out, Stereo Level Min)

• Crosstalk: -88 dB

Power

• Power Requirements:

 – PA-130: 12 VDC / 1 A, 120 VAC, 60 Hz

 – MU18: 12 VDC / 1.5 A, 100–240 VAC, 50/60 Hz

 – Or Equivalent Recommended by Yamaha

• Power Consumption: 12 W

Physical

• Dimensions (W x H x D): 5.9 x 2.4 x 7.9" / 149 x 62 x 202 mm

• Net Weight: 1.98 lb / 0.9 kg

Packaging Info

• Package Weight: 3.27 lb

• Box Dimensions (L x W x H): 10.7 x 9.75 x 4.75"

  • Yamaha MG06X 6-Input Mixer with Built-In Effects
  • AC Adapter
  •  Limited 1-Year Manufacturer Warranty
