Yamaha

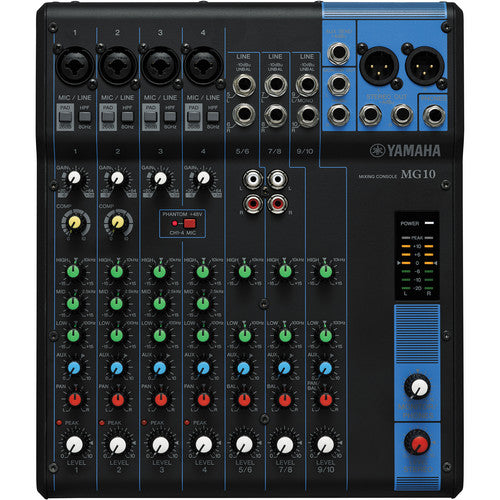

Yamaha MG10 - 10-Input Mixer

Yamaha MG10 - 10-Input Mixer

SKU: MG10

Dhs. 849.00
Dhs. 849.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

Low stock: 1 left

Key Features

  • 4x Mic/Line Combo Inputs
  • 6x 1/4" Line Inputs
  • XLR and TRS 1/4" Stereo Outs
  • TRS Monitor Outs
  • 1x Aux Send
  • "D-PRE" Mic Preamps with 48V Phantom
  • PAD Switch on Mic/Line Inputs
  • HPF & 3-Band EQ on Mic/Line Inputs
  • 1/4" Headphone Output with Level Control
  • One Knob Compressor on Channels 1 & 2
View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

Yamaha MG10

The MG10 from Yamaha is a compact ten-input mixer for performances, lectures, recordings and similar applications. The mixer features four mic/line combo inputs with D-PRE mic preamps as well as six 1/4" line inputs with stereo level controls.

Each of the four mic/line inputs is equipped with a 3-band EQ, pan control and a high pass filter. The four D-PRE mic preamps feature an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. They also each feature 26dB attenuation switches for recording loud sound sources such as guitar amplifiers.

The MG10 mixer has stereo XLR and TRS outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring, as well as additional TRS 1/4" stereo monitor outs for sending to powered speakers, amplifiers or devices such as digital recorders.

Yamaha MG10 Specs

Mixer Section

• Number of Analog Input Channels: 10 (4 Mono / 3 Stereo)

• Number of Mic Preamps: 4

• Mix Routing: 1 x Stereo Bus/Subgroup, 1 x Aux Bus/Subgroup

• Faders & Level Adjustment: 7 x Channel Knob

• Meters: 2 x 7-Segment LED

Signal Processing

• Input Pad: -26 dB (Mono Channels)

• Dynamic Processing: No

• EQ (Mono Channels): 3-Band

 – High: ±15 dB at 10 kHz (Shelving)

 – Mid: ±15 dB at 2.5 kHz (Notch/Peak)

 – Low: ±15 dB at 100 Hz (Shelving)

• EQ (Stereo Channels): 2-Band

• Graphic EQ: No

• Filters: High-Pass, 80 Hz, 12 dB/Octave

• Solo/Mute: No

• Built-In Effects: No

Performance

• Frequency Response: 20 Hz to 48 kHz (+0.5 / -1 dB, Min Gain)

• Noise Floor (Main Output): -102 dBu (Master Level at -∞)

• THD:

 – 0.02% at Min Gain (+14 dBu, Full Range)

 – 0.003% at Min Gain (+24 dBu, 1 kHz)

Connectivity

• Analog Inputs:

 – 4 x Combo XLR-1/4" Balanced Input

 – 6 x 1/4" Unbalanced Stereo Input (3 Stereo Pairs)

• Analog Outputs:

 – 2 x XLR 3-Pin Balanced Stereo Main Output (1 Stereo Pair)

 – 2 x 1/4" Unbalanced Stereo Monitor Output (1 Stereo Pair)

 – 1 x 1/4" TRS Stereo Headphone Output

 – 1 x 1/4" Aux Send

• Phantom Power: +48 V, Selectable On/Off (on 4 Channels)

• Digital I/O: No

• Wireless: No

Power

• AC Input Power: 38 VAC, 50 / 60 Hz

• Power Supply Output: 38 VAC at 0.62 A

Physical

• Rack Mountable: No

• Dimensions (W x H x D): 9.6 x 2.8 x 11.6" / 244 x 71 x 294 mm

• Weight: 4.2 lb / 1.9 kg

Packaging Info

• Package Weight: 7.105 lb

• Box Dimensions (L x W x H): 15.8 x 12.7 x 5.35"

  • Yamaha MG10 - 10-Input Mixer
  • AC Adaptor
  •  Limited 1-Year Manufacturer Warranty
