Zoom AMS-22 USB-C Audio Interface

Zoom AMS-22 USB-C Audio Interface

SKU: ZAMS22

Dhs. 459.00
Dhs. 459.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

Low stock: 1 left

Key Features

  • For Solo Musicians and Performers
  • AC and Bus Powered, Mac/Windows, Mobile
  • Mic / Hi-Z Preamp and Stereo Line Inputs
  • Headphone and Stereo Line Outputs
  • 24-Bit / 96 kHz AD/DA Conversion
  • 48V, Zero-Latency Monitoring
  • Loopback for Streaming
  • iOS/Android Compatible
View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

Zoom AMS-22

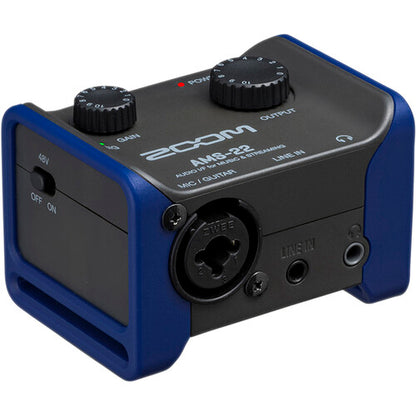

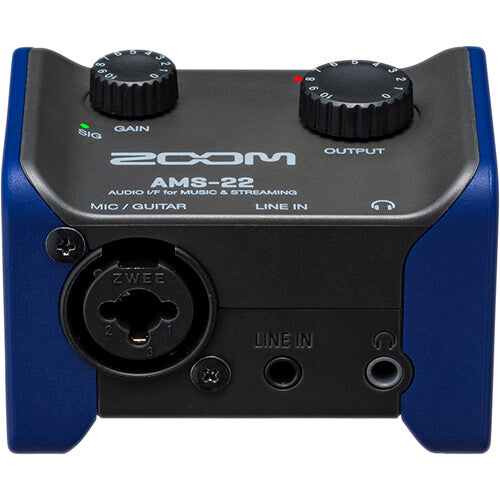

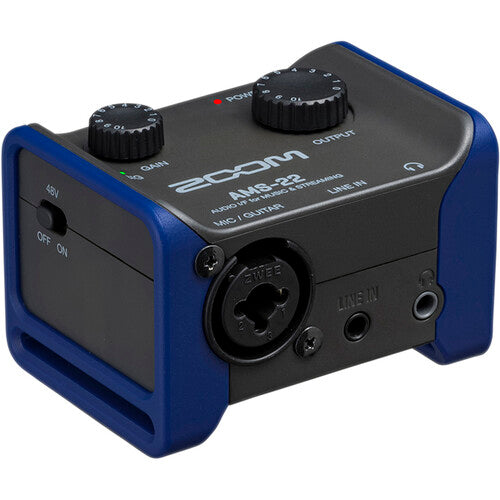

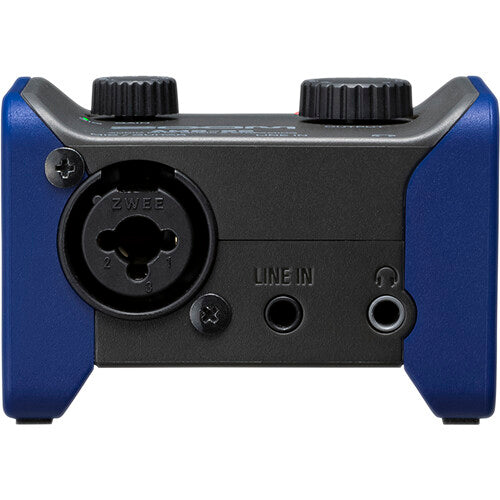

The Zoom AMS-22, an ultraportable solution for recording and streaming to a Mac/Windows computer or iOS/Android mobile device with a TRS/XLR input, two TRS outputs, a 3.5mm headphone jack, and a USB-C connector.

Plug your guitar or microphone into the TRS/XLR input, and power condenser mics by engaging the 48V phantom power switch. Plug stereo music sources into the 3.5mm input jack and monitor via the 3.5mm headphone jack, or connect monitor speakers to the stereo TRS output. The AMS-22 supports 24-bit resolution recordings at a sampling rate up to 96 kHz. The interface operates on bus power from your computer, but can also be powered by an AC power adapter (available separately) if you're using it with a smartphone or tablet. Direct monitoring and loopback functions make overdubbing and adding music to your streams simple and easy.

Zoom AMS-22 Specs

Channels & Audio I/O

• Channels of I/O: Analog: 2 Inputs / 2 Outputs

• Maximum Sampling Rate: 96 kHz / 24-Bit

• Number of Microphone Inputs: 1

Analog Audio I/O

• 1x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Hi-Z Input

• 1x 1/8" (3.5 mm) TRS Unbalanced Line/Stereo Input

• 2x 1/4" TRS Balanced Line Output

• 1x 1/8" (3.5 mm) TRS Headphone Output

Digital I/O & Connectivity

• Digital Audio I/O: None

• Host Connection: 1x USB-C (USB 2.0 Protocol)

• USB (Non-Host): No

• Sync I/O: No

• Network I/O: No

• MIDI I/O: No

• Expansion Slots: No

• Wireless: No

Power

• Power Source: USB Bus Power or Optional AC/DC Adapter

• AC/DC Adapter Requirement: 5 VDC (Not Included)

• Power Consumption: 1.8 W (Maximum)

🎛️ Signal Processing

• Built-In DSP: No

• Pad: No

• Gain/Trim Range: +8 to +54 dB

• Input Level Adjustment: 1x Knob

• High-Pass Filter: No

• Phantom Power: 48 V, Selectable On/Off

Performance

• Frequency Response:

 • 20 Hz to 20 kHz +0/-2 dB (at 44.1 kHz)

 • 20 Hz to 40 kHz +0/-3 dB (at 96 kHz)

• Max Input Level:

 • Combo XLR-1/4" Mic: +0.6 dBu

 • Combo XLR-1/4" Hi-Z: +11 dBu

 • 1/8" Line: +1.5 dBu

• Max Output Level:

 • 1/4" Line Outputs: -2 dBu

• Headphone Output Power:

 • 1/8" (3.5 mm): 20 mW per Channel @ 32 Ω

• Impedance:

 • Mic Input: 2 kΩ

 • Hi-Z Input: 1 MΩ

 • Headphone Output: 10 Ω

• EIN (Equivalent Input Noise): -120 dBu (@ +54 dB Gain)

Digital Audio

• Supported Sample Rates: 44.1 / 48 / 88.2 / 96 kHz

• Sample Rate Conversion: No

• Bit Depth: 24-Bit

Storage & Playback

• Media/Memory Card Slot: No

Compatibility

• OS Compatibility: Windows / macOS

• Mobile App Compatible: No

Physical Specs

• Dimensions: 2.7 x 2.27 x 1.8" / 6.8 x 5.77 x 4.6 cm

• Weight: 3.0 oz / 85 g

Packaging Info

• Package Weight: 0.58 lb

• Box Dimensions (LxWxH): 7.7 x 6 x 2.3"

  • Zoom AMS-22 USB-C Audio Interface
  • USB-C Cable
  •  Limited 1-Year Manufacturer Warranty
