Allen & Heath

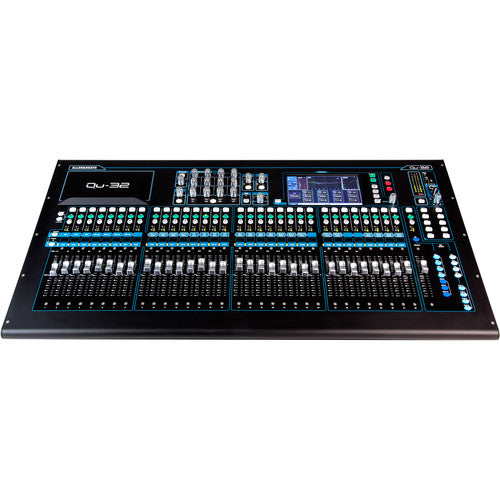

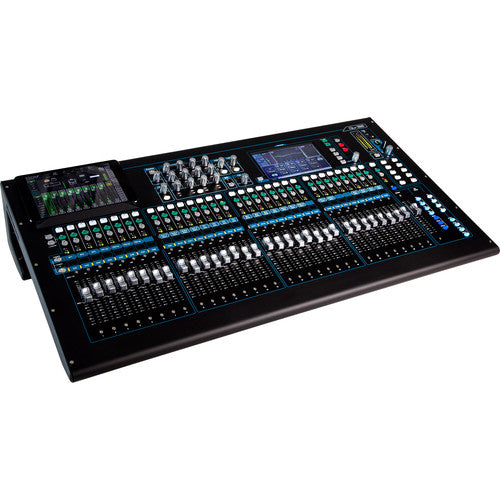

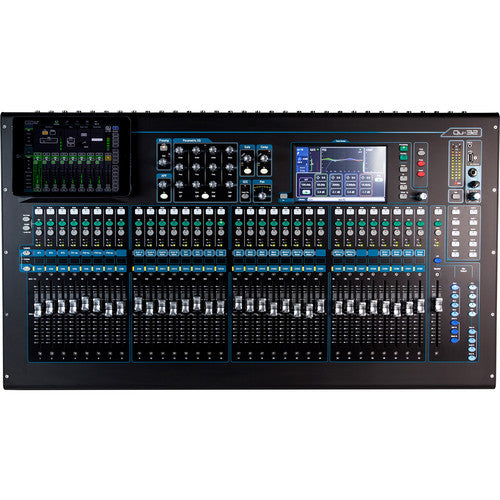

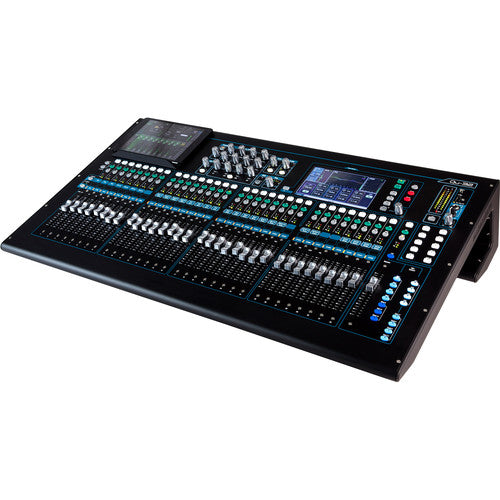

Allen & Heath Qu-32C 38x28 Digital Mixing Console (Chrome Edition)

Allen & Heath Qu-32C 38x28 Digital Mixing Console (Chrome Edition)

SKU: AH-QU-32C

Dhs. 14,099.00
Dhs. 14,099.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

Low stock: 2 left
Badge

Key Features

  • Chrome Knobs and Faders
  • 32 Mic/Line Inputs
  • Recallable AnalogiQ Preamps
  • 33 Motorized Faders
  • 24 Mix Outputs
  • 32x32 USB Recording Interface
  • 4 Built-In FX Engines
  • 7" Touchscreen
  • iPad App for Wireless Mixing
  • dSNAKE-Compatible
View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

Allen & Heath QU-32

Designed to accommodate a wide variety of live sound-reinforcement and recording scenarios, the chrome edition Allen & Heath Qu-32C is a 38-input / 28-out digital mixing console that doubles as a 32x32 USB recording interface. Featuring 32 of the company's recallable AnalogiQ microphone preamps, and powered by a 5-core ARM processor, the Qu-32 provides a variety of integrated effects and processing including channel-independent 4-band parametric EQs, compressors, delay and reverb. The chrome edition adds high-contrast chrome rotary and fader knobs that improve visibility in dark conditions, as well as a number of software enhancements from the updated firmware (V1.8).

The mixer is compatible with both the ME Personal Mixing System and dSNAKE digital-connectivity system from Allen & Heath. The Qu-32 can also be used with the Qu-Pad app, allowing you to use your iPad to mix from anywhere in the venue when connected to a wireless network.

Engineered for intuitive navigation, the mixer also features a 7" touchscreen display, providing access to all settings. Furthermore, the mixer has 33 automatable, motorized faders for fast recall of levels when mixing FOH for multiple acts on the same stage, dealing with multiple monitor mixes, and similar scenarios.

Allen & Heath QU-32 Specs

Mixer

• Max I/O Capacity: 32x Input / 28x Output

• Number of Analog Input Channels: 32 (32 Mono)

• Number of Mic Preamps: 32

• Number of Analog Output Channels: 24

• Mix Routing: 4x Stereo FX Return

• Groups: 4x Mute Group, 4x DCA Group

• Presets: Yes

• Display: 7" LCD Touchscreen

• Faders & Level Adjustment: 33x 3.9" / 100 mm Motorized Fader

• Gain/Trim Range: Line ±24 dB (Stereo Channels), Line/Mic -10 dB to +60 dB (1 dB Steps)

• Input Polarity: Normal / Reverse

• Dynamic Processing: Compressor, Gate

• EQ (FX Returns): 4-Band Parametric

• EQ Parameters:

 - 1x HF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)

 - 2x MF Notch/Peak: ±15 dB at 20 Hz to 20 kHz

 - 1x LF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)

• Graphic EQ: 28-Band 1/3 Octave, ±12 dB (31 Hz to 16 kHz)

• Filters: High-Pass, 20 Hz to 20 kHz, 12 dB/Octave

• Solo/Mute: Solo, Mute per Input Channel, Master

• Built-In Effects: Reverb, Delay, Reverb (Gated), ADT, Chorus, Phaser, Flanger

• Audio Delay: Adjustable up to 170 ms

• Automatic Mic Mixing: Yes

Performance

• Frequency Response: 20 Hz to 20 kHz +0/-0.5 dB

• Max Input Level:

 - Aux Input: +22 dBu

 - Mic Input: +19 dBu

 - Line Input: +29 dBu

• Analog Dynamic Range: 112 dB

• I/O Impedance:

 - 1/4" Stereo Output: < 75 Ohms

 - AES3 Output: 110 Ohms

 - Aux Input: > 7 Kilohms

 - XLR Line Output: < 75 Ohms

 - XLR Line/Mic Input: > 5 Kilohms

 - 1/4" Line/Mic Input: > 10 Kilohms

• Noise Floor: -90 dBu (with Inputs Muted)

• THD+N: Mic/Line Input:

 - 0.0005% at Unity Gain

 - 0.001% at +30 dB Gain

• Signal Generator: Sine, White, Pink, or Band-Pass Noise (Assignable to Any Mix)

Recording & Playback

• Sample Rates: 48 kHz

• AES3 Output: 48 kHz

• Stereo Record: 48 kHz (24-Bit)

• Stereo Playback: 44.1 / 48 kHz (16 / 24-Bit)

• Multitrack Record: 48 kHz (24-Bit)

• Multitrack Playback: 48 kHz (24-Bit)

• Max Multitrack Recording: 18 Tracks

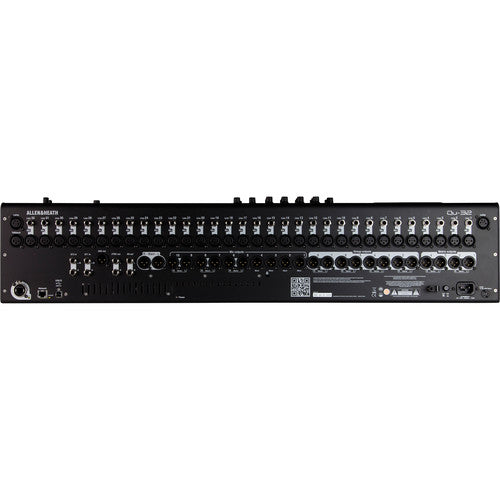

I/O

Analog Inputs

• 1x XLR Talkback Input

• 32x XLR Balanced Mic Input

• 32x 1/4" TRS Balanced Line Input

• 4x 1/4" TRS Balanced Aux Input (2 Stereo Pairs, Half-Normalled)

• 1x 1/8" / 3.5 mm Unbalanced Aux Input

Analog Outputs

• 10x XLR Balanced Mix Output

• 2x XLR Balanced Main Output

• 4x XLR Balanced Subgroup Output

• 4x XLR Balanced Matrix Output

• 4x 1/4" TRS Balanced Aux Output (2 Stereo Pairs)

• Phantom Power: +48 V

Digital I/O

• 1x RJ45 (Network)

• 1x XLR AES3 Output

• 1x etherCON dSNAKE (I/O)

USB I/O

• 1x USB-A (External Memory)

• 1x USB-B 2.0 (Audio Streaming)

• USB I/O Capacity: 32x Input / 32x Output

Expansion Ports

• None

Wireless & App Control

• Wireless: Wi-Fi (Built-In)

• Mobile App Compatible: Yes (Android & iOS)

• App Name: Qu Pad & Qu You

• Functionality: Remote Control

Power

• Input Power: 100 to 240 VAC, 50 / 60 Hz

Physical

• Rack Mountable: No

• Operating Conditions: 32 to 95°F / 0 to 35°C

• Dimensions: 33.5 x 19.7 x 7.4" (850 x 500 x 186 mm)

• Weight: 44 lb (20 kg)

Packaging Info

• Package Weight: 48.45 lb

• Box Dimensions (LxWxH): 39 x 26 x 13"

  • Allen & Heath Qu-32C 38x28 Digital Mixing Console (Chrome Edition)
  • Mains Power Cable
  •  Limited 1-Year Manufacturer Warranty
