Allen & Heath

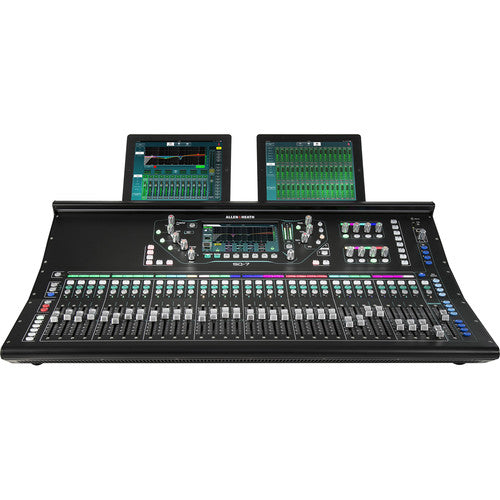

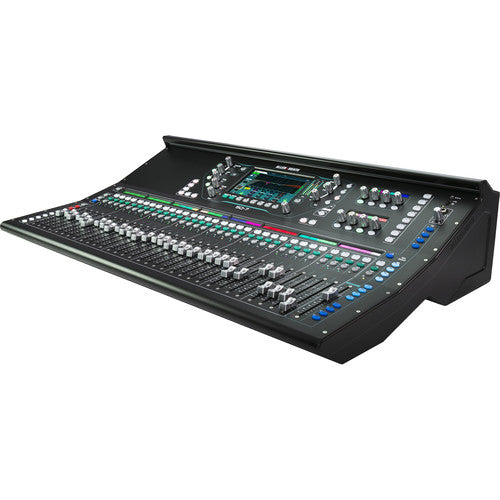

Allen & Heath SQ-7 48-Channel / 36-Bus Digital Mixer with 32+1 Motorized Faders

Allen & Heath SQ-7 48-Channel / 36-Bus Digital Mixer with 32+1 Motorized Faders

SKU: AH-SQ-7

Dhs. 20,999.00
Dhs. 20,999.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

Low stock: 2 left
Badge

Key Features

  • 32 Microphone Preamps
  • 7" Capacitive Touchscreen
  • 96 kHz FPGA Processing
  • Eight Stereo FX Engines with Returns
  • 32 x 32 USB Audio Interface
  • AES Output
  • 12 Mono/Stereo Mixes + 3 Stereo Matrix
  • Channel LCD Displays
  • 16 Assignable SoftKeys
  • SLink Port for Remote Audio & Expansion
View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

Allen & Heath AH-SQ-7

The Allen & Heath SQ-7 is a 48-channel, 36-bus digital mixing console well suited for live sound, corporate A/V, recording studios, and houses of worship. The SQ-7 features 32+1 motorized faders and 32 professional-quality microphone preamps. There are also eight stereo FX engines with dedicated return channels and access to the RackExtra FX library. The mixer's 12 stereo outputs (configurable as groups or auxes) are well suited for in-ear-monitor setups, while the Automatic Mic Mixing function offers quick and easy operation over multiple microphones for conferences, panel talks, and more.

At the heart of the SQ-7 lies the 96 kHz XCVI Core FPGA engine, which delivers professional, high-resolution audio quality, ultra-low latency (less than 0.7 ms), variable bit depth for precision and noise performance, mix coherency down to the sample, and the power to handle high channel/mix counts and ample FX processing. The SQ's DEEP processing architecture allows you to hand-pick boutique compressor and preamp emulations and embed them directly within the mixer's inputs and mix channels, all without adding system latency or setup hassles.

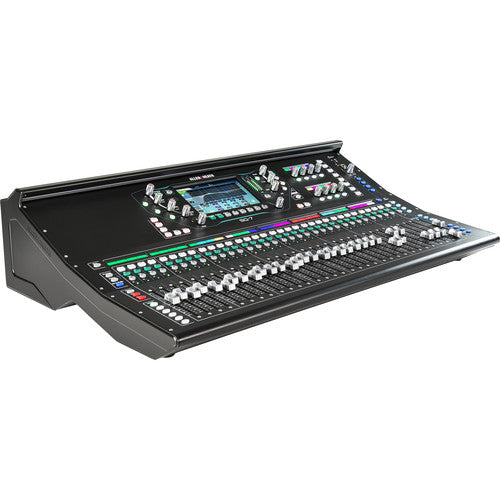

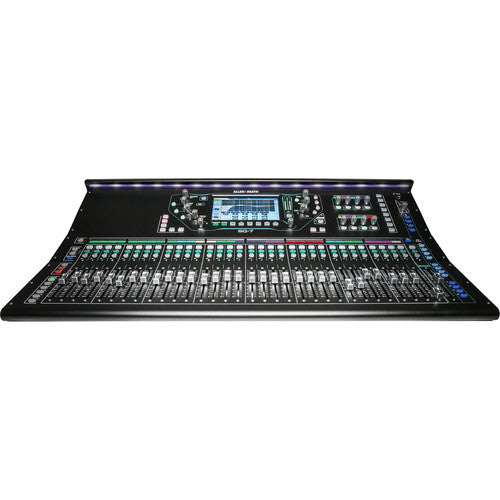

The front panel is centered around the mixer's 7" capacitive touchscreen and framed by an array of high-grip, illuminated encoders, which offer clear visual feedback and quick, hands-on control. You can drag-and-drop channels and mixes to any strip with custom naming and color coding on the strip display, allowing you to build a mix environment that mirrors your workflow. The SQ-7 offers 16 softkeys, which can be freely assigned to any function for a customized and advanced workflow. The on-board recorder uses a USB Type-A port to record stereo and multitrack sessions to a flash drive. The recorder can also playback stereo and multitrack files, handy for virtual sound checks and studio mixing.

The SQ-7 offers expansion options via Allen & Heath's stage box expanders, or install an optional Dante or Waves card to adapt and expand using the latest digital technologies. SQ is fully compatible with the ME Personal Mixing System, allowing performers to take control of their own monitor mixes. Any number of ME-1 and ME-500 personal mixers can be daisy-chained from the mixer's SLink port, or from a connected remote expander. The Allen & Heath SQ-7 includes a power cord.

Allen & Heath AH-SQ-7 Specs

Mixer

• Number of Analog Input Channels: 48

• Mix Routing: 8x Stereo FX Return

• Groups: 8x Mute Group, 8x DCA Group

• Display: 7" Touchscreen

• Display Resolution/Color: Main Display: 800 x 480, 8-Bit RGB

• Faders & Level Adjustment: x 3.9" / 100 mm Motorized

• Meters:

 – Main Meter: 2x 12-Segment LED

 – Channel Meter: Single LED

• Meter Range: -3 dBFS Peak/Clip (+19 dBu at XLR Output)

• Meter Calibration: 0 dB on Meter = -18 dBFS (+4 dBu at XLR Output)

Signal Processing

• Gain/Trim Range:

 – Line: ±24 dB (Stereo Channels)

 – Mic/Line: -5 dB to +60 dB (1 dB Steps)

• Input Pad: -20 dB

• Input Polarity: Normal/Reverse

Gate Parameters

• Threshold: -72 to +18 dBu

• Depth: 0 to 60 dB

• Attack: 50 μs to 300 ms

• Hold: 10 ms to 5 sec

• Release: 10 ms to 1 sec

Compressor Parameters

• Threshold: -46 to 18 dBu

• Ratio: 1:1 to ∞:1

• Attack: 30 μs to 300 ms

• Release: 50 ms to 2 sec

• Knee: Soft / Hard

• Blend: Yes

Sidechain Filters

• Compressor: High-Pass 20 Hz–5 kHz, Band-Pass 120 Hz–10 kHz, Low-Pass 120 Hz–20 kHz

• Gate: High-Pass 20 Hz–5 kHz, Band-Pass 120 Hz–10 kHz, Low-Pass 120 Hz–20 kHz

EQ

• FX Returns: 4-Band Parametric

• EQ Parameters:

 – 1x HF Shelf: ±15 dB at 20 Hz–20 kHz (Shelf/Bell Selectable)

 – 2x MF Notch/Peak: ±15 dB at 20 Hz–20 kHz

 – 1x LF Shelf: ±15 dB at 20 Hz–20 kHz (Shelf/Bell Selectable)

• Graphic EQ: 28-Band 1/3 Octave, ±12 dB (31 Hz–16 kHz)

• Filters: High-Pass 20 Hz–2 kHz, 12 dB/Octave

Channel Output/Source Monitoring

• AFL, PFL, Post-Preamp, Post-HPF, Post-Gate, Post-EQ, Post-Compressor, Post-FX, Insert Return

• Built-In Effects:

 – Reverb

 – Stereo Delay (Tap)

 – Reverb (Gated)

 – ADT

 – 2x Chorus

 – Flanger

 – Phaser

• Real Time Analyzer: 31-Band 1/3 Octave, 20 Hz–20 kHz

• Audio Delay: Adjustable up to 682 ms

• Automatic Mic Mixing: Yes

Digital Audio

• Sample Rates: 96 kHz

 – AES3 Output: 44.1 / 48 / 88.2 / 96 kHz

 – Stereo Record: 96 kHz

 – Stereo Playback: 44.1 / 48 / 96 kHz

 – Multitrack Playback/Record: 96 kHz

• Bit Depth: Up to 96-Bit

 – Stereo Record: 24-Bit

 – Stereo Playback: 16 / 24-Bit

 – Multitrack Playback/Record: 24-Bit

• Latency: <0.7 ms (Mic Input to Main Output)

Performance

• dBFS Reference Level: +18 dBu = 0 dBFS

• Headroom: +18 dB

• Frequency Response: 20 Hz–20 kHz (+0/-0.5 dB)

• Max Input Level:

 – Mic/Line Input: +30 dBu

 – Aux Input: +22 dBu (+4 dBu) / +18 dBu (0 dBu)

• Output Level: Analog Output: +4 dBu / +22 dBu

• Analog Dynamic Range: 112 dB

• I/O Impedance:

 – 1/4", XLR Output: <75 Ohms

 – AES3 Output: 110 Ohms

 – Aux Input: >7 kΩ

 – Mic/Line Input: >5 kΩ

• Noise Floor: -90 dBu (with Inputs Muted)

• THD+N:

 – 0.006% at Unity Gain

 – Mic/Line Input to AES3 Output: 0.002% at Unity Gain / 0.003% at +30 dB Gain

• Signal Generator: Sine, White, Pink, or Band-Pass Noise (Assignable to Any Mix)

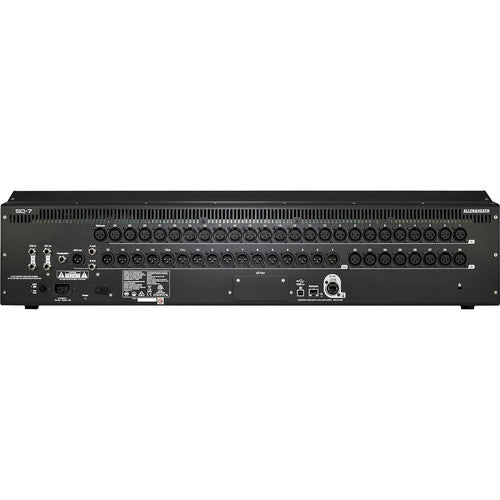

Connectivity

• Analog Inputs:

 – 1x XLR Talkback Input

 – 32x XLR Balanced Mic/Line Input

 – 4x 1/4" TRS Balanced Aux Input (2 Stereo Pairs, Half-Normalled)

 – 1x 1/8" / 3.5 mm Unbalanced Aux Input

• Analog Outputs:

 – 16x XLR Balanced Output

 – 2x 1/4" TRS Balanced Output

• Phantom Power: +48 V

• Digital I/O:

 – 1x RJ45 (Network)

 – 1x XLR AES3 Output

 – 1x etherCON (I/O)

• USB I/O:

 – 1x USB-A (External Memory)

 – 1x USB-B 2.0 (Audio Streaming)

• Expansion Ports: 1x I/O Card

Recording

• Max Multitrack Recording: 16 Tracks

• File Format Support: WAV

Power

• AC Input Power: 100–240 VAC, 50 / 60 Hz

• Power Consumption: 110 W (Maximum)

Physical

• Operating Temperature: 32–104°F / 0–40°C

• Dimensions: 31.7 x 20.3 x 7.8" / 805 x 516 x 198 mm

• Weight: 39.3 lb / 17.8 kg

Packaging Info

• Package Weight: 48.5 lb

• Box Dimensions (LxWxH): 38.25 x 27.3 x 14"

  • Allen & Heath SQ-7 48-Channel / 36-Bus Digital Mixer with 32+1 Motorized Faders
  • Power Cord
  •  Limited 1-Year Manufacturer Warranty
