Allen & Heath

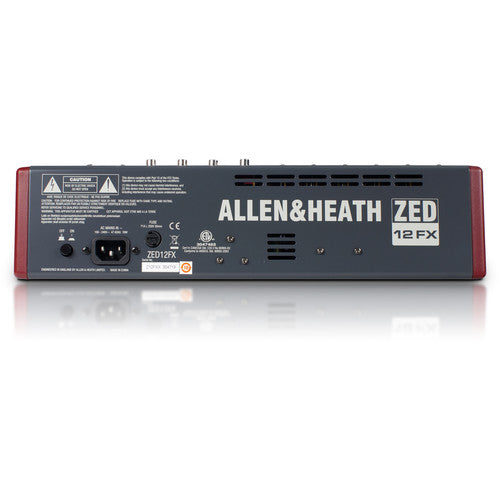

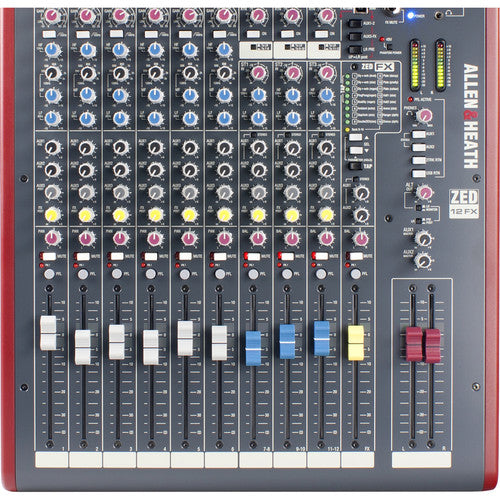

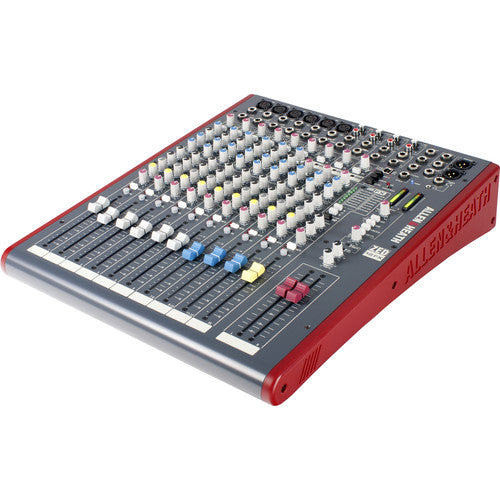

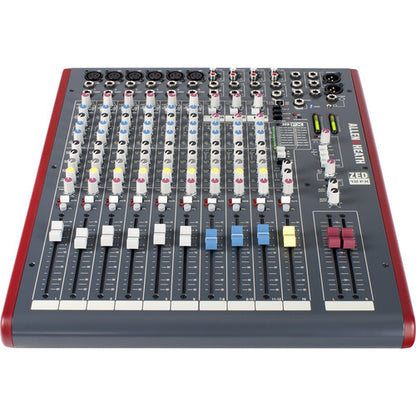

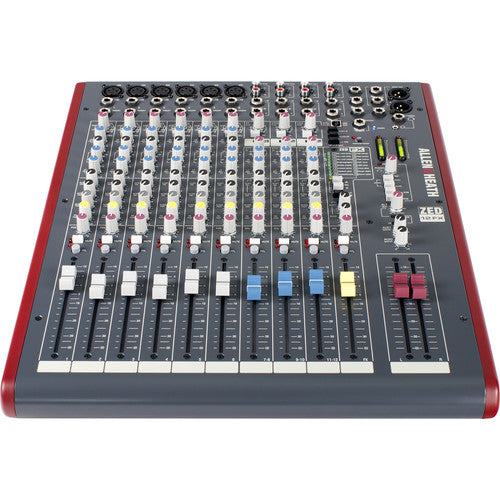

Allen & Heath ZED-12FX 12-Channel Multipurpose USB Mixer with Effects

Allen & Heath ZED-12FX 12-Channel Multipurpose USB Mixer with Effects

SKU: AH-ZED12FX

Dhs. 1,999.00
Dhs. 1,999.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

Low stock: 2 left
Badge

Key Features

  • Portable Mixer for Live & Studio Mixing
  • 6 x XLR-1/4" Mic/Line Inputs
  • 3 x Stereo Line Inputs with EQ
  • USB Digital Audio Interface
  • DuoPre Microphone Preamps
  • 3-band EQs with MusiQ Technology
  • 16 FX: Delay, Reverb, and Modulation
  • 4 x Aux/FX Sends
  • Monitoring Section with Headphone Out
View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

Allen & Heath ZED-12FX

The multipurpose Allen & Heath ZED-12FX mixer combines six mic/line inputs, three stereo inputs for effect returns and portable music players or keyboards, a 24-bit effects processor, and a USB digital audio interface compatible with Mac and Windows computers-in a compact and portable package small enough for carrying to your gig, whether recording live or in the studio.

Channels 1 through 6 can be accessed through balanced XLR or 1/4" mic/line inputs and feature low-noise DuoPre preamps with 69 dB of gain. They are also equipped with responsive, 3-band swept-mid EQs, which utilize MusiQ technology to optimize the Q factor proportional to the amount of boost or attenuation.

The built-in DSP engine offers sixteen effects to choose from, ranging from classic reverbs and delays to cascaded delays with reverbs and shimmering flanger and chorus effects. Delay tempo can be set on the fly using the convenient TAP button.

The ZED-12FX offers a set of four Aux/FX sends, 48V microphone phantom power, XLR main stereo outputs with inserts, a comprehensive monitoring section with two headphone outputs, and a separate monitor speaker output.

Allen & Heath ZED-12FX Specs

Configuration

• Type: Analog Mixer

• Number of Channels: 12

• Number of Mic Preamps: 6

• Analog Output Channels:

 – 1x Stereo Master Output

 – 1x Mono Master Output

 – 1x Stereo ALT Master Output

 – 3x Mono Aux Send Output

 – 1x Stereo Tape / Record Output

 – 1x Stereo Headphone Output

• Mix Routing: Main Mix / Aux Bus / Subgroup / FX Bus

• Built-In Effects:

 – 3x Delay

 – 6x Reverb

 – 3x Delay+Reverb

 – 1x Stereo Expander

 – 1x Chorus

 – 1x Flanger

• Rack Mountable: No

Faders & Level Adjustment

• 12x 3.9" / 100 mm Channel Fader

Meters

• LED

Signal Processing

• Gain/Trim Range:

 – Mic: -6 ±69 dB

 – 1/4" Line: -10 ±26 dB

• Dynamic Processing: None

• EQ:

 – Mono Channels: 3-Band EQ

 – Stereo Channels: 2-Band EQ

 – EQ Parameters:

  • High: ±15 dB at 12 kHz

  • Mid: ±15 dB at 120 Hz to 4 kHz

  • Low: ±15 dB at 80 Hz

• Filters: High-Pass 100 Hz, 12 dB/Octave (Input Channels)

• Solo / Mute: Solo, Mute per Input Channel

Digital Audio

• Sample Rates:

 – AD/DA Conversion: 32 / 44.1 / 48 kHz

 – DSP: 48 kHz

• Bit Depth: 16-Bit

Performance

• Frequency Response:

 – Line Input to Main Output: 10 Hz to 30 kHz +0.5/-1 dB

 – Mic Input to Main Output: 20 Hz to 30 kHz +0.5/-1 dB (30 dB Gain)

 – Stereo Input to Main Output: 10 Hz to 30 kHz +0.5/-1 dB

• Max Input Level:

 – XLR Input: +17 dBu (Mono)

 – 1/4" Line Input: +30 dBu (Mono)

 – 1/4" / RCA Input: +10 dB (Stereo)

• Noise Floor: Main Output: -88 dBu

• THD+N:

 – Line Input to Main Output: 0.005% at Unity Gain

 – Mic Input to Main Output: 0.004% at Unity Gain, 0.014% at +30 dB Gain

 – Stereo Line Input to Main Output: 0.003% at Unity Gain

Connectivity

Analog Inputs

• 6x 1/4" TRS Balanced/Unbalanced Line Input

• 6x 1/4" TRS Balanced/Unbalanced Line Input (3 Stereo Pairs)

• 1x Stereo RCA Coaxial Return

• 6x 1/4" TRS Channel Insert

• 2x 1/4" TRS Main Insert

• 6x XLR 3-Pin Balanced Mic Input

Analog Outputs

• 1x 1/4" TRS Headphone Output

• 1x 1/8" / 3.5 mm TRS Headphone Output

• 1x Stereo RCA Tape Output

• 1x Stereo RCA Alt Output

• 2x 1/4" Aux Send (Pre-Fader)

• 1x 1/4" Aux Output (Post-Fader)

• 1x 1/4" FX Send (Post-Fader)

• 2x XLR 3-Pin Balanced Main Output

• 1x 1/4" Main / Mono-Summed Output (Post-Fader)

Other I/O

• Phantom Power: +48 V, Selectable On/Off

• USB I/O: 1x USB-B 1.1 (2x Input / 2x Output)

• Digital I/O: None

• MIDI I/O: None

• Wireless: No

Recording

• Max Multitrack Recording: 12 Tracks

Compatibility

• OS Compatibility: macOS / Windows

Power

• AC Input Power: 100 to 240 VAC, 50 / 60 Hz

Physical

• Rack Mountable: No

• Dimensions (W x D x H): 15.2 x 18.3 x 3.9" / 38.6 x 46.5 x 9.9 cm

• Weight: 14.3 lb / 6.5 kg

Packaging Info

• Package Weight: 18.5 lb

• Box Dimensions (LxWxH): 25 x 21 x 10"

  • Allen & Heath ZED-12FX 12-Channel Multipurpose USB Mixer with Effects
  • USB Cable
  • Power Cable
  •  Limited 1-Year Manufacturer Warranty
