Aputure Amaran F22c 2 x 2' RGB LED Flexible Light Mat (V-Mount)

Amaran F22C Overview

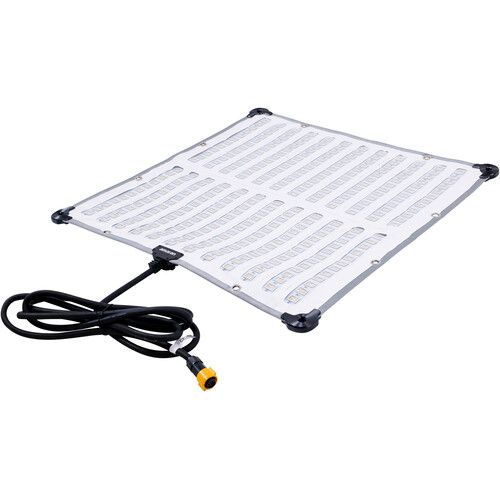

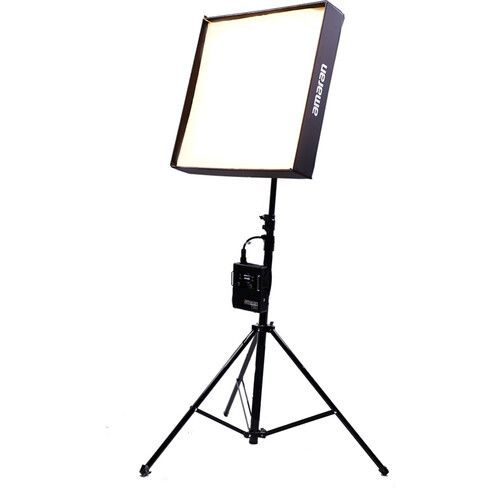

The Aputure Amaran F22c RGBWW LED Mat is a powerful, versatile, and flexible LED mat that measures 2 x 2'. It offers outstanding light output and color rendering suitable for a variety of users, from filmmakers to videographers, content creators, and still photographers. Providing 200W of power, it features RGBWW LEDs for complete color control, as well as tunable CCT from 2500 to 7500K, providing endless possibilities for creative lighting selections through 360° HSI control, 46 color gel presets, and 15 unique customizable lighting effects. It has stellar CRI and TLCI scores of 95+ and 97+, and stepless dimming from 0 to 100%. An included folding X-frame stretches the mat to a rigid panel that can be attached directly to a C-stand grip head using the straight Baby Pin adapter, or onto any standard light stand with the included right angle Baby Pin and tilting stand mount. The included foldable softbox has two strengths of diffusion, and a fabric grid that uses an integrated hook-and-loop fabric to instantly turn this flexible mat into an ultrathin soft light that will add beautifully controlled soft light to a scene.

The control box is a multi-voltage AC power supply that features a V-mount battery plate for use with compatible 14.4V, 26V, or 28.8V batteries. Full output can be achieved when using the AC power supply, using batteries allows the F22c to be used at either half or full power, depending on battery strength.

The free Sidus Link app makes it possible to utilize tools unique to the Aputure and amaran ecosystems, such as Source Match, Color Picker, and Custom FX. The F22c can also be controlled using DMX with a separately available USB-C to 5-Pin DMX512 in & out adapter cable, adding professional-level control to an individual unit or groups of lights. The amaran F22c is ideal for videographers who need a versatile and literally flexible lighting solution. The RGBWW flexible panel gives users unmatched strength and control over a wide, expanded CCT range to match a variety of white light environments.

• 200W output
• 2 x 2'' RGBWW flexible LED mat
• Color temperature from 2500-7500K
• CRI: 95+, TLCI: 97+, CQS: 96+
• SSI (Tungsten): 83+, SSI (D56): 74+
• HSI Full Color Control
• Tunable green-magenta adjustment (plus/minus green)
• Stepless dimming from 0 to 100%
• Ultralight LED mat
• Sidus Link App control for smartphones & tablets
• DMX control with USB-C to 5-Pin DMX512 in & out adapter cable, separately available
• 15 Built-in lighting FX including paparazzi, lightning, TV, candle, fire, strobe, explosion, faulty bulb, pulsing, welding, police car, color chase, and more
• 46 color gel presets
• Easy-mounting multi-voltage AC power supply with included V-mount battery plate
• Multiple DC power solutions: 14.4V/26V/28.8V/48V (3-Pin XLR)
• Soft carrying case

Amaran F22C Specs

Light Fixture
• Type: 1x LED Flexible Light

• Included Light Modifier: 1x Softbox with Removable Grid

• Included Storage Case: Yes

• Color Temperature: 2500 to 7500K

• Color Modes: RGB

• Color Accuracy: CRI 95, TLCI 98, CQS 96, SSI 83 (at 5600K)

• Beam Angle: 180° Unmodified / 45° with Grid

• Dimming: 0 to 100% (Controller Included)

• Cooling System: Passive

• Expected Lamp Life: 50,000 Hours (L70)

• Built-In Flash: No

• Preprogrammed Effects: No

• Front Accessory Mount: Proprietary

Photometrics

• 3200K at 3.3' / 1 m: 534 fc / 5750 Lux

• 3200K at 9.8' / 3 m: 65 fc / 703 Lux

• 5600K at 3.3' / 1 m: 596 fc / 6420 Lux

• 5600K at 9.8' / 3 m: 73 fc / 790 Lux

• 7500K at 3.3' / 1 m: 657 fc / 7080 Lux

• 7500K at 9.8' / 3 m: 80 fc / 870 Lux

Connectivity

• Wireless Remote Control: Bluetooth

• Mobile App: Sidus Link (Android & iOS)

• Wireless Range: 262.5' / 80 m

• Inputs/Outputs:

– 1x USB-C DMX Input (Adapter Required, Not Included)

– 1x XLR 3-Pin Power Input

– 1x Proprietary Power Output

Power & I/O

• Power Source: AC to DC Adapter (Included) or Battery (Not Included)

• Battery Plate: 1x V-Mount (Built-In)

• Battery Compatibility: 14.4 to 28.8 VDC Rechargeable (Not Included)

• Input Power: 100 to 240 VAC, 50/60 Hz | 48 VDC at 2.5 A

• Power Consumption: 240 W

• Included Adapter: 1x USA Type-A/B to XLR 3-Pin AC to DC (48 VDC)

• Inline Switch: No

• Power Pass-Thru: No

Mounting

• Fixture Mounting: 1x 5/8" Receiver

• Included Adapters:

– 1x Non-Swivel Mount: 5/8" Receiver to 5/8" Receiver

– 2x Non-Swivel Mount: 5/8" Stud to 5/8" Stud

General

• Display: OLED

• Environmental Resistance: No

• Certifications: CE, FCC, RoHS, cTUVus

• Material: Plastic (Housing)

Dimensions & Weight

• Fixture: 23.6 x 23.6 x 0.2" / 60 x 60 x 0.5 cm

• Fixture Weight: 1.94 lb / 0.88 kg

• Power Supply/Controller Weight: 2.4 lb / 1.1 kg

Packaging Info

• Package Weight: 18.89 lb

• Box Dimensions (LxWxH): 26.6 x 15.1 x 5.3"

• amaran F22c 2 x 2' RGB LED Flexible Light Mat (V-Mount)

• Control Box with V-Mount Battery Plate

• 9.8' Head Extension Cable

• Support Bracket

• Right-Angle Baby Pin Adapter

• Straight Baby Pin Adapter

• Tilting Stand Mount

• F22 Softbox Frame

• F22 Diffusion Cloth 1 (1/2 Grid Cloth)

• F22 Diffusion Cloth 2 (2.5 Stop)

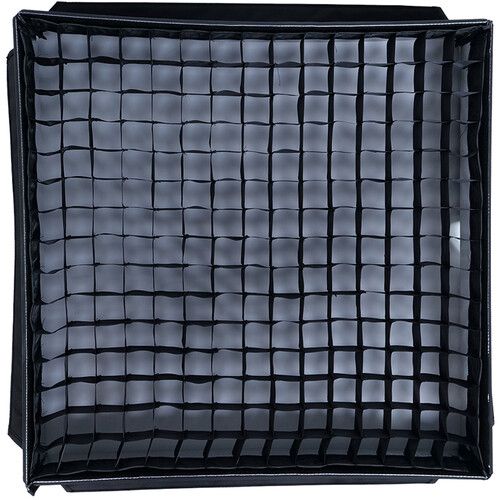

• F22 45 ° Light Control Grid

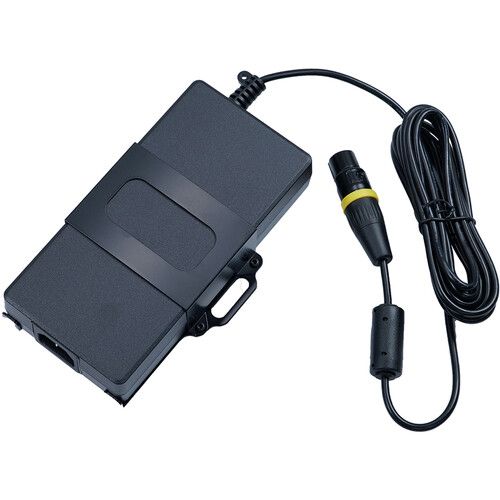

• Multi-Voltage AC Power Supply

• AC Power Cable

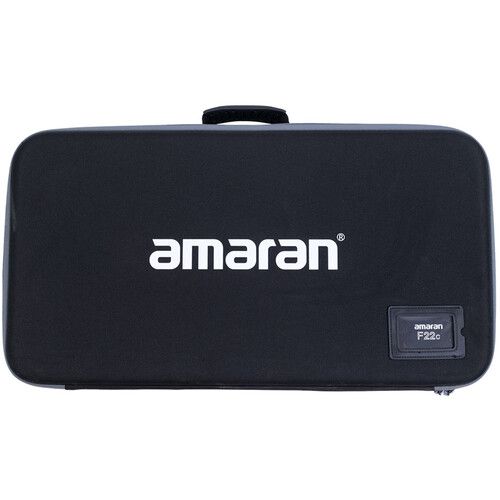

• Carrying Case

• Limited 1-Year Manufacturer Warranty

• Registration Extension: 1-Year
