Aputure Light Storm LS300X LED Light Kit

Aputure LS 300X Overview

The Light Storm LS300X LED Light Kit from Aputure is the first Aputure light to go beyond traditional bi-color lighting by utilizing the expanded vari-white CCT range of 2700-6500K, providing warmer tungsten tones and cooler than daylight whites. The brilliant light can be dimmed from a potent main light to a subtle, nuanced fill light, flicker free across the dimming range.The Controller Box attached to the LS300X head with a 9.8-foot head extension cable, so adjusting settings is effortless regardless of where the light is set. The self-regulating , multi-voltage controller also operates using single or dual V-mount batteries, suitable for lighting in remote locations.

Robust Bi-Color Performance

Combining the latest optical color-blending technology with Aputure's dual-color LED chipset provides an unprecedented flexibility from a single LED fixture. A specially-designed color-blending optical element in front of the chipset combines the LED output into a single cohesive point light source. The highly-efficient light output renders at CRI 95, TLCI 98, plus higher than industry standard SS1 85, and D55-SSI 74 ratings. This level of efficiency means colors and skin tones will be reproduced with an extremely-high degree of accuracy.

Local Control, DMX, 2.4 GHz Wireless, and Bluetooth Remote Control Options

Intuitive local controls and a bright LCD display on the Controller Box allow precise and repeatable setups locally. In addition, the output may be controlled using the included 2.4 GHz wireless remote, or the light may be integrated into a DMX network via the 5-pin XLR in/out ports. Also, thanks to Aputure's integrated Sidus Mesh network chipset, all the 300X's functions may be controlled by the Sidus Link app, free to download for iOS and Android portable devices. The app also allows saving presets, adjusting/triggering lighting effects, luminance, and CCT, as well as installation of firmware updates, all from your smartphone or tablet.

Dual Output Modes

Constant Output Mode allows precision CCT adjustment while maintaining constant luminance, and even shift color temperature seamlessly during a scene. Max Ouptut Mode will maximize CCT and dimming levels within the 4000-5500K range.

Bowens S-Mount Versatility

The integrated Bowens-S mount allows using an almost limitless number of available modifiers to narrow, diffuse, or otherwise sculpt the light to suit any application or creative vision.

Four Available Dimming Modes

• Linear
• Exponential
• Logarithmic
• S-Curve

5 Available Common CCT Presets

• 2700K
• 3200K
• 4200K
• 5500K
• 6500K

Nine Customizable Built-In Lighting Effects

• Paparazzi
• Fireworks
• Lightning
• Faulty Bulb
• TV
• Pulsing
• Strobe
• Explosion
• Fire

Aputure LS 300X Specs

Light Fixture

Beam Angle: 105°

Color Temperature: 2700 to 6500K

Color Accuracy: CRI 96, TLCI 96, CQS 95

Cooling System: Fan

Dimming: Yes, 0 to 100% (Continuous)

Display: LCD

Housing Material: Aluminum

Lumens: 56,000

Photometrics

At 3200K (Beam Angle 105°):

• 5100 lux / 473.8 fc at 3.28 ft (1 m)

• 580 lux / 53.9 fc at 9.84 ft (3 m)

• 220 lux / 20.4 fc at 16.4 ft (5 m)

At 4300K (Beam Angle 105°):

• 7500 lux / 696.8 fc at 3.28 ft (1 m)

• 800 lux / 74.3 fc at 9.84 ft (3 m)

• 350 lux / 32.5 fc at 16.4 ft (5 m)

At 5500K (Beam Angle 105°):

• 6300 lux / 585.3 fc at 3.28 ft (1 m)

• 700 lux / 65 fc at 9.84 ft (3 m)

• 250 lux / 23.2 fc at 16.4 ft (5 m)

Fixture Dimensions & Weight

Size: 11.7 × 8.5 × 13.6 in / 29.8 × 21.6 × 34.5 cm

Weight: 25.13 lb / 11.4 kg

Connectors

Battery Plate: 2 × V-Mount

Power Input: powerCON

DMX Connector: 5-Pin XLR

Lens

Reflector Mount: Bowens S-Type

Mounting

Fixture Mount: 5/8" Receiver

Yoke

Type: Yoke/Bracket

Tilt Range: 180°

Remote Operation

Control Types: Bluetooth, DMX, Proprietary Wireless

Wireless Range: 328.1 ft / 100 m

Wireless Channels/Groups: 3 / 4

Power

AC Input: 100 to 240 VAC, 50/60 Hz

DC Input: 12 to 16.4 VDC

Power Source: AC Adapter, External Battery

Max Power Consumption: 350 W

Power Pass-Thru: No

Power Supply Output: 14 VDC

Power Supply Connectors: IEC Input / powerCON Output

Power Supply Dimensions: 11.0 × 5.0 × 3.8 in / 27.9 × 12.7 × 9.7 cm

Cable

Type: None

Packaging Info

Package Weight: 25 lb

Box Dimensions: 24.6 × 11.9 × 10.8 in

• Aputure Light Storm LS300X LED Light Kit with V-Mount Battery Plate
• Control Box
• Quick Release Lightning Clamp

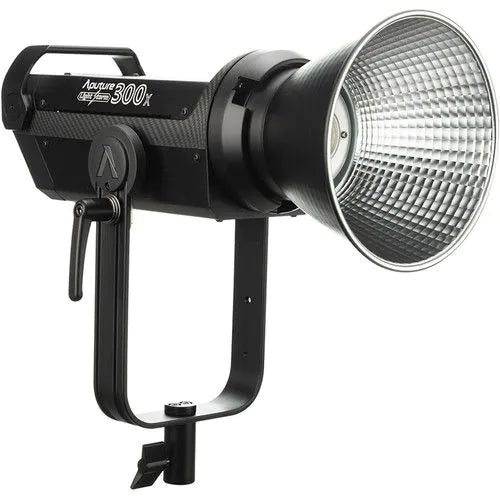

• 55° Hyper-Reflector
• Neutrik powerCON AC Power Cable (6m)
• 5-Pin Male-to-Female XLR Head Cable (3m)
• Cable Relief Hook

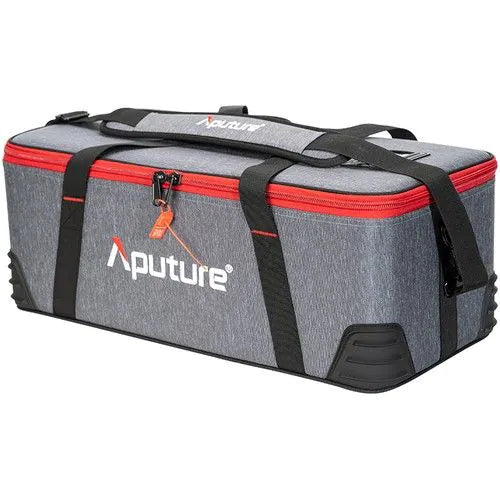

• Carrying Case
• Limited 1-Year Warranty
