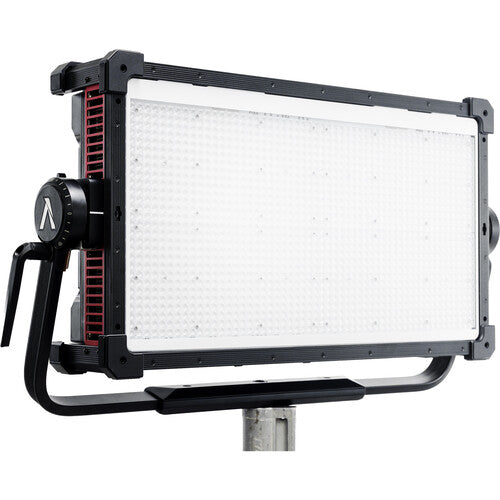

Aputure NOVA II 2x1 RGB LED Light Panel

Aputure NOVA II Overview

The NOVA II 2x1 RGB LED Light Panel, its most powerful light in the NOVA series. A design well suited for the most complex on-set workflows, at its core lies the Aputure BLAIR-CG chipset that makes the NOVA II 2x1 a versatile full-color LED panel for professional film, television, and broadcast lighting environments. With 1000W of power, the NOVA II 2x1 uses high CRI-, TLCI-, TM-30-, SSI-, CQS-rated LEDs to render colors with optimal accuracy. Color is widely variable from 1800 to 20,000K meaning you can take creative control of the color range, along with plus/minus green shift, to achieve great color precision.

Among the NOVA II 2x1's features is reliable and advanced control. Users can opt for the intuitive onboard or app control, or go with 16-bit DMX512 in/out, LumenRadio CRMX, Art-Net/sACN, as well as USB or DMX batch firmware upgrades. Experience multiple dimming curves, four fan modes, and dual output modes with max and constant settings. Another fact that will impress gaffers and lighting technicians is a direct front-mounting accessory system that reduces the complexity of mounting slide-in modifiers by providing a quicker light shaping solution. Finally, a rugged IP65-rated body was attentively engineered for the most demanding productions. Here, Aputure includes a conveniently removable yoke, a flat diffuser, and a 19.6' long AC power cable.

Impressive OutputThe NOVA II 2x1 has a native 35° beam angle with a brightness of 219,060 lux at 3.3' and 5600K, and it features smooth stepless dimming for adjusting light output from 0.1 to 100% with four dimming curves: linear, exponential, logarithmic, and S-shaped. This 27.2 x 15.3" LED panel is actively fan cooled and offers four DMX-controllable fan modes: smart, high, medium, and silent.Impressive Color AccuracyIndustry-leading fidelity metrics and high color accuracy ratings ensure the NOVA II 2x1's ability to faithfully reproduce colors. With CRI 95, TLCI 95, TM-30 Rf 95, and Rg 100, the fixture ensures natural and lifelike rendering that's ideal for color-critical applications. Other noteworthy ratings include: CQS (CIE D5600) 96, SSI (P3200) 89, and SSI (CIE D5600). The light also provides advanced white point control with green/magenta color correction by +/-G at a 100% to conform with the full ASC MITC standard.BLAIR-CG ChipsetAputure's advanced BLAIR-CG chipset features a seven-diode structure combining blue, lime, amber, indigo, red, cyan, and green emitters. With its powerful output, expansive CCT range, and color accuracy, the NOVA II 2x1 delivers clean, reliable illumination for high-end film and television setups. This panel is the answer for those requiring consistent, color-accurate light that can match or contrast ambient sources. Emulate ambient light sources, fine-tune white point consistency, or push bold creative contrasts with confidence.Batch Firmware UpdatesBatch firmware update options ensure dependable performance across productions and can improve the life of professionals working in studios, with the fixture supporting upgrades through Sidus Link Pro, Sidus Link, USB drive, or DMX. Rental houses will also appreciate the NOVA II 2x1's combination of a reliable IP65-rated body, high output, and ecosystem compatibility. Whether operating as a single key source or integrated into complex console-controlled networks, the NOVA II 2x1 ensures fast, reliable communication.Durable & Convenient DesignThe panel's LEDs are packed into a compact design that doesn't sacrifice power and flexibility. A removable yoke is included to facilitate rigging, while the all-new direct front-mounting accessory ecosystem improves your workflow by making light shaping easier and faster. Aputure highlights a high output-to-weight ratio with a powerful 1000W lamp head that only weighs 41 lb with its yoke, making the NOVA II 2x1 a durable lighting solution with rigging and control options.Additional Details

• Native beam angle: 35°
• Flat diffuser beam angle: 95°
• Pixel count: two pixels
• High-resolution rear color screen for clear communication of status and settings
• Two locking Ethernet ports
• Lead-follow and Studio mode
• 15 built-in lighting effects and 10 savable presets
• Bluetooth and CRMX wireless range: 328.1'
• AC operating voltage: 100-240V

Aputure NOVA II Specs

Light Fixture

• Item Type: 1x LED Array LED Light Panel

• Included Light Modifier: 1x Diffuser

• Included Storage Case: No

• Cooling System: Fan

• Beam Angle: 35° (Unmodified) / 95° (with Diffuser)

• Built-In Flash: No

• Pixel Zones: 2

• Preprogrammed Effects: Yes

• Umbrella Mount: No

• Front Accessory Mount: Proprietary

Photometrics

35° at 3200K (Unmodified):

• 18,059 fc / 194,400 Lux at 3.3' / 1 m

• 2577 fc / 27,750 Lux at 9.8' / 3 m

35° at 5600K (Unmodified):

• 18,329 fc / 197,300 Lux at 3.3' / 1 m

• 2636 fc / 28,380 Lux at 9.8' / 3 m

95° at 3200K (with Diffuser):

• 3725 fc / 40,100 Lux at 3.3' / 1 m

• 468 fc / 5040 Lux at 9.8' / 3 m

95° at 5600K (with Diffuser):

• 3781 fc / 40,700 Lux at 3.3' / 1 m

• 476 fc / 5130 Lux at 9.8' / 3 m

Color Performance

• Color Temperature: 1800 to 20,000K

• Color Modes: RGB, Daylight, Tungsten

• CRI: 95

• TLCI: 95

• SSI: 90 (at 3200K), 86 (at 5600K)

• TM-30 Rf: 95

• TM-30 Rg: 100

• CQS: 96

Dimming

• Control: App-Controlled / Built-In Dimmer / DMX / RDM

• Range: 0.1 to 100% (Continuous)

Connectivity

• Wireless Remote Control: Bluetooth, Wireless CRMX

• Mobile App: Yes (Sidus Link / Sidus Link Pro, Android & iOS, Remote Control)

• Wireless Range: 328.1' / 100 m

Power & I/O

• Power Source: AC Power (Cable Included)

• Inputs/Outputs:

– 1x AC Power Input (100–240 VAC, 50/60 Hz)

– 1x XLR 5-Pin DMX Input

– 1x XLR 5-Pin DMX Output

– 2x RJ45 Network Input/Output

– 1x USB-A Firmware Input

• Input Power: 100 to 240 VAC, 50/60 Hz

• Included Adapter/Cable: Yes

• Power Consumption: 1000 W (Typical), 1250 W (Maximum)

Mounting

• Yoke Type: Manually-Operated Yoke

• Fixture Mounting: 1x 1-1/8" Stud (Via Yoke Mount)

General

• Display: Yes

• Environmental Resistance: Dust/Weather/Water-Resistant (IP65)

• Operating Conditions: -4 to 113°F / -20 to 45°C

• Storage Conditions: -40 to 176°F / -40 to 80°C

Dimensions & Weight

• Fixture (without Yoke): 27.2 x 15.3 x 5.4" / 69.1 x 38.9 x 13.7 cm

• Fixture (with Yoke): 32.7 x 22.3 x 6.1" / 83.1 x 56.6 x 15.5 cm

• Weight (without Yoke): 35.83 lb / 16.25 kg

• Weight (with Yoke): 41 lb / 18.6 kg

• Aputure NOVA II 2x1 RGB LED Light Panel
• Removable Yoke with Junior Pin
• Flat Diffuser
• AC Power Cable (19.6')
• Limited 1-Year Manufacturer Warranty
