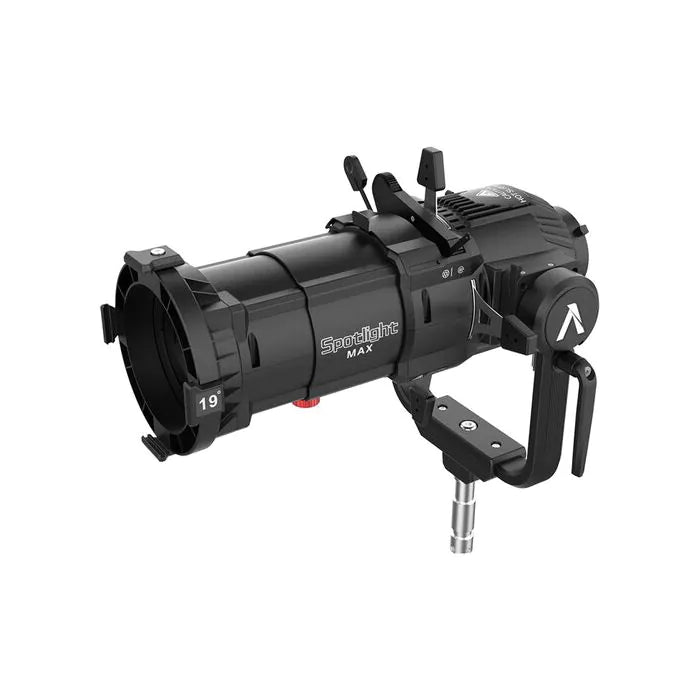

Aputure Spotlight Max 19 Kit

Aputure Spotlight Max Overview

The Spotlight Max is a Bowens Mount projection lens modifier designed to bring an advanced degree of control to high-output Bowens Mount point-source fixtures from the LS 600d Pro and LS 1200d Pro to the Aputure 1500c Pro and 2600x Pro, transforming them into a powerful spotlight with a further reach and even, shapeable output.

Available in 19 Degree, 36 Degree, and 50 Degree lens options, the Spotlight Max covers a wide range of light projection needs on set. Whether creating a more focused, tighter beam with the 19 Degree lens or using the 50 Degree lens for illuminating wider areas, the Spotlight Max's interchangeable lenses can adapt to the scene for the required light shaping control.

With its precision optical design, the Spotlight Max efficiently concentrates and blends light into a focused, even beam, achieving a 60% increase in brightness from the Spotlight Mount. Featuring advanced telecentric lens technology, the Spotlight Max produces an illumination circle with even edge-to-edge light distribution and minimal edge fringing.

Built with internal shutters, you can easily shape the beam for sharp cuts and precision lighting control. For further light manipulation, the optional dual-layer Spotlight Max Iris can quickly hone the shape and size of the Spotlight Max's illumination circle without needing to swap projection lenses. The Spotlight Max also features a Rotatable Gobo Holder compatible with the included A-size and B-Size steel or glass gobos to enhance any lighting design.

To maximize its compatibility and give users more options, the Spotlight Max is compatible with ETC projection lenses using the optional Spotlight Max ETC Lens Adapter. This allows it to be paired with lenses of all sizes and beam angles, and for better balance and ergonomic operation, the Spotlight Max is also designed with a detachable yoke.

The Spotlight Max is an advanced Bowens Mount projection modifier designed for professional filmmakers and lighting technicians who want to transform Aputure lights from the LS 600d Pro to the Aputure 2600x Pro into an even, shapeable beam of light.

Projection lenses are key tools for filmmakers who need to precisely shape their light, whether through a perfectly circular spotlight, using the built-in shutters to create frames of light, or gobos to project unique patterns.

As a professional projection modifier, the Spotlight Max also supports lighting designers' need for interchangeable lenses with multiple lens options (19 Degree, 36 Degree, and 50 Degree ) for tight or wider illumination circles, and the ability to adapt ETC lenses using the optional adapter. Lighting technicians who also are looking for more durable and versatile tools will also appreciate geared Rotatable Gobo Holder, which supports both A-size and B-Size gobos, and the optional dual-layer Spotlight Max Iris designed to increase on-set efficiency.

The Spotlight Max is the projection lens tool designed to elevate the capabilities Aputure's highest-output Bowens Mount point-source lights, with precision optics that deliver a stellar performance, making it a crucial addition to any professional filmmaker's and lighting technician's toolkit.

Note:
• Additional Spotlight Max Lenses Sold Separately
• Aputure Spotlight Max Iris Sold Separately
• Aputure Spotlight Max ETC Lens Adapter Sold Separately

Aputure Spotlight Max Features

• Bowens Mount Projector Lens for High Output Point Source LEDs
• Transform High-Output Bowens Mount Fixtures from LS 600d Pro to Aputure 2600x Pro Into Spotlight Projectors
• 19 Degree Lens Available
• 60% Increase in Brightness for High-Output Fixtures Compared to Original Aputure Spotlight Mount
• 2-Meter Minimum Adjustable Focus Distance
• Efficient Light-Blending Optical Design: Compatible with Daylight, Bi-Color, & Full-Color Fixtures
• Even Edge-to-Edge Light Distribution
• Minimal Edge Fringing Around Illumination Circle using Advanced Telecentric Lens Technology
• Internal 4-Leaf Shutters for Precise Light Shaping
• Geared-Rotatable Gobo Holder for Fine-Tuned Positioning
• Compatible with A-Sized and B-Sized Steel or Glass Gobos
• Compatible with ETC Lenses via ETC Lens Adapter (Sold Separately)
• Compatible with Dual-Layer Spotlight Max Iris (Sold Separately)
• Detachable Yoke for Better Balance & Ergonomics
• Heavy-duty All-Metal Construction
• Included Flight Case for Storage & Transport

Aputure Spotlight Max Specs

Photometrics (5600K)

At 3 m

• LS 600d Pro: 17,776 lux / 1,652 fc

• LS 600x Pro: 8,810 lux / 819 fc

• LS 600c Pro: 4,830 lux / 449 fc

• LS 1200d Pro: 20,530 lux / 1,908 fc

At 5 m

• LS 600d Pro: 6,450 lux / 599 fc

• LS 600x Pro: 3,050 lux / 283 fc

• LS 600c Pro: 1,773 lux / 165 fc

• LS 1200d Pro: 7,700 lux / 716 fc

At 7 m

• LS 600d Pro: 3,410 lux / 317 fc

• LS 600x Pro: 1,675 lux / 156 fc

• LS 600c Pro: 914 lux / 85 fc

• LS 1200d Pro: 3,900 lux / 362 fc

Photometrics (3200K)

At 3 m

• LS 600x Pro: 7,580 lux / 704 fc

• LS 600c Pro: 4,020 lux / 374 fc

At 5 m

• LS 600x Pro: 2,571 lux / 239 fc

• LS 600c Pro: 1,435 lux / 133 fc

At 7 m

• LS 600x Pro: 1,370 lux / 127 fc

• LS 600c Pro: 737 lux / 68 fc

Mounting

• Front: 1x Bowens

• 19° Lens Diameter – Inner: 4.69" / 11.9 cm, Outer: 5.04" / 12.8 cm

Dimensions

• Spotlight Max 19° Lens: 8.06 x 7.85 x 10.46" / 20.47 x 19.94 x 26.58 cm

• 19° Lens Kit without Yoke: 19.3 x 9.8 x 9.8" / 48.9 x 25 x 25 cm

• 19° Lens with Yoke: 19.3 x 9.8 x 19.7" / 48.9 x 25 x 50.1 cm

Gobos

• Size-A Gobos (Individual): 3.94 x 0.02" / 100 x 0.5 mm

Weight

• Spotlight Max 19° Lens: 10.6 lb / 4.81 kg

• 19° Lens Kit: 27.43 lb / 12.44 kg

• Size-A Gobos (Individual): 0.76 oz / 21.8 g

Spotlight Max + Lens + Lamp Body

• LS 600d: 27.63 lb / 17.07 kg

• LS 600d Pro: 37.32 lb / 16.93 kg

• LS 600x Pro: 39.04 lb / 17.71 kg

• LS 600c Pro: 40.57 lb / 18.4 kg

• LS 1200d Pro: 47.51 lb / 21.55 kg

• Aputure Spotlight Max Projection Lens Modifier (Bowens Mount)
• 19 Degree Lens
• Yoke
• Rotatable Gobo Holder
• 3x A-Size Gobo
• Rolling Hard Case
• Aputure 1 Year Limited Warranty
