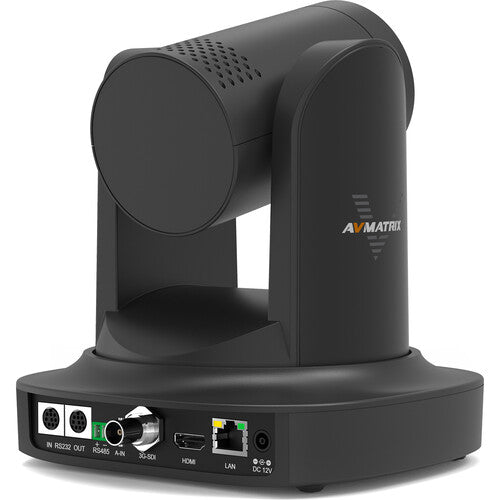

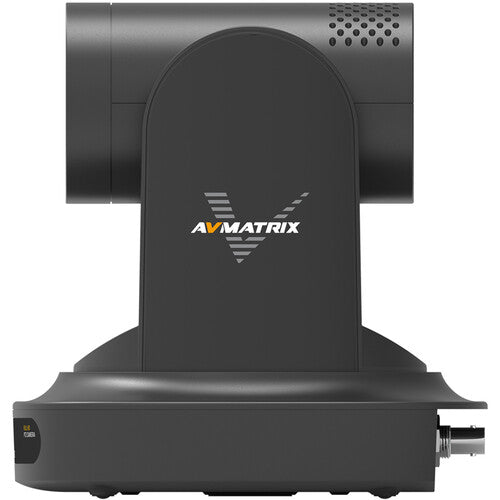

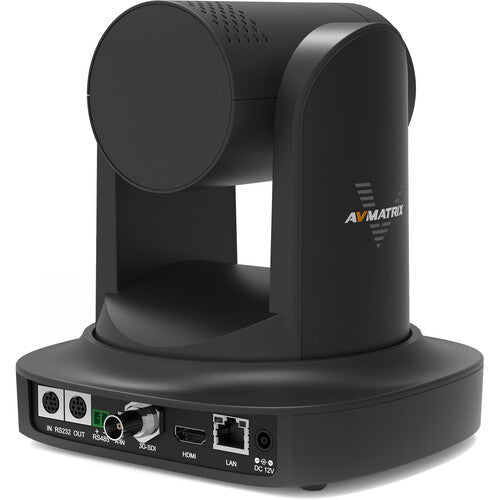

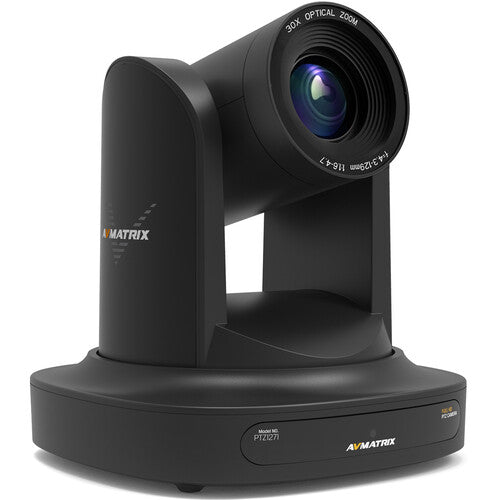

AVMATRIX PTZ1271-20X-POE Full HD PTZ Camera

AVMATRIX PTZ1271-20X-POE Full HD PTZ Camera

SKU:SKU PTZ1271-20X-POE

Regular price Dhs. 3,899.00
Regular price Sale price Dhs. 3,899.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

Low stock: 1 left

Badge

Key Features

  • 1/2.8" HD CMOS Sensor
  • 20x Optical Zoom, 10x Digital Zoom
  • HDMI & 3G-SDI Video Output, PoE Power

View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

AVMATRIX PTZ1271 20X Overview

This PTZ1271-20X-POE Full HD PTZ Camera from AVMatrix. The camera offers precision control and multiple output ports offering up to 1080p video, and it also supports control and streaming over LAN. Designed for broadcast, security, and teleconferencing needs, the PTZ1271-20X-POE also supports VISCA, PELCO-D, and PELCO-P control protocols.

The integrated f/1.6 to 3.5 lens offers 20x optical and 10x digital zoom functions. This camera supports video output via HDMI and 3G-SDI and has a LAN port for streaming via RTMP, RTSP, or ONVIF. Power this PTZ camera using the the included 12 VDC adapter or via PoE. Quick pan and tilt speeds and picture controls like brightness, color, saturation, contrast, sharpness, and 2D/3D Noise Reduction provide precision control of your images.

FeaturesHDMI, 3G-SDI, and LAN video outputsSupports up to 1080p video via HDMI and 3G-SDIBuilt-in f/1.6 to 3.5 aperture lens with 20x optical and 10x digital zoomSelect up to 255 presets; up to 10 via included remote controllerA 1/4"-20 thread on the camera bottom can be used for mounting on a tripod, and an optional wall/ceiling mounting bracket is available

AVMATRIX PTZ1271 20X Specs

Imaging

• Image Sensor: 1/2.8"-Type CMOS

• Sensor Resolution: Effective 2.07 Megapixel

• Focus Control: Autofocus

• Exposure Control: Auto/Manual

• Signal-to-Noise Ratio: 55 dB

• Minimum Illumination: 0.5 Lux

• Flip/Mirror Support: Image Flip

• White Balance: 3000 to 7000K (Auto, Manual, One Push)

Lens

• Focal Length: 5.5 to 110mm

• Max Optical Zoom: 20x

• Max Digital Zoom: 10x

• Field of View: 54.7° to 3.3°

• Maximum Aperture: f/1.6 to f/3.5

Video Capture

• Video Output: SDI/BNC / HDMI

• Resolution: 1920 x 1080p

• Broadcast Output: NTSC

• IP Streaming: ONVIF, RTMP, RTSP, SRT, TCP (1920 x 1080)

Control

• Presets: 255

• Pan: 340° (-170 to 170°) at 0.1 to 180°/s

• Tilt: 120° (-30 to 90°) at 0.1 to 80°/s

Connectivity / Interface

• Video I/O: 1x BNC (3G-SDI) Output, 1x HDMI Output

• Audio I/O: 1x 1/8" / 3.5 mm TRS Stereo Line Input

• Other I/O:

 – 1x RJ45 (LAN) Control

 – 1x Mini-DIN 8-Pin (RS-232) Control Input

 – 1x Mini-DIN 8-Pin (RS-232) Control Output

 – 1x Block (RS-485) Control Input

• Built-In Microphone: No

• Built-In Speaker: No

Power

• PoE Support: PoE 802.3af

• Power I/O: 1x Barrel Input

• Power Consumption: 12 VDC at 1 A (12 W)

Environmental

• Operating Temperature: 14 to 122°F / -10 to 50°C

• Operating Humidity: 20 to 80%

• Storage Temperature: 14 to 140°F / -10 to 60°C

• Storage Humidity: 20 to 95%

General

• Mounting: 1x 1/4"-20 Female for Tripod

• Dimensions (W x H x D): 6.7 x 7.1 x 6.7" / 170 x 180.31 x 170 mm

• Weight: 2.76 lb / 1.25 kg (Body Only)

Packaging Info

• Package Weight: 4.765 lb

• Box Dimensions (L x W x H): 10.5 x 9.8 x 9.2"

  • AVMATRIX PTZ1271-20X-POE Full HD PTZ Camera
  • Power Supply
  • RS232 Control Cable
  • Remote Control
