JBL

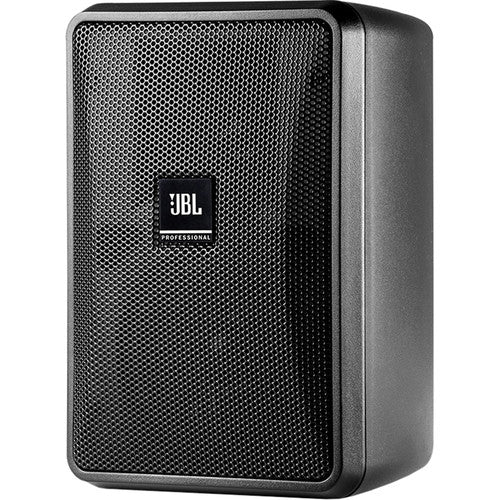

JBL Control 23-1L High-Output Speaker

JBL Control 23-1L High-Output Speaker

SKU:SKU: CONTROL 23-1L

Regular price Dhs. 729.00
Regular price Sale price Dhs. 729.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

Low stock: 1 left

Badge

Key Features

  • High-fidelity sound
  • 3" woofers with woven fiberglass cone
  • 1/2" PEI diaphragm tweeters with fluid cooling
  • Built-in InvisiBall mounting hardware
  • Weather-resistant enclosures and transducers
  • 100° x 100° coverage
  • 50W power handling (100W program)
  • Frequency response of 95 Hz to 19 kHz
View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

JBL Control 23-1L

The black pair of 2-way, 3" JBL Control 23-1L Loudspeakers are designed for background or foreground applications. Featuring weather-protected circuitry, the Control 23-1L can be used indoors or outdoors and are well suited for retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where high-quality, high-output indoor/outdoor foreground/background music (and/or paging) speakers are required. The speakers feature JBL's proprietary InvisiBall mounting hardware, which allows for installation through a hidden access point behind its logo badge.

The Control 23-1L require 100W (200W program) at 8 Ohms to power the 3" woven fiberglass woofer and 1/2" PEI diaphragm tweeter, which combine for a frequency response of 95 Hz to 19 kHz and a max SPL of 109 dB peak. Connections to the speaker are screw-down terminal strips with a zinc-plated copper and nickel-plated metal screws and washers. The JBL Control 23-1L includes the InvisiBall wall-mounting system and a hex key.



JBL Control 23-1L Specs

General
• Active/Passive: Passive

• Configuration: 2-Way

• Color: Black

Power

• Power Handling (2 Hours): 100 W Peak / 50 W RMS

• Impedance: 8 Ohms (Nominal)

• Recommended High-Pass Filter: 70 Hz, 24 dB/Octave

• Maximum Input Voltage: 17.2 V RMS / 34.4 V Peak

Drivers

• HF Driver: 1 x 0.5" (12.7 mm) PEI Dome Tweeter

• LF Driver: 1 x 3" (76.2 mm) Fiberglass Woofer

Performance

• Frequency Range: 70 Hz – 20 kHz (-10 dB)

• Frequency Response: 95 Hz – 19 kHz (±3 dB)

• Maximum SPL: 109 dB (Peak)

• Sensitivity: 86 dB

• Coverage Angle: 100° H x 100° V

• Directivity (Q Factor): 5.8

• Directivity Index: 7.2 dB

Connectivity

• Inputs/Outputs: 1 x Screw Terminal Speaker Input

• Maximum Wire Gauge: 12 AWG / 2.5 mm

Physical

• Certifications: RoHS

• Environmental Resistance: Dust/Water-Resistant (IP44)

• Mounting: Ball Mount

• Dimensions: 7.87 x 5.55 x 4.37" / 200 x 141 x 111 mm

• Weight: 3.4 lb / 1.5 kg (Each Speaker)

Packaging Info

• Package Weight: 7.55 lb

• Box Dimensions (L x W x H): 12 x 9.5 x 7"

  • JBL Control 23-1L High-Output Indoor/Outdoor Background/Foreground Speaker
  • InvisiBall Wall-Mounting System
  •  Hex Key
  •  Limited 1-Year Manufacturer Warranty
