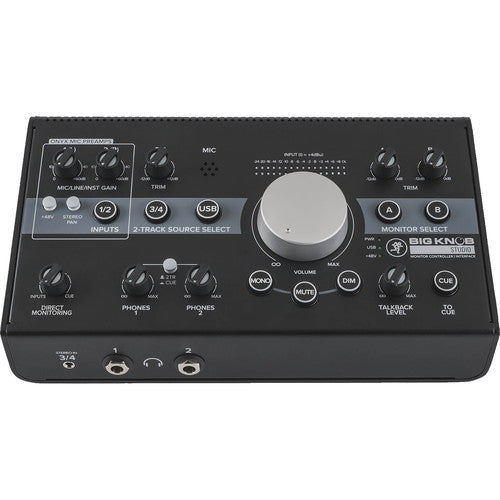

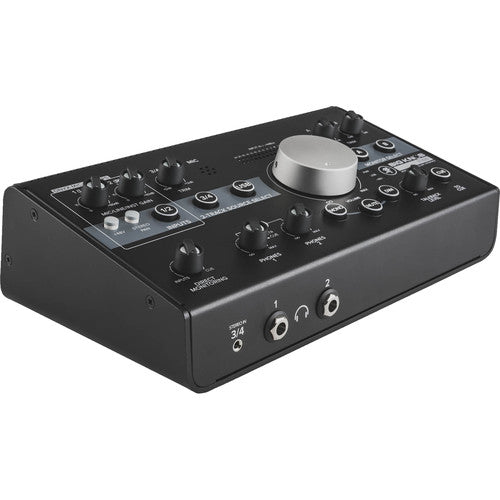

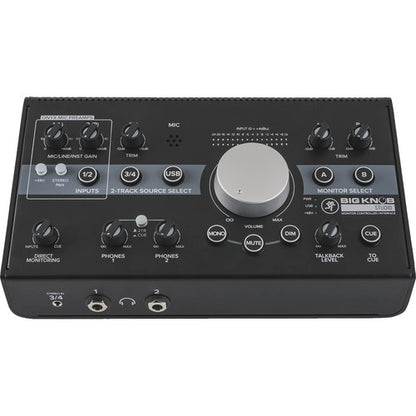

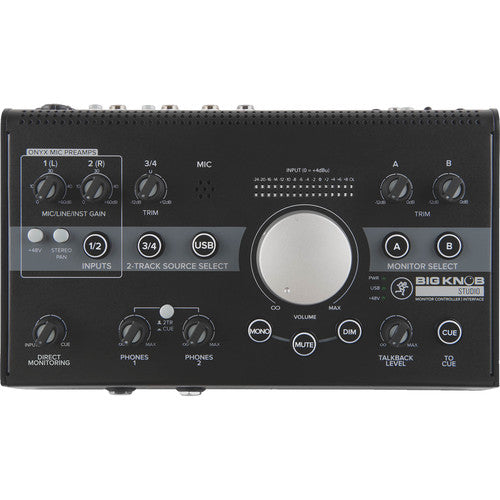

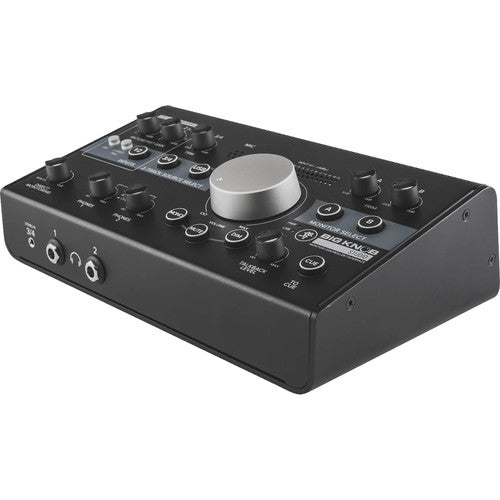

Mackie Big Knob Studio Monitor Controller and Interface

Mackie Big Knob Studio Monitor Controller and Interface

SKU:SKU: 2053317-00

Regular price Dhs. 1,199.00
Regular price Sale price Dhs. 1,199.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

Low stock: 1 left

Badge

Key Features

  • Three Sources and Two Monitor Pairs
  • Classic Big Knob Volume Control
  • Independent Trim on All Sources
  • Mono, Mute, and Dim Functions
  • 2x2 USB Recording Interface
  • 24-Bit / 192 kHz Recording and Playback
  • Compatible with Windows & Mac Computers
  • Sturdy Design
  • Waveform DAW
  • Includes Plug-In Package & Power Supply

View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

Mackie Big Knob Overview

The Mackie Big Knob Studio is a monitor controller and interface that allows you to choose between three audio input sources and two monitor pairs. It can be used for project and professional studios and is designed to increase your workflow for recording and mixing applications.

It features a built-in 2x2 USB recording interface with two Onyx mic preamps and phantom power for condenser microphones. Recording and playback is at 24-bit/192 kHz resolution and the cue mix allows for controlled blending of direct inputs with other signals for zero-latency recording. Choice of recording paths provide flexibility for applications like podcasting and more.

Additionally, other features include flexible source connections, a convenient 1/8" input for your smartphone, dual headphone outs with independent level control, a built-in talkback mic, and 16-segment high-resolution input source metering.

Finally, with its sturdy and built-like-a-tank design, the interface is compatible with all major DAWs on both Mac and Windows platforms. The Big Knob Studio features a download for Waveform OEM and the DAW Essentials plug-in bundle.

Mackie Big Knob Specs

Inputs

• 2 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Inputs

• 2 x 1/4" TRS Balanced/Unbalanced Line Inputs

• 1 x 1/8" / 3.5 mm TRS Unbalanced Stereo Input

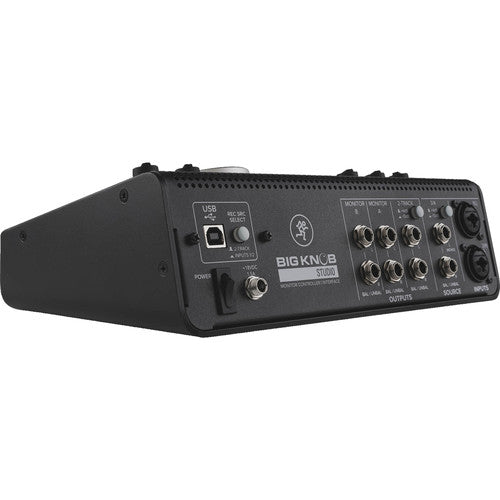

Outputs

• 2 x 1/4" TRS Balanced/Unbalanced 2-Track Line Outputs

• 4 x 1/4" TRS Balanced/Unbalanced Monitor Outputs

• 2 x 1/4" TRS Unbalanced Headphone Outputs

USB I/O

• 1 x USB 2.0 Type-B

Audio Performance

• Resolution: 24-Bit / 192 kHz

• Frequency Response: 20 Hz to 20 kHz (±0.5 dB, Unity Gain, +4 dBu Input)

• Noise (Mic Inputs to Outputs): < -125 dBu RMS, A-Weighted (150 ohms Terminated, 22 kHz Bandwidth)

• Noise (Line Inputs to Outputs): < -90 dBu RMS, Unweighted (150 ohms Terminated, 22 kHz Bandwidth)

• THD + N: <0.01% Unweighted (Unity Gain, 1 kHz at +4 dBu Input, 80 kHz Bandwidth)

• Crosstalk: < -60 dB at 1 kHz (Unity Gain, -1 dBFS Input)

• Attenuation: Muted: -60 dB / Dim: -20 dB

• Maximum Input Level: +22 dBu

• Maximum Output Level: +22 dBu

Power

• Power Requirements: 100 to 240 VAC, 50/60 Hz, 0.75 A via Universal Power Supply

Physical

• Dimensions: 6.4 x 9.9 x 3.2" / 16.3 x 25.1 x 8.1 cm

• Weight: 3.5 lb / 1.6 kg

Packaging

• Package Weight: 5.355 lb

• Box Dimensions (LxWxH): 13.45 x 8.8 x 5.65"

  • Mackie Big Knob Studio Monitor Controller and Interface
  • Serial Number for Download of Waveform OEM
  • External Power Supply
  •  Limited 1-Year Manufacturer Warranty
