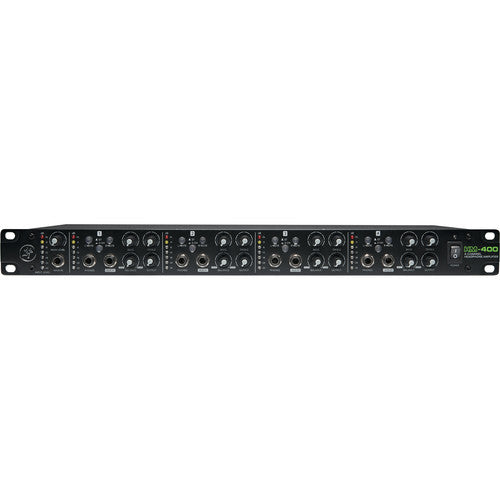

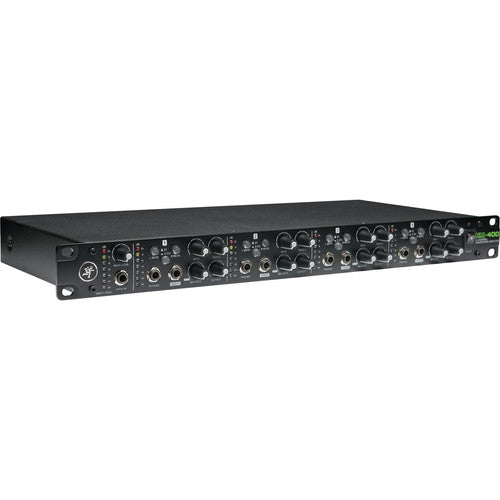

Mackie HM-400 Rack-Mountable, 4-Channel Headphone Amplifier

Mackie HM-400 Rack-Mountable, 4-Channel Headphone Amplifier

SKU:SKU: HM-400

Regular price Dhs. 949.00
Regular price Sale price Dhs. 949.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

Low stock: 1 left

Badge

Key Features

  • XLR & 1/4" Stereo Inputs and Outputs
  • Three Headphone Outputs per Channel
  • Per-Channel 1/4" Stereo Aux Input
  • 2-Band EQ, Balance, and Output Controls
  • L/R Mute Switches
  • Stereo/Mono Mode Switches
  • LED Metering
  • Includes Power Cable

View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

Mackie HM-400 Overview

The Mackie HM-400 is a rack-mountable, 4-channel headphone amplifier designed to provide versatile headphone amplification for artists, musicians, and engineers monitoring through headphones in live stage applications and home, project, commercial, and mobile-recording studios. It features a stereo main output via XLR and 1/4" jacks and twelve 1/4" TRS stereo headphone outputs—three per channel—fed by a customizable blend of inputs.

One stereo main input via XLR and 1/4" jacks can be mixed with a per-channel 1/4" stereo aux input. Each channel offers 2-band EQ for quick tone shaping, stereo balance or main/aux input mix control, and output level adjustments. Also on each channel are switches for muting left and/or right signals and operating in stereo or mono. 7-segment LED meters display main input and per-channel output levels.

Mackie HM-400 Specs

General

• Number of Headphone Channels: 4-Channel

• Headphone Output Power: 550 mW per Side into 47 Ohms (Max)

• EQ: 2-Band EQ per Channel

• Display: 5x Multi-Segment LED Meter

Connectivity (Analog Audio I/O)

• 2x XLR 3-Pin Balanced Input (1 Stereo Pair)

• 2x 1/4" TRS Balanced/Unbalanced Input (1 Stereo Pair)

• 1x 1/4" TRS Unbalanced Stereo Input

• 4x 1/4" TRS Unbalanced Stereo Aux Input

• 2x XLR 3-Pin Balanced Output (1 Stereo Pair)

• 2x 1/4" TRS Balanced Output (1 Stereo Pair)

• 12x 1/4" TRS Unbalanced Headphone Output

Performance

• Frequency Response: 20 Hz to 20 kHz ±1 dB

• Gain/Trim Range (Inputs): -66 to +18 dBu

• Maximum Input Level (Line Inputs): +15 dBu

• Maximum Input Level (Aux Inputs): +20 dBu

• Maximum Output Level (Headphone Outputs): +21 dBu

• Input Impedance (Balanced): 20 Kilohms

• Input Impedance (Unbalanced): 10 Kilohms

• Aux Input Impedance (Unbalanced): 10 Kilohms

• Headphone Output Impedance: 3 Ohms (Unbalanced)

• THD: < 0.01% (at +4 dBu, 1 kHz, Unity Gain)

• Noise: -66 dB

• CMRR (Line Inputs): > 42 dB (1 kHz)

Power

• Power Requirements: AC Input

• AC Input Power: 100 to 120 VAC, 50/60 Hz / 220 to 240 VAC, 50/60 Hz

• Power Consumption: 24 W

Physical

• Rackmount Size: 1 RU

• Dimensions: 19 x 8.8 x 1.8" / 483 x 224 x 46 mm

• Weight: 8.0 lb / 3.6 kg

Packaging Info

• Package Weight: 9.75 lb

• Box Dimensions (LxWxH): 20.8 x 10.6 x 4.1"

  • Mackie HM-400 Rack-Mountable, 4-Channel Headphone Amplifier
  • Power Cable
  •  Limited 1-Year Manufacturer Warranty
