• Mackie ProFX16v3 16-channel sound reinforcement mixer with built-in effects
1 4

Mackie

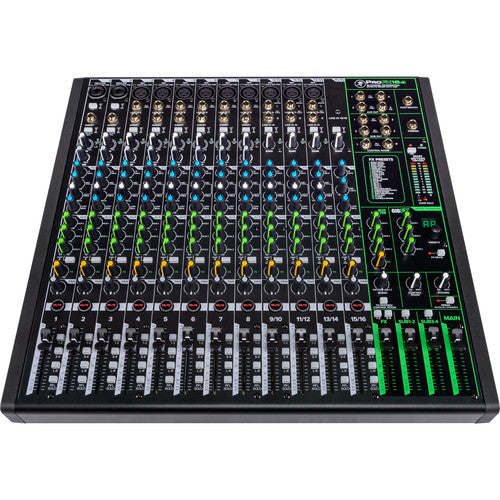

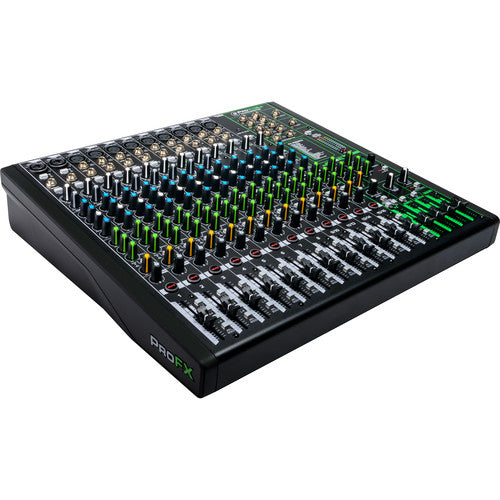

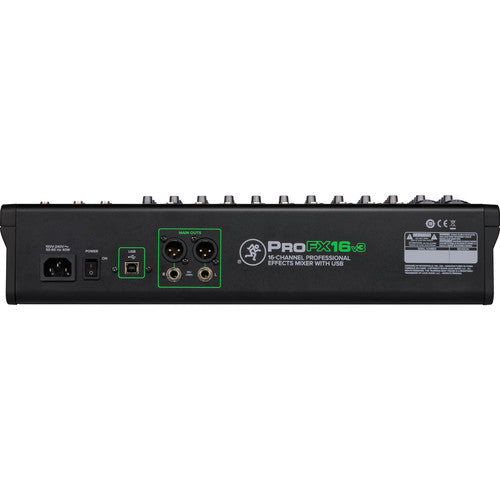

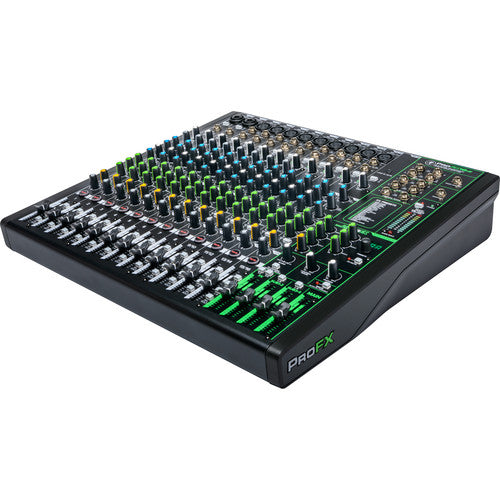

Mackie ProFX16v3 16-Channel Sound Reinforcement Mixer with Built-In FX

Mackie ProFX16v3 16-Channel Sound Reinforcement Mixer with Built-In FX

SKU: PROFX16V3

Dhs. 2,509.00
Dhs. 2,509.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

Low stock: 1 left
Badge

Key Features

  • 11 x Mic Inputs and 16 Line Inputs
  • Compression & Inserts on Ch 1-8
  • 2-In / 4-Out USB (24-Bit, 192 kHz)
  • GigFX Effects Engine (24 FX Presets)
  • Main, Control Room, Subgroup Outputs
  • 11 Onyx Mic Preamps with 48V Phantom
  • 3-Band EQ, Aux Send, FX Send, Pan, Mute
  • Level, FX, Sub 1/2, Sub 3/4, Main Faders
  • Includes IEC Cable

View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

Mackie ProFX16v3 Overview

The Mackie ProFX16v3 is a 16-channel mixing console featuring 11 Onyx microphone preamps with 60 dB of headroom and a built-in effects engine with 24 built-in FX, making it well suited for live sound, home recording, and content creators. The integrated 2x4 USB audio interface offers high-quality 24-bit / 192 kHz recording and playback with zero-latency monitoring.

Channels 1-2 offer combo XLR-1/4" mic/line connections and a Hi-Z switch (for guitar and bass), while channels 3-11 offer XLR or 1/4" inputs. Channels 1-8 include inserts and single-knob compressors. Channels 9/10, 11/12, and 13/14 offer two 1/4" line inputs each (L and R for stereo), while channel 15/16 uses a 3.5mm stereo input. Channels 1-16 feature gain controls, a 3-band EQ, three aux sends for monitors, a dedicated FX send, pan, mute, and level faders. Engaging channel 15/16's USB 3-4 switch will override the 3.5mm input and enable the USB return from a computer.

Each channel strip includes button selectors for Main L/R, Sub 1-2, Sub 3-4, and PFL SOLO. The master section offers dedicated faders for Main, Sub 1-2, Sub 3-4 and FX. Main output connectors include both XLR and 1/4", while sub and control room outputs use 1/4" connectors. A dedicated 1/4" TRS headphone output includes its own independent level control. Other features include an input / USB 1-2 blend control, a dedicated FX output, an FX level fader, and an FX mute, which can also be controlled via the 1/4" footswitch input.

Mackie ProFX16v3 Specs

Mixer

• Number of Analog Input Channels: 16

• Number of Mic Preamps: 11

• Analog Output Channels:

 – 1x Stereo Master Output

 – 1x Stereo Control Room/Monitor Output

 – 1x Mono FX Send Output

 – 1x Stereo Headphone Output

• Meters: Main Meter – 2x 12-Segment LED

• Meter Range: Main Meter – -30 dB to +15 dB Plus Peak/Clip

Signal Processing

• EQ Parameters:

 – Low: ±15 dB at 80 Hz

 – Mid: ±15 dB at 100 Hz to 8 kHz

 – High: ±15 dB at 12 kHz

• Filters: High-Pass – 100 Hz, 18 dB/Octave

• Built-In Effects: 24x Preset (Factory)

Digital Audio

• Bit Depth: 24-Bit

Performance

• Frequency Response: Mic Input to Output – 20 Hz to 30 kHz +0/-1 dB (Unity Gain)

• Max Input Level: +22 dB

• Output Level:

 – Main Output: +28 dBu at Max Gain

 – All Other Outputs: +22 dBu at Max Gain

• I/O Impedance:

 – Mic Input: 3.3 Kilohms

 – Insert Return: 10 Kilohms

 – Line Input: ≥ 20 Kilohms

 – Headphone Output: 25 Ohms

 – Main Output: 120 Ohms (Unbalanced), 240 Ohms (Balanced)

• Crosstalk:

 – Adjacent Inputs: -90 dB at 1 kHz

 – Input to Output: -80 dB at 1 kHz

 – Fader Off: -75 dB at 1 kHz

 – Muted: -100 dB at 1 kHz

• CMRR: 70 dB at Max Gain (1 kHz, Mic In to Main Out)

• EIN: -128 dBu at Max Gain (150-Ohm Input)

• Noise Floor:

 – All Outputs: -95 dBu (Master Level at -∞, Channel Levels at -∞)

 – -85 dBu (Master Level at Unity, One Channel Level at Unity)

• THD+N: Mic Input to Main Output – < 0.01% (+4 dBu)

Connectivity

• Phantom Power: +48 V, Selectable On/Off (Applied to All Inputs)

• USB I/O: 1x USB-B 2.0

• USB I/O Capacity: 2x Input / 4x Output

Power

• AC Input Power: Universal – 100 to 240 VAC, 50 / 60 Hz

• Power Consumption: 40 W

Physical

• Rack Mountable: No

• Dimensions: 4.3 x 17.7 x 17.1" / 10.9 x 45 x 43.4 cm

• Weight: 15.2 lb / 6.9 kg

  • Mackie ProFX16v3 16-Channel Sound Reinforcement Mixer with Built-In FX
  • USB Cable
  • Power Supply
  •  Limited 1-Year Manufacturer Warranty
