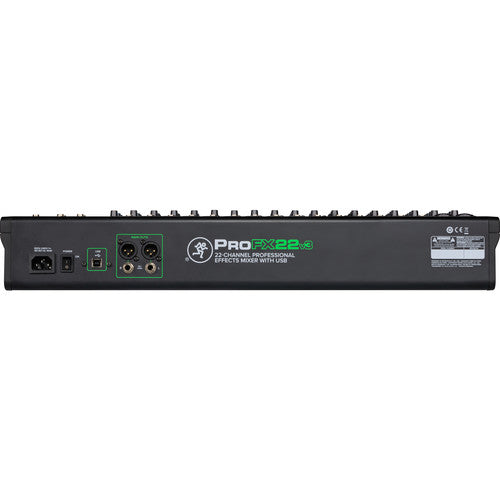

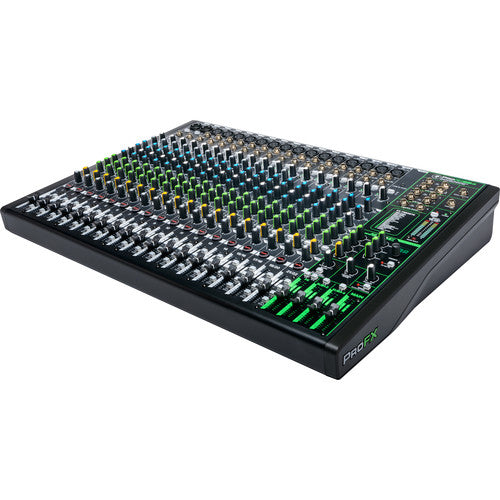

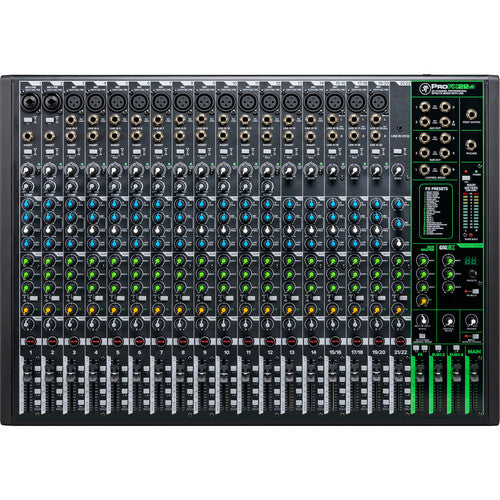

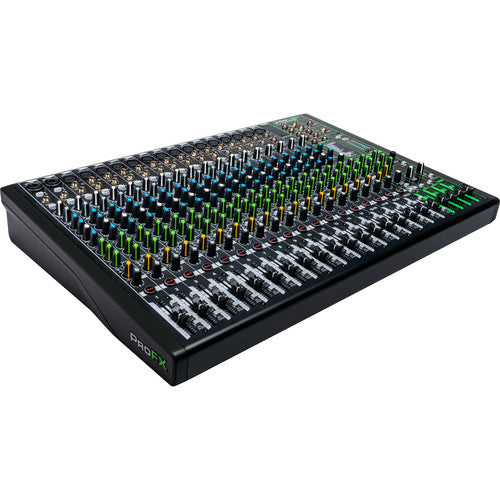

Mackie ProFX22v3 22-Channel Sound Reinforcement Mixer with Built-In FX

Mackie ProFX22v3 22-Channel Sound Reinforcement Mixer with Built-In FX

SKU: PROFX22V3

Dhs. 3,599.00
Dhs. 3,599.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

Low stock: 1 left
Badge

Key Features

  • 17 Mic Inputs & 14 Mono Mic/Line Inputs
  • Inserts on Channels 1-14, Comp on 1-12
  • 2-In / 4-Out USB (24-Bit, 192 kHz)
  • GigFX Effects Engine (24 FX Presets)
  • Main, Control Room, Subgroup Outputs
  • 17 Onyx Mic Preamps with 48V Phantom
  • 3-Band EQ, Aux Send, FX Send, Pan, Mute
  • Level, FX, Sub 1-2, Sub 3-4, Main Faders
  • Includes IEC Cable

View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

Mackie ProFX22v3 Overview

The Mackie ProFX22v3 is a 22-channel mixing console featuring 17 Onyx microphone preamps with 60 dB of headroom and a built-in effects engine with 24 built-in FX, making it well suited for live sound, houses of worship, rehearsal studios, and more. The integrated 2x4 USB audio interface offers high-quality 24-bit / 192 kHz recording and playback with zero-latency monitoring.

Channels 1-2 offer combo XLR-1/4" mic/line connections and a Hi-Z switch (for guitar and bass), while channels 3-20 offer XLR or 1/4" inputs. Channels 1-12 provide single-knob compressors, while channels 1-14 include inserts. Channels 15/16, 17/18, and 19/20 offer two 1/4" line inputs each (L and R for stereo), while channel 21/22 uses a 3.5mm stereo input. Channels 1-22 feature gain controls, a 3-band EQ, three aux sends for monitors, a dedicated FX send, pan, mute, and level faders. Engaging channel 21/22's USB 3-4 switch will override the 3.5mm input and enable the USB return from a computer.

Each channel strip includes button selectors for Main L/R, Sub 1-2, Sub 3-4, and PFL SOLO. The master section offers dedicated faders for Main, Sub 1-2, Sub 3-4, and FX. Main output connectors include both XLR and 1/4", while sub and control room outputs use 1/4" connectors. A dedicated 1/4" TRS headphone output includes its own independent level control. Other features include an input / USB 1-2 blend control, a dedicated FX output, an FX level fader, and an FX mute, which can also be controlled via the 1/4" footswitch input.

Mackie ProFX22v3 Specs

• Number of Analog Input Channels: 22

• Number of Mic Preamps: 17

• Analog Output Channels: 2x Stereo Master Output

• Analog Output Channels: 1x Stereo Control Room/Monitor Output

• Analog Output Channels: 2x Stereo Bus/Subgroup Output

• Analog Output Channels: 3x Mono Aux Send Output

• Analog Output Channels: 1x Mono FX Send Output

• Analog Output Channels: 1x Stereo Headphone Output

• Meters: Main Meter – 2x 12-Segment LED

• Meter Range: -30 dB to +15 dB plus Peak/Clip

• EQ Parameters Low: ±15 dB at 80 Hz

• EQ Parameters Mid: ±15 dB at 100 Hz to 8 kHz

• EQ Parameters High: ±15 dB at 12 kHz

• Filters: High-Pass – 100 Hz, 18 dB/Octave

• Built-In Effects: 24x Preset (Factory)

• Bit Depth: 24-Bit

• Frequency Response: 20 Hz to 30 kHz +0/-1 dB (Unity Gain, Mic Input to Output)

• Max Input Level: +22 dB

• Output Level Main Output: +28 dBu at Max Gain

• Output Level All Other Output: +22 dBu at Max Gain

• I/O Impedance Mic Input: 3.3 Kilohms

• I/O Impedance Insert Return: 10 Kilohms

• I/O Impedance Line Input: ≥ 20 Kilohms

• I/O Impedance Headphone Output: 25 Ohms

• I/O Impedance Main Output: 120 Ohms (Unbalanced) / 240 Ohms (Balanced)

• Crosstalk Adjacent Inputs: -90 dB at 1 kHz

• Crosstalk Input to Output: -80 dB at 1 kHz

• Crosstalk Fader Off: -75 dB at 1 kHz

• Crosstalk Muted: -100 dB at 1 kHz

• CMRR: 70 dB at Max Gain (1 kHz, Mic In to Main Out)

• EIN: -128 dBu at Max Gain (150-Ohm Input)

• Noise Floor All Outputs: -95 dBu (Master at -∞, Channels at -∞)

• Noise Floor All Outputs: -85 dBu (Master at Unity, One Channel at Unity)

• THD+N: < 0.01% (+4 dBu, Mic Input to Main Output)

• Phantom Power: +48 V, Selectable On/Off (Applied to All Inputs)

• USB I/O: 1x USB-B 2.0

• USB I/O Capacity: 2x Input / 4x Output

• AC Input Power: 100 to 240 VAC, 50 / 60 Hz (Universal)

• Power Consumption: 45 W

• Rack Mountable: No

• Dimensions: 4.3 x 24.1 x 17.1" / 10.9 x 61.2 x 43.4 cm

• Weight: 19.8 lb / 9 kg

• Package Weight: 24.9 lb

• Box Dimensions (LxWxH): 28 x 21.11 x 8.4"

  • Mackie ProFX22v3 22-Channel Sound Reinforcement Mixer with Built-In FX
  • USB Cable
  • IEC Cable
  •  Limited 1-Year Manufacturer Warranty
