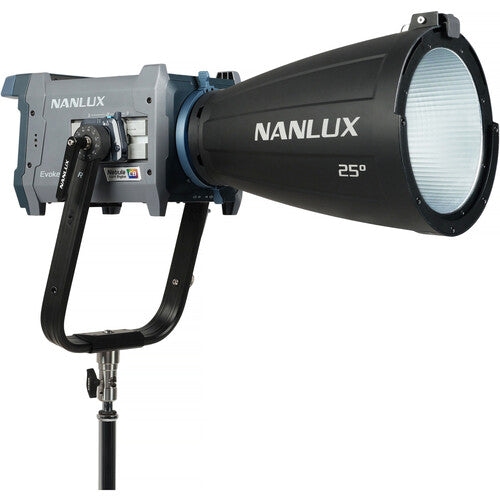

• Nanlux Evoke 600C RGB LED spot light with trolley case kit

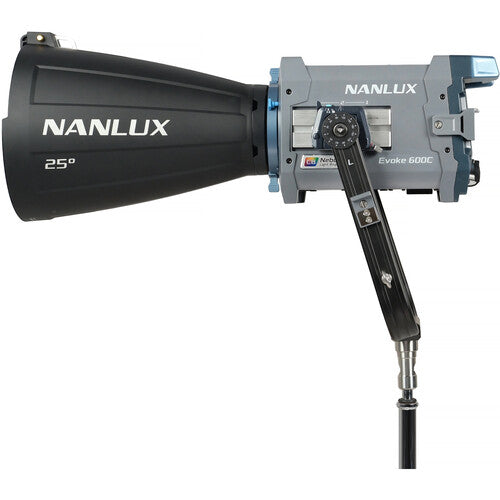

  • Nanlux Evoke 600C RGB LED Spot Light (Trolley Case Kit) Middle View
  • Nanlux Evoke 600C RGB LED Spot Light (Trolley Case Kit)

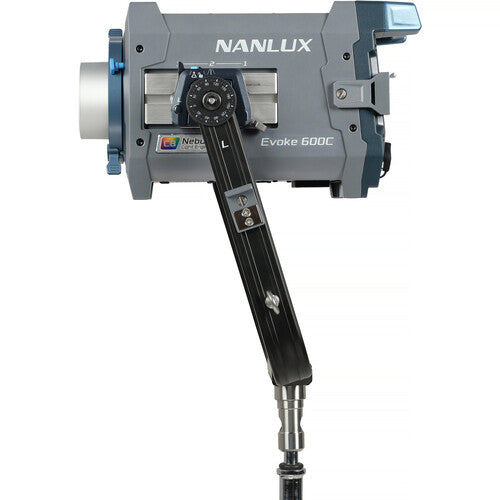

  • Nanlux Evoke 600C RGB LED Spot Light (Trolley Case Kit) Side view
  • Nanlux Evoke 600C RGB LED Spot Light (Trolley Case Kit)
1 5

Nanlux

Nanlux Evoke 600C RGB LED Spot Light (Trolley Case Kit)

Nanlux Evoke 600C RGB LED Spot Light (Trolley Case Kit)

SKU:#EV600CKIT

Dhs. 9,799.00
Dhs. 9,799.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

Low stock: 1 left

Key Features

  • Light, Trolley Case & Wired Controller
  • Output: 24,620 Lux at 3.3' (Bare, 5600K)
  • 1000-20,000K CCT; Full RGB Color Control
  • +/- 200 Green/Magenta Tint Adjustment
  • 8-Chip Light Engine & AC/DC Operation
  • Onboard, DMX/RDM, CRMX & App Control
  • CRI 96 | TLCI 97
  • IP66 Rating & Bowens Compatibility
  • Includes Yoke & AC Power Cord
  • Includes 25° BE Mount Reflector

View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

Nanlux Evoke 600C Overview

The Evoke 600C RGB LED Spot Light Trolley Case Kit from Nanlux arrives as the ideal choice for a light setup in need of an all-in-one full-color fixture with no external ballast. With a larger body than its 150C version, the 600C itself measures 14 x 9.7 x 8" and weighs 16 lb to offer a native BE mount for standard Bowens compatibility. Developed to accommodate most situations, the light's wide color balance from 1000 to 20,000K is backed by an extensive +/- 200 green/magenta tint-shifting. What is behind this advanced capability is the Nebula C8 8-chip light engine that mixes deep red, red, amber, lime, green, cyan, blue, and indigo LEDs for the most vivid colors. The Evoke 600C permits AC/DC power and features a wide range of reliable control methods—onboard, DMX/RDM, LumenRadio CRMX, app, or using the supplied wired controller. Finally, the Evoke 600C is built around an IP66-rated housing for all-weather protection. Nanlux adds a trolley case that ensures full protection during storage and transportation.

Nanlux Evoke 600C Specs

Light Fixture

• Item Type: 1x LED Spot Light

• Included Light Modifier: 1x Reflector

• Included Storage Case: Yes

• Cooling System: Fan

• Beam Angle: 65° (Unmodified) / 25° (with Reflector)

• Built-In Flash: No

• Preprogrammed Effects: Yes

• Umbrella Mount: No

• Front Accessory Mount: Proprietary

Photometrics

3200K (Unmodified):

• 2055 fc / 22,130 Lux at 3.3' / 1 m

• 233 fc / 2512 Lux at 9.8' / 3 m

• 88 fc / 952 Lux at 16.4' / 5 m

5600K (Unmodified):

• 2287 fc / 24,620 Lux at 3.3' / 1 m

• 255 fc / 2754 Lux at 9.8' / 3 m

• 96 fc / 1042 Lux at 16.4' / 5 m

25° at 3200K (with Reflector):

• 14,723 fc / 158,490 Lux at 3.3' / 1 m

• 1635 fc / 17,610 Lux at 9.8' / 3 m

• 536 fc / 5780 Lux at 16.4' / 5 m

25° at 5600K (with Reflector):

• 17,407 fc / 187,380 Lux at 3.3' / 1 m

• 1934 fc / 20,820 Lux at 9.8' / 3 m

• 632 fc / 6810 Lux at 16.4' / 5 m

Color Performance

• Color Temperature: 1000 to 20,000K

• Color Modes: RGB, Daylight, Tungsten

• CRI: 96

• TLCI: 97

• SSI: 78 (at 5600K), 86 (at 3200K)

• TM-30 Rf: 96

• TM-30 Rg: 100

Dimming

• Control: App / Built-In Dimmer / Controller Included / DMX / RDM

• Range: 0 to 100%

Connectivity

• Wireless Remote Control: Bluetooth, Wireless CRMX, Radio/RF (Remote Not Included)

• Mobile App: Yes (Nanlink, Android & iOS, Remote Control)

Power & I/O

• Power Source: AC Power (Cable Included) / Battery (Not Included)

• Battery: 1x Battery Power Station, 48 VDC (Not Included)

• Input Power: 48 VDC at 12.5 A / 100–240 VAC, 50/60 Hz at 8 A

• Power Consumption: 600 W

• Included Cables:

– 1x USA Type-A/B Plug to Proprietary Cable (19.7' / 6 m)

– 1x Unspecified to Unspecified Cable (26.2' / 8 m)

• Inputs/Outputs:

– 1x Proprietary Power Input (100–240 VAC / 48 VDC)

– 1x Unspecified Remote Input

– 1x XLR 5-Pin DMX Input

– 1x XLR 5-Pin DMX Output

• Inline Switch: No

• Power Pass-Thru: No

Mounting

• Yoke Type: Manually-Operated Yoke

• Fixture Mounting: 1x 1-1/8" Stud with 5/8" Receiver (via Yoke)

• Accessory Mounting: Multiple 1/4"-20 Female Threads, 1x 3/8"-16 Female Thread

General

• Display: Yes

• Environmental Resistance: Dust/Weather/Water-Resistant (IP66)

• Operating Conditions: -4 to 113°F / -20 to 45°C

• Certifications: BIS, CE, FCC-ID, Kcc, NCC, PSE Circle, RoHS, UKCA

Dimensions & Weight

• Fixture: 14 x 9.7 x 8" / 35.6 x 24.6 x 20.3 cm

• Storage Case: 22.23 x 18.11 x 14.57" / 56.46 x 46 x 37.01 cm

• Weight: 16 lb / 7.3 kg (Fixture with Reflector & Yoke)

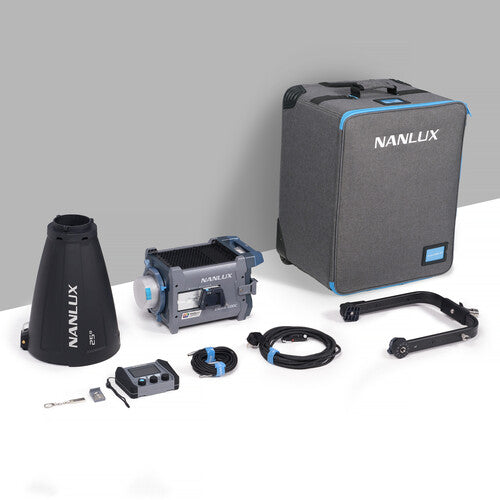

  • Nanlux Evoke 600C RGB LED Spot Light (Trolley Case Kit)
  • Yoke
  • BE Mount Reflector (25°)
  • AC Power Cable (19.6')
  • USB Flash Drive
  • Magnetic Base
  • Wired Controller
  • Connection Cable (26.2')
  • Trolley Case
  • Limited 1-Year Manufacturer Warranty
