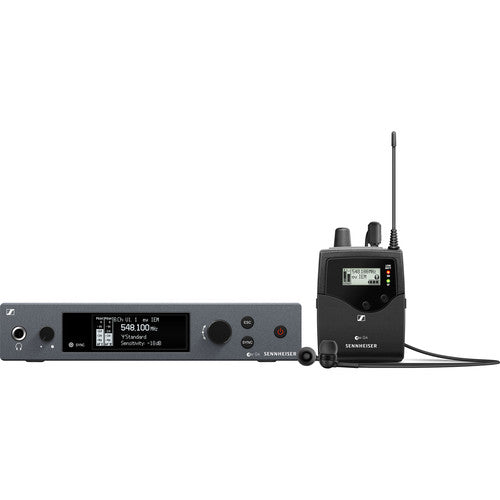

Sennheiser ew IEM G4 Wireless Monitor System

Sennheiser ew IEM G4 Wireless Monitor System

SKU: EW IEM G4-G

Dhs. 3,999.00
Dhs. 3,999.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

In stock
Badge

Key Features

  • For Musicians and Performers
  • EK IEM G4 Stereo Receiver
  • Pair of IE 4 Earphones
  • SR IEM G4 Stereo Transmitter
  • 1680 Selectable Frequencies in UHF Range
  • Up to 16 Compatible Channels
  • 300' Transmission Range
  • Includes GA 3 Rackmount Kit
  • Rod Antenna
  • 2 x AA Batteries
View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

Sennheiser ew IEM G4

Theew IEM G4 Wireless Monitor SystemfromSennheiseris part of the evolution family of wireless monitoring systems and includes an SR IEM G4 transmitter, a EK IEM G4 stereo receiver, a pair of IE 4 earphones, a rod antenna, GA 3 rackmount kit, and two AA batteries. This kit can be used as a rugged, all-in-one wireless in-ear monitoring system for live stage, theater, and house of worship applications. The system provides up to 1680 frequencies tunable in 25 kHz steps to deliver clear, audio without interference and dropouts. Additional transmitters and receivers can be added for up to 16 wireless IEM channels.

Sennheiser ew IEM G4 Specs

• Modulation: Wideband FM

• Frequency Band: 566 to 608 MHz

• Channels & Groups:

 – Max 1680 Receiving Frequencies (25 kHz Steps)

 – 20 Frequency Banks with up to 16 Factory-Preset Channels (No Intermodulation)

 – 6 Frequency Banks with up to 16 Programmable Channels

• Switching Bandwidth: Up to 42 MHz

• Nominal / Peak Deviation: ±24 kHz / ±48 kHz

• Diversity: Adaptive Diversity

• Sensitivity: < 4 μV, Typically 1.6 μV for 52 dBA

• Adjacent Channel Selectivity: ≥ 65 dB (typical)

• Intermodulation Attenuation: ≥ 70 dB (typical)

• Blocking: ≥ 80 dB

• Squelch: 5 to 25 dBμV, Adjustable in 2 dB Steps

• Pilot Tone Squelch: Switchable

• Compandor System: Sennheiser HDX

• Signal-to-Noise Ratio: Approx. 90 dBA

• THD: ≤ 0.9 %

• High Boost: +8 dB at 80 kHz

• Limiter: –18 dB to –6 dB in 6 dB Steps (Switchable)

• Operating Temperature: –13 to 158°F / –10 to +55°C

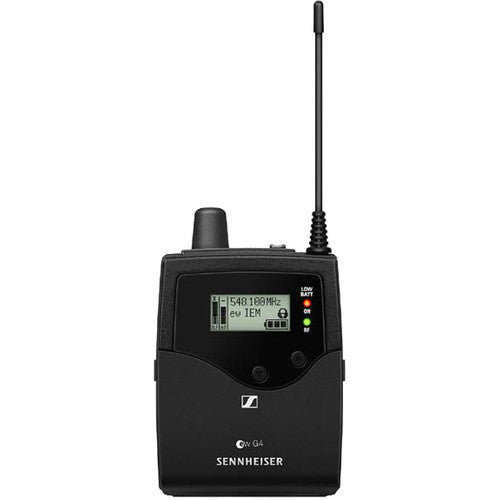

Receiver (Bodypack)

• Power Supply: 2x AA Batteries (1.5 V) or BA 2015 Accupack

• Nominal Voltage: 3 V (Battery), 2.4 V (Rechargeable Battery)

• Power Consumption: Typically 140 mA, ≤ 25 μA (with Transmitter Off)

• Operating Time: Approx. 4 to 6 Hours (Depending on Volume Level)

• Dimensions: 3.2 x 2.5 x 0.9" / 82 x 64 x 24 mm

• Weight: Approx. 4.4 oz / 125 g

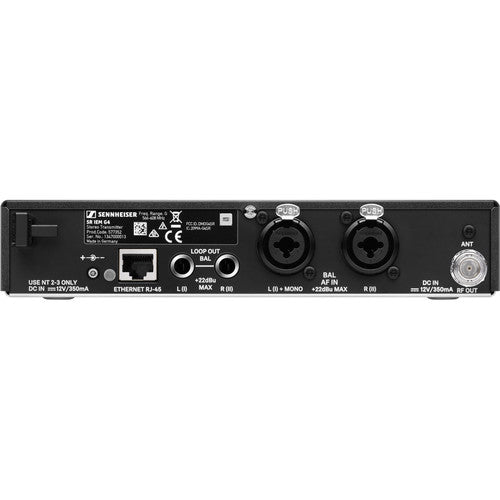

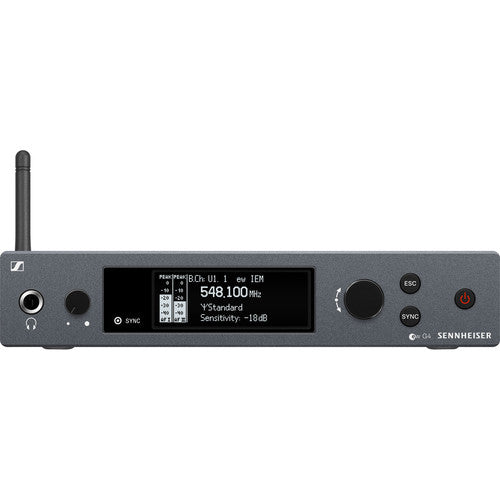

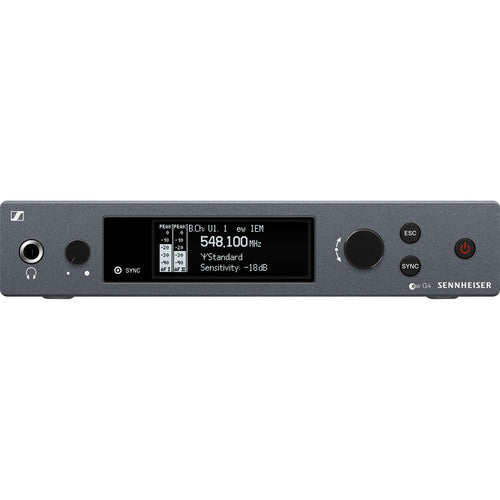

Transmitter (Rack Unit)

• Antenna Output: BNC Socket, 50 Ohms

• MPX Pilot Tone: 19 kHz (±5 kHz)

• Frequency Stability: ±10 ppm

• RF Output Power: Switchable – Low (10 mW), Standard (30 mW), High (50 mW)

• Frequency Response: 25 Hz to 15 kHz

• Inputs: 2x XLR/TRS Combo (Electronically Balanced)

• Max Input Level: +22 dBu

• THD: ≤ 0.9 %

• Signal-to-Noise Ratio: > 90 dB

• AF Output: 1/4" / 6.3 mm Stereo Jack (Balanced)

• Power Supply: 12 VDC

• Power Consumption: Max 350 mA

• Dimensions: 8 x 8.3 x 1.7" / 202 x 212 x 43 mm

• Weight: 2.17 lb / 980 g

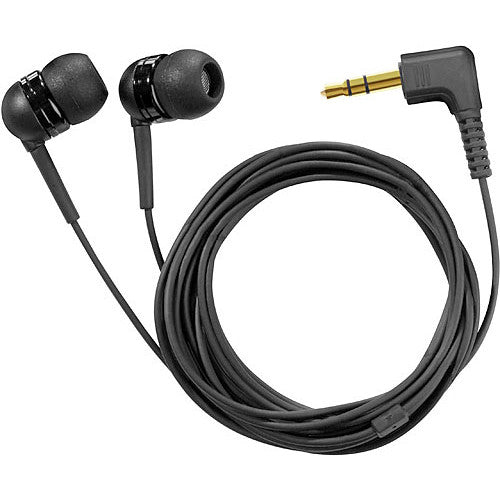

Earphones

• Frequency Range: 40 Hz to 20 kHz

• SPL Level: 118 dB SPL Max

• Impedance: 32 Ohms

• Nominal Impedance: 16 Ohms

• Cable Length: 4.6' / 1.4 m

• Connector: 1/8" / 3.5 mm Gold-Plated

Output Power (System)

• 2 x 100 mW at 32 Ohms (at 2.4 V, 5% THD, Nominal Deviation)

Packaging Info

• Package Weight: 6.19 lb

• Box Dimensions (LxWxH): 16.1 x 14.45 x 3.15"

  • Sennheiser ew IEM G4 Wireless Monitor System
  • Sennheiser EK IEM G4 Stereo Bodypack Receiver with IE 4 Earphones (G: 558 to 608 MHz)
  • Sennheiser SR IEM G4 Stereo Transmitter
  • Limited 2-Year Manufacturer Warranty
