SmallHD INDIE 7 Touchscreen On-Camera Monitor

SmallHD Indie 7 Overview

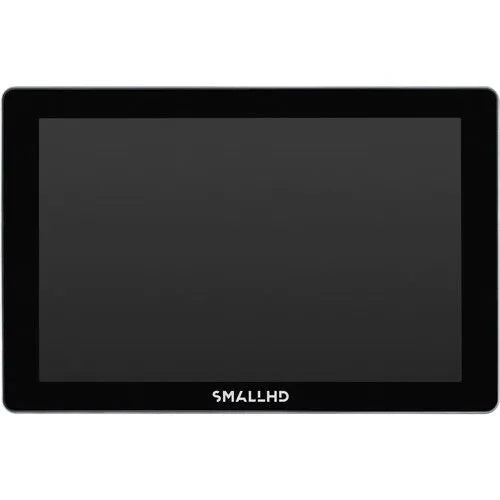

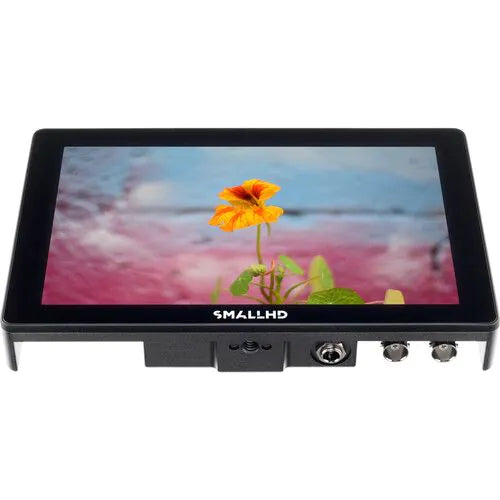

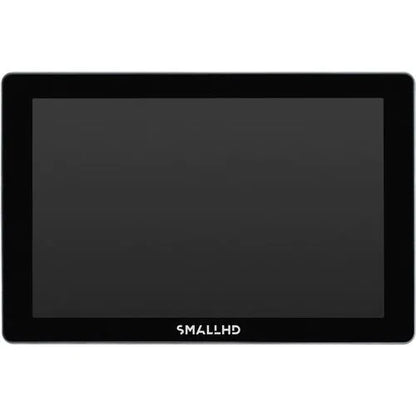

The lightweight INDIE 7 Touchscreen On-Camera Monitor from SmallHD provides professional monitoring in a sharp 7" IPS LCD with 1920 x 1200 resolution, 10-bit color processing, 1000 cd/m² brightness, 1000:1 contrast ratio, touchscreen control, and updated SmallHD PageOS 4 firmware. It features HDMI and 3G-SDI inputs and outputs, and it supports up to UHD 4K video input.

The INDIE 7 is powered using the included L-series battery plate or using the 2mm barrel input with a DC adapter. It can also be powered using separately available Gold mount or V-mount battery plates. An SD card slot allows you to import custom 3D LUTs and a micro-USB port to provide upgrades to the display. Four 1/4"-20 threads allow you to mount the monitor in a variety of configurations. The 3.5mm headphone jack allows you to monitor the embedded audio from the HDMI or 3G-SDI inputs.

Using the intuitive SmallRig PageOS 4, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. It also features a settings dashboard, preconfigured pages and tabs, templates, exposure assist, overlays, function buttons, and numerous improvements, while maintaining all the features of its predecessor, OS3.

Features

Daylight-viewable, 7" touchscreen on-camera monitor with 1000 cd/m² brightnessSlim, lightweight design with 10-bit, touchscreen IPS LCD panelHDMI and 3G-SDI inputs and outputs; supports video input up to UHD 4K30Four 1/4"-20 mounting threads on left, right, bottom, and back of the monitorSmallHD PageOS 4 has all the features of OS3 to organize and save customized function and settings pages as well as a settings dashboard, page tabs, false color overlays, improved function buttons, pixel zoom, focus assist, peaking, and morePower using a barrel input or with the included L-series battery plate, or use a separately available Gold mount or V-mount plateDurable aluminum chassis

Display Tools

Pixel zoom: 2x and 4x with pinch zoomAspect ratios: Preset and customizableDSLR scale: Canon 5D Mk II and Canon 7DCustom scale: Underscan onlyAnamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0xImage flip: Auto and manualImage rotation: Auto and manualCross conversion: HDMI to SDI, SDI to HDMIColor focus assist: Adjustable style and intensityPeaking: Adjustable intensityFalse color: Spectrum, ARRI-style, and customizableZebra: Dual, customizableWaveform: Luma and RGB, customizable with region-of-interest highlightingVectorscopeRGB parade, customizableHistogram: Luma and RGBImage capture, with dedicated button and image galleryCustom LUTs: Load as looks on pages or as system-wide calibration via the settings menuLUT import: Via SD card or USB storage deviceImage overlay: Opacity slider and blink settingImage captureAudio meters: Up to 8 channels

SmallHD Indie 7 Specs

• Panel Type: IPS-Type LCD

• Display Size: 7.02" / 17.8 cm

• Aspect Ratio: 16:9

• Viewing Angle: Horizontal: 160°

• Touchscreen: Yes

• Maximum Brightness: 1000 cd/m²

• Contrast Ratio: 1000:1

• Bit Depth / Color Support: 10-Bit (1.07 Billion Colors)

• Pixels Per Inch (ppi): 323 ppi

• Color Gamut: 75% Rec. 709

• Real-Time LUT Monitoring: SDR, HDR

• Image Controls:

 • Anamorphic De-Squeeze

 • False Color

 • Focus Assist

 • Focus Peaking

 • Histogram

 • Image Flip

 • Image Rotate

 • Pixel Zoom

 • Pixel-to-Pixel Zoom

 • RGB Parade

 • Scaling

 • Vectorscope

 • Waveform

 • Zebra

Connectivity

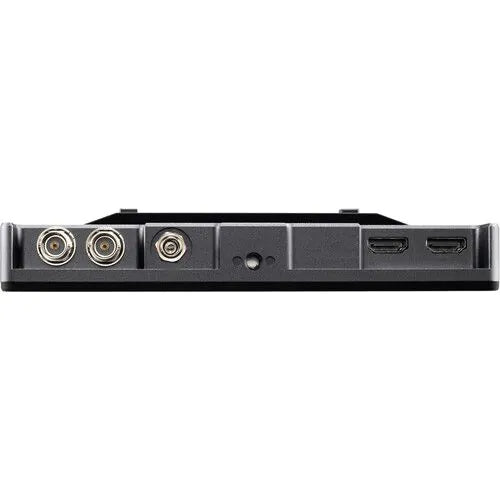

• Video Inputs:

 • 1x HDMI Type A

 • 1x BNC (3G-SDI/HD-SDI)

• Video Outputs:

 • 1x HDMI Type A

 • 1x BNC (3G-SDI/HD-SDI)

• Embedded Audio:

 • HDMI

 • SDI

• Audio Output:

 • 1x 1/8" / 3.5 mm Headphone Output

• Built-In Speaker: None

• Other I/O:

 • 1x USB 2.0 (Micro-USB) Input

Wireless

• Wi-Fi: None

Video Format Support

• HDMI (8/10/12/16-Bit 4:4:4 RGB, YCC):

 • UHD 4K: 30 / 29.97 / 24 / 23.98 fps

 • 1080p: 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps

 • 1080i: 120 / 119.88 / 100 / 60 / 59.94 / 50 fps

 • 720p: 120 / 119.88 / 100 / 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps

 • 576p: 200 / 100 / 50 fps

 • 480p: 240 / 239.76 / 120 / 119.88 / 100 / 60 / 59.94 fps

 • 480i: 240 / 239.76 / 120 / 119.88 / 100 / 60 / 59.94 fps

 • 576i: 200 / 100 / 50 fps

• SDI (10-Bit 4:2:2 YCC):

 • UHD 4K: 30 / 29.97 / 25 / 24 / 23.98 fps

 • 1080p: 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps

 • 1080i: 60 / 59.94 / 50 fps

 • 720p: 60 / 59.94 / 50 fps

 • 576p: 50 / 25 fps

 • 480p: 60 fps

 • 576i: 50 fps

 • 480i: 59.94 fps

Video Signal Conversion

• HDMI to SDI

• SDI to HDMI

Power

• Power Input: 1x Barrel (10 VDC)

• Battery Type: 1x L-Series (Interchangeable Mount)

• Power Consumption: 17.3 W

Mounting

• Mounting Options: 4x 1/4"-20 Female

Environmental

• Certifications: CE, FCC, IC, RoHS (as per manufacturer)

• Operating Temperature: 30 to 100°F / -1 to 37°C

• Storage Temperature: 0 to 120°F / -17 to 48°C

General

• Material of Construction: Aluminum

• Dimensions (W x H x D): 7.09 x 4.67 x 1.32" / 18.01 x 11.86 x 3.35 cm (Including)

• Weight: 26 oz / 737 g (Including)

• Warranty Length: Limited 1-Year Warranty

Packaging Info

• Package Weight: 1.955 lb

• Box Dimensions (L x W x H): 9.4 x 7 x 2.1"

• SmallHD INDIE 7 Touchscreen On-Camera Monitor
• Limited 1-Year Warranty
