Sony

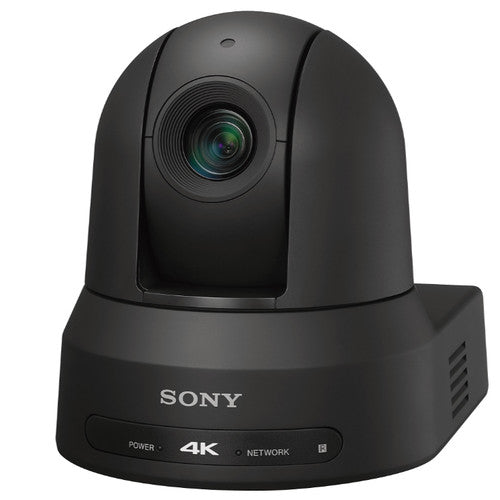

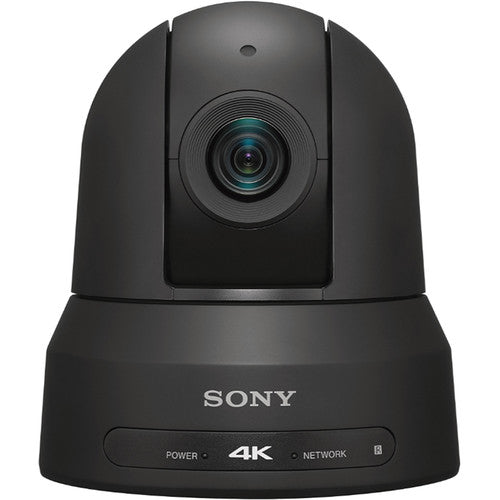

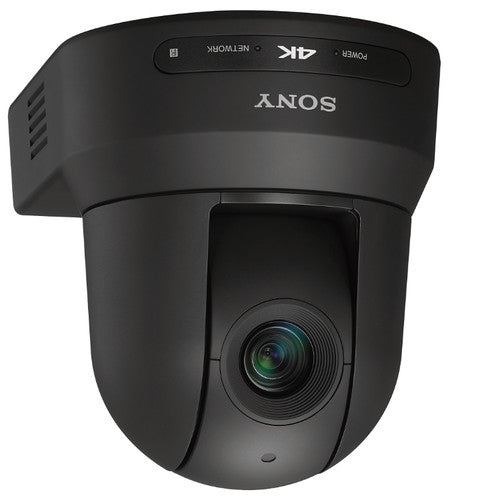

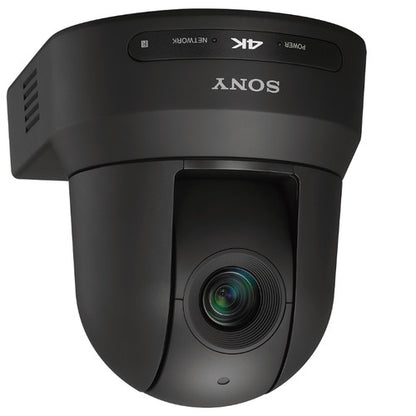

Sony BRC-X400 IP 4K Pan-Tilt-Zoom Camera with NDI/HX capability

Sony BRC-X400 IP 4K Pan-Tilt-Zoom Camera with NDI/HX capability

SKU:SKU BRC-X400

Regular price Dhs. 20,599.00
Regular price Sale price Dhs. 20,599.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

Low stock: 1 left

Badge

Key Features

  • Excellent 4K images, even in low light
  • Up to 80x zoom
  • Support for NDI®|HX
  • Wide viewing angle

View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

Sony BRC-X400 Overview

The Sony BRC-X400 IP 4K Pan-Tilt-Zoom Camera with NDI/HX capability. The versatile BRC-X400 PTZ camera is ideal for use in a wide range of environments - from broadcast studios and remote on-air suites to sports stadiums, arenas, houses of worship and lecture halls.

The camera's 1/2.5-type Exmor R CMOS sensor captures broadcast quality 4K images with excellent sensitivity, very low noise and rich, natural colour reproduction. It's complemented by the integrated high-resolution lens that offers a powerful zoom capability up to 80x in Full HD (30x in 4K), with an expansive 70 degree wide angle coverage to capture every point of view.

Efficient IP-based live production is augmented with support for NDI®|HX* (via optional license), allowing flexible configuration with other networked NDI-enabled devices.

Images also can be reviewing remotely via a web browser, with support for RTSP (Real Time Streaming Protocol) and RTMP** (Real Time Messaging Protocol) ensuring smooth, stable streaming of video plus audio (from an optional microphone, available separately) over an IP network.

Installation and set-up is easy, with a new Scene File function allowing the same settings to be applied to multiple cameras. Convenient integration in multi-camera live events is also simplified with genlock support and an 'on-air' tally lamp.

Sony BRC-X400 Specs

Imaging

• Image Sensor: 1/2.5"-Type CMOS

• Sensor Resolution: Effective 8.5 Megapixel

• Horizontal Resolution: 1700 TV Lines

• IR Cut Filter: Yes

• Focus Control: Autofocus, Manual Focus

• Exposure Control: Shutter Speed 1/10000 to 1 Second

• ISO/Gain Sensitivity: 0 to 48 dB

• Minimum Illumination: 1.6 Lux at 1/30 Shutter Speed

• Flip / Mirror Support: Image Flip

• White Balance: Auto, Indoors, Manual, One Push, Outdoors

Lens

• Focal Length: 4.4 to 88mm

• Max Optical Zoom: 20x

• Max Digital Zoom: 80x (in 1080p)

• Field of View (Horizontal): 70°

• Maximum Aperture: f/2 to 3.8

• Minimum Focus Distance: 3.1" / 8 cm (Wide) to 31.5" / 80 cm (Tele)

Video Capture

• Video Output (HDMI / RJ45):

– 3840 x 2160 at 23.98/25/29.97 fps

– 1920 x 1080p at 23.98/25/29.97/50/59.94 fps

– 1920 x 1080i at 50 fps

– 1280 x 720 at 50/59.94 fps

• Video Output (SDI/BNC):

– 3840 x 2160 at 23.98/25/29.97 fps

– 1920 x 1080p at 23.98/25/29.97/50/59.94 fps

– 1920 x 1080i at 50/59.94 fps

– 1280 x 720 at 50/59.94 fps

• Embedded Audio: HDMI/SDI – 2-Channel

• Audio Recording: AAC LC Audio

• Broadcast Output: NTSC

IP Streaming

• Format: H.264/H.265

• Protocols: RTMP/RTMPS, RTP, RTSP, SRT, TCP, UDP

• Resolution: 640 x 360 to 1920 x 1080 at 59.94p

Control

• Presets: 256 via IP, 100 via VISCA

• Pan Range: 340° (-170° to 170°) at 0.5 to 300°/s

• Tilt Range: 110° (-20° to 90°) at 0.5 to 126°/s

• Tally Light: Yes

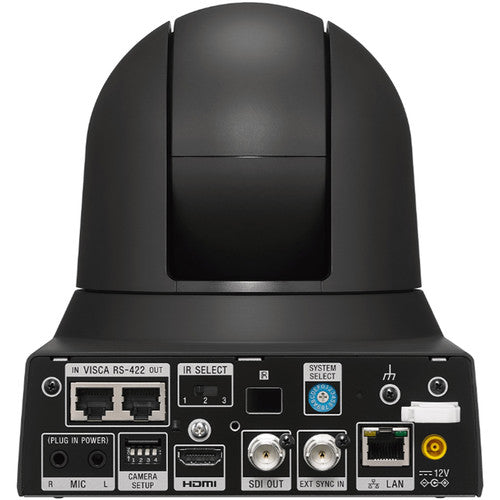

Interface

• Video I/O: 1x BNC (3G-SDI) Output, 1x HDMI Output, 1x RJ45 (NDI) Output

• Audio I/O: 2x 1/8" / 3.5 mm TRS Stereo Mic/Line Input

• Other I/O: 1x BNC (Sync) Input, 1x RJ45 (RS-422, VISCA) Control Input, 1x RJ45 (RS-422, VISCA) Control Output

• Built-In Microphone: No

• Built-In Speaker: No

Power

• PoE Support: PoE+ 802.3at

• Power I/O: 1x Barrel (10.8 to 13.2 VDC) Input

• Power Consumption: PoE 25.5 W, Power Supply 23.8 W

Environmental

• Operating Conditions: 32 to 72°F / 0 to 40°C

• Storage Conditions: -4 to 140°F / -20 to 60°C

• Impact Resistance: No

• Environmental Resistance: No

General

• Mounting: 1x 1/4"-20 Female for Tripod, 4x M3 Female for Bracket/Ceiling

• OS Compatibility: Windows 8 or Later / macOS 10.15 or Later

• Dimensions (W x H x D): 6.24 x 6.99 x 7.88" / 15.84 x 17.75 x 20.02 cm

• Weight: 3.97 lb / 1.8 kg (Body Only)

Packaging Info

• Package Weight: 8.135 lb

• Box Dimensions (LxWxH): 12.8 x 12.7 x 12.2"

  • Sony BRC-X400 4K PTZ Camera with HDMI, IP & 3G-SDI Output (Black)
  • AC Power Adapter
  • IR Remote Commander
  • 2 x Ceiling Brackets
  • Wire Rope
  • 9 x M3x8 Mounting Screws
  • M2.6x6 Screw
  • HDMI Cable Clamp
  • Limited 1-Year Manufacturer Warranty
