Yamaha

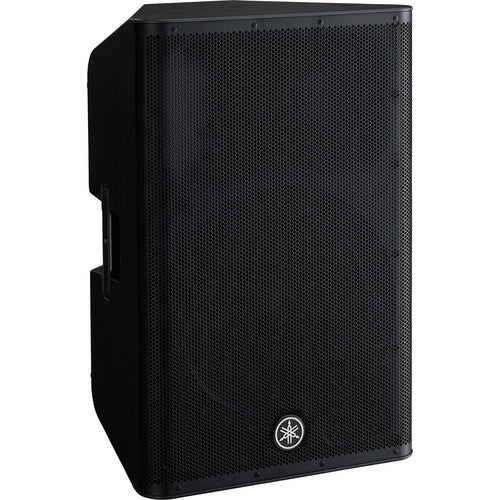

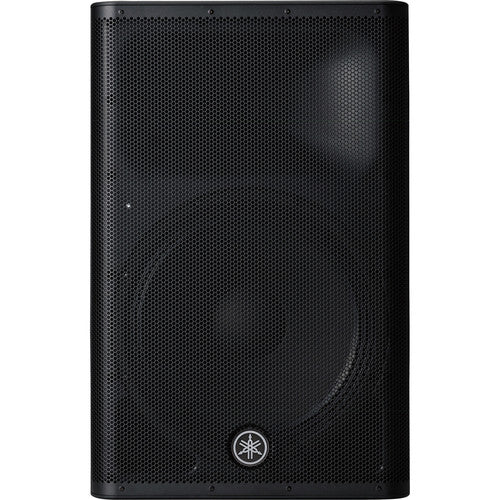

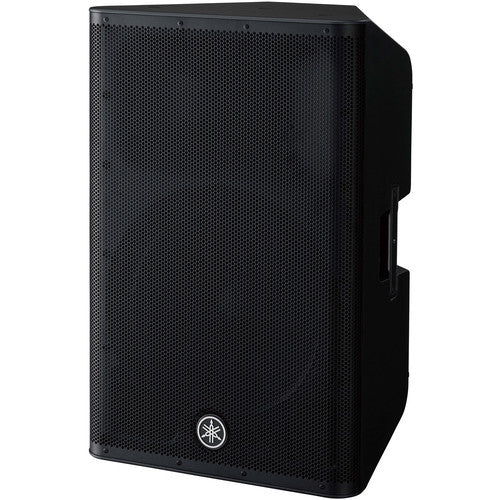

Yamaha DXR15mkII 15" 1100W 2-Way Active Loudspeaker

Yamaha DXR15mkII 15" 1100W 2-Way Active Loudspeaker

SKU:SKU: DXR15MKII

Regular price Dhs. 3,899.00
Regular price Sale price Dhs. 3,899.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

Low stock: 1 left

Badge

Key Features

  • Bass-Reflex ABS Cabinet
  • 15" Woofer
  • 1.75" Compression Tweeter
  • H x V: 90° x 60°
  • Biamplified Class-D Design
  • 1100W Peak Output
  • FIR-X Crossover
  • XLR, 1/4", and RCA Inputs
  • XLR Thru and Output
  • 35mm Tilt Pole Socket and M10Fly Points
View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

Yamaha DXR15MKII Overview

The Yamaha DXR15mkII is a 15" 1100W 2-Way active loudspeaker which provides clear audio and extremely high output levels in an unobtrusive and durable design, ideal for live sound applications that require wide bandwidth audio reproduction. The cabinet has a rugged ABS construction with a bass-reflex design for enhanced bass performance with reduced turbulence. The high-power 15" woofer and 1.75" compression tweeter offer high-resolution audio with a wide frequency response and deep bass. Integrated DSP uses a FIR-X linear phase filter for an ultra-smooth crossover, while the protection circuits optimize and protect driver performance.

The speaker has a biamplified Class-D design that provides a combined peak output power of 1100W for a strong performance with minimal distortion. The integrated D-contour processor allows you to use the speaker as a main/FOH speaker or as a stage monitor. The rear panel has XLR, 1/4", and RCA inputs, as well as XLR thru and output connectors for wide compatibility with a variety of professional sound systems and devices.

The speaker can be placed on a floor or stage, but also has useful mounting options. A dual 35mm pole socket allows you to mount the speaker on top of a subwoofer with horizontal or 7° tilt toward the floor, while M10 fly points allow suspended installation. An optional U-bracket is available separately for wall mounting. The Yamaha DXR15mkII ships with a power cord.

Yamaha DXR15MKII Specs

Configuration

• System Type: Active 2-Way

• Enclosure Type: Bass-Reflex Loudspeaker

• Total Power Capacity: 1100 W Peak / 700 W RMS

• Amplifier Class: Class-D

Amplifier Power Rating

• LF: 950 W Peak / 600 W RMS

• HF: 150 W Peak / 100 W RMS

Drivers

• HF Driver: 1 x 1.75" / 44.45 mm Compression Driver with 1" / 25 mm Throat

• LF Driver: 1 x 15" / 38.1 cm Woofer

• LF Voice Coil: 2.5" / 6.35 cm

• Magnet: HF: Neodymium / LF: Ferrite

Performance

• Frequency Range: 49 Hz to 20 kHz (-10 dB)

• Maximum SPL: 134 dB SPL

• Coverage Angle: 90° H x 60° V (Horn)

Input / Output & Sensitivity

• Line Input Sensitivity: +1 dBu (Max), -13 dBu (Center), +11 dBu (Center), -3 dBu (Center)

• Mic Input Sensitivity: -32 dBu (Max), -22 dBu (Center)

• Max Input Level: Line Input: +24 dBu (Balanced), +16 dBu (Unbalanced); Mic Input: +20 dBu (Balanced)

• Input Impedance: XLR Mic Input: 12 kΩ (Balanced Mono), XLR Line Input: 8 kΩ (Balanced Mono), 1/4" TRS Line Input: 40 kΩ (Unbalanced Stereo), 20 kΩ (Unbalanced Mono)

• Protections: AC Coupling, Crossover Overload, DC Fault

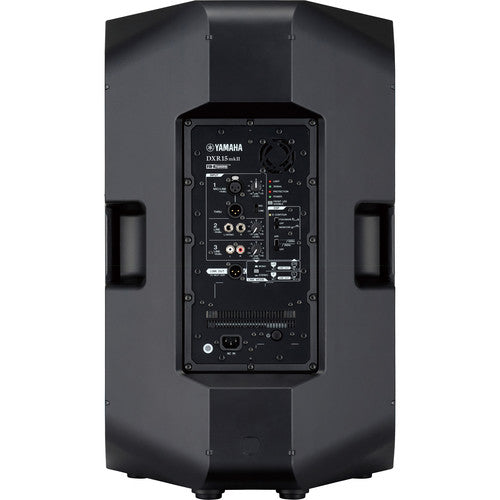

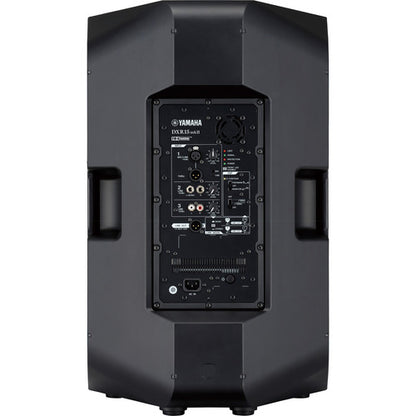

Connectivity

• Audio Inputs: 1x XLR 3-Pin, 2x 1/4" TS, 2x RCA

• Audio Outputs: 1x XLR 3-Pin Thru, 1x XLR 3-Pin Link Output

Signal Processing

• Crossover: 2.1 kHz

• Filters: 2x High-Pass – 100 Hz & 120 Hz, 24 dB/Octave

• Dynamic Processing: Compression, Multiband Limiter

• DSP: 48-Bit FIR Filter, Venue Settings

• Max Sampling Rate: 48 kHz / 24-Bit

Power

• AC Input Power: 100 to 240 VAC, 50 / 60 Hz (Universal)

• AC Power I/O: 1x IEC Input

• Power Consumption: 110 W

Physical

• Mounting: 2 x M10 (Top), 1 x M10 (Rear), 1 x 1.38" / 35 mm Pole Socket (Dual Angle)

• Mounting/Monitor Angle: 50° (Floor Wedge/Monitor)

• Handles: 2x Each Side

• Cooling: Fan (Variable Speed)

• Construction Material: ABS

• Dimensions: 17.5 x 27.6 x 15" / 445 x 700 x 380 mm

• Weight: 48.1 lb / 21.8 kg

Packaging Info

• Package Weight: 57 lb

• Box Dimensions (LxWxH): 33 x 20 x 18"

  • Yamaha DXR15mkII 15" 1100W 2-Way Active Loudspeaker
  • Power Cord
  •  Limited 7-Year Manufacturer Warranty
