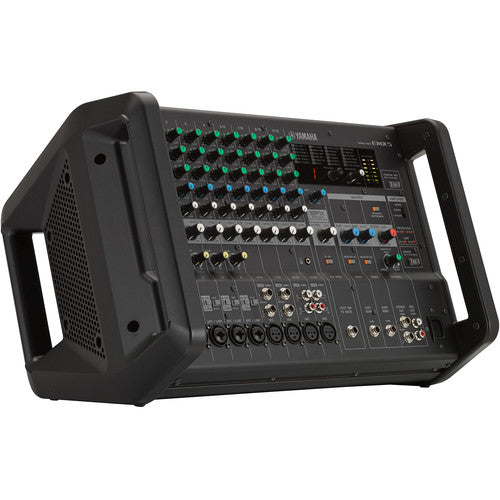

• Yamaha EMX5 12-input powered mixer with built-in amplifier, SPX digital effects, and EQ controls for live sound
1 5

Yamaha

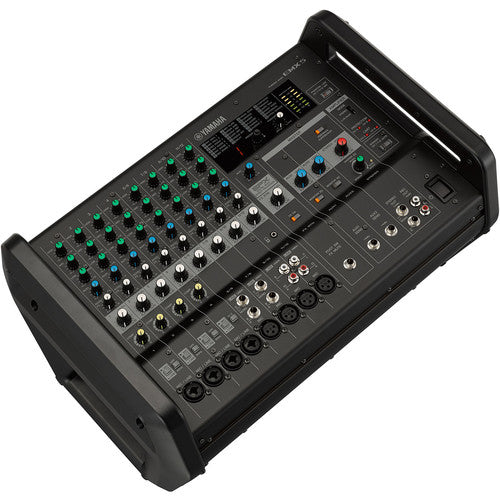

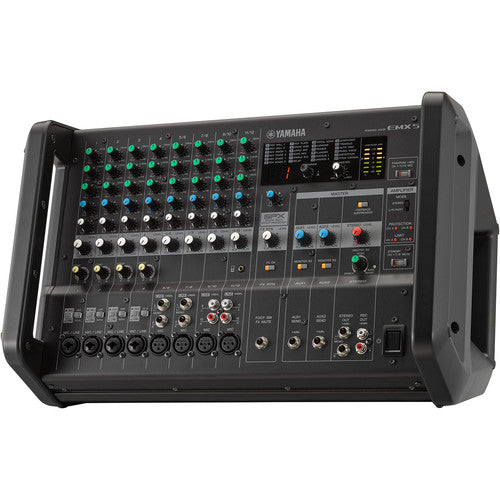

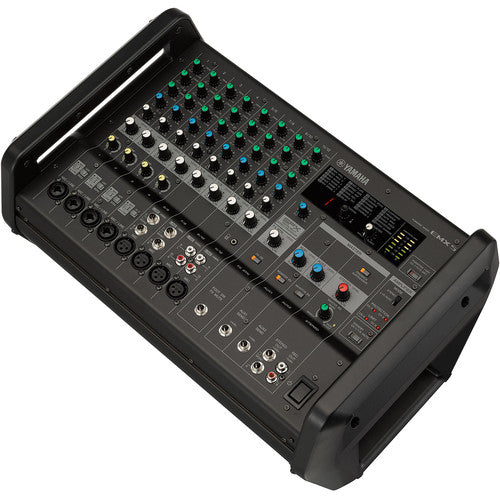

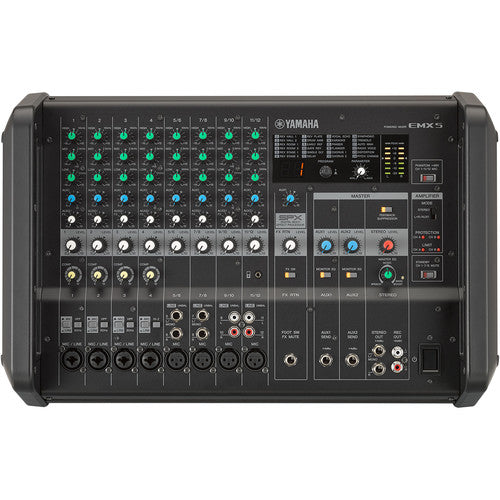

Yamaha EMX 5 12-Input Powered Mixer

Yamaha EMX 5 12-Input Powered Mixer

SKU: EMX5

Dhs. 3,099.00
Dhs. 3,099.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

Low stock: 1 left
Badge

Key Features

  • Integrated 1260W Power Amplifier
  • 8 Mono Mic/Line Inputs
  • Four Stereo Inputs
  • Hi-Z Input on Channel 4
  • Two Aux Sends with Dedicated Outputs
  • 3-Band EQ on Each Channel
  • Master EQ for Music Playback or Speech
  • Integrated Feedback Suppressor
  • Built-In SPX Multi-Effects
  • Compatible with 4- / 8-Ohm Speakers
View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

Yamaha EMX 5 Overview

The Yamaha EMX 5 is a 12-input powered mixer with an integrated 1260W amplifier, eight mic/line inputs, four stereo line inputs, and two Aux sends. The mixer features a Hi-Z guitar input on channel four and each channel offers a 3-band EQ for custom tailoring your sound. Channels 1-4 offer XLR-1/4" combo jacks. Channels 5 through 12 provide mono XLR inputs, with channels 5-8 offering 1/4" inputs and 9-12 offering an additional set of stereo RCA inputs. Channels 11/12 also include an 3.5mm stereo mini-jack for connecting portable music players.

The EMX 5 includes a single-knob compressor on channels 1-4, an integrated feedback suppressor, and a built-in multi-effects processor with SPX series algorithms. Additionally, the mixer offers a Master EQ, which provides a single knob to control the level of low end. At the far left, the speech setting cuts low frequencies, while the middle position is neutral for music playback. The far right setting provides a Bass Boost to enhance music playback. Optional accessories available include a foot switch for effects bypass and a rackmount kit. The EMX 5 ships with a standard IEC power cord.

Yamaha EMX 5 Specs

Connectors

Inputs

• Channels 1–4: 4x Combo XLR-1/4" / 6.35 mm

• Channels 5–6: 1x XLR, 2x 1/4" / 6.35 mm

• Channels 7–8: 1x XLR, 2x 1/4" / 6.35 mm

• Channels 9–10: 1x XLR, 2x RCA

• Channels 11–12: 1x XLR, 2x RCA, 1x 1/8" / 3.5 mm stereo mini-jack

Load Impedance

• Channels 1–4 (XLR Mic/Line): 3 kΩ actual, 50–600 Ω nominal with mics

• Channels 1–4 (1/4" Mic/Line): 8 kΩ, 600 Ω line

• Channel 4 (1/4", Hi-Z Engaged): 1 MΩ actual, 10 kΩ nominal

• Channels 5–12 (XLR): 2 kΩ actual, 50–600 Ω lines nominal

• Channels 5–12 (1/4", RCA, 1/8"): 10 kΩ actual, 600 Ω nominal

Input Levels




  • • Channel 1–4 (XLR, Mic): -60 dBu (0.775 mV)

    • Channel 1–4 (XLR, Line): -30 dBu (24.5 mV)

    • Channel 1–4 (1/4", Mic): -50 dBu (2.45 mV)

    • Channel 1–4 (1/4", Line): -20 dBu (77.5 mV)

    • Channel 4 (Hi-Z Engaged, Mic): -50 dBu (2.45 mV)

    • Channel 4 (Hi-Z Engaged, Line): -20 dBu (77.5 mV)

    • Channels 5–12 (XLR): -60 dBu (0.775 mV)

    • Channels 5–8 (1/4"): -20 dBu (77.5 mV)

    • Channels 9–12 (RCA, 1/8"): -8 dBu (316 mV)



  • • Channels 1–4 (XLR, Mic): -43 dBu (5.48 mV)

    • Channels 1–4 (XLR, Line): -13 dBu (173 mV)

    • Channels 1–4 (1/4", Mic): -33 dBu (17.3 mV)

    • Channels 1–4 (1/4", Line): -3 dBu (548 mV)

    • Channel 4 (Hi-Z Engaged, Mic): -33 dBu (17.3 mV)

    • Channel 4 (Hi-Z Engaged, Line): -3 dBu (548 mV)

    • Channels 5–12 (XLR, 1/4", RCA, 1/8"): -3 dBu (548 mV)



  • • Channels 1–4 (XLR, Mic): -15 dBu (138 mV)

    • Channels 1–4 (XLR, Line): +15 dBu (4.36 V)

    • Channels 1–4 (1/4", Mic): -5 dBu (436 mV)

    • Channels 1–4 (1/4", Line): +25 dBu (13.8 V)

    • Channel 4 (Hi-Z Engaged, Mic): -5 dBu (436 mV)

    • Channel 4 (Hi-Z Engaged, Line): +20 dBu (7.75 V)

    • Channels 5–12 (XLR, 1/4", RCA, 1/8"): +25 dBu (13.8 V)

Analog Outputs

• Stereo Out (L/R): 2x 1/4" / 6.35 mm balanced, 600 Ω

• Aux Sends (1/2): 2x 1/4" / 6.35 mm balanced, 600 Ω

• Rec Out (L/R): 2x RCA unbalanced, 600 Ω

• Output Levels: Stereo / Aux: +4 dBu nominal, +20 dBu max; Rec Out: -10 dBV nominal, +18 dBV max

Loudspeaker Outputs

• Connectors: Neutrik speakON NL4, 1/4" / 6.35 mm phone jack

• Impedance: < 0.1 Ω actual source impedance, compatible with 4 Ω or 8 Ω speakers

• Output Level:





General Specifications

• Output Power: 630 W + 630 W (4 Ω) / 460 W + 460 W (8 Ω) @ 1 kHz THD+N < 10%

• Frequency Response:









Input Channels: Mono (Mic/Line) 8, Stereo (Line) 4 → Total 12

Output Channels: Speakers A/B, Aux 1, Aux 2, Stereo Out L/R, Rec Out L/R

Bus: Stereo 1, Aux 2 (including FX)

Pad: Channels 1–4: 30 dB

Hi-Z Input: Channel 4 Supported

HPF: Channels 1–3: 80 Hz, -12 dB/oct

EQ Section: High 10 kHz ±15 dB, Mid 2.5 kHz ±15 dB, Low 100 Hz ±15 dB

Compressor: Single-knob compressor

Audio Level Meter: 7 points (-20 → Peak)

Built-in Effects: SPX Algorithm, 24 programs

Output Channel Functions: Master EQ (Speech → Music), Monitor EQ, Feedback Suppressor

Phantom Power: +48 V

Footswitch Input: Effect mute on/off

Protection: Load (DC fault), Amplifier (overheat, overcurrent, power), Power Supply (overheat, overcurrent)

Power

• Requirements: 100–240 VAC, 50/60 Hz

• Consumption: 42 W (Idle) / 210 W (1/8 Power)

Operating Temperature: 32–104°F / 0–40°C

Physical

• Dimensions: 18.3 x 12.1 x 12.8" / 464.8 x 307.3 x 325.1 mm

• Weight: 20.9 lb / 9.5 kg

Packaging Info

• Package Weight: 25.4 lb

• Box Dimensions: 22 x 15 x 14"

  • Yamaha EMX 5 12-Input Powered Mixer
  •  Limited 1-Year Manufacturer Warranty
