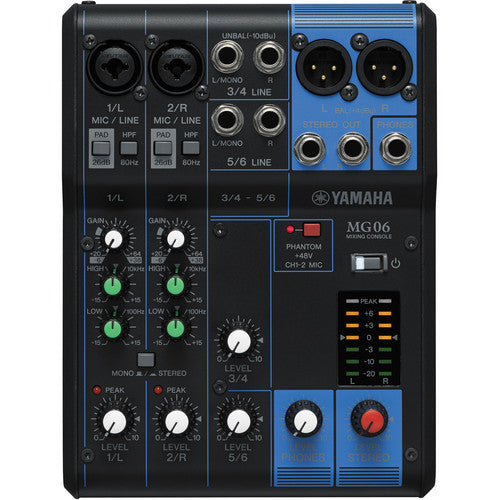

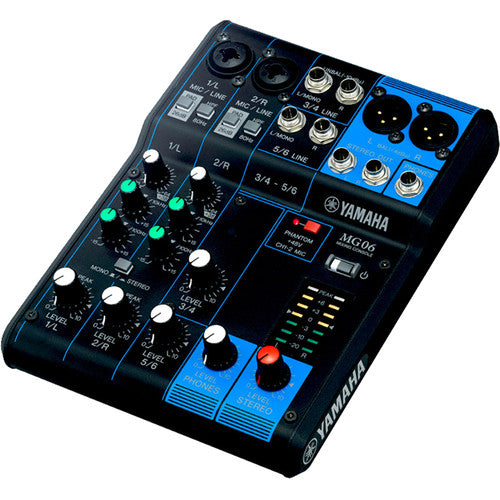

• Yamaha MG06 6-input compact analog mixing console with D-PRE microphone preamps and rotary controls
1 4

Yamaha

Yamaha MG06 6-Input Mixer

Yamaha MG06 6-Input Mixer

SKU: MG06

Dhs. 619.00
Dhs. 619.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

Low stock: 1 left
Badge

Key Features

  • 2 x XLR-1/4" Combo Mic/Line Inputs
  • 2 x 1/4" Line Stereo Inputs
  • XLR & TRS 1/4" Stereo Outs
  • D-PRE Mic Preamps with 48V Phantom
  • PAD Switch on Mic/Line Inputs
  • HPF & 2-Band EQ on Mic/Line Inputs
  • 1/4" Headphone Output with Level Control
  • Metal Chassis
View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

Yamaha MG06 Overview

The MG06 from Yamaha is a compact six-input mixer for small performances, lectures, recordings, and similar applications. The mixer features two XLR-1/4" combo mic/line inputs with D-PRE mic preamps as well as two 1/4" stereo line inputs with level controls.

Each of the two mic/line inputs is equipped with a 2-band EQ and a high-pass filter. The D-PRE mic preamps feature an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. They also each feature 26 dB attenuation switches for recording loud sound sources such as guitar amplifiers.

The MG06 mixer has stereo XLR and 1/4" outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring.

Yamaha MG06 Specs

Mixer / Audio Interface

Input Channels

• 2 x XLR-1/4" Combo (Mic/Line)

• 2 x 1/4" / 6.3 mm Stereo (Line)

• Phantom Power: +48 V Switchable (Channels 1, 2)

Output Channels

• 2 x XLR Stereo

• 2 x 1/4" / 6.3 mm Stereo

• 1 x 1/4" / 6.3 mm Headphone

Bus

• 1 x 1/4" / 6.3 mm Stereo

Pad

• 26 dB (Mono Channels)

High-Pass Filter (HPF)

• 80 Hz, 12 dB/Oct (Mono Channels)

Equalizer

• EQ High (Mono Channels): ±15 dB, 10 kHz Shelving

• EQ Low (Mono Channels): ±15 dB, 100 Hz Shelving

LED & Metering

• LED: Turns on when post-EQ signal reaches 3 dB below clipping

• Level Metering: 2 x 7-Segment LED (Peak, +6, +3, 0, -3, -10, -20 dB)

Performance

• Total Harmonic Distortion (THD):

 – 0.01% @ +8 dBu (20 Hz–20 kHz, Gain Min)

 – 0.003% @ +18 dBu (1 kHz, Gain Min)

• Frequency Response: 20 Hz – 20 kHz ±0.5 dB (Refer to Nominal Output Level @ 1 kHz, Gain Min)

• Equivalent Input Noise (EIN): -128 dBu (Mono Input Channel, Rs: 150 Ω, Gain Max)

• Residual Output Noise: -102 dBu (Stereo Out, Stereo Level Knob Min)

• Crosstalk: -88 dB

Power

• PA-130: 12 VDC / 1 A, 120 VAC, 60 Hz

• MU18: 12 VDC / 1.5 A, 100–240 VAC, 50/60 Hz

• Power Consumption: 12 W

Physical

• Dimensions (W x H x D): 5.9 x 2.4 x 7.9" / 149 x 62 x 202 mm

• Net Weight: 1.98 lb / 0.9 kg

  • Yamaha MG06 6-Input Mixer
  • AC Adapter
  • Limited 1-Year Manufacturer Warranty

At AVTstore, we're committed to delivering your orders swiftly and securely across the GCC countries . Please take a moment to review our shipping policy for important details on delivery options, shipping fees, and timelines.

1. Delivery Coverage

  • We proudly ship across the UAE and GCC countries, offering fast and reliable delivery on photography, video, audio, and professional production equipment. Shop with confidence and get your gear delivered wherever you are.

2. Shipping Fees

  • Free Delivery on all orders above AED 250 within the UAE.
  • For orders below AED 250, a shipping fee will be calculated at checkout based on your location.
  • For orders shipped outside the UAE, including GCC countries, shipping charges are calculated based on the weight, dimensions, and destination of the order and will be displayed at checkout prior to payment.

3. Estimated Delivery Time

  •  UAE Deliveries: Expect your order to arrive within 1-2 business day, excluding weekends and public holidays.
  • GCC Countries: Estimated delivery time is 3–5 business days from the date of dispatch, depending on the destination, carrier schedules, and customs clearance requirements.

 Please note: Delivery times are subject to product availability and order verification.

4. Customs, Duties & Taxes

  • Orders shipped to GCC countries may be subject to customs duties, VAT, import taxes, and other regulatory charges imposed by the destination country’s authorities.

Please note that such charges:

* Are not included in the product price or shipping fees
* Are assessed by the relevant customs and tax authorities of the destination country
* Must be borne by the recipient

AVTstore neither determines nor collects these charges and is unable to provide estimates. Customers are responsible for ensuring compliance with local import regulations and are encouraged to contact their local customs authority for detailed information prior to placing an order.

5. Order Processing Timeline

  • Orders placed on business days before 12 PM are processed the same day.
  •  Orders placed after 12 PM, or on weekends/public holidays, will be processed on the next business day.
  • Once confirmed, you'll receive an order summary and tracking details via email.

6. Trusted Shipping Partners

  • We work with top-tier courier services such as DHL, Aramex, and other local logistics providers to ensure fast, safe, and reliable delivery of your orders.

7. Tracking Your Order

  • As soon as your package ships, you'll receive a tracking number via email, so you can follow its journey right to your doorstep.

8. Missed Deliveries

  • If delivery fails due to an incorrect address or the recipient being unavailable, the courier may attempt redelivery. Please note: Additional fees may apply for reshipping.

9. Damaged or Lost Packages

  • In the rare case your order arrives damaged or goes missing, contact us immediately at sales@avtstore.com or call +971 562602066. We'll coordinate with our courier partners to resolve the issue swiftly.

10. Cancelling or Modifying Orders

  • Need to make a change?
    You may cancel or modify your order within 12 hours of placing it. After that, once the order is processed and shipped, changes or cancellations are no longer possible.

11. Special Delivery Requests

  • Have specific delivery instructions?

Simply include them in the "Order Notes" section during checkout - we'll do our best to accommodate your preferences.

Need Help?
We're here to assist you!
For any shipping related questions or concerns, please reach out to our customer support team:

Your satisfaction is our priority,  Thank you for choosing AVTstore.

Description ▾

Yamaha MG06 Overview

The MG06 from Yamaha is a compact six-input mixer for small performances, lectures, recordings, and similar applications. The mixer features two XLR-1/4" combo mic/line inputs with D-PRE mic preamps as well as two 1/4" stereo line inputs with level controls.

Each of the two mic/line inputs is equipped with a 2-band EQ and a high-pass filter. The D-PRE mic preamps feature an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. They also each feature 26 dB attenuation switches for recording loud sound sources such as guitar amplifiers.

The MG06 mixer has stereo XLR and 1/4" outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring.

Technical Specification ▾

Yamaha MG06 Specs

Mixer / Audio Interface

Input Channels

• 2 x XLR-1/4" Combo (Mic/Line)

• 2 x 1/4" / 6.3 mm Stereo (Line)

• Phantom Power: +48 V Switchable (Channels 1, 2)

Output Channels

• 2 x XLR Stereo

• 2 x 1/4" / 6.3 mm Stereo

• 1 x 1/4" / 6.3 mm Headphone

Bus

• 1 x 1/4" / 6.3 mm Stereo

Pad

• 26 dB (Mono Channels)

High-Pass Filter (HPF)

• 80 Hz, 12 dB/Oct (Mono Channels)

Equalizer

• EQ High (Mono Channels): ±15 dB, 10 kHz Shelving

• EQ Low (Mono Channels): ±15 dB, 100 Hz Shelving

LED & Metering

• LED: Turns on when post-EQ signal reaches 3 dB below clipping

• Level Metering: 2 x 7-Segment LED (Peak, +6, +3, 0, -3, -10, -20 dB)

Performance

• Total Harmonic Distortion (THD):

 – 0.01% @ +8 dBu (20 Hz–20 kHz, Gain Min)

 – 0.003% @ +18 dBu (1 kHz, Gain Min)

• Frequency Response: 20 Hz – 20 kHz ±0.5 dB (Refer to Nominal Output Level @ 1 kHz, Gain Min)

• Equivalent Input Noise (EIN): -128 dBu (Mono Input Channel, Rs: 150 Ω, Gain Max)

• Residual Output Noise: -102 dBu (Stereo Out, Stereo Level Knob Min)

• Crosstalk: -88 dB

Power

• PA-130: 12 VDC / 1 A, 120 VAC, 60 Hz

• MU18: 12 VDC / 1.5 A, 100–240 VAC, 50/60 Hz

• Power Consumption: 12 W

Physical

• Dimensions (W x H x D): 5.9 x 2.4 x 7.9" / 149 x 62 x 202 mm

• Net Weight: 1.98 lb / 0.9 kg

In the Box ▾
  • Yamaha MG06 6-Input Mixer
  • AC Adapter
  • Limited 1-Year Manufacturer Warranty
