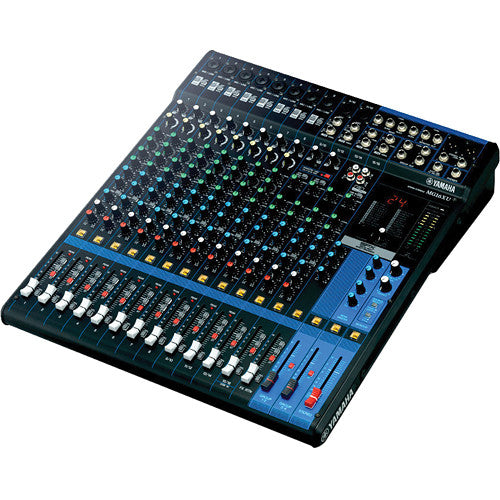

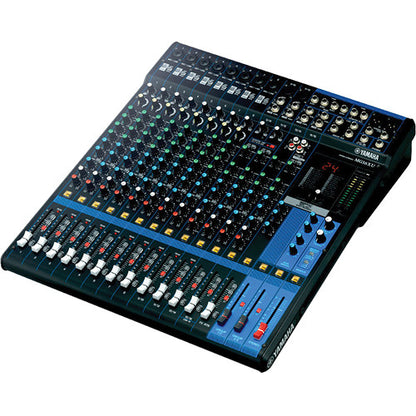

Yamaha MG16XU - 16-Input Mixer with Built-In FX and 2-In/2-Out USB Interface

Yamaha MG16XU - 16-Input Mixer with Built-In FX and 2-In/2-Out USB Interface

SKU: MG16XU

Dhs. 2,599.00
Dhs. 2,599.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

Low stock: 1 left
Badge

Key Features

  • 10x Mic Inputs
  • 16x Line Inputs
  • 2-In/2-Out USB Up to 24-bit / 192kHz
  • Built-In FX with 24 Presets
  • XLR and TRS 1/4" Stereo Outs
  • Four Group Buses & Four Aux Sends
  • "D-PRE" Mic Preamps with 48V Phantom
  • HPF & 3-Band EQ on Channels 1-8
  • 1/4" Headphone Output with Level Control
  • PAD & 1-Knob Compressor on Channels 1-8
View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

Yamaha MG16XU

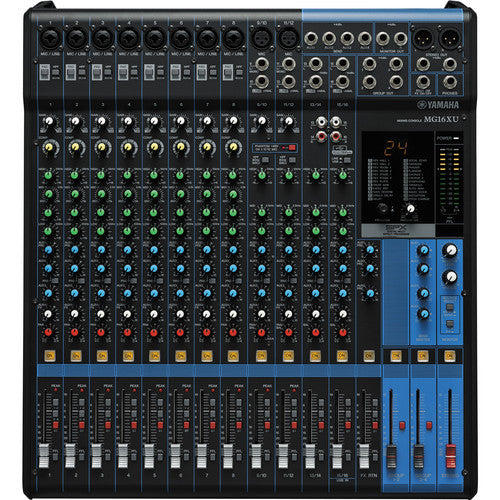

The MG16XU from Yamaha is a compact mixer capable of sixteen simultaneous inputs that is ideal for performances, recordings lectures and more. The mixer features eight mono mic/line combo input channels, two stereo line input channels that can also be used as mono mic or line inputs (XLR and stereo 1/4" inputs), and two stereo line inputs with 1/4" and RCA jacks. It also features USB connectivity and is capable of providing two channels in and two channels out to your computer at up to 24-bit / 192kHz, ideal for recording live performances, demos and more.

Channels 1-12 are each equipped with D-PRE mic preamps, 3-band EQ, pan control and a high-pass filter. The D-PRE mic preamps feature an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. Channels 1-8 each also feature 26dB attenuation switches for use with loud sound sources such as guitar amplifiers and drums.

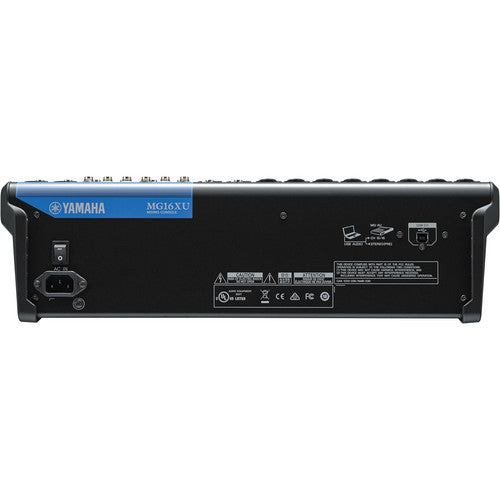

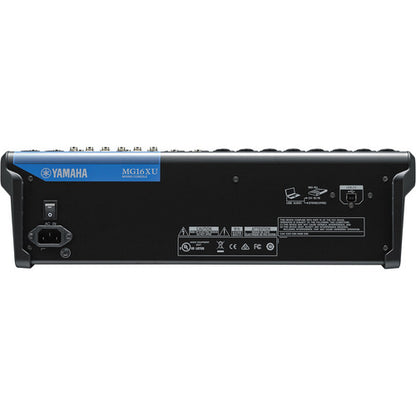

The MG16XU mixer has XLR and TRS stereo outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring, as well as additional TRS 1/4" stereo monitor outs for sending to powered speakers, amplifiers or devices such as digital recorders.

Each of the MG16XU's channels feature a dedicated FX bus send level and there are 24 effects presets to choose from. The overall level of the FX bus is controlled by the dedicated FX return level control. Providing reverbs, delays, phaser, flanger, chorus, tremolo, auto-wah, distortion and more, these effects can be used to help vocals and instruments sit better in your mix.

Yamaha MG16XU Specs

• Built-in Effects: SPX algorithm: 24 programs, PARAMETER control: 1, FOOT SW: 1 (FX RTN CH on/off)

• Phantom Power: +48 V switchable, channels 1–12

• Digital I/O: USB Audio Class 2.0 compliant

• Sampling Frequency: Max 192 kHz

• Bit Depth: 24-bit

• Input Channels: 8x mono [mic/line]

• Input Channels: 2x mono/stereo [mic/line]

• Input Channels: 2x stereo [line]

• Output Channels: 2x stereo out

• Output Channels: 1x monitor out

• Output Channels: 1x headphone out

• Output Channels: 4x aux out

• Output Channels: 4x group out

• Bus: Stereo: 1

• Bus: AUX: 4

• Bus: GROUP: 4

• Pad (Mono Inputs): 26 dB

• HPF (High-Pass Filter): 80 Hz, 12 dB/oct (MIC only on mono/stereo)

• Compressor Threshold: +22 dBu to -8 dBu

• Compressor Ratio: 1:1 to 4:1

• Compressor Output Level: 0 dB to 7 dB

• Compressor Attack Time: Approx. 25 ms

• Compressor Release Time: Approx. 300 ms

• EQ High Gain: ±15 dB, Frequency: 10 kHz shelving

• EQ Mid Gain: ±15 dB

  - Mono: 250 Hz – 5 kHz peaking

  - Stereo: 2.5 kHz peaking

• EQ Low Gain: ±15 dB, Frequency: 100 Hz shelving

• LED Indicator: Peak LED lights when post-EQ signal reaches 3 dB below clipping

• Total Harmonic Distortion (THD):

  - 0.03% @ +14 dBu (20 Hz to 20 kHz), GAIN Min

  - 0.005% @ +24 dBu (1 kHz), GAIN Min

• Frequency Response: +0.5 dB / -1.5 dB (20 Hz to 48 kHz), referenced @ 1 kHz, GAIN Min

• Equivalent Input Noise (EIN): -128 dBu (Rs: 150 Ω, GAIN Max)

• Residual Output Noise: -102 dBu (STEREO OUT, Master Fader Min)

• Crosstalk: -78 dB

• Power Requirement: AC 100–240 V, 50 / 60 Hz

• Power Consumption: 30 W

• Dimensions (W x H x D): 17.5 x 5.1 x 19.7 inches (444 x 130 x 500 mm)

• Net Weight: 15.0 lb (6.8 kg)

• Package Weight: 20 lb

• Box Dimensions (L x W x H): 22 x 20.25 x 8.4 inches

  • Yamaha MG16XU - 16-Input Mixer with Built-In FX and 2-In/2-Out USB Interface
  • AC Adapter
  • Rack-Mount Kit
  •  Limited 1-Year Manufacturer Warranty
